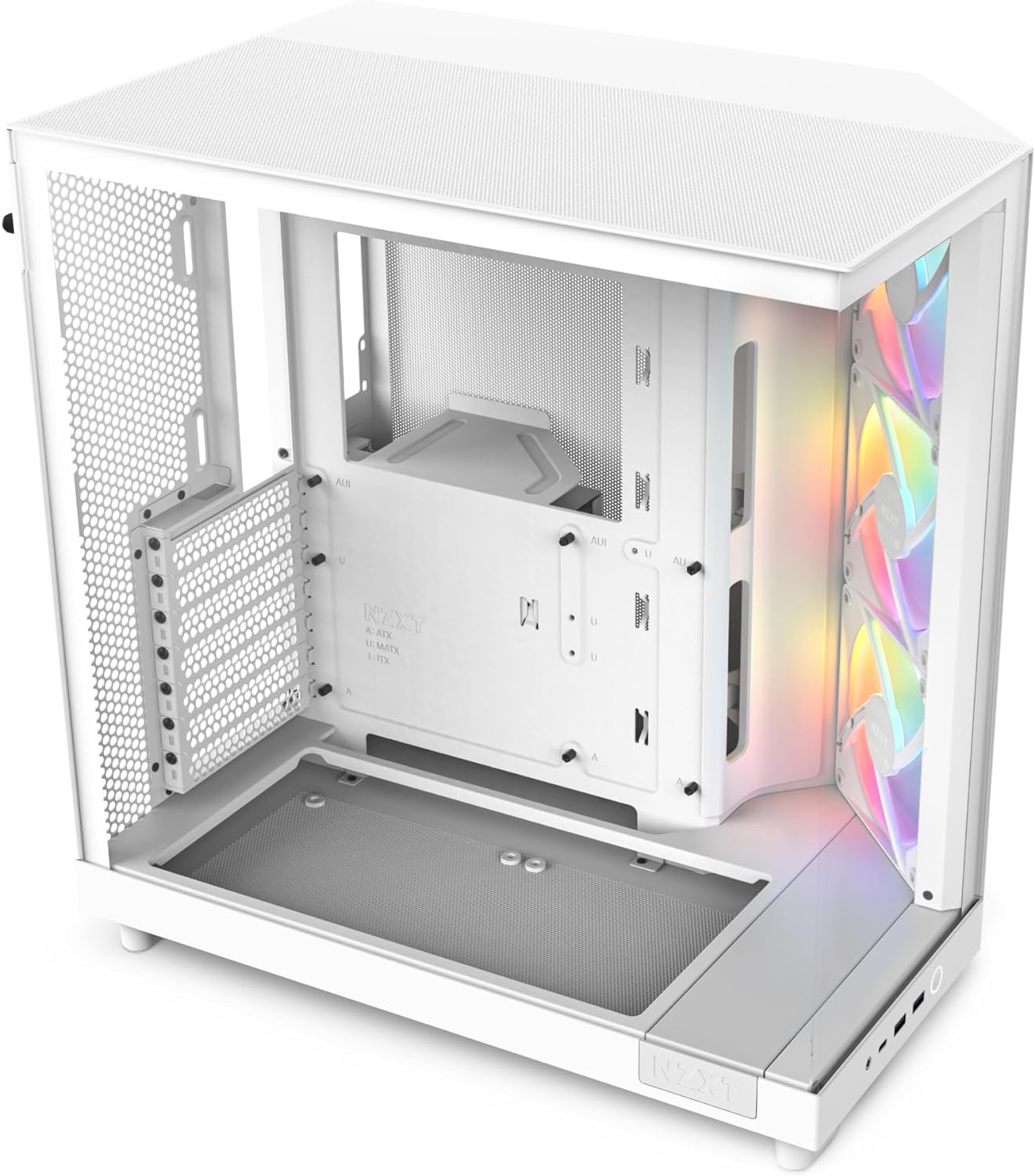

NZXT H6 FLOW RGB Compact Dual-Chamber Mid-Tower Airflow Case, White, CC-H61FW-R1

About this item

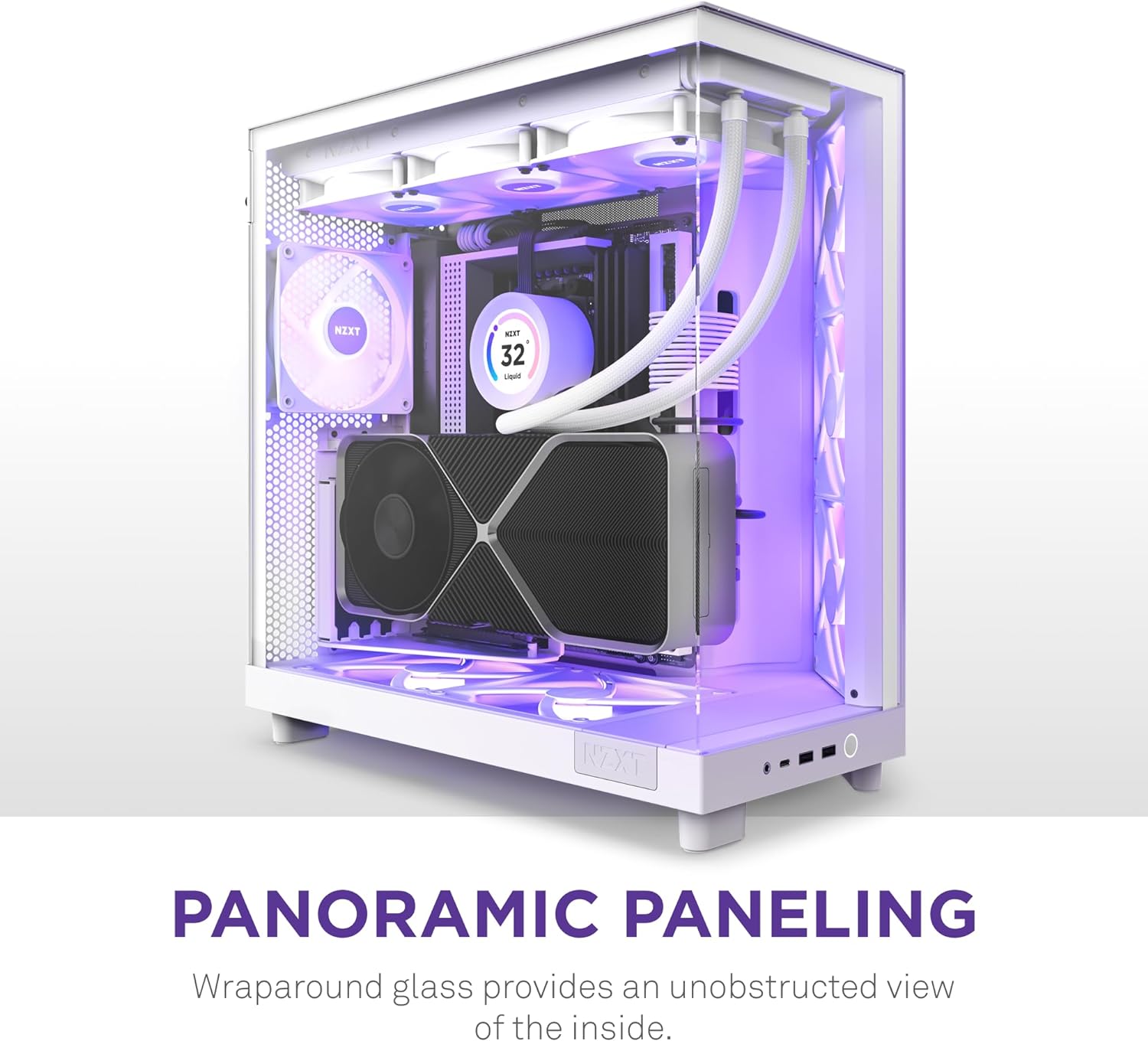

• Wraparound glass panels with a seamless edge provides an unobstructed view of the inside to highlight key components.

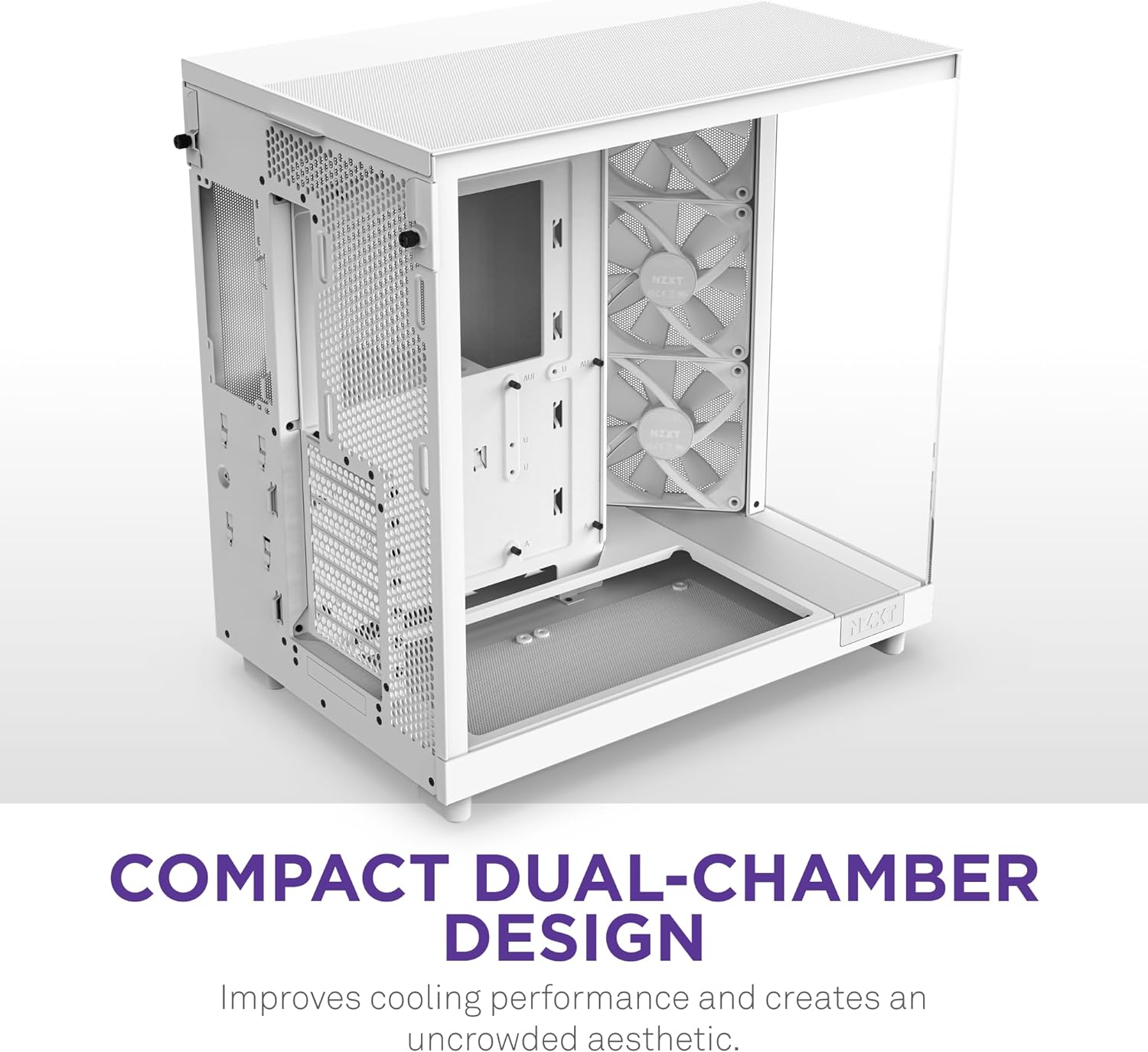

• Compact dual-chamber design improves overall thermal performance and creates a clean, uncrowded aesthetic.

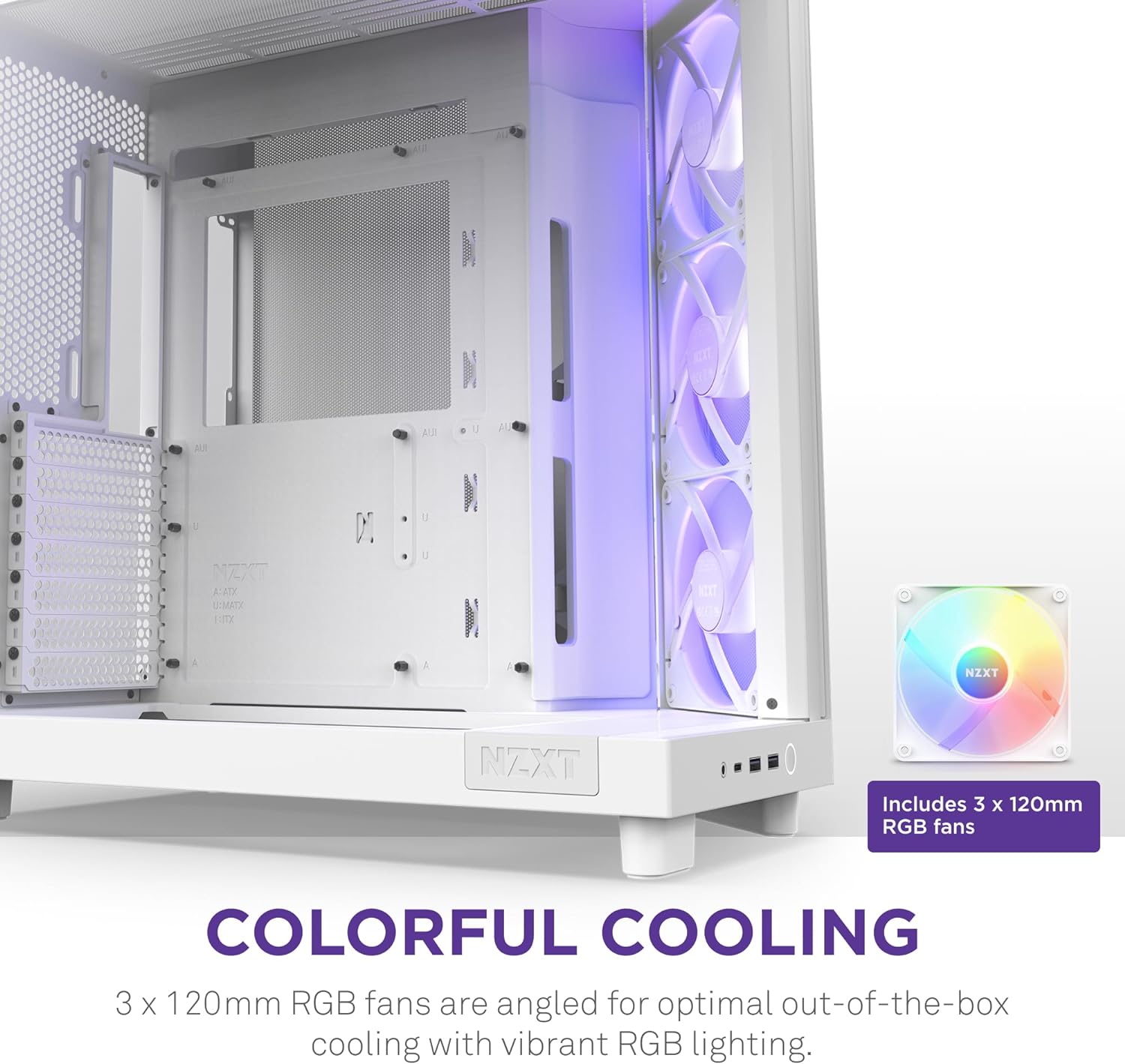

• Includes three pre-installed 120mm RGB fans positioned at an ideal angle for optimal out-of-the-box cooling and vibrant RGB lighting.

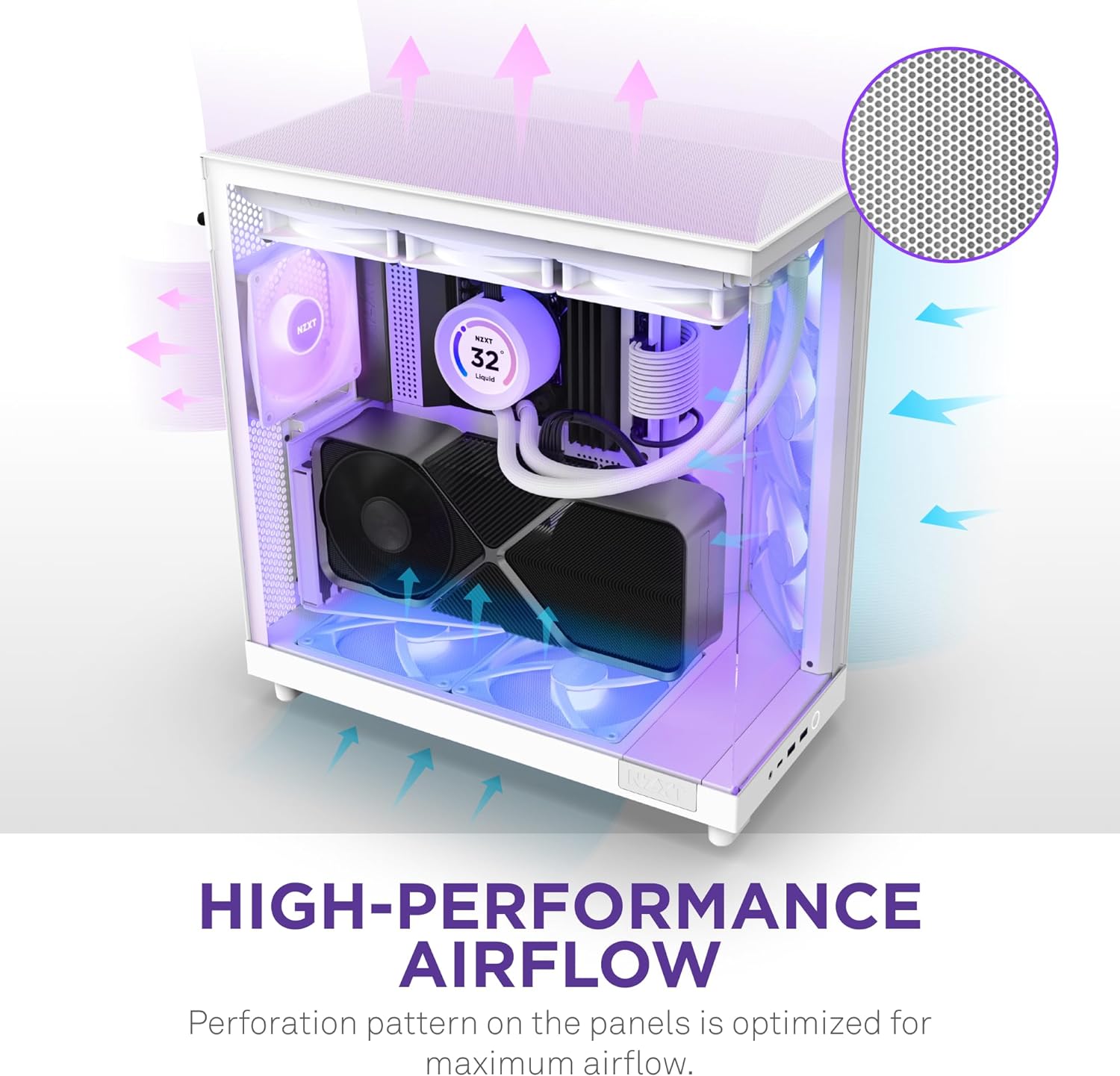

• The top and side panels feature an airflow-optimized perforation pattern to enhance overall performance and filter dust.

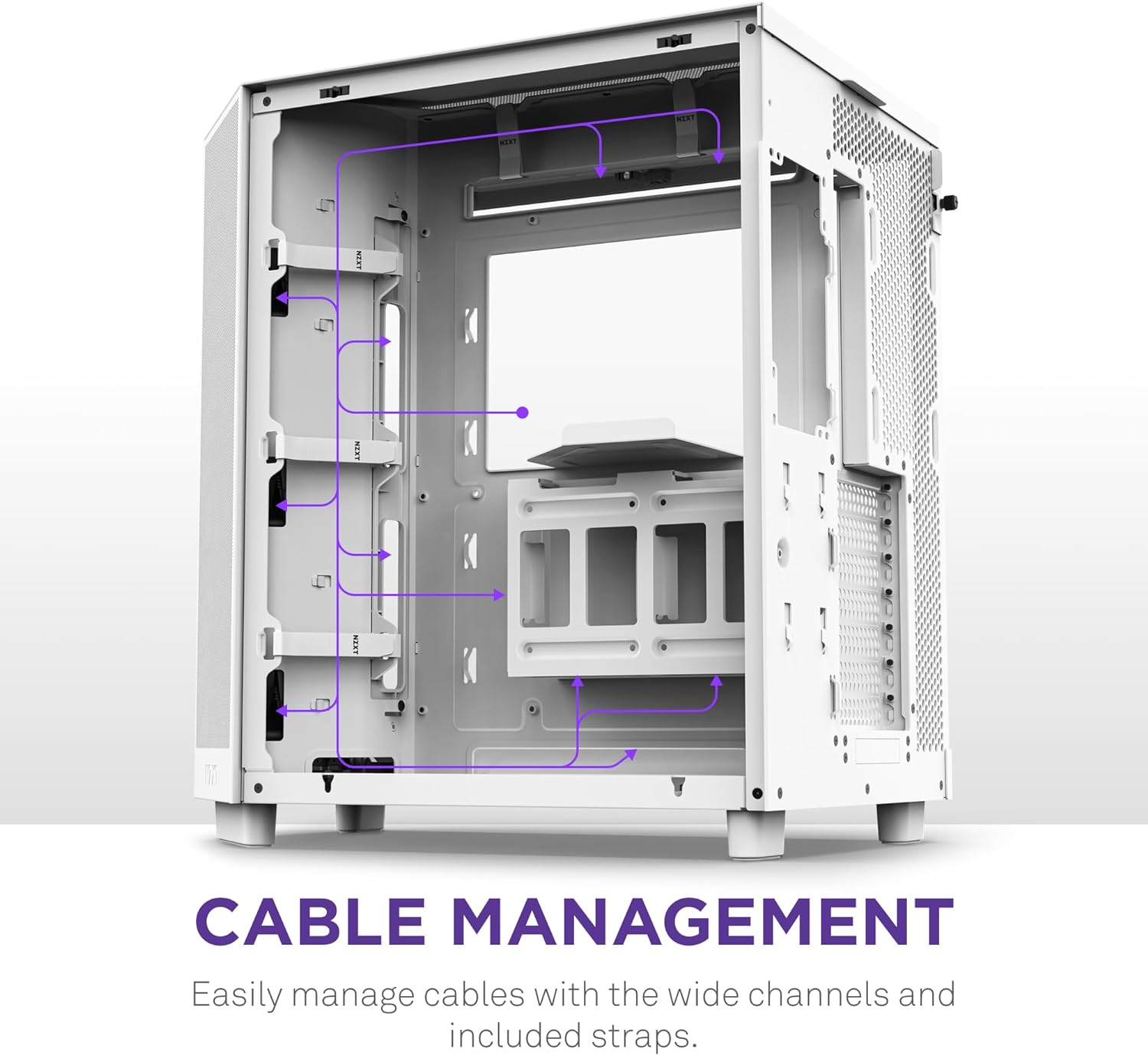

• An intuitive cable management system simplifies the build process by using wide channels and straps.

• Tech Specs

  KEY SPECS

  • Motherboard Support:ATX, Micro-ATX, Mini-ITX
  • Enclosure Type:Mid-Tower
  • Case Material:SGCC Steel, Ultra-Clear Tempered Glass, Dark Tinted Tempered Glass (Black SKU only)

  DIMENSIONS

  • Height (with feet):435 mm / 17.13 in
  • Width:287 mm / 11.3 in
  • Depth:415 mm / 16.34 in
  • Weight:9.4 kg

  COMPATIBILITY & CLEARANCE

  • CPU Cooler Height:163 mm / 6.42 in
  • GPU Length:365 mm / 14.37 in
  • PSU Length:200 mm / 7.87 in
  • Cable Management:91 mm / 3.58 in
  • Top Radiator:30 mm / 1.18 in

  FRONT I/O PORTS

  • USB 3.2 Gen 1 Type-A:2
  • USB 3.2 Gen 2 Type-C:1
  • Headset Audio Jack:1

  EXPANSION SLOTS

  • Standard:7
  • Vertical:0

  DRIVE BAYS

  • 2.5″:2
  • 3.5″:1

  FAN SUPPORT

  • Front-Right:3 x 120 mm (3 x F120 RGB Core included)
  • Top:3 x 120 mm / 2 x 140 mm
  • Bottom:2 x 140 mm
  • Rear:1 x 120 mm
  • Filters:High-Performance Mesh

  RADIATOR SUPPORT

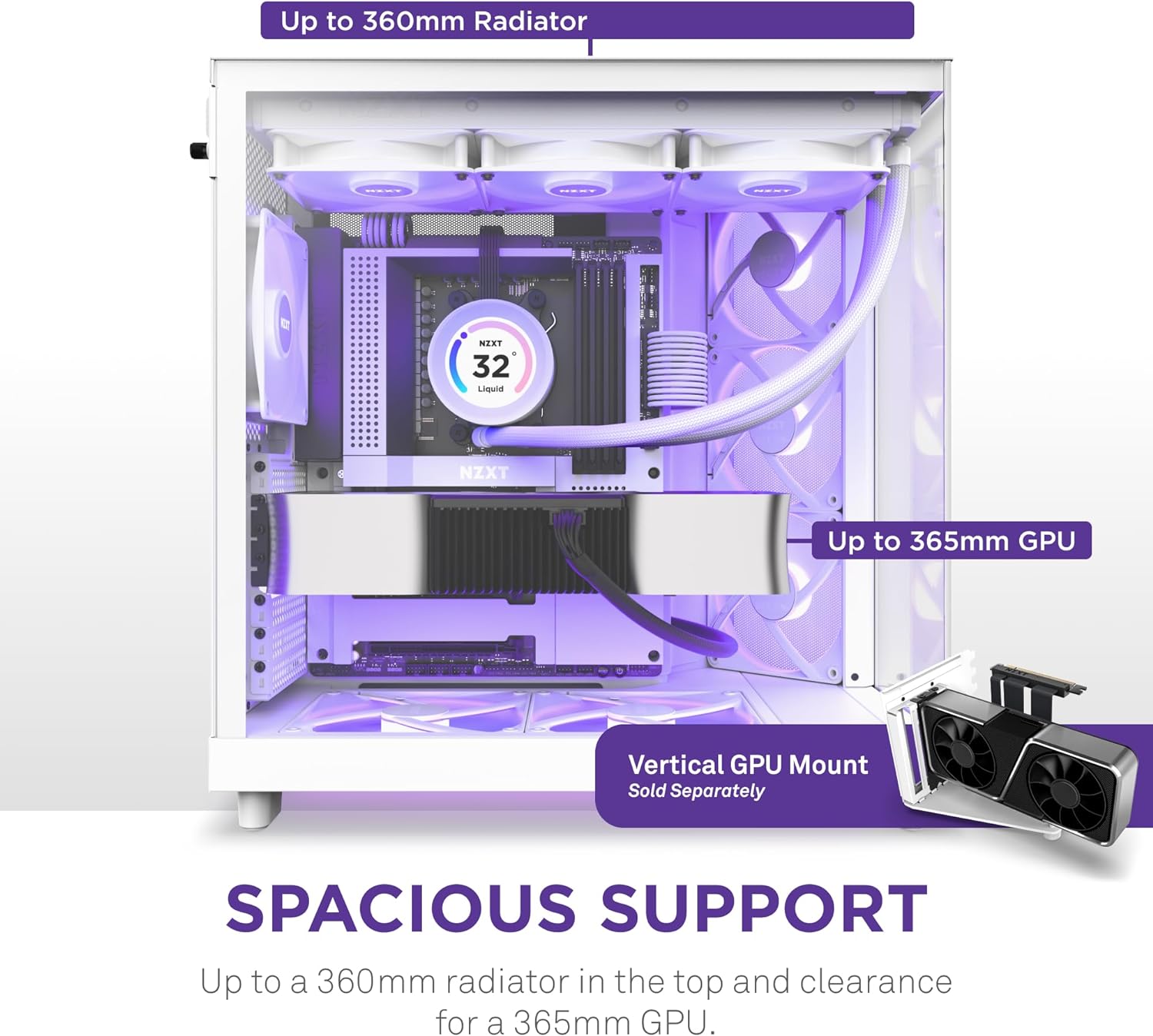

  • Top:Up to 360 mm
  • Rear:Up to 120 mm

  FAN SPECS

  • Model:F120 RGB Core Fan (Case Version)
  • Speed:1300 ± 130 RPM
  • Airflow:55.17 CFM
  • Static:1.27 mm – H₂O
  • Noise:26.1 dBA
  • Fan Connector:3-pin
