Akko Flash Magnetic Switch 45-Piece Pack, Linear Hall Effect, 25gf Initial Force, 3.5mm Travel, Factory-Lubed, N-Pole Down, 2-PIN Precision & Illuminated RGB Diffuser

EXPERT FEATURES

45-Switch Upgrade Pack: Forty-five Akko Flash Magnetic switches for upgrading or replacing switches in a compatible Hall Effect keyboard.
Linear Magnetic Operation: Smooth linear travel and magnetic sensing designed for responsive gaming inputs.
Ultra-Light Initial Force: A minimum starting force of just 25 gf allows light, responsive keypresses.
3.5 mm Total Travel: Provides a full travel distance of 3.50 ± 0.1 mm.
Customizable Actuation: Pre-travel is configurable through supported Hall Effect keyboard software.
Factory-Lubricated: Features a thin, factory-applied lubricant layer for smooth linear operation.
Integrated Light Diffuser: Distributes illumination from compatible RGB-equipped keyboards.
N-Pole Magnetic Design: Features a downward-facing N-pole magnet for compatible magnetic keyboards.
Two-Pin Configuration: MX-style magnetic-switch construction. Requires a compatible Hall Effect keyboard, not an ordinary mechanical keyboard.
Defined Compatibility: Not compatible with Akko MOD007B HE or MOD007 HE YOTD v1 because those models use downward-facing S-pole magnets.

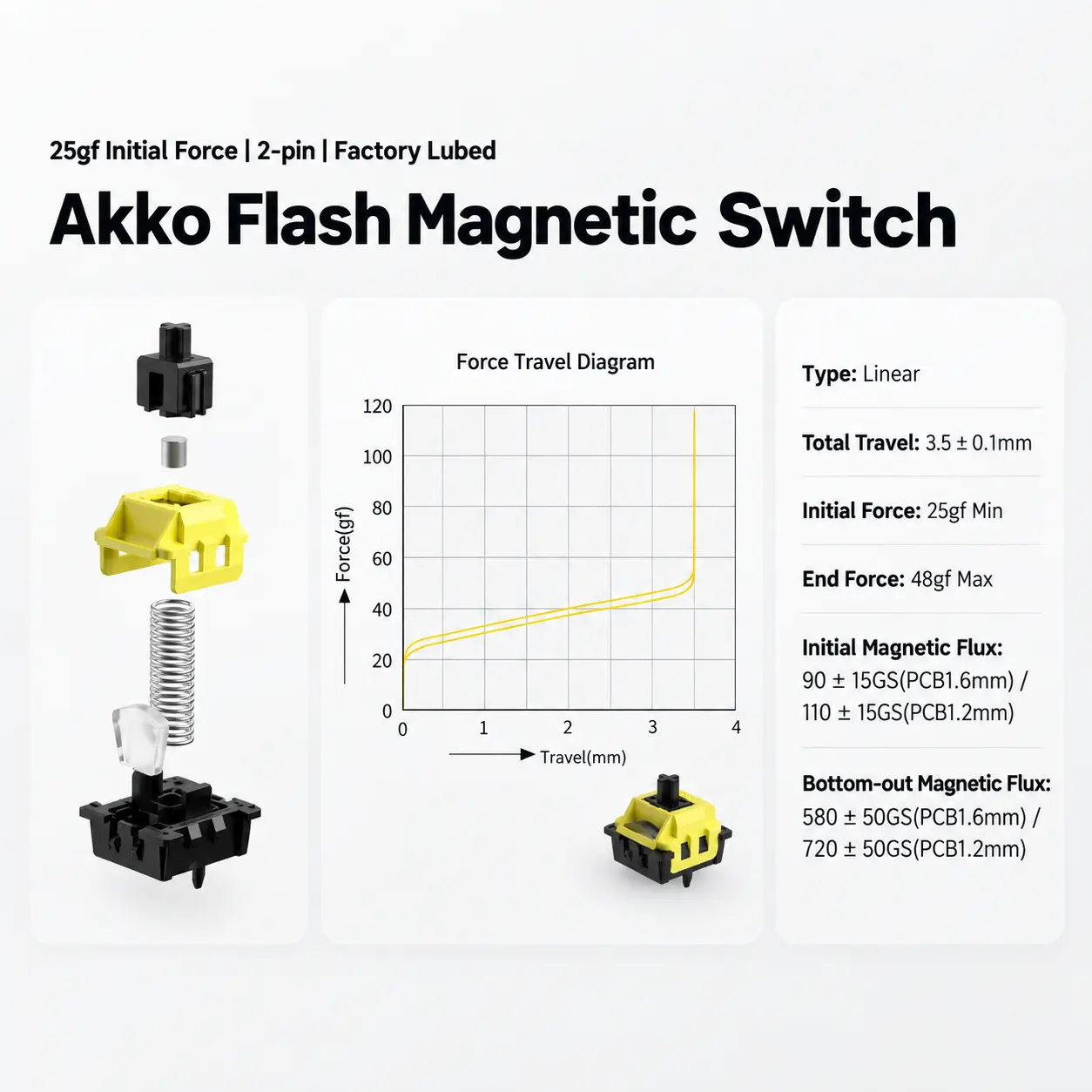

EXPERT SPECS

Specification	Details
Brand	Akko
Model	Flash Magnetic Switch
Pack Quantity	45 Pieces
Switch Technology	Magnetic / Hall Effect
Switch Type	Linear
Total Travel	3.50 ± 0.1 mm
Pre-Travel	Custom Defined
Initial Force	25 gf Minimum
End Force	48 gf Maximum
Initial Magnetic Flux, 1.6 mm PCB	90 ± 15 GS
Initial Magnetic Flux, 1.2 mm PCB	110 ± 15 GS
Bottom-Out Magnetic Flux, 1.6 mm PCB	580 ± 50 GS
Bottom-Out Magnetic Flux, 1.2 mm PCB	720 ± 50 GS
Connection	2-Pin
Construction Style	MX Style
Factory Lubrication	Yes
Light Diffuser	Integrated
Magnet Orientation	Downward-Facing N-Pole
Compatibility	Compatible Downward-N-Pole HE Keyboards
Exclusions	Akko MOD007B HE and MOD007 HE YOTD v1

Guaranteed Safe Checkout

Features & Compatibility

FLASH-MAGNETICSWITCH

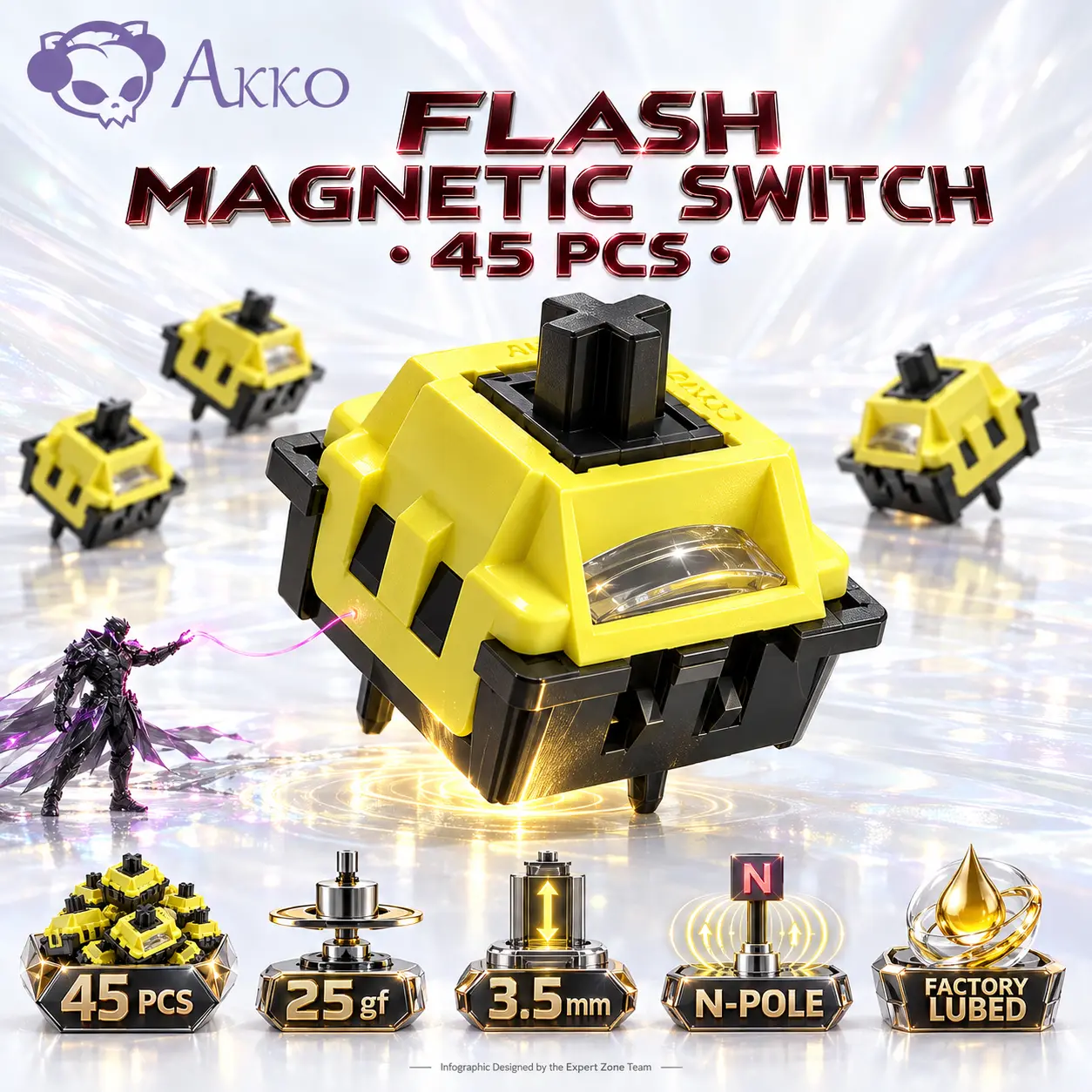

AKKO FLASH MAGNETIC SWITCH-45 PCS

Akko Flash Magnetic Switch 45-Piece Pack, Linear Hall Effect, 25gf Initial Force, 3.5mm Travel, Factory-Lubed, N-Pole Down, 2-PIN Precision & Illuminated RGB Diffuser

45 PCS: Miniature magnetic-switch cluster.
LINEAR: Smooth linear-travel mechanism.
25 gf: Precision force-balance symbol.
3.5 mm: Linear-travel gauge.
N-POLE: Directional magnetic-field emblem.
FACTORY LUBED: Metallic lubricant-drop sculpture.
RGB DIFFUSER: Illuminated optical-diffusion prism.
2-PIN: Precision two-contact switch-base illustration.
