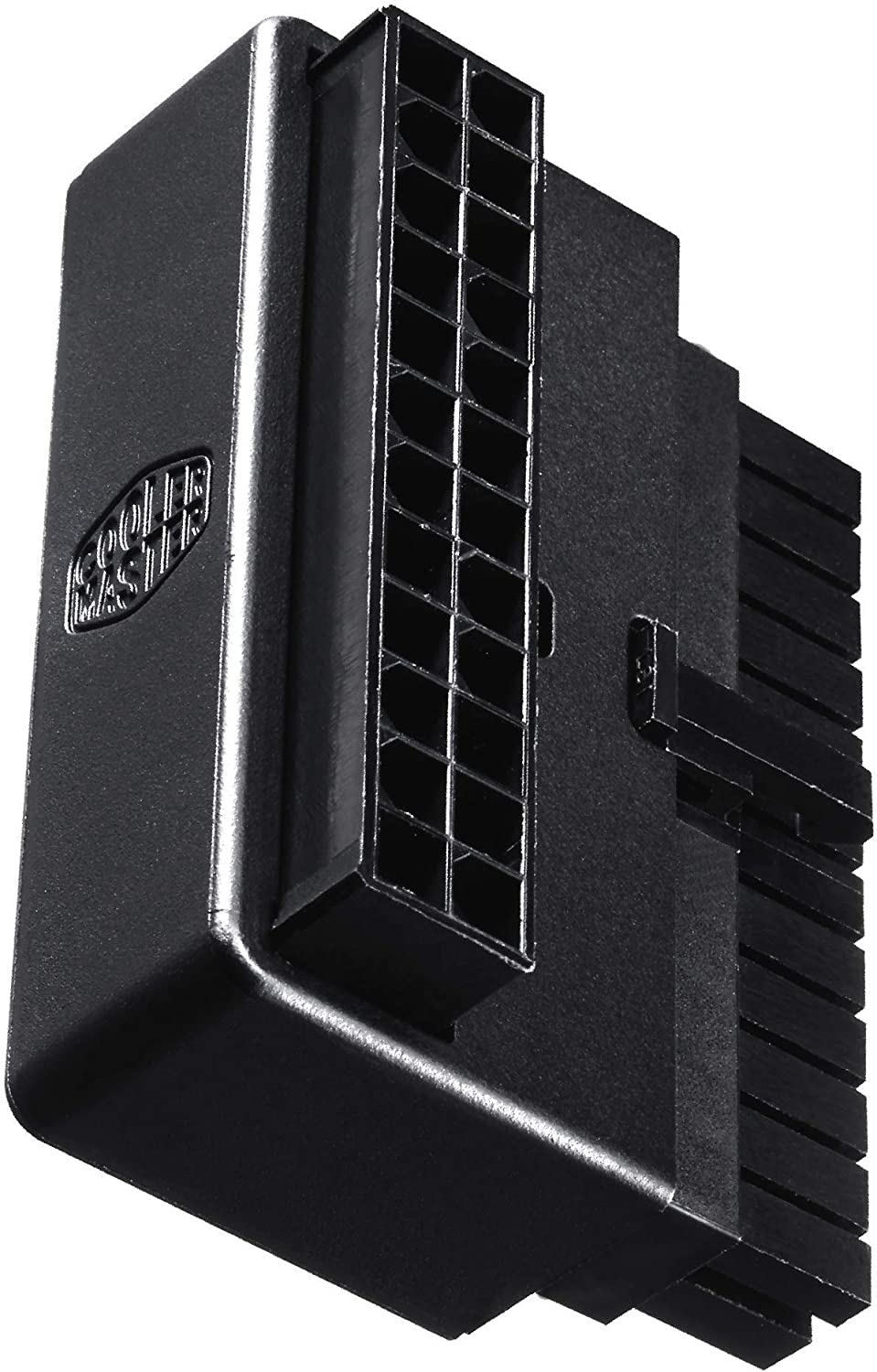

Cooler Master 24 Pin 90 Degree Adapter
$ 18
Cooler Master CMA-CEMB01XXBK1-GL 24 Pin 90 Degree Adapter (with Build-in Capacitor)
From the manufacturer
Make It Yours.
We’re all about the things that make building a PC such a rewarding experience. The sense of achievement. The joy of making and creating something uniquely yours in form and function and, of course, the thrill of bringing your creation to life without melting your components.
Build From a Different Angle

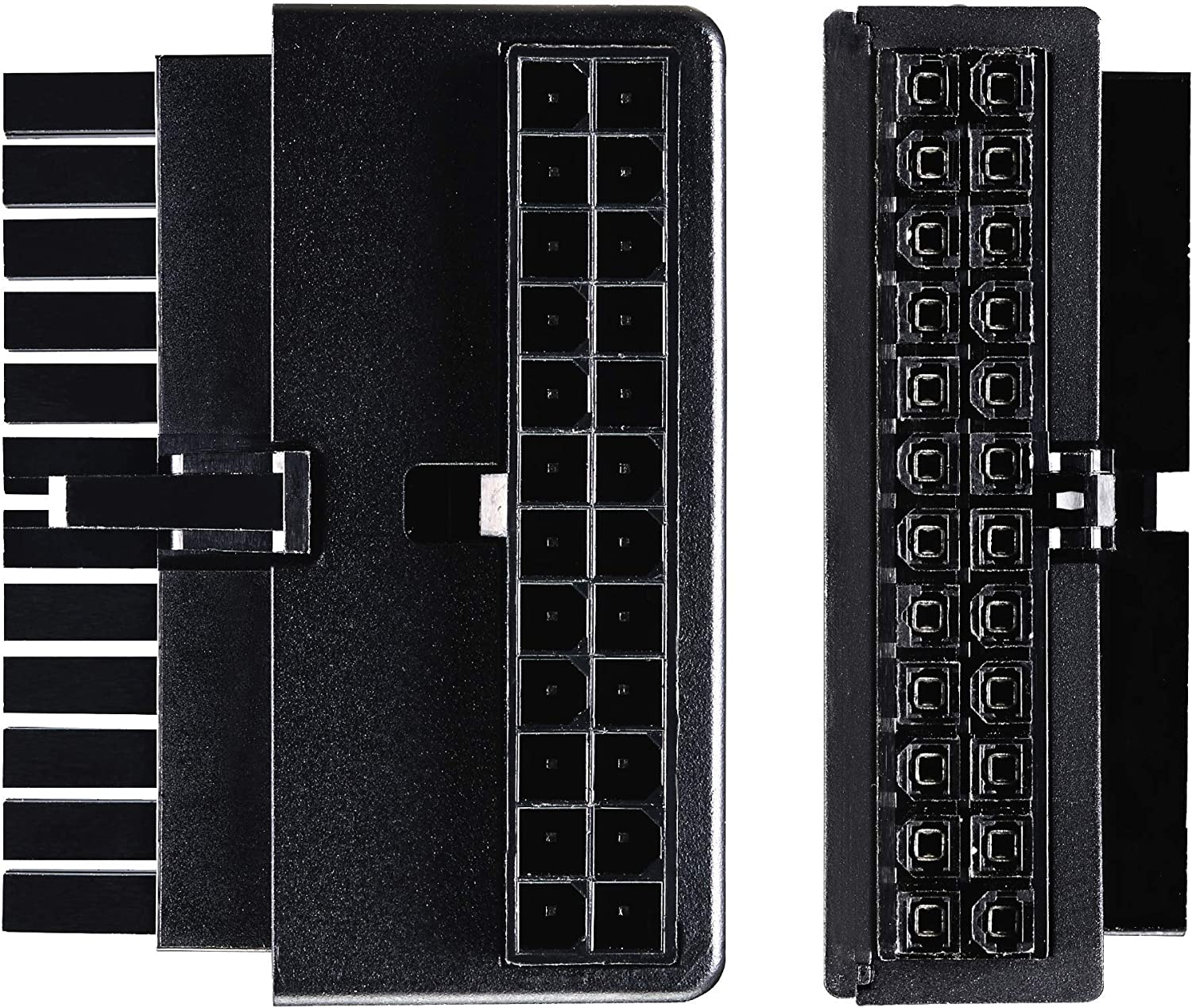

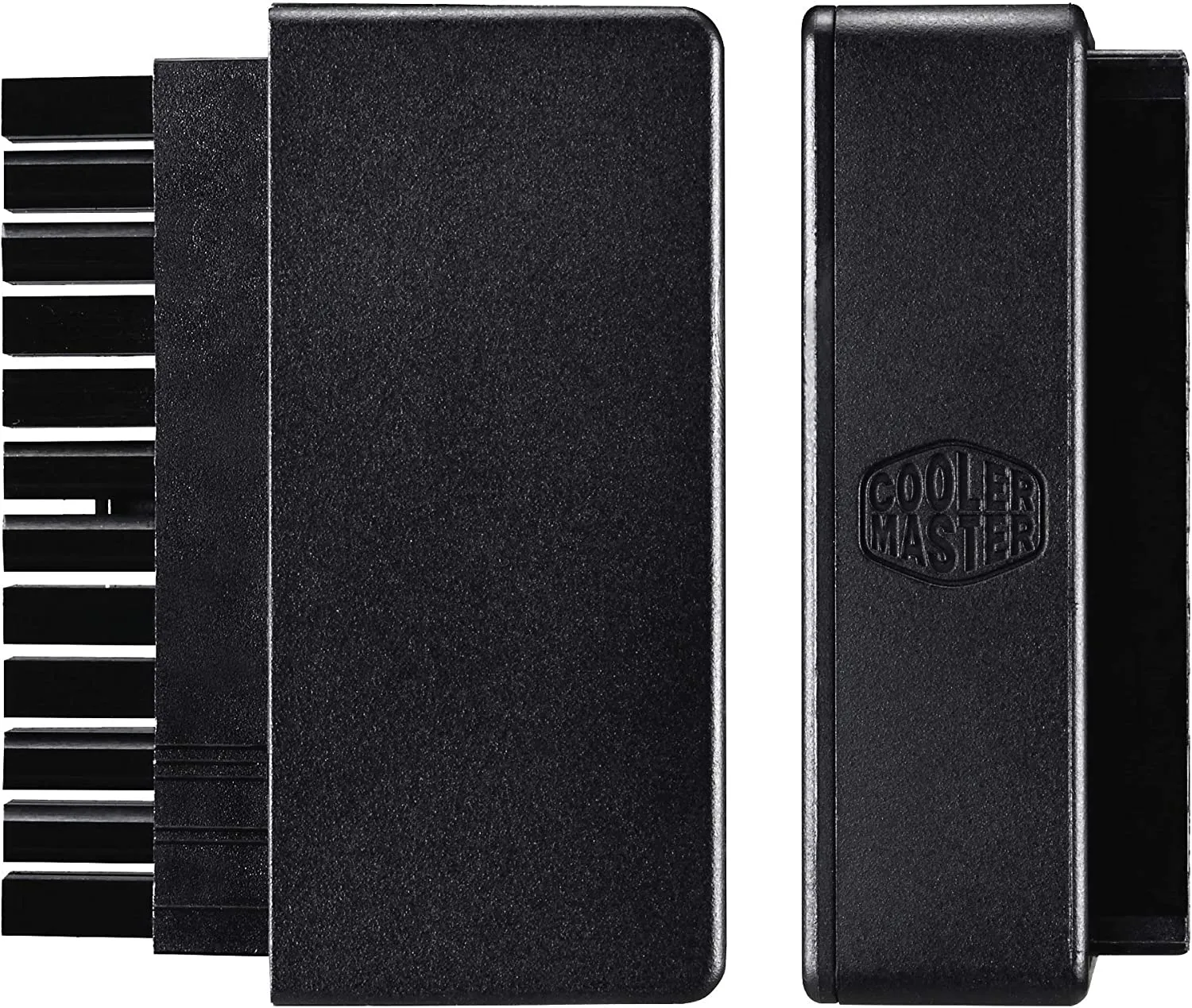

ATX 24-Pin 90° Adapter, with Added Capacitors for Stable Output

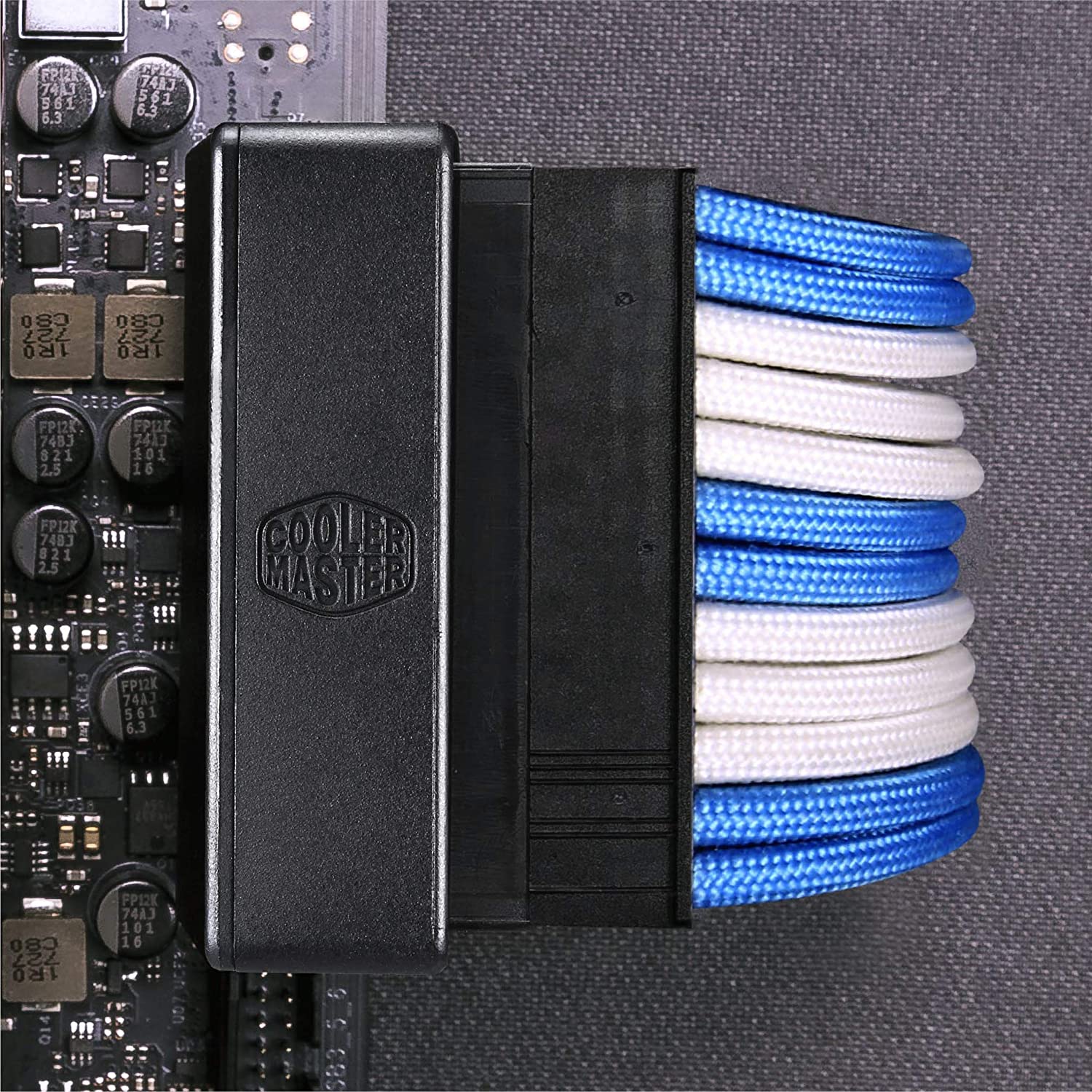

The Cooler Master ATX 24-Pin 90° Adapter improves the connection between your motherboard and PSU. By allowing the main power cable to be installed at a 90° angle, builders no longer need to wrap or fold the cable up and back over the motherboard, thus reducing the amount of cable needed in front of the motherboard tray.

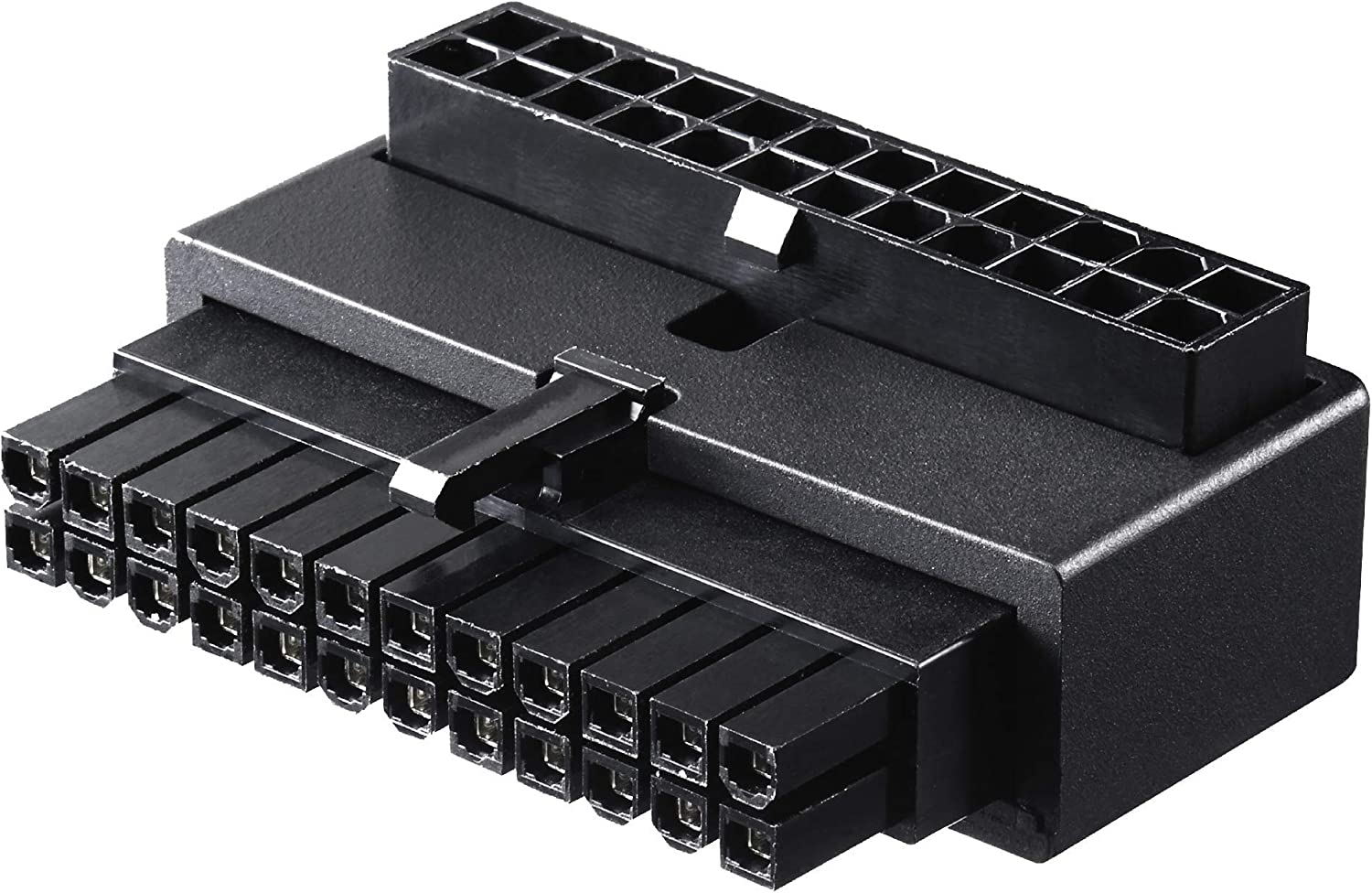

- 90° 24-pin connection

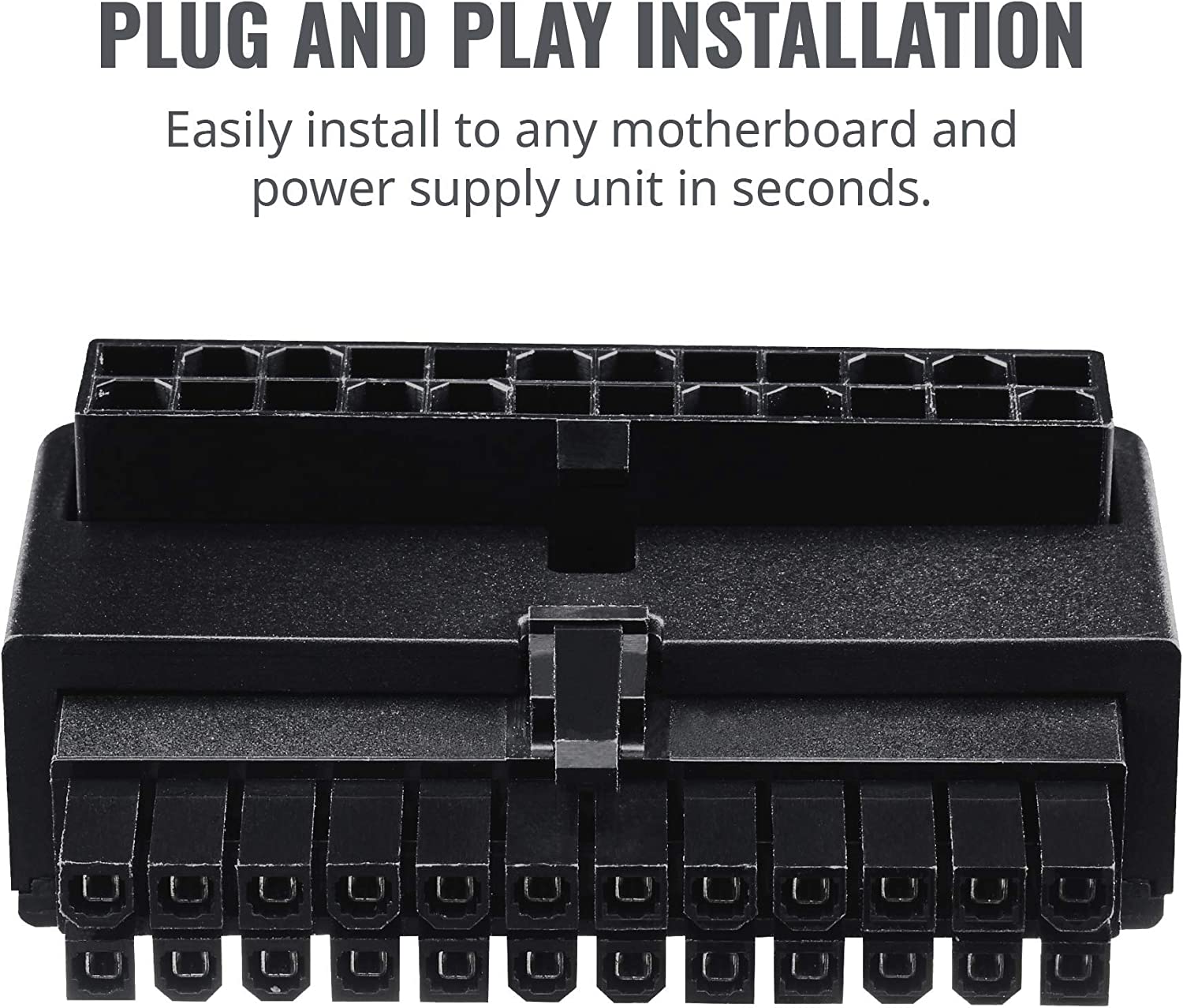

- Plug-and-play installation
- Universal compatibility
- Built-in capacitors
Highlights
|
|
|
|
|---|---|---|
Additional information
