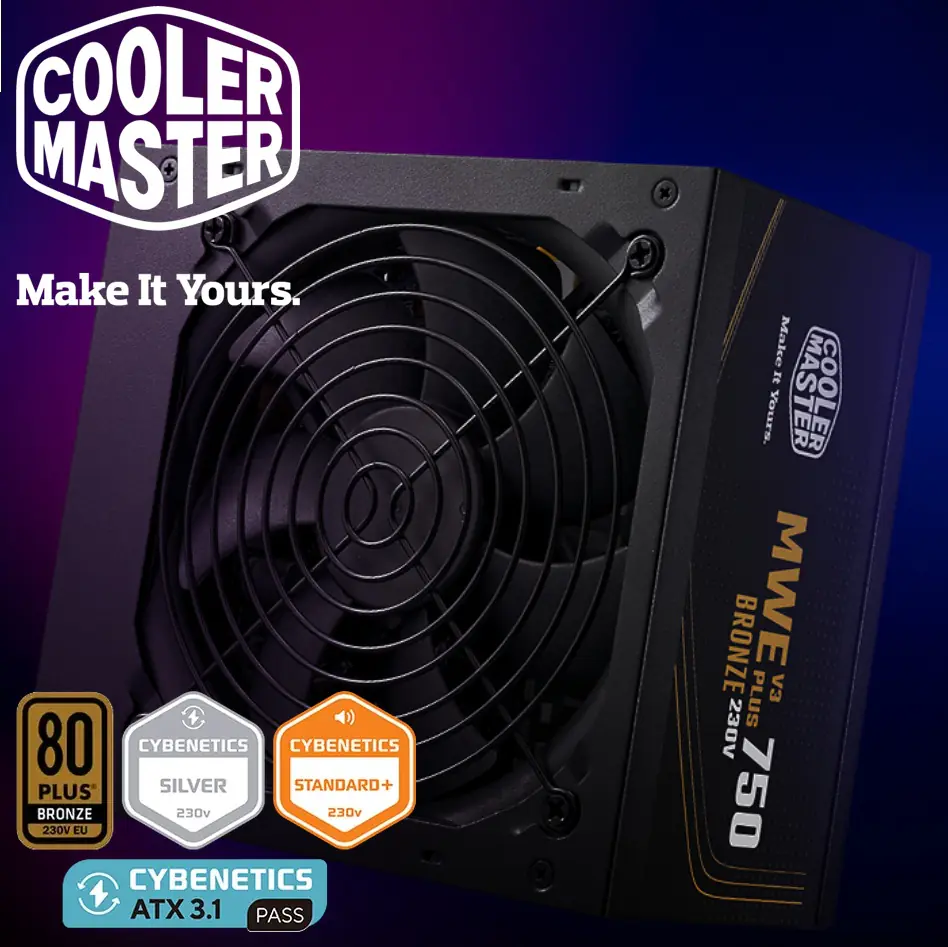

Cooler Master MWE Bronze 750W Non-Modular ATX 3.1 Power Supply , 80 PLUS Bronze Efficiency, Active PFC, 120mm HDB Fan, Comprehensive Protections (UVP, OVP, OPP, OTP, SCP), V3 230V | BLACK

Expert Features:

• High Temperature Resilience: Supports operation in temperatures up to 40°C for enhanced durability.
• 80 PLUS Bronze Certification: Efficiency of over 88% at typical load, ensuring reliable power delivery and reduced energy consumption.
• Active PFC: Provides better power efficiency and stability for your system.
• Comprehensive Protection: Includes UVP (Under Voltage Protection), OVP (Over Voltage Protection), OPP (Over Power Protection), OTP (Over Temperature Protection), and SCP (Short Circuit Protection).
• Efficient Cooling: 120mm HDB (Hydraulic Dynamic Bearing) fan ensures quiet and efficient cooling.
• Warranty: 5-year warranty for peace of mind.
• PSU Calculator: Tool available to help select the correct power supply for your needs.

Expert Specs:

• Model: MPE-7501-ACABW-3B
• ATX Version: ATX 12V Ver. 3.1
• Input Voltage: 200-240V
• Input Current: 6A
• Input Frequency: 50-60Hz
• Dimensions: 140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch
• Fan Size: 120mm
• Fan Bearing: HDB
• Efficiency: >88% at typical load
• 80 PLUS Rating: 80 PLUS Bronze EU 230V
• ErP 2014 Lot 3: Yes
• Operating Temperature: 0-40°C
• Power Good Signal: 100-150 ms
• Hold Up Time: >16ms
• MTBF: >100,000 hours
• Protections: UVP, OVP, OPP, OTP, SCP
• Regulatory Approvals: TUV, CE, FCC, CCC, EAC, RCM, UKCA, RoHS2.0, BIS, KC (region-dependent)
• Connectors:
  • 1 ATX 24 Pin Connector
  • 2 EPS 8 Pin / 4+4 Pin Connectors
  • 6 SATA Connectors
  • 3 Peripheral 4 Pin Connectors
  • 4 PCI-e 6+2 Pin Connectors
• Warranty: 5 years
• Category: 500W to 750W
• Modular: Non-modular
• Form Factor: ATX
• Power Output: 750W
