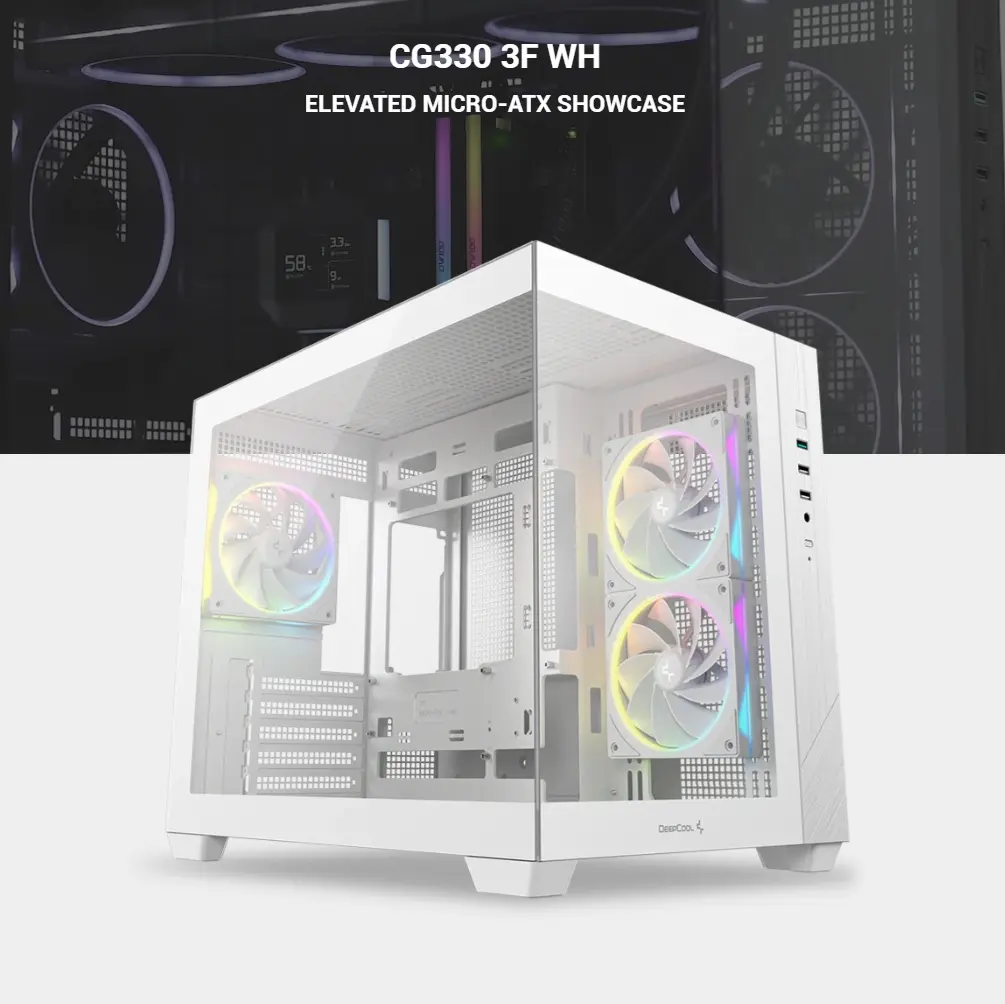

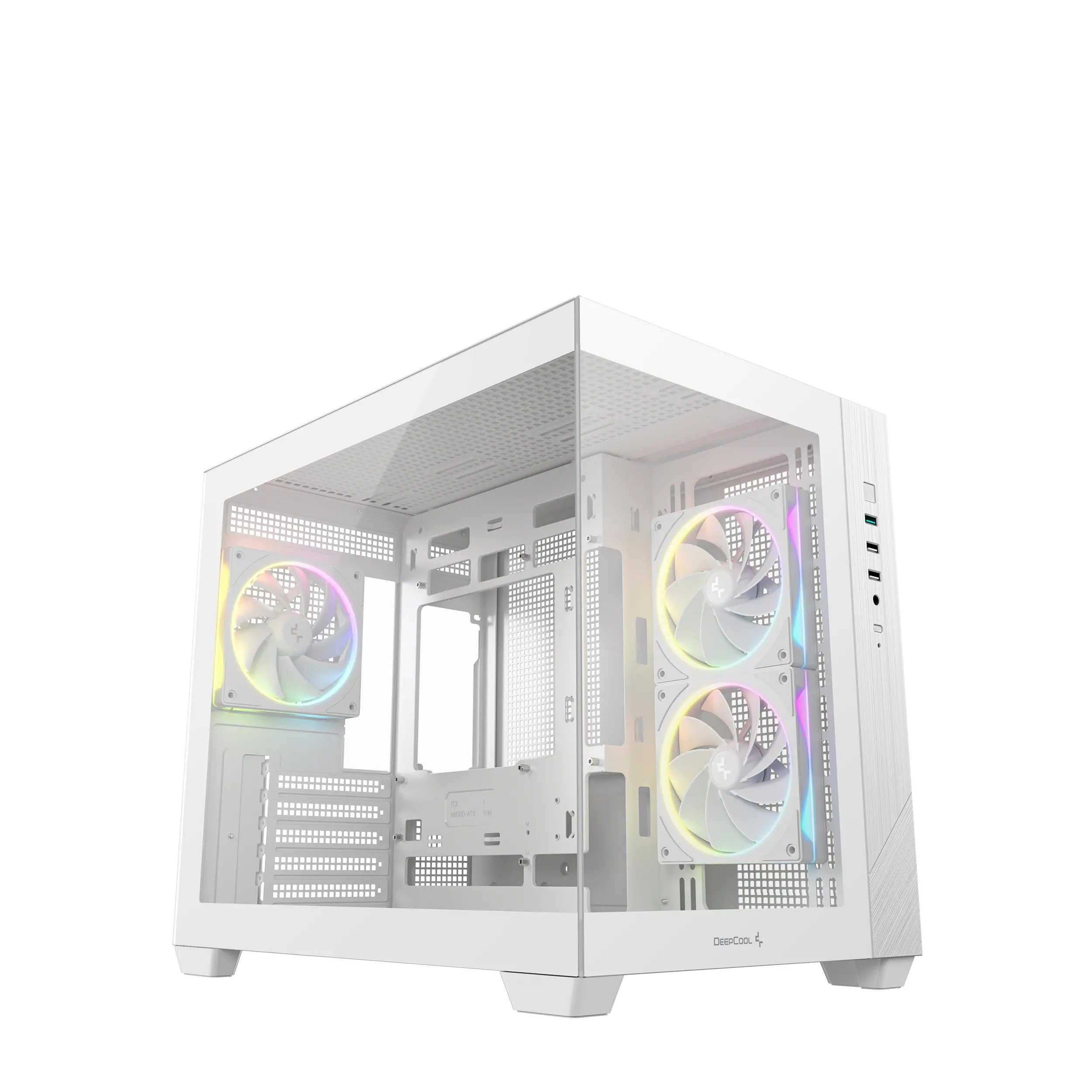

DeepCool CG330 3F WH Panoramic Micro-ATX Case, Dual-Chamber Airflow, 3 ARGB Build-in Fans, 410mm GPU Support, 360mm Radiator Support, 46mm Cable Space, Tempered Glass, Compact High Airflow Design | WHITE

58 $

⚡ Expert Features

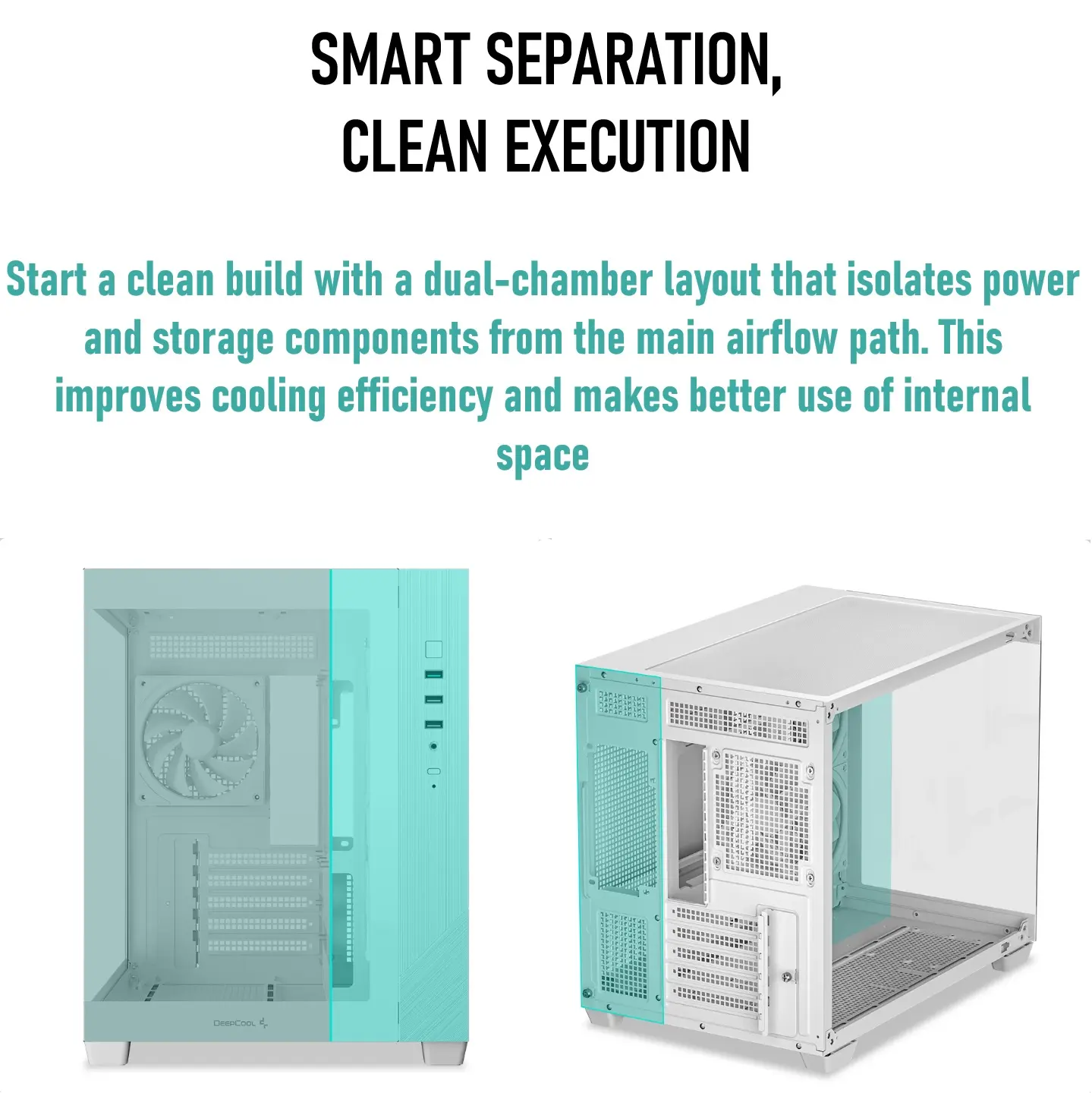

  • Dual-Chamber Design : Separates PSU and storage heat from the main airflow path to boost thermal efficiency and keep your GPU breathing like a champion under pressure
  • Pillarless Panoramic Glass : Full-view tempered glass panel with zero visual interruption—your build becomes the main character, not the case

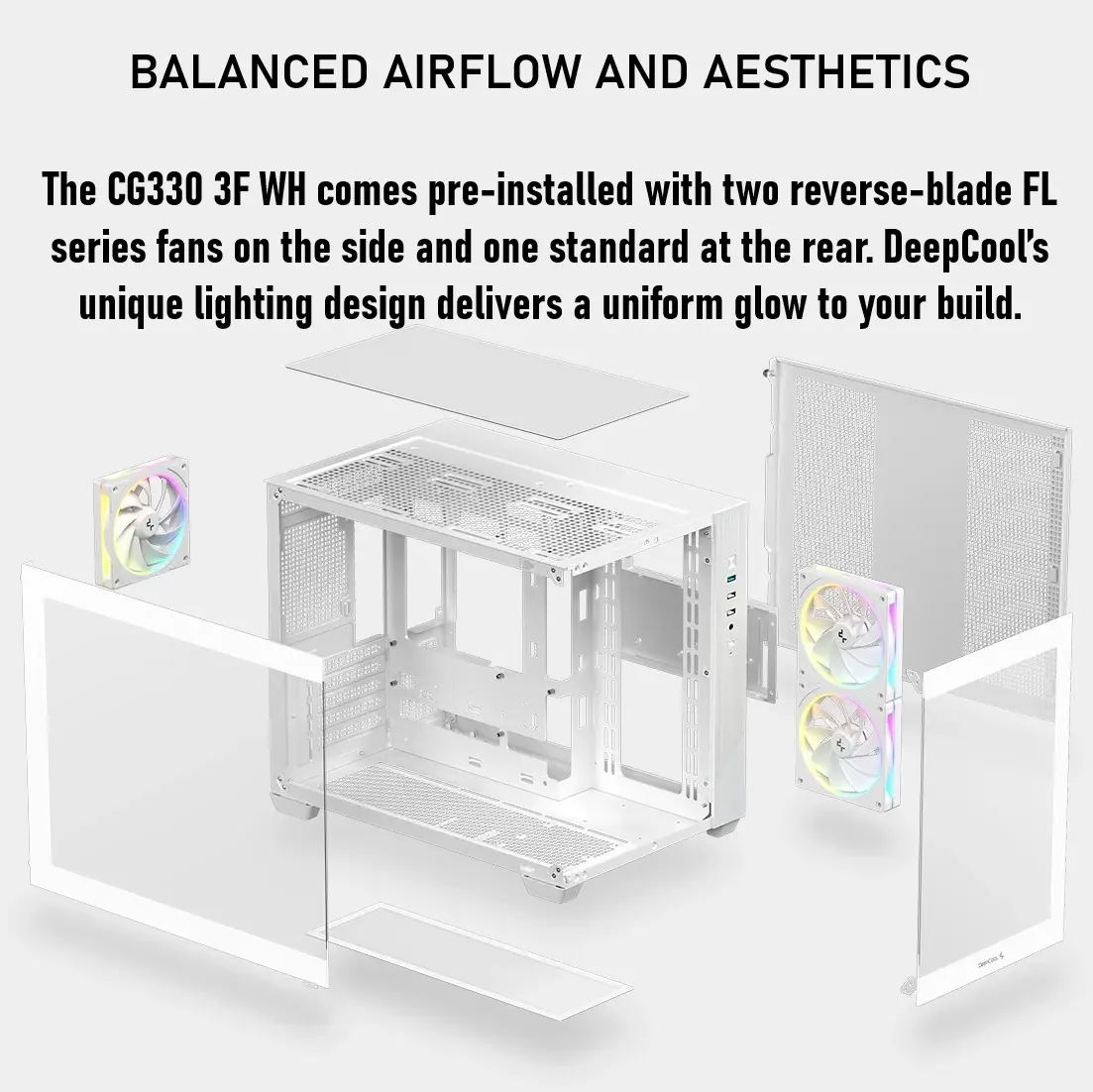

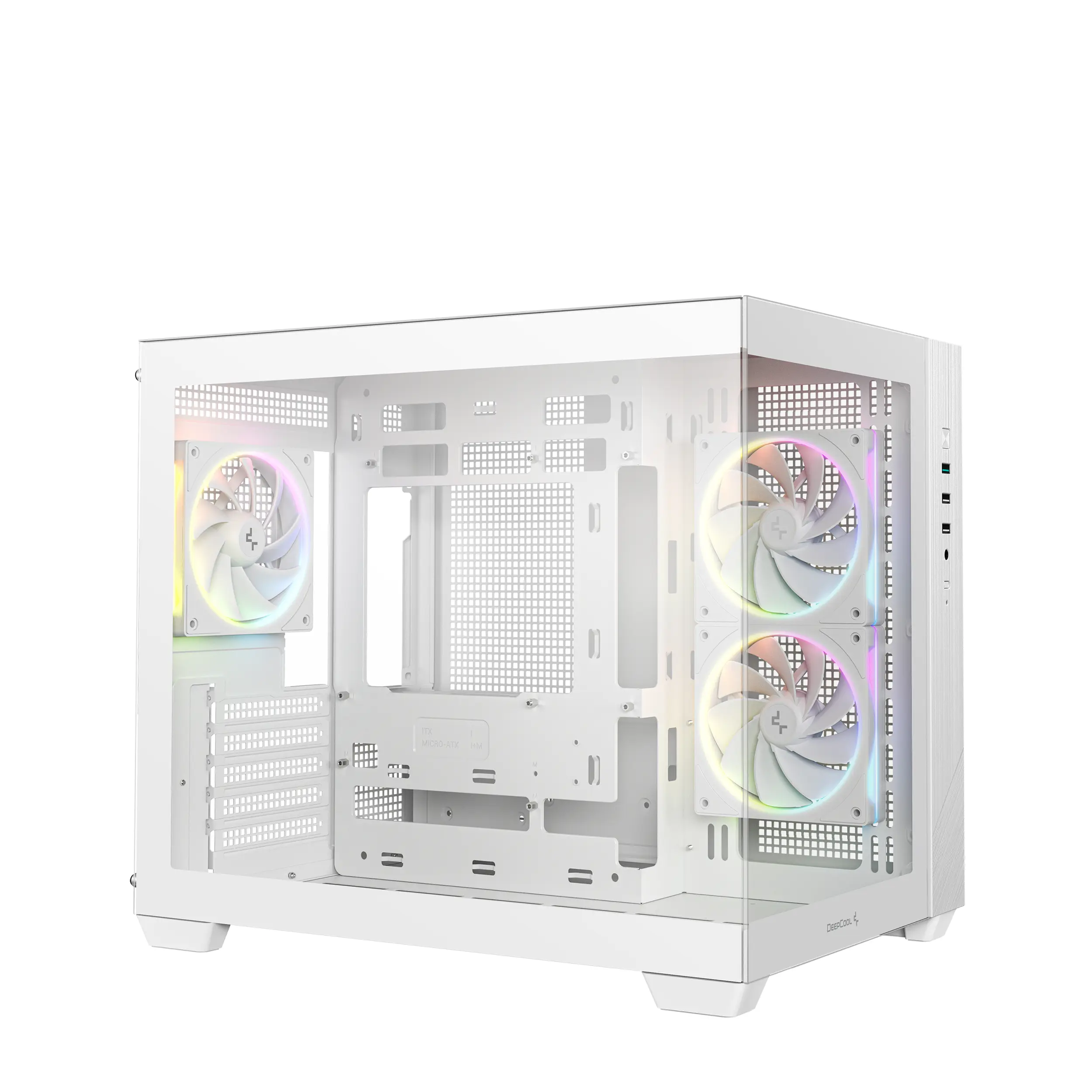

  • Pre-Installed 3× ARGB Fans : Two reverse-blade side fans + one rear fan create a horizontal airflow channel with uniform, aggressive RGB glow out of the box
  • Extreme Cooling Flexibility : Supports up to 9×120mm fans and multiple radiator placements including top and bottom 360mm for serious thermal domination
  • Reverse Connector Motherboard Support : Designed for next-gen clean builds—hide cables like a pro and flex a surgical interior layout

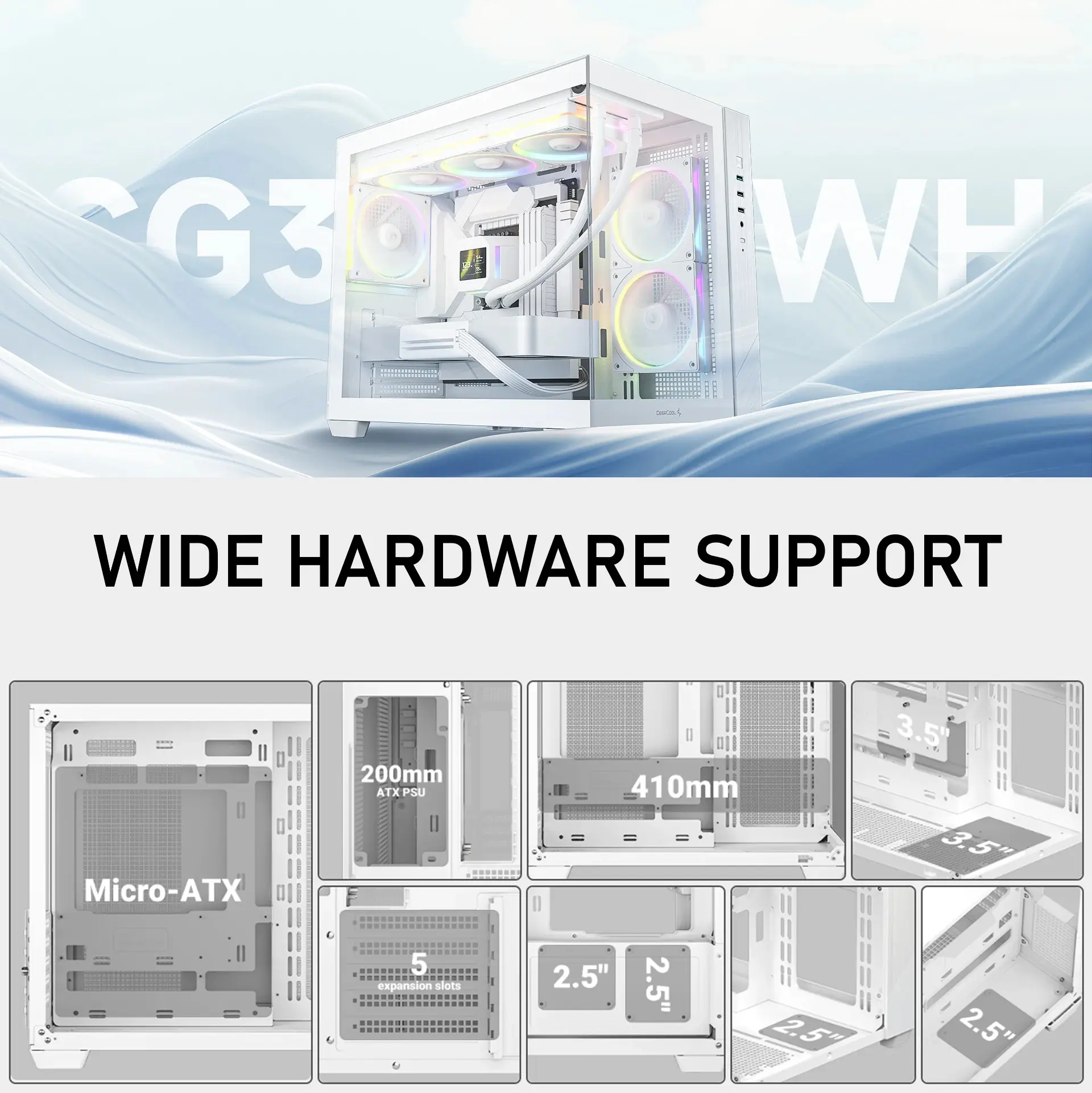

  • Wide GPU Clearance (410mm) : Built for modern oversized GPUs—no compromises, no suffocation, just raw airflow and space

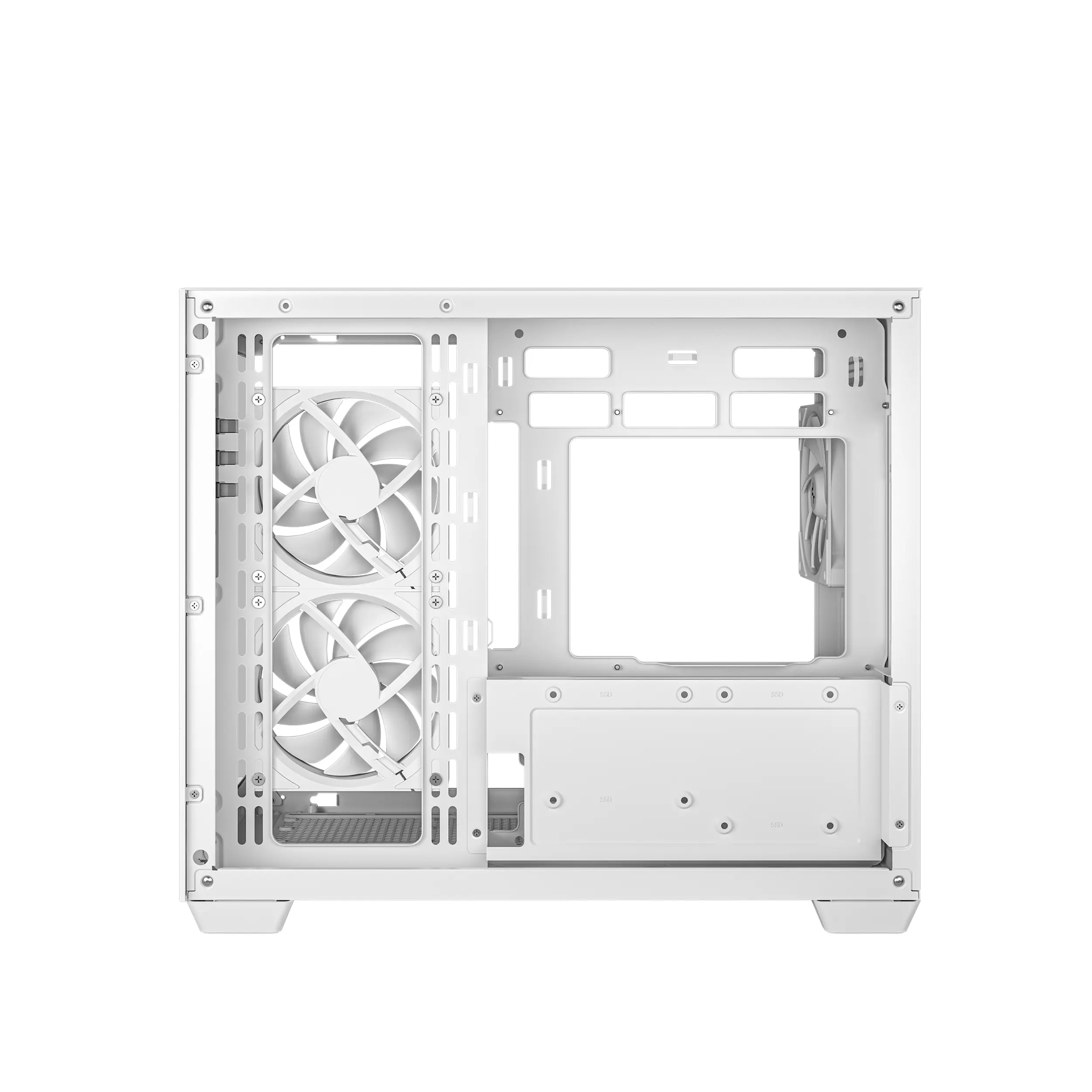

  • Optimized Cable Management (46mm) : Massive routing space behind the motherboard tray for clean, stress-free cable work
  • Compact Yet Powerful Form Factor : Micro-ATX footprint with full-sized hardware support—tight outside, beast inside
  • Versatile Storage Options : Supports up to 2×3.5” HDDs and 4×2.5” SSDs to balance capacity and speed without bottlenecks

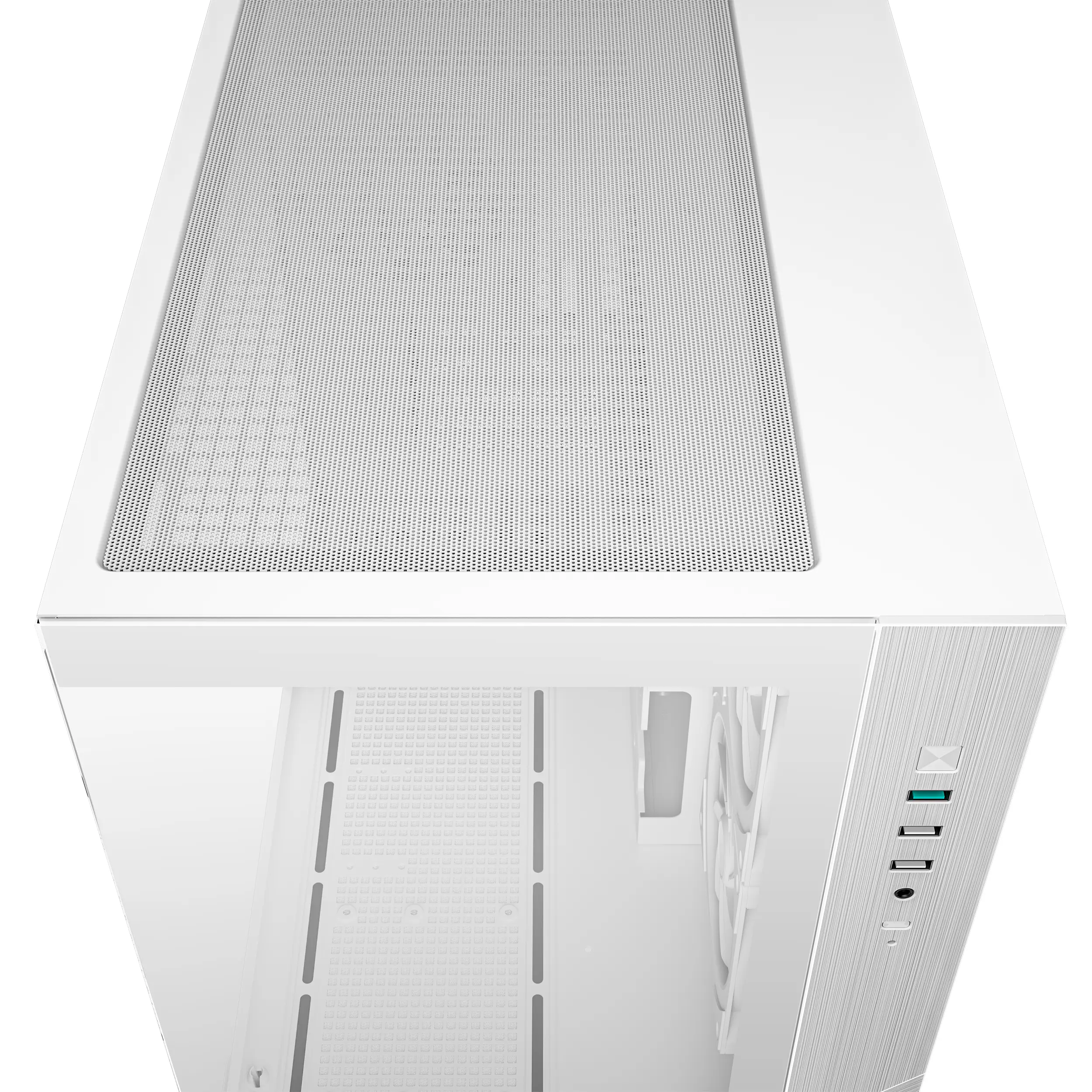

  • Magnetic Dust Filters : Top and bottom filters keep your system clean with minimal effort—because dust is the silent FPS killer

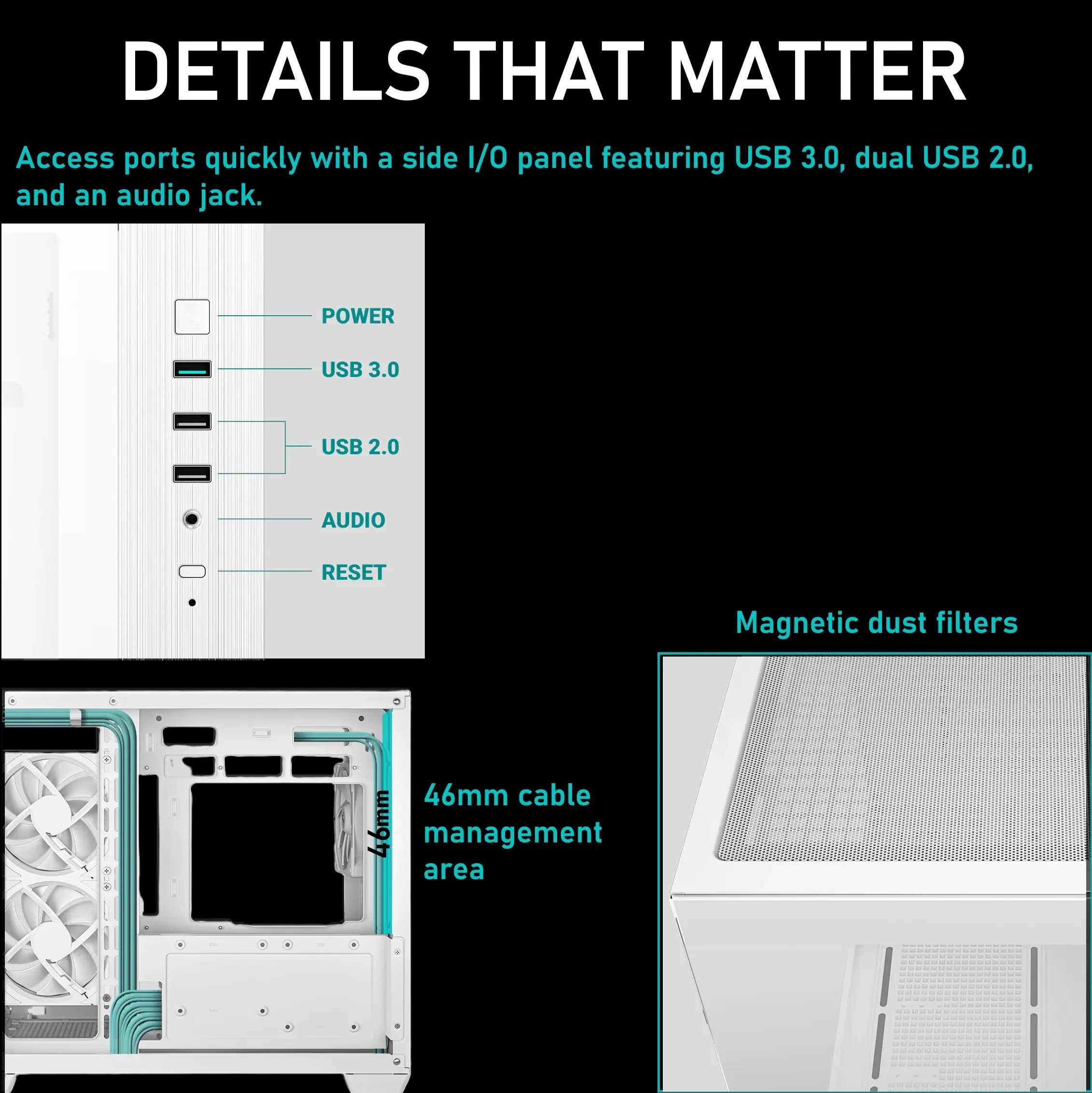

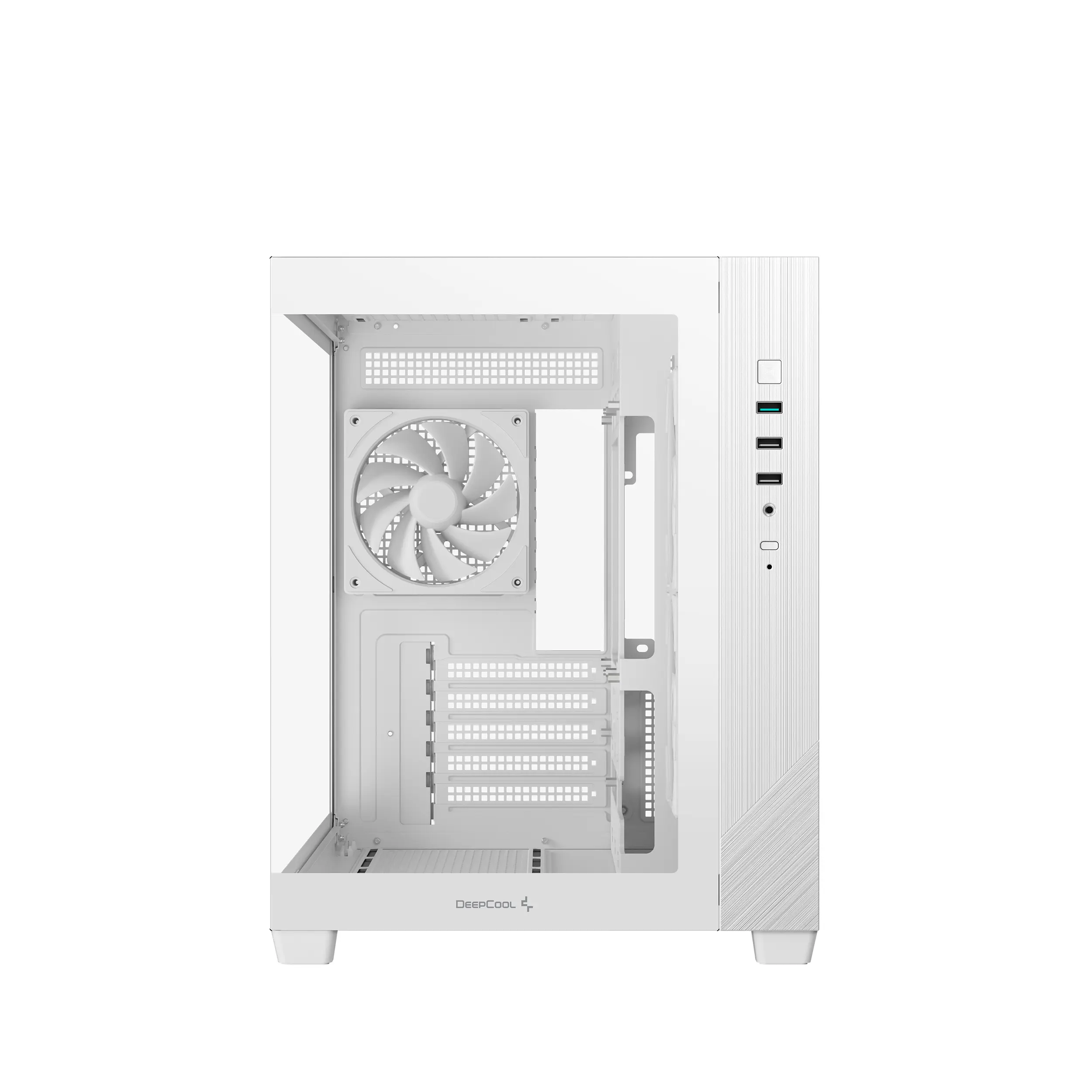

  • Accessible Side I/O Panel : Quick access ports including USB 3.0, dual USB 2.0, and audio jack for daily convenience

🧠 Expert Specs

Category Details
Product Dimensions 420 × 285 × 368 mm (L × W × H)
Net Weight 5.5 kg
Materials ABS + SPCC + Tempered Glass
Color WHITE
Motherboard Support ITX / Micro-ATX / Micro-ATX (Rear Connector)
Front I/O Ports USB 3.0 ×1, USB 2.0 ×2, Audio ×1
3.5″ Drive Bays 1 + 1
2.5″ Drive Bays 2 + 2
Expansion Slots 5 Slots
Pre-Installed Fans Side: 2×120mm, Rear: 1×120mm

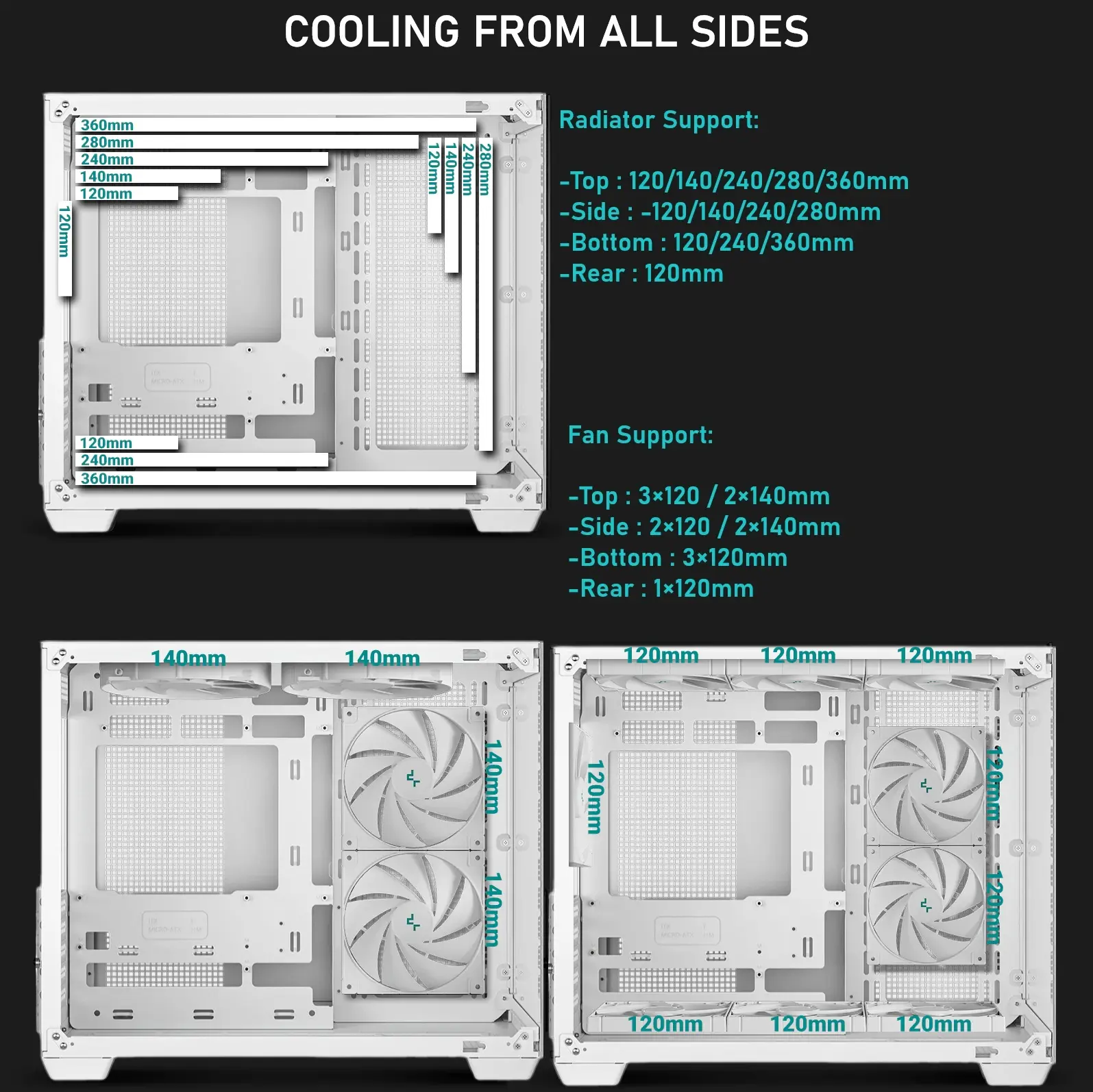

Fan Support (Top) 3×120mm / 2×140mm
Fan Support (Side) 2×120mm / 2×140mm
Fan Support (Bottom) 3×120mm
Fan Support (Rear) 1×120mm
Radiator Support (Top) 120 / 140 / 240 / 280 / 360 mm
Radiator Support (Side) 120 / 140 / 240 / 280 mm
Radiator Support (Bottom) 120 / 240 / 360 mm
Radiator Support (Rear) 120 mm
CPU Cooler Height Limit 164 mm
GPU Length Limit 410 mm
Power Supply Support ATX PS2 (Max 200mm) / SFX / SFX-L
Cable Management Space 46 mm
Model / P/N R-CG330-WHNGM3-G

Features & Compatibility

R-CG330-WHNGM3-G

DEEPCOOL CG330 3F ATX CASE/GLASS/3X120MM ARGB FANS-WH

DeepCool CG330 3F WH Panoramic Micro-ATX Case, Dual-Chamber Airflow, 3 ARGB Build-in Fans, 410mm GPU Support, 360mm Radiator Support, 46mm Cable Space, Tempered Glass, Compact High Airflow Design | WHITE
