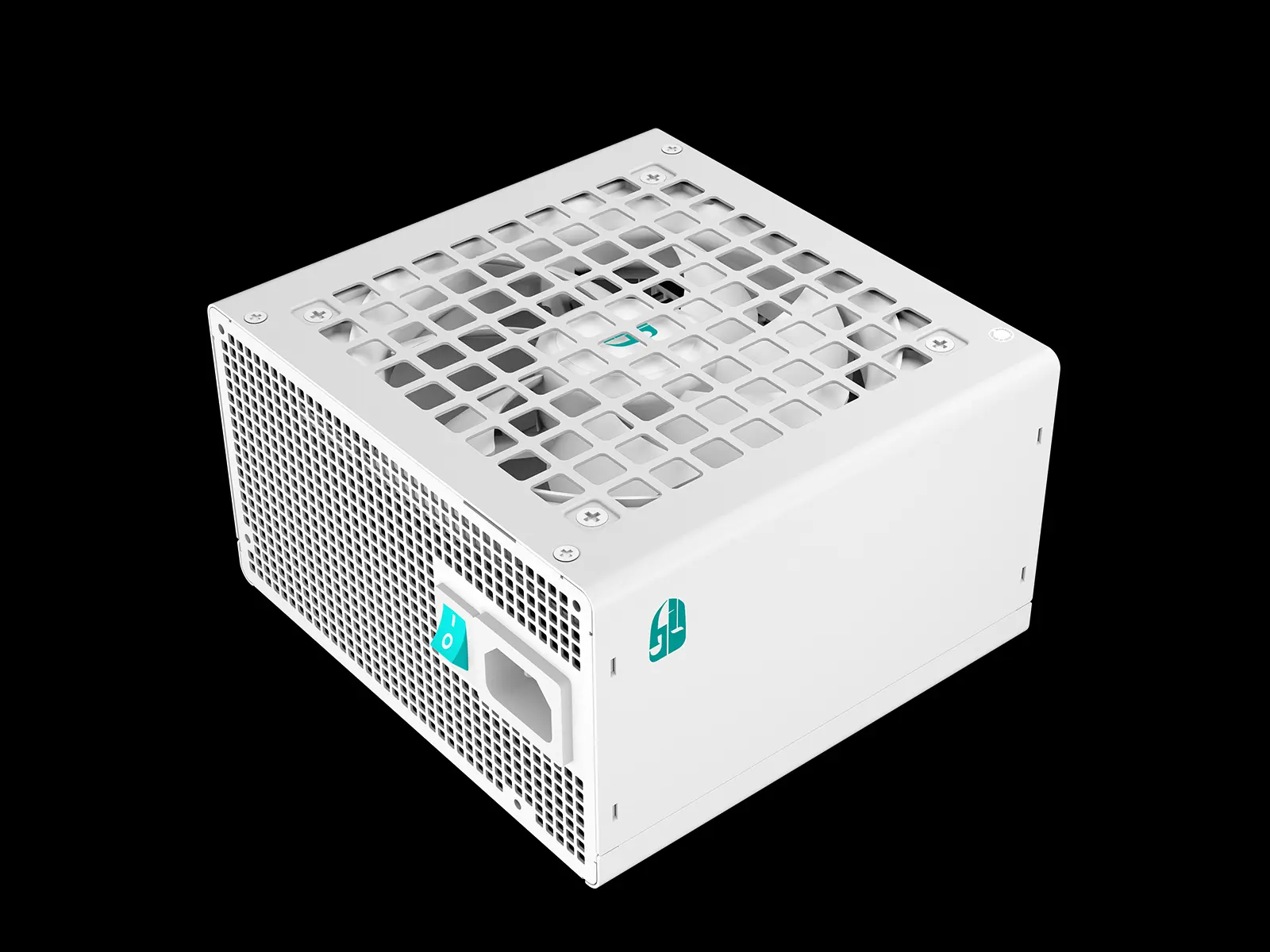

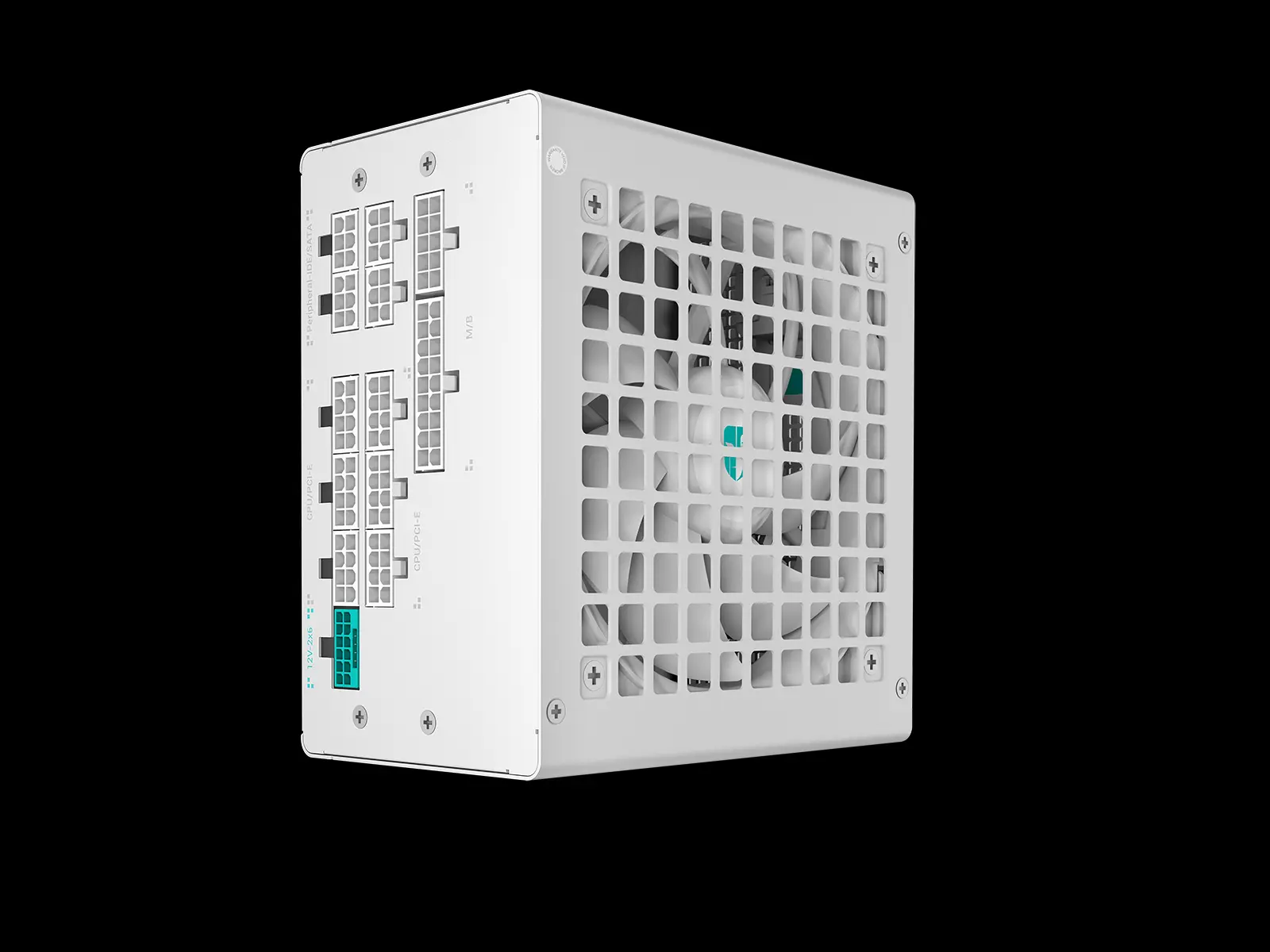

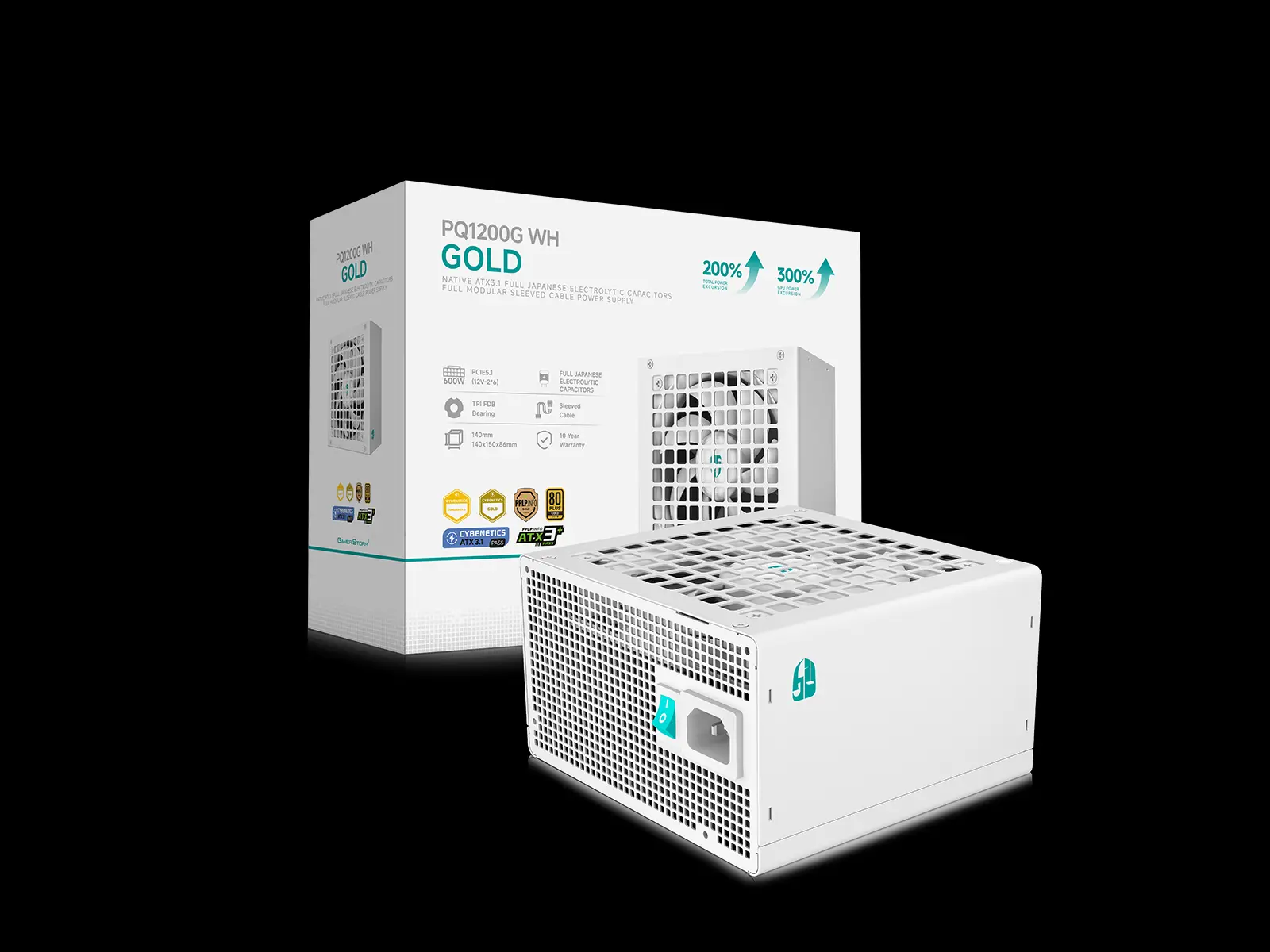

GamerStorm by DeepCool PQ1200G WH 1200W ATX 3.1 PCI-E 5.1 FULL-MODULAR Power Supply, 80 Plus Gold, 12V-2×6 600W GPU Ready, Japanese Capacitors, FDB Fan, Full Protections, 140mm Compact | WHITE

Name: GamerStorm by DeepCool PQ1200G WH 1200W ATX 3.1 PCI-E 5.1 FULL-MODULAR Power Supply, 80 Plus Gold, 12V-2x6 600W GPU Ready, Japanese Capacitors, FDB Fan, Full Protections, 140mm Compact | WHITE
Brand: DeepCool
SKU: R-PQC00G-FD1W-JGEU-V
Price: 158 USD
Availability: InStock

DeepCool

158 $

Add to wishlist

⚡ Expert Features

ATX 3.1 Power Architecture : Built to handle brutal modern GPU spikes with up to 2× total system power, 2.5× 12V peak, and 3× spike tolerance on the 12V-2×6 cable—no crashes, no mercy.
80 Plus Gold Efficiency Trinity : Certified by 80 Plus, Cybenetics, and PPLP with up to 92% efficiency at 50% load—less wasted energy, less heat, more performance headroom.

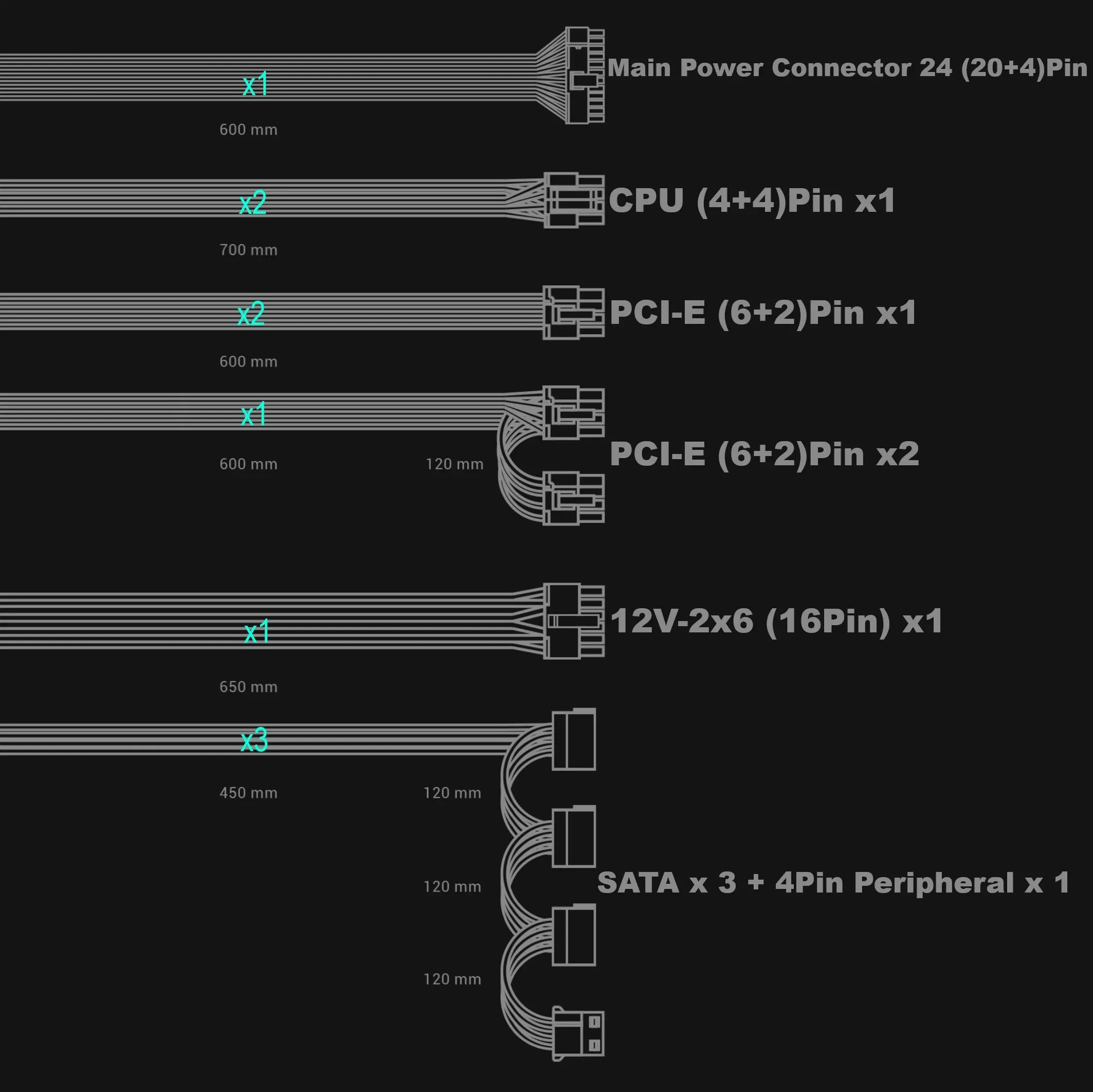

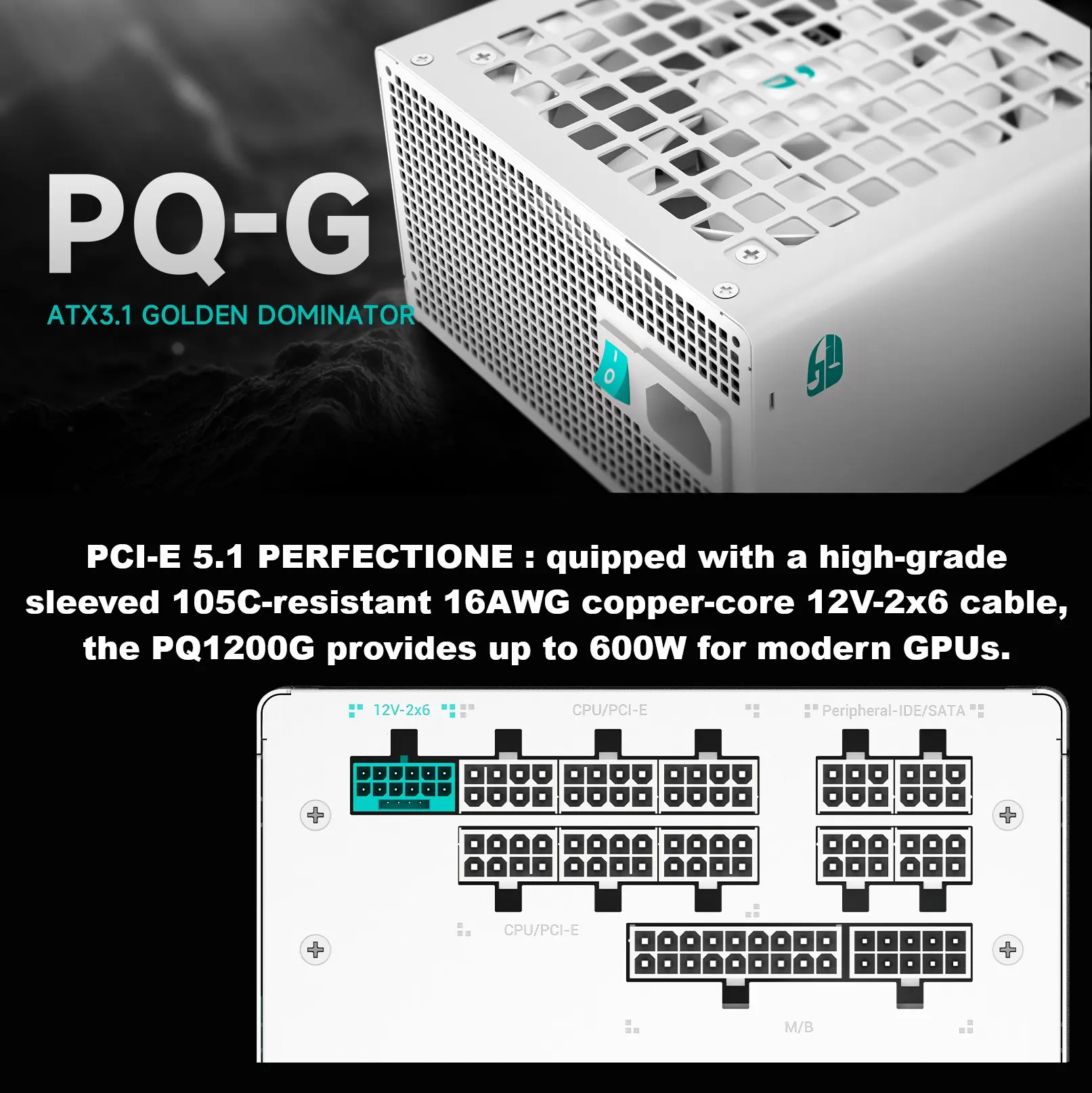

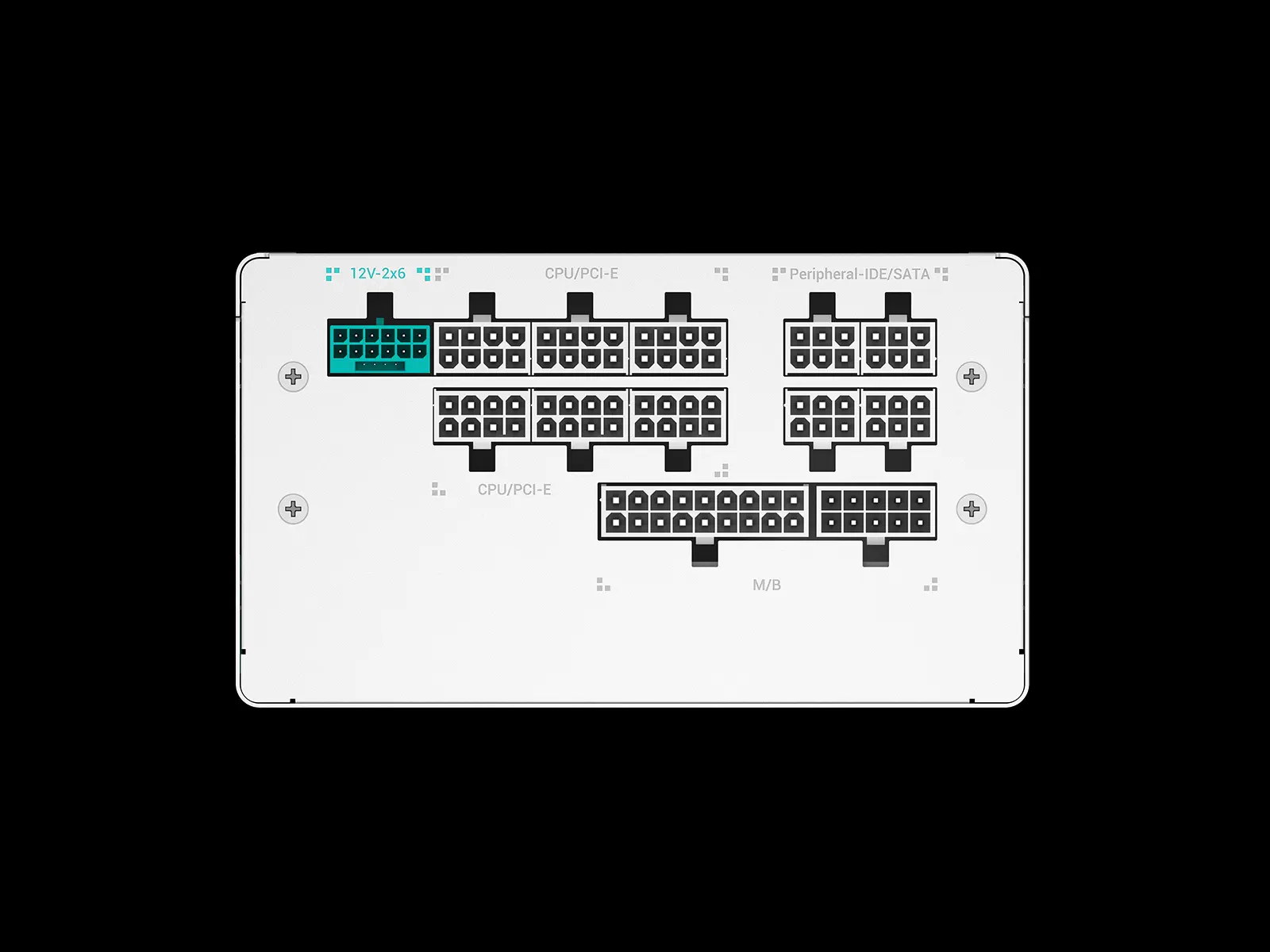

12V-2×6 GPU Ready (600W Output) : Comes armed with a 105°C-rated 16AWG copper-core cable delivering up to 600W—built for next-gen GPUs that eat weak PSUs for breakfast.

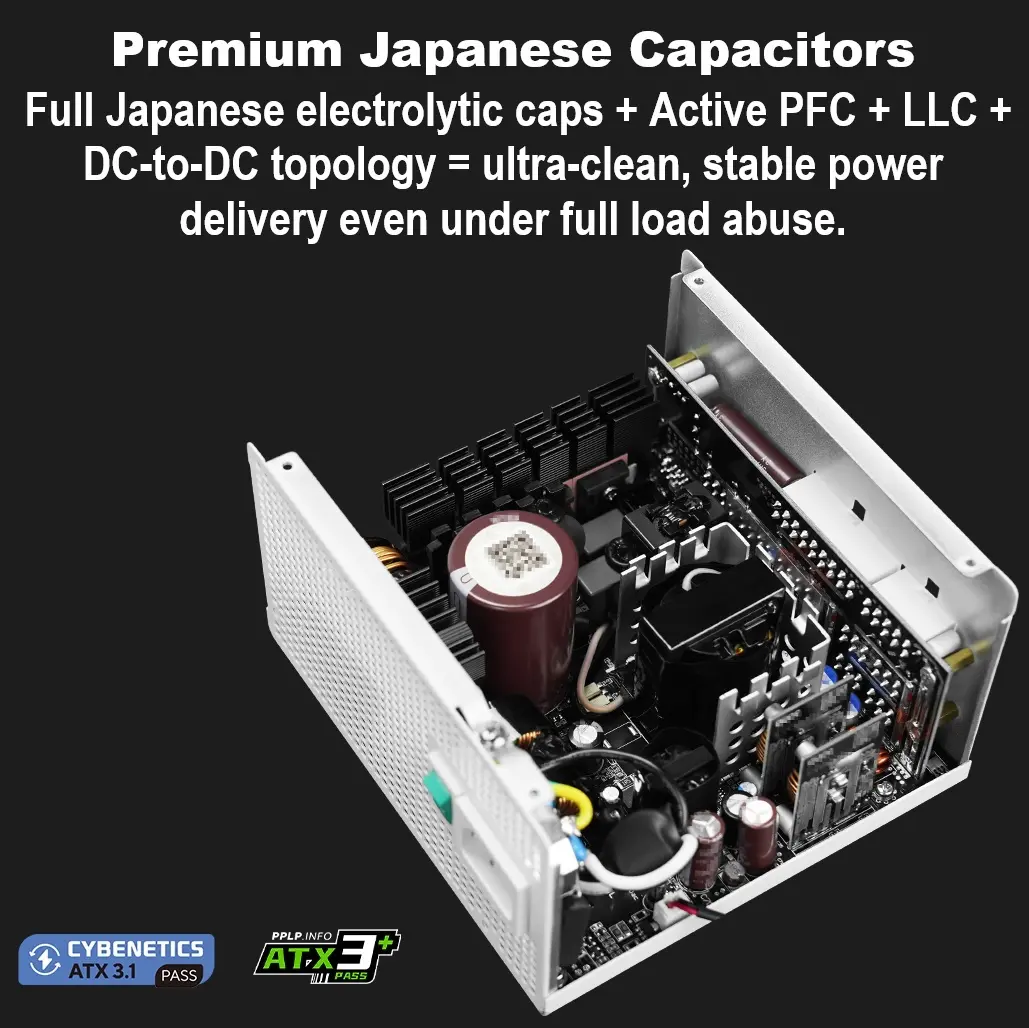

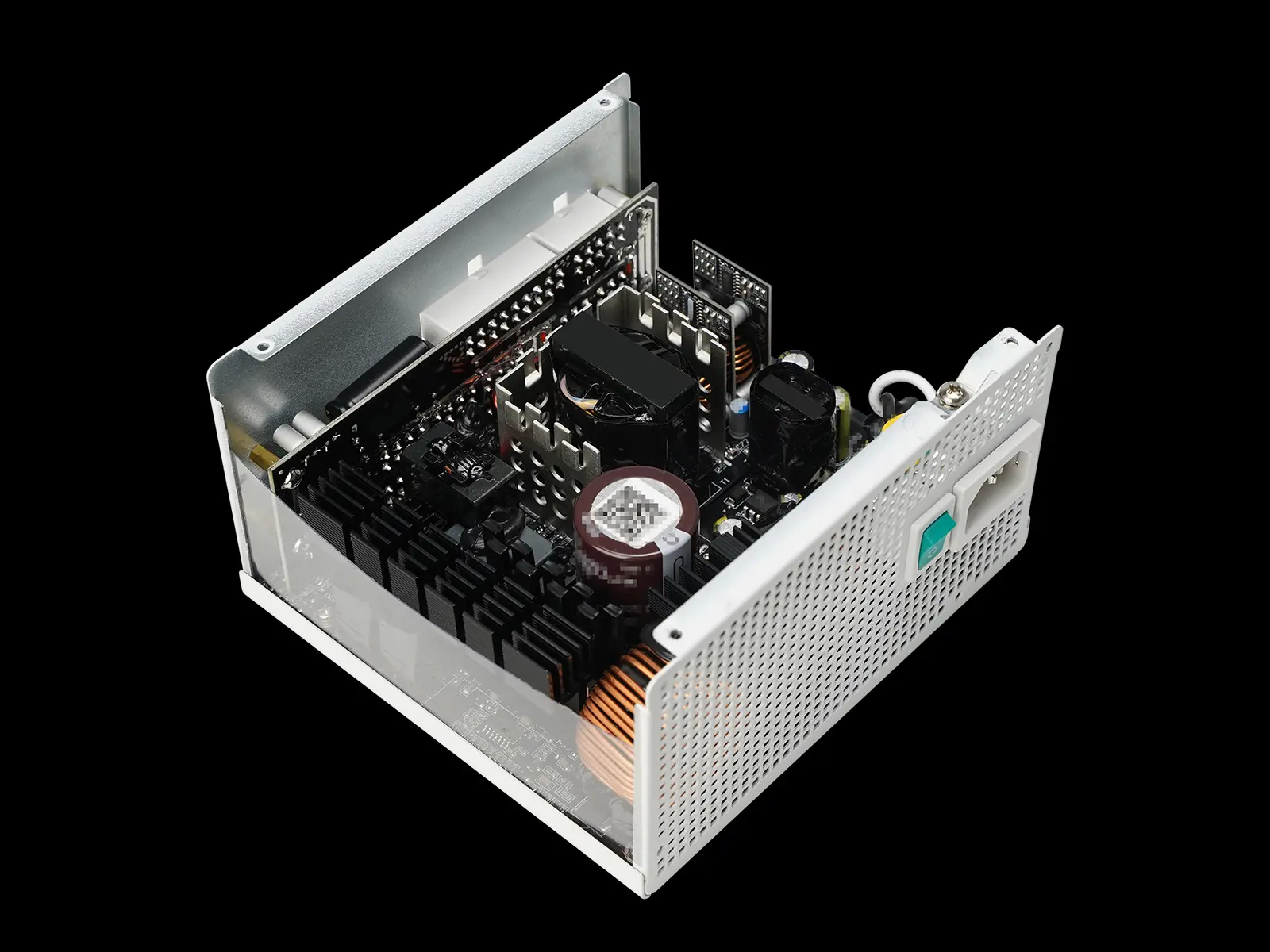

Premium Japanese Capacitors : Full Japanese electrolytic caps + Active PFC + LLC + DC-to-DC topology = ultra-clean, stable power delivery even under full load abuse.
16ms Hold-Up Time Stability : Maintains ≥16ms hold-up time at 100% load—exceeding ATX 3.1 requirements for rock-solid system stability during power fluctuations.

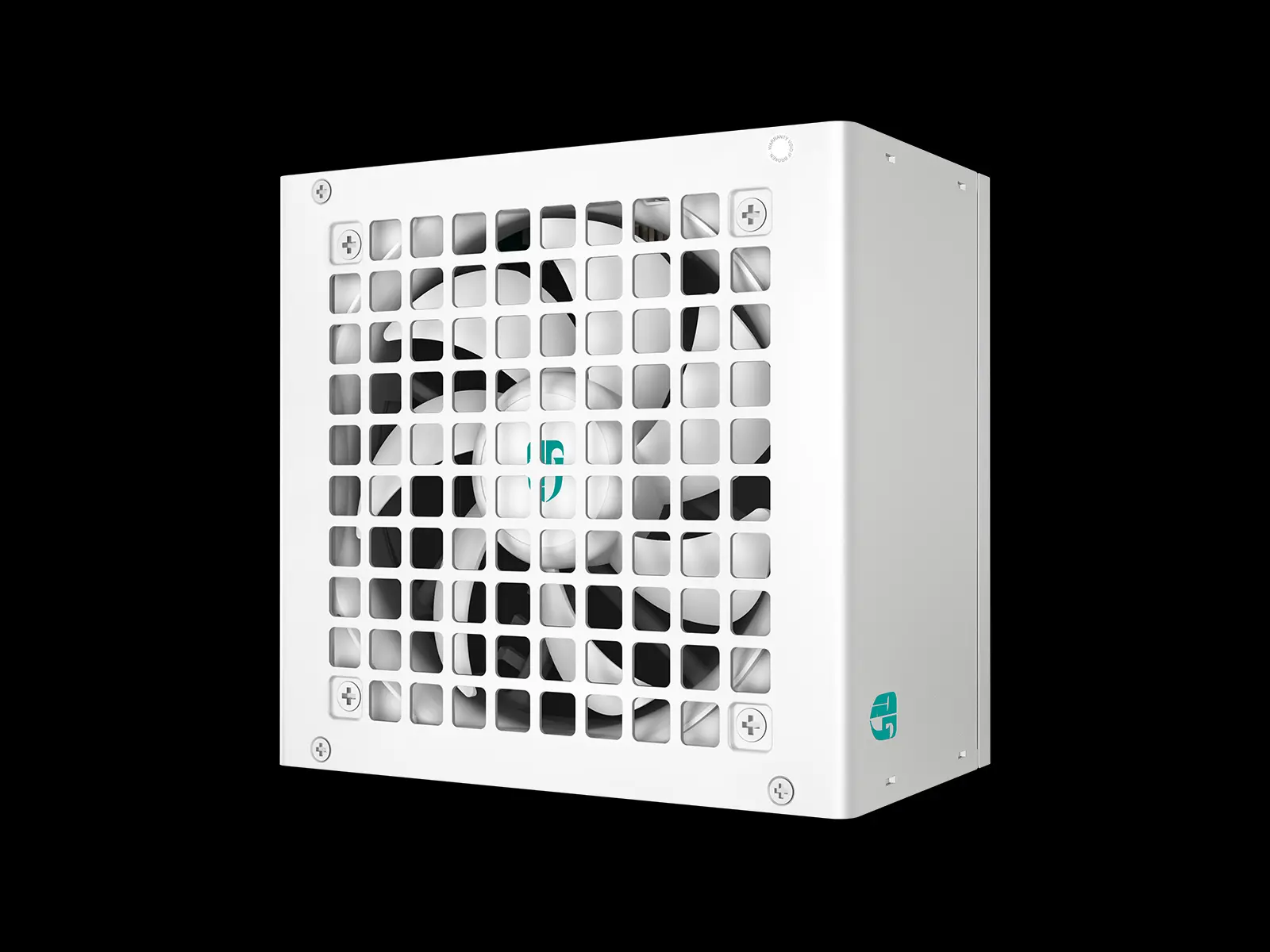

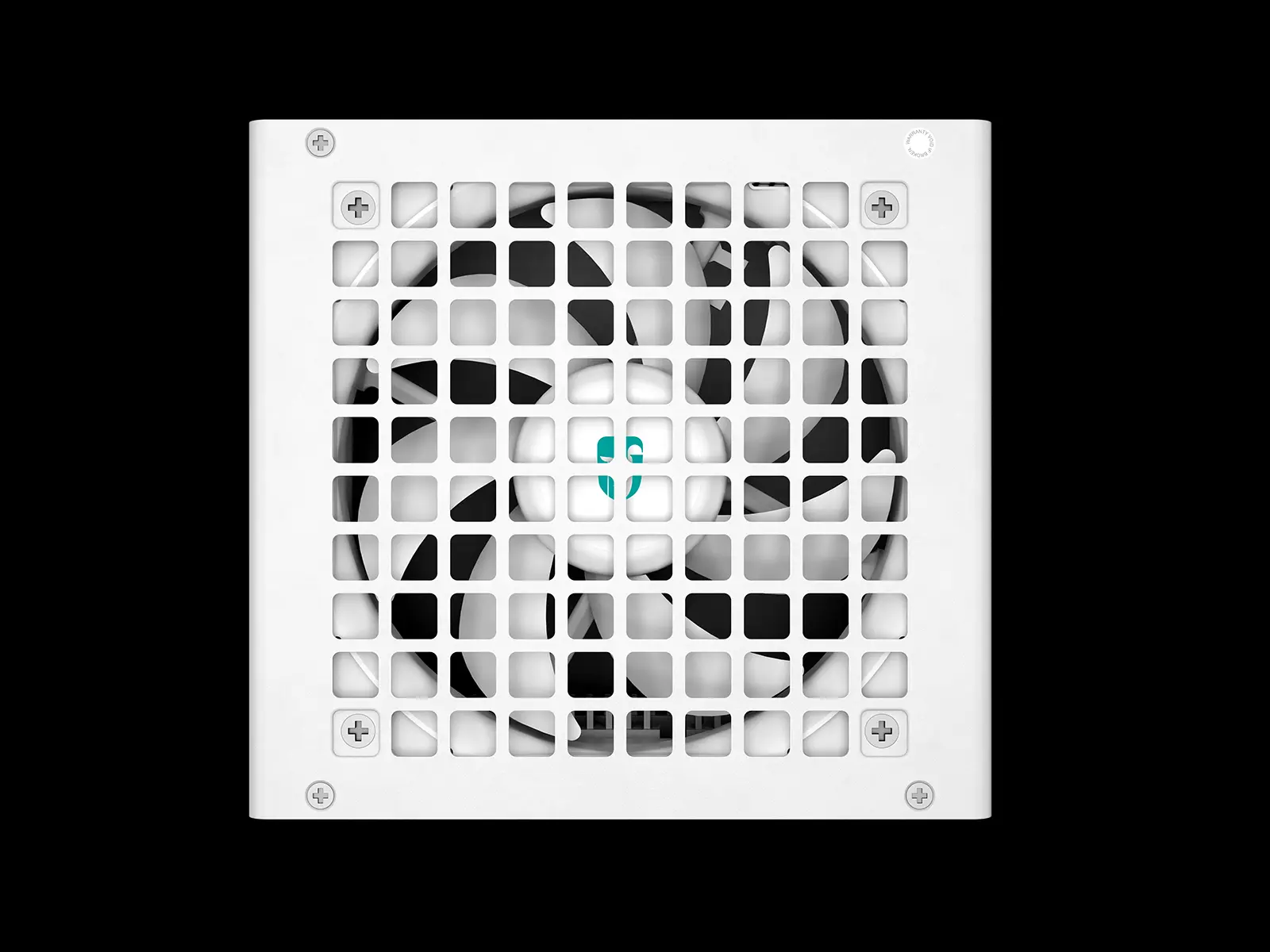

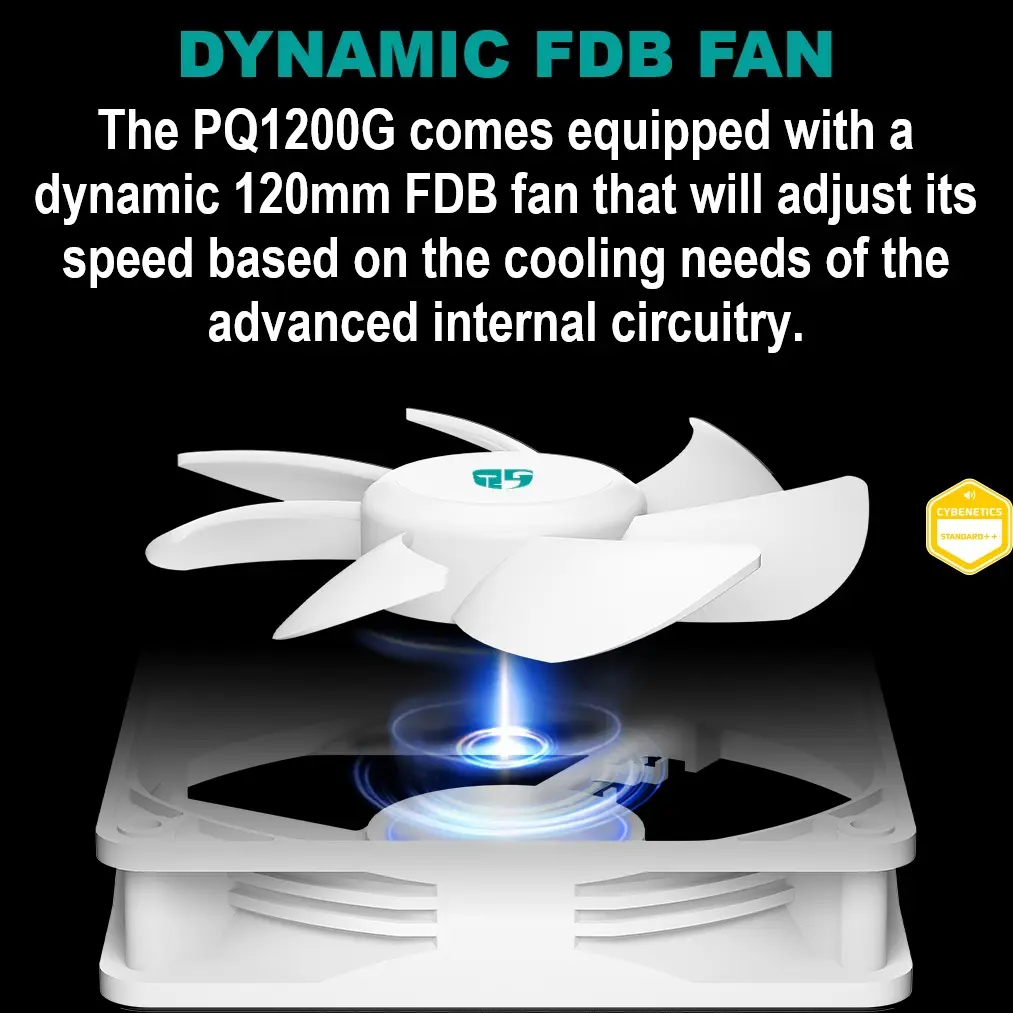

Dynamic 120mm FDB Cooling Fan : Fluid Dynamic Bearing fan intelligently scales RPM based on thermal load—quiet when idle, aggressive when needed.
Full Protection Suite : OPP / OVP / SCP / OTP / OCP / UVP / SIP / NLO protections—your rig is shielded from every electrical nightmare scenario.

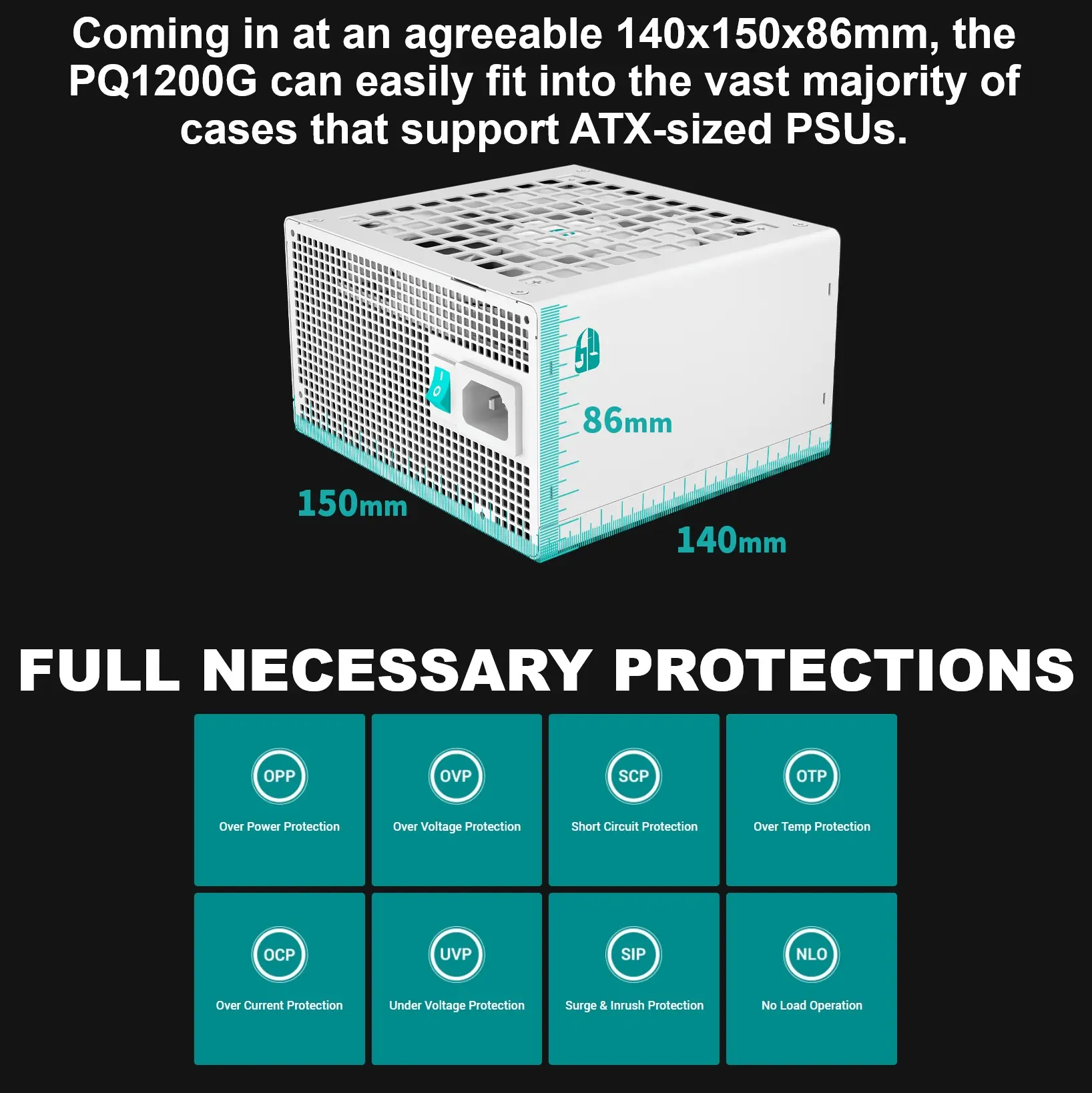

Compact ATX Form Factor : 140×150×86mm chassis fits easily into most cases without fighting your cable management sanity.
High Altitude Reliability : Engineered to operate at up to 5000 meters—because weak PSUs suffocate, this one thrives.

📊 Expert Specs

Specification	Details
Total Output	1200W
Type	ATX12V V3.1
Product Dimensions	150×140×86mm (W × L × H)
Efficiency Certification	80 Plus Gold / Cybenetics Gold / PPLP Gold
Efficiency	≥90% @ Typical Load (50%)
Fan Size	120×120×25mm
Fan Bearing	Fluid Dynamic Bearing (FDB)
Topology	Active PFC + Half Bridge SRC LLC + DC to DC
Capacitors	Full Japanese Electrolytic Capacitors
Power Good Signal	100–150ms
Hold-Up Time	≥16ms @ Full Load
Protections	OPP / OVP / SCP / OTP / OCP / UVP / SIP / NLO
Operating Temperature	0–40°C
Regulatory	CE / CCC / TUV-RH / cTUVus / RCM / EAC
ERP Regulation	ErP 2013
Environmental Compliance	WEEE / Triman / P65 / China RoHS / EAC
MTBF	100,000 Hours

Guaranteed Safe Checkout

Features & Compatibility

R-PQC00G-FD1W-JGEU-V

DEEPCOOL GAMESTORM PQ1200G 1200W ATX3.1 POWER SUPPLY 80+ GOLD-WHITE

GAMER STORM PQ1200G FULL-MODULAR PSU

Gamer Storm PQ1200G WH 1200W ATX 3.1 PCI-E 5.1 FULL-MODULAR Power Supply, 80 Plus Gold, 12V-2×6 600W GPU Ready, Japanese Capacitors, FDB Fan, Full Protections, 140mm Compact | WHITE
