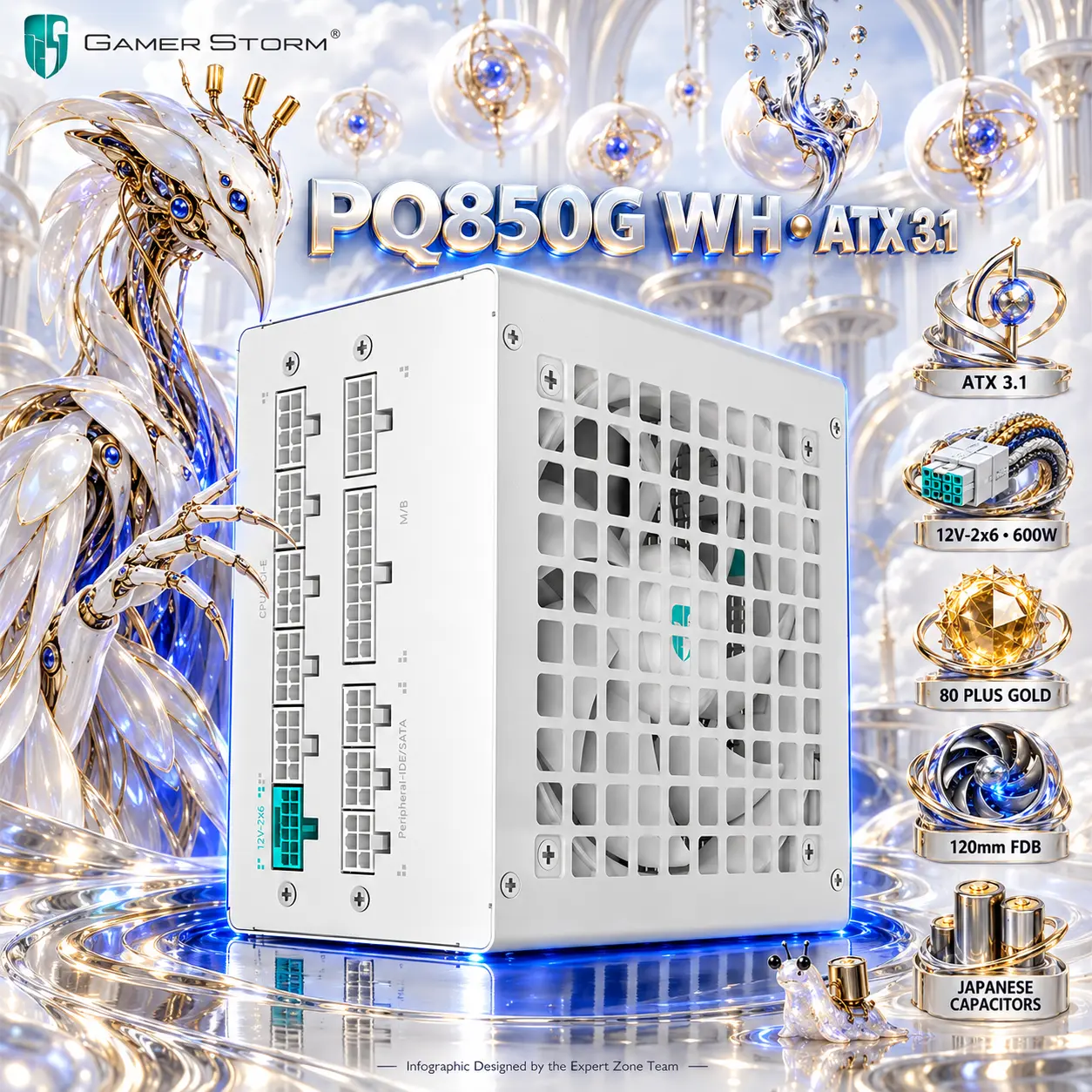

GamerStorm  by DeepCool PQ850G WH 850W ATX 3.1 Fully Modular Power Supply, 80 Plus Gold, PCIe 5.1 12V-2×6 600W, Japanese Capacitors & 120mm FDB Fan | WHITE

EXPERT FEATURES

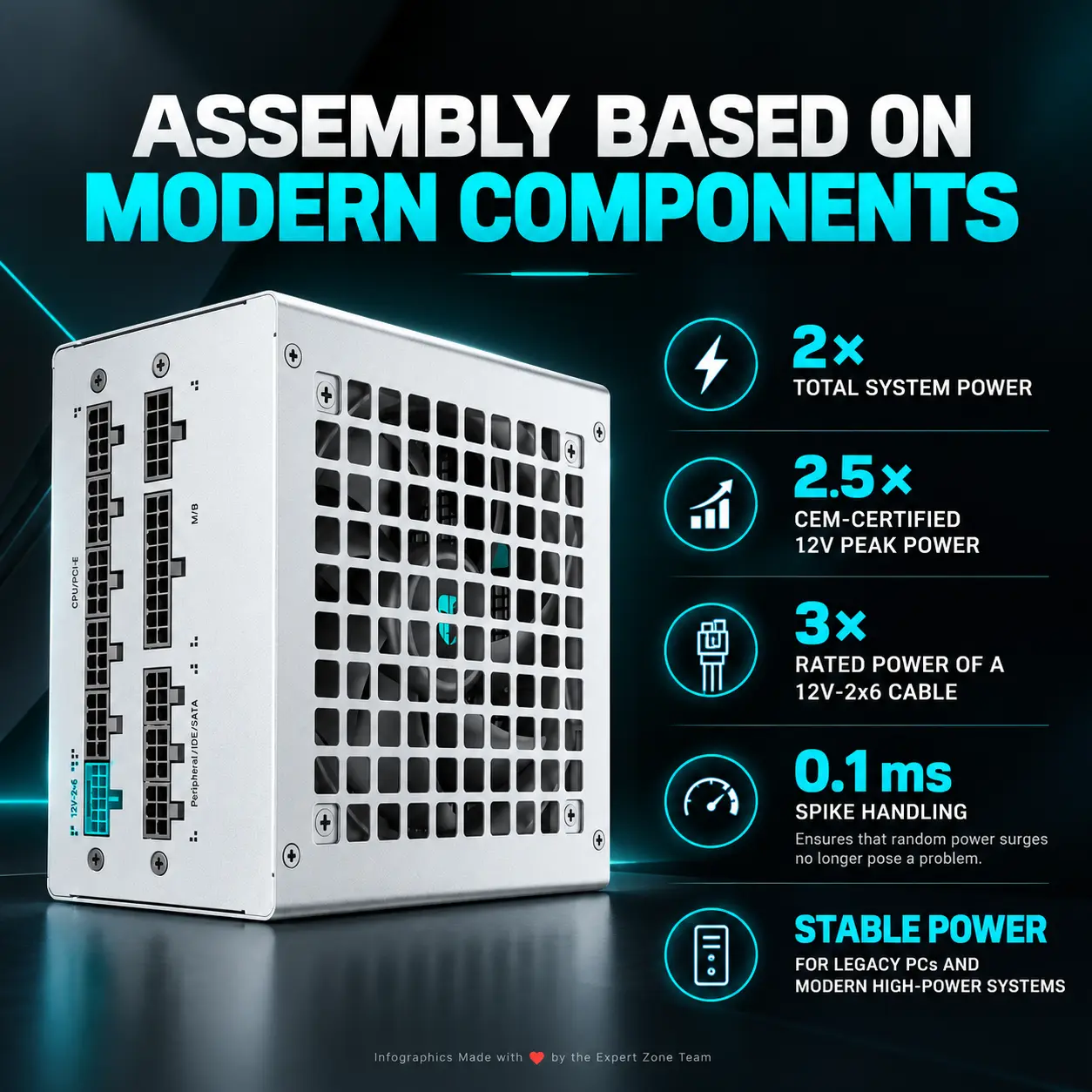

• Built for Modern High-Power Systems : GAMER STORM states that the PQ850G can handle short power excursions up to 2× total system power, 2.5× CEM 12V peak power, and 3× the rated 12V-2×6 cable power for 0.1ms, helping modern CPU/GPU systems remain stable during sudden load spikes.
• ATX 3.1 Ready : Built to the ATX12V V3.1 standard for current high-performance desktop platforms.

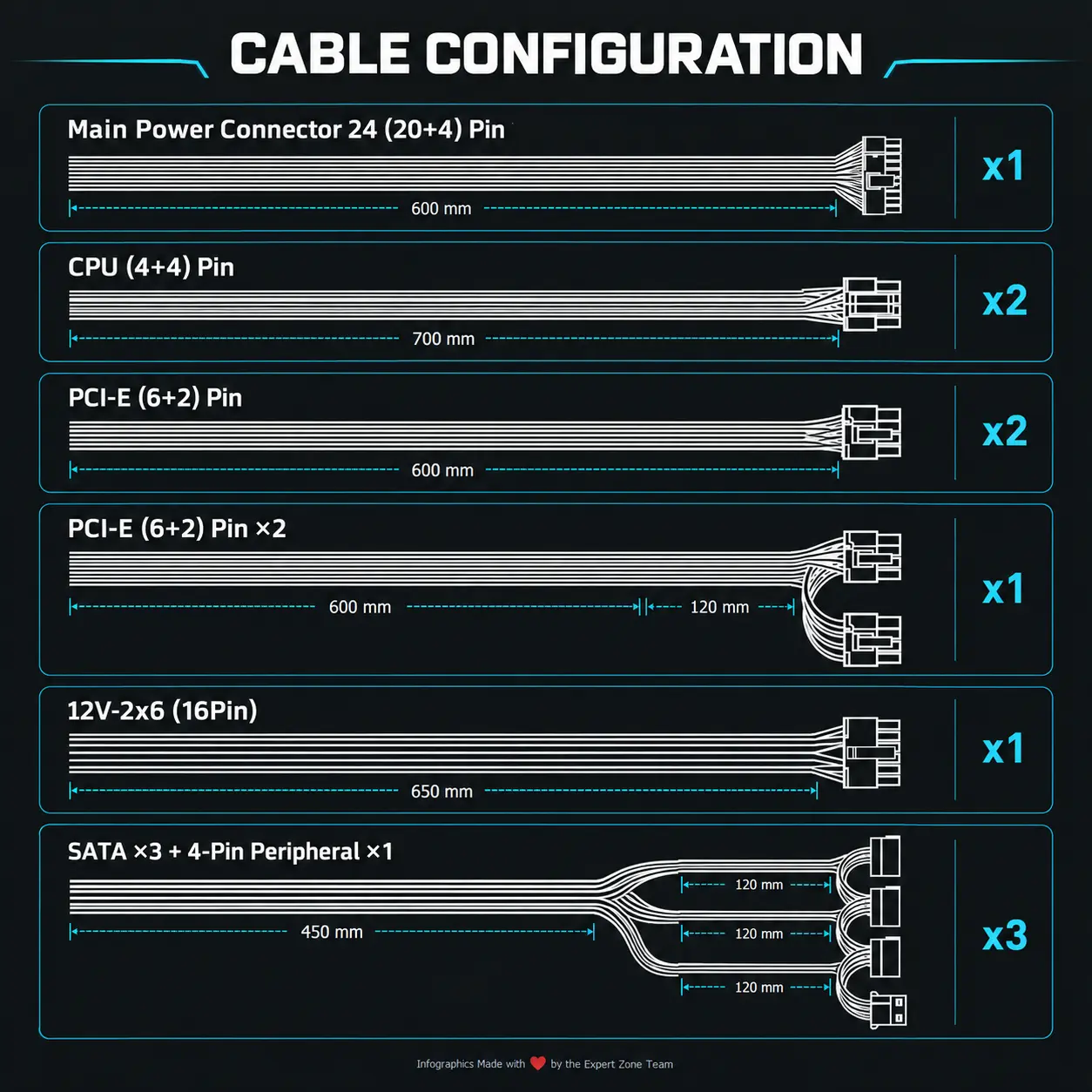

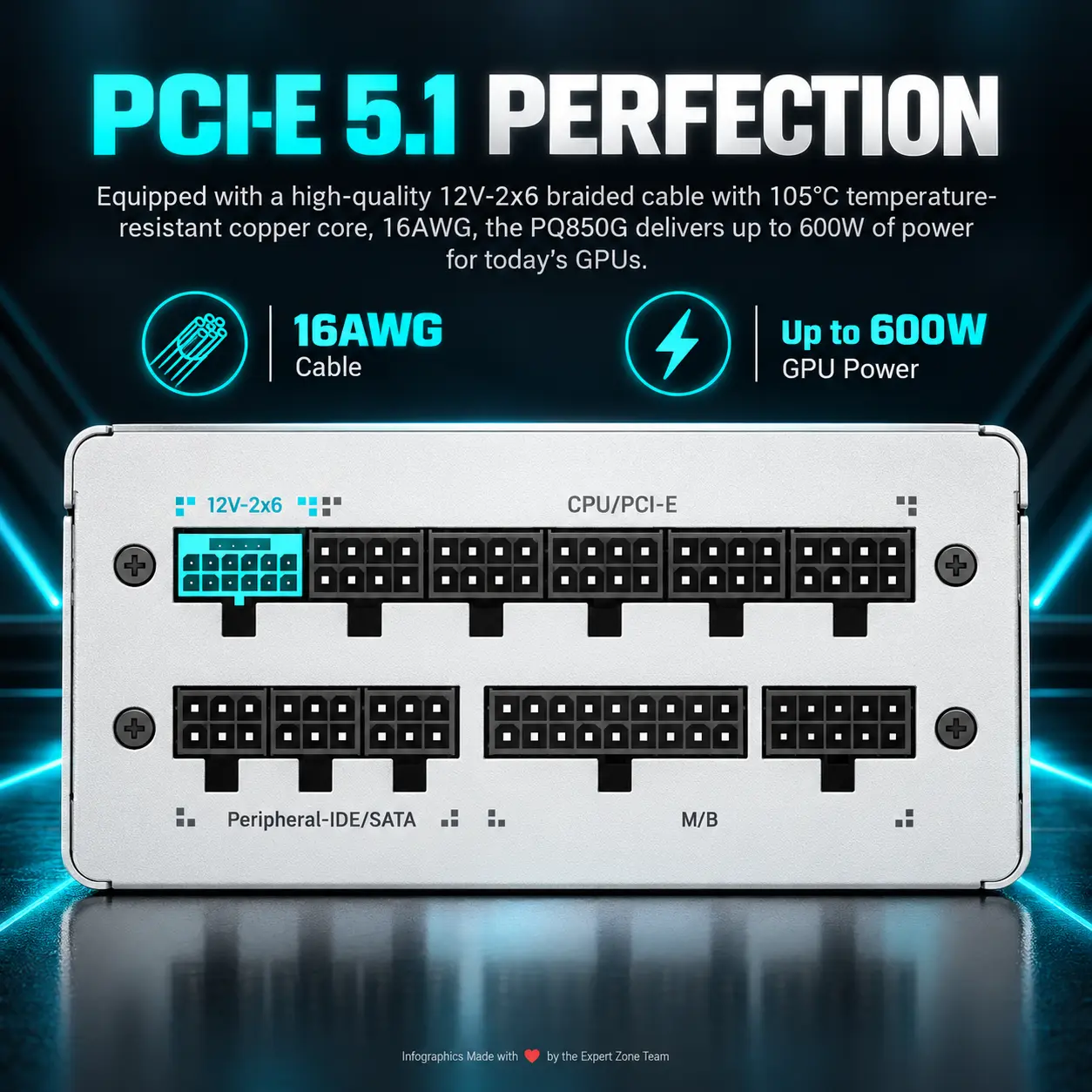

• Native 12V-2×6 GPU Power : A braided 16AWG copper-core 12V-2×6 cable rated to 105°C can deliver up to 600W to compatible modern graphics cards.

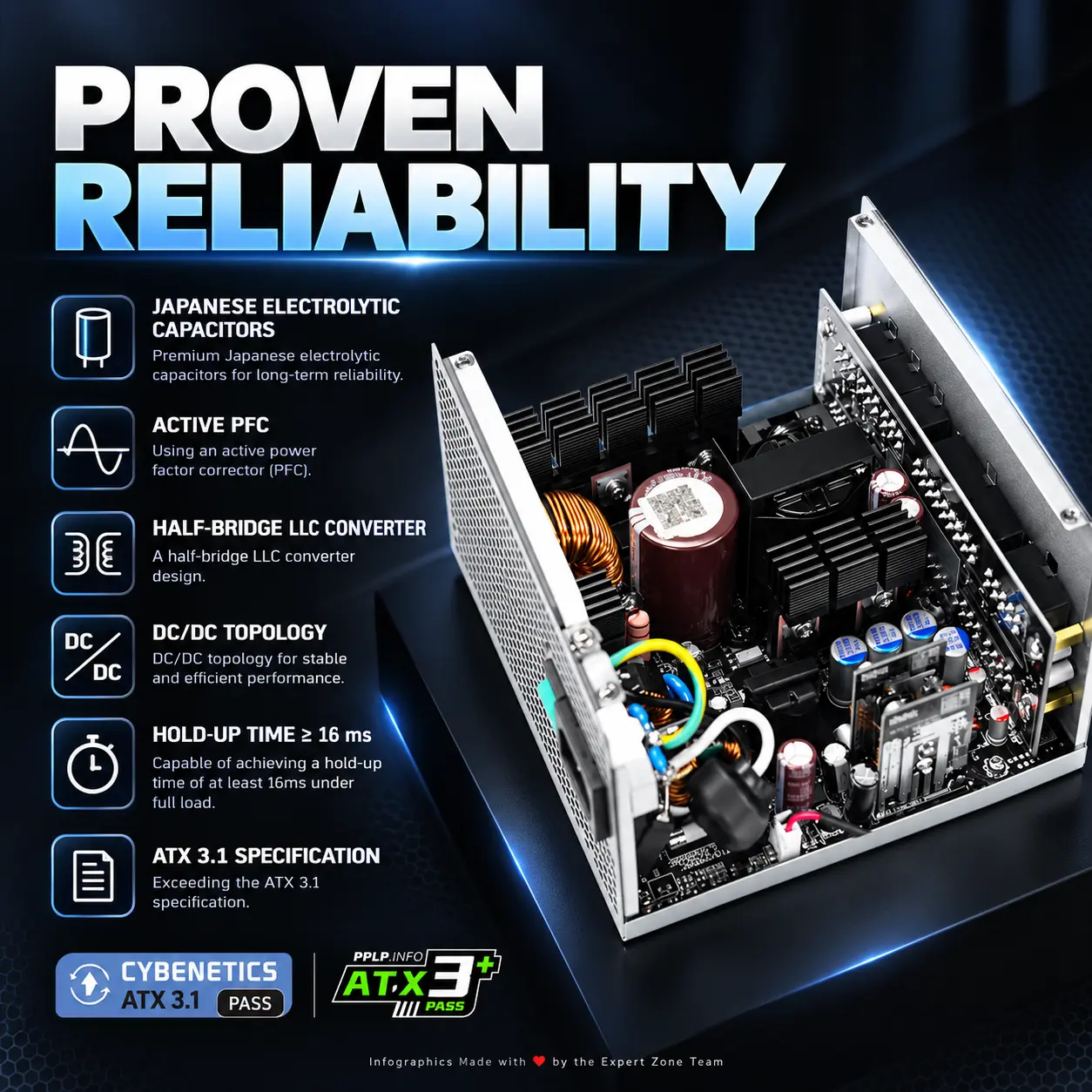

• Premium Internal Power Design : Full Japanese electrolytic capacitors, Active PFC, Half Bridge SRC LLC, and DC/DC conversion form the core electrical topology.
• ≥16ms Hold-Up Time at Full Load : GAMER STORM specifies at least 16ms hold-up time under full load.

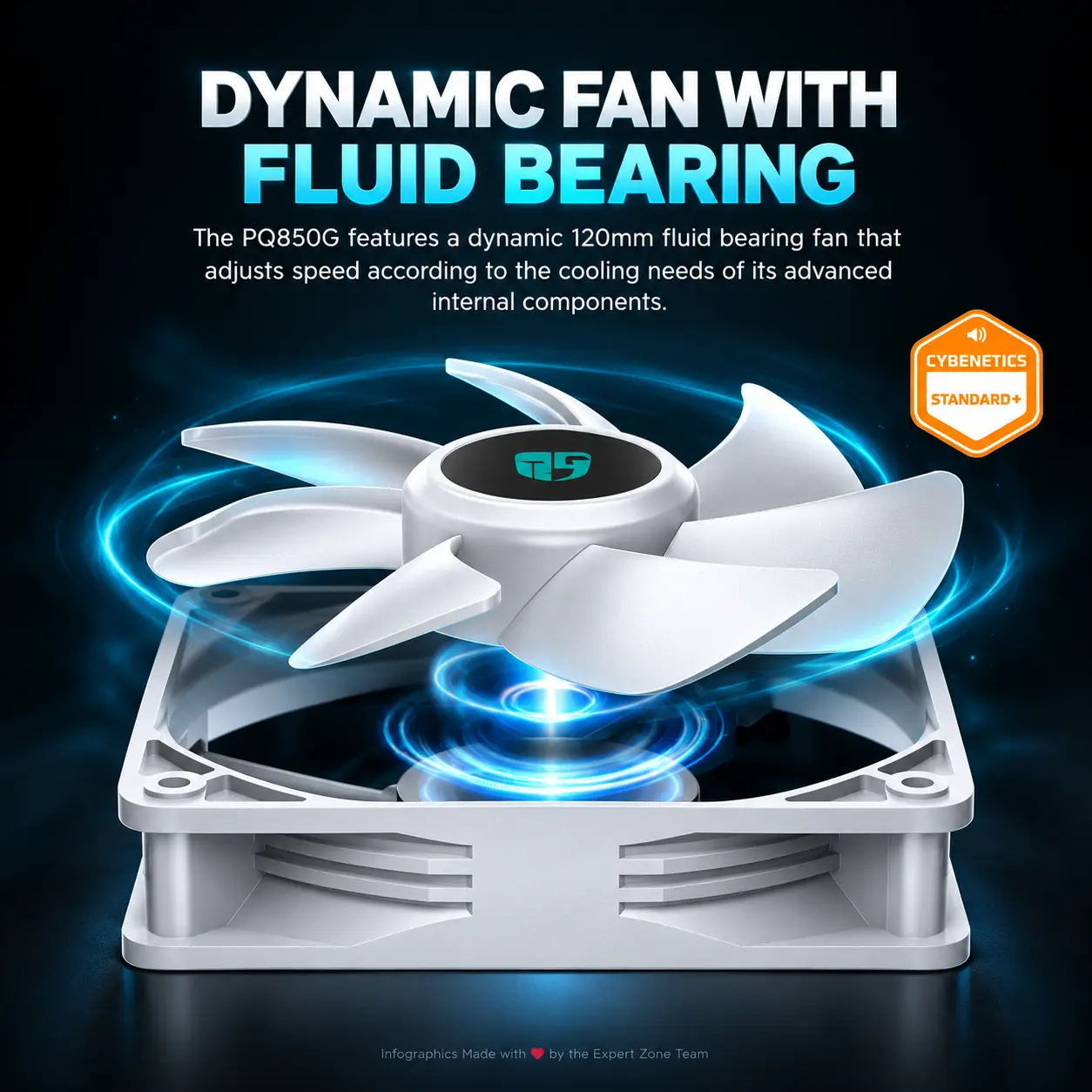

• Dynamic 120mm FDB Cooling : The 120mm fluid-dynamic-bearing fan adjusts its speed according to the cooling demand of the PSU’s internal components.

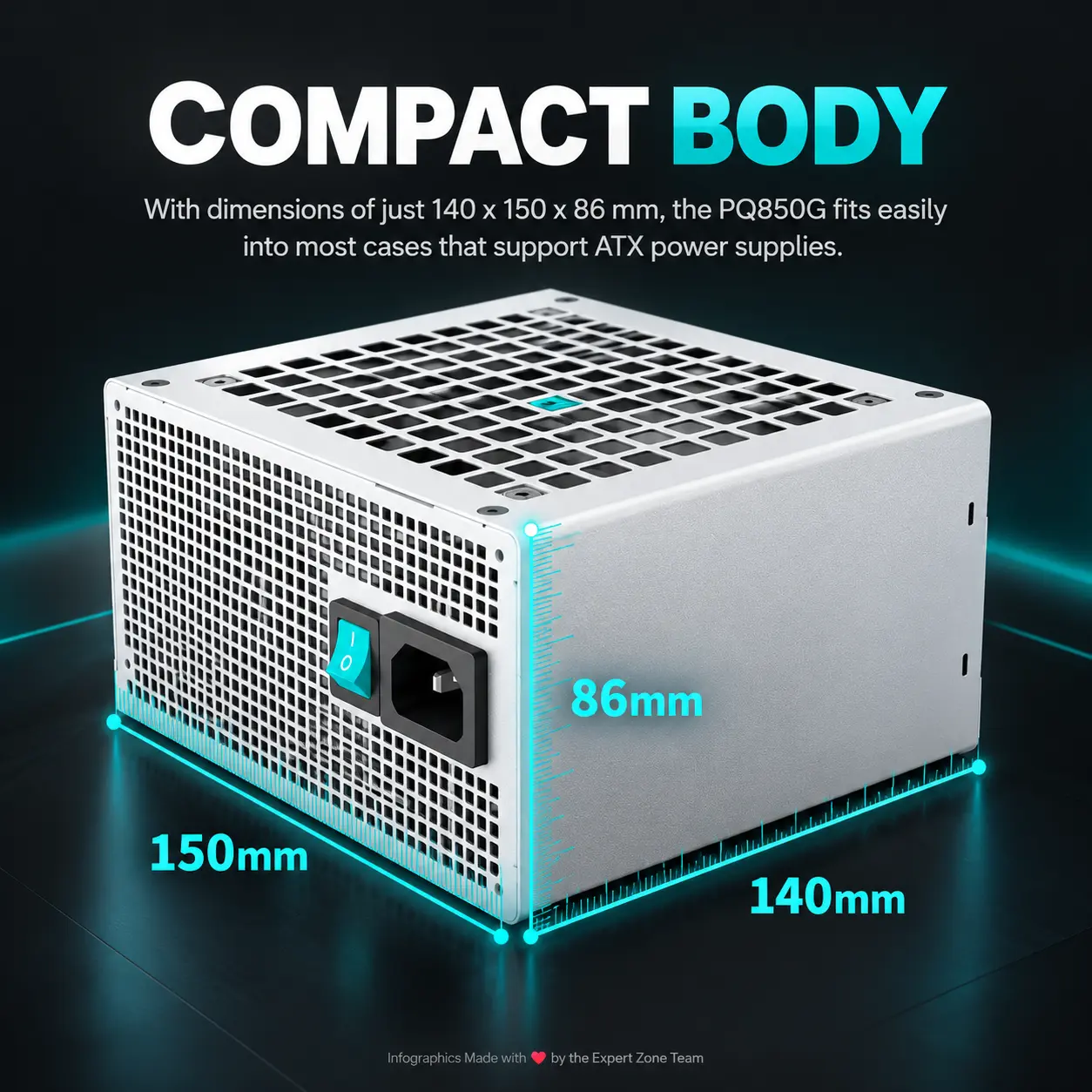

• Compact ATX Footprint : At 150 × 140 × 86mm, the unit is designed to fit easily in most ATX-compatible PC cases.
• High-Altitude Operation : GAMER STORM states that the PQ-G platform can operate at elevations up to 5000 meters.

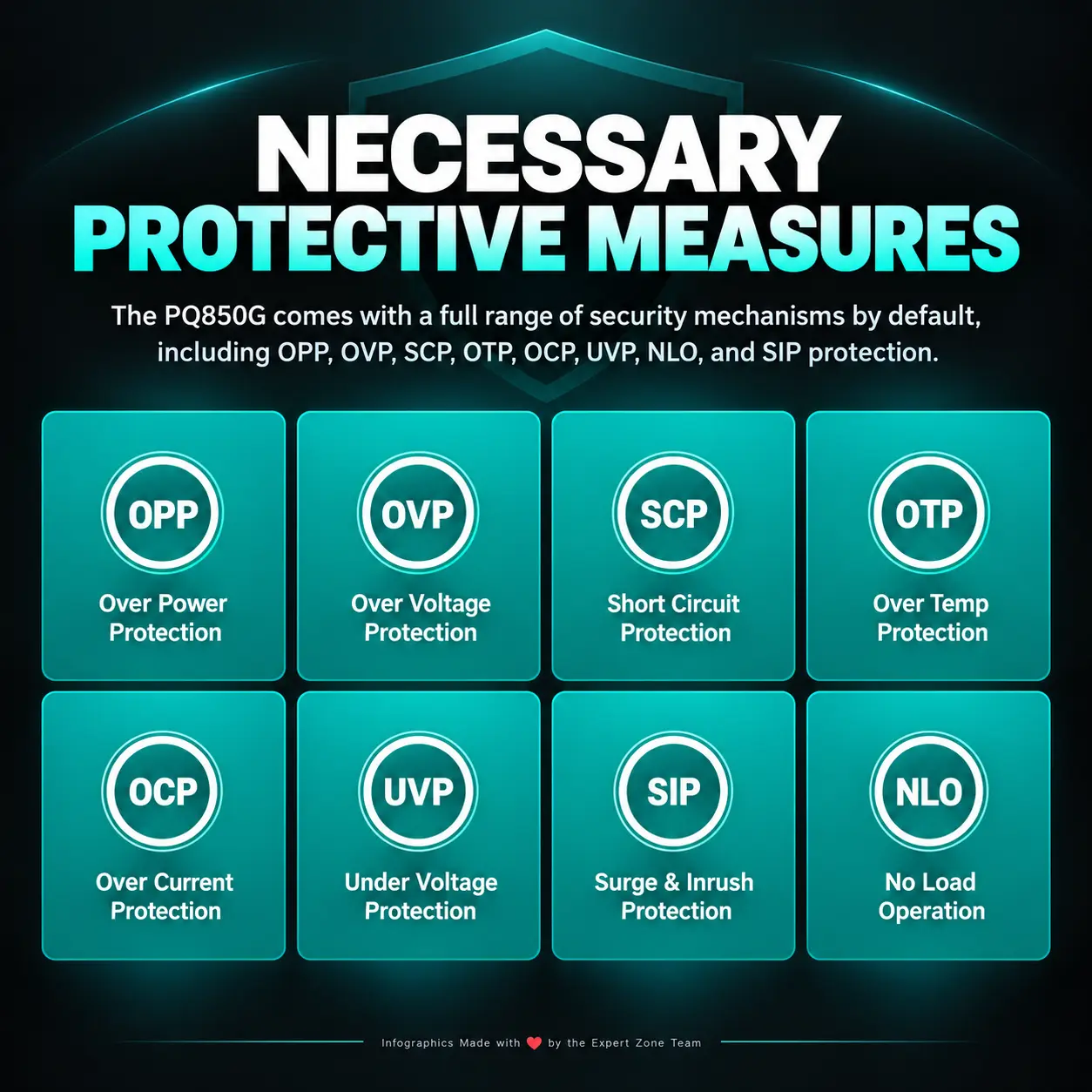

• Comprehensive Electrical Protection : Built-in protection includes OPP, OVP, SCP, OTP, OCP, UVP, SIP, and NLO.
• Long Rated Service Life : Published MTBF is 100,000 hours.

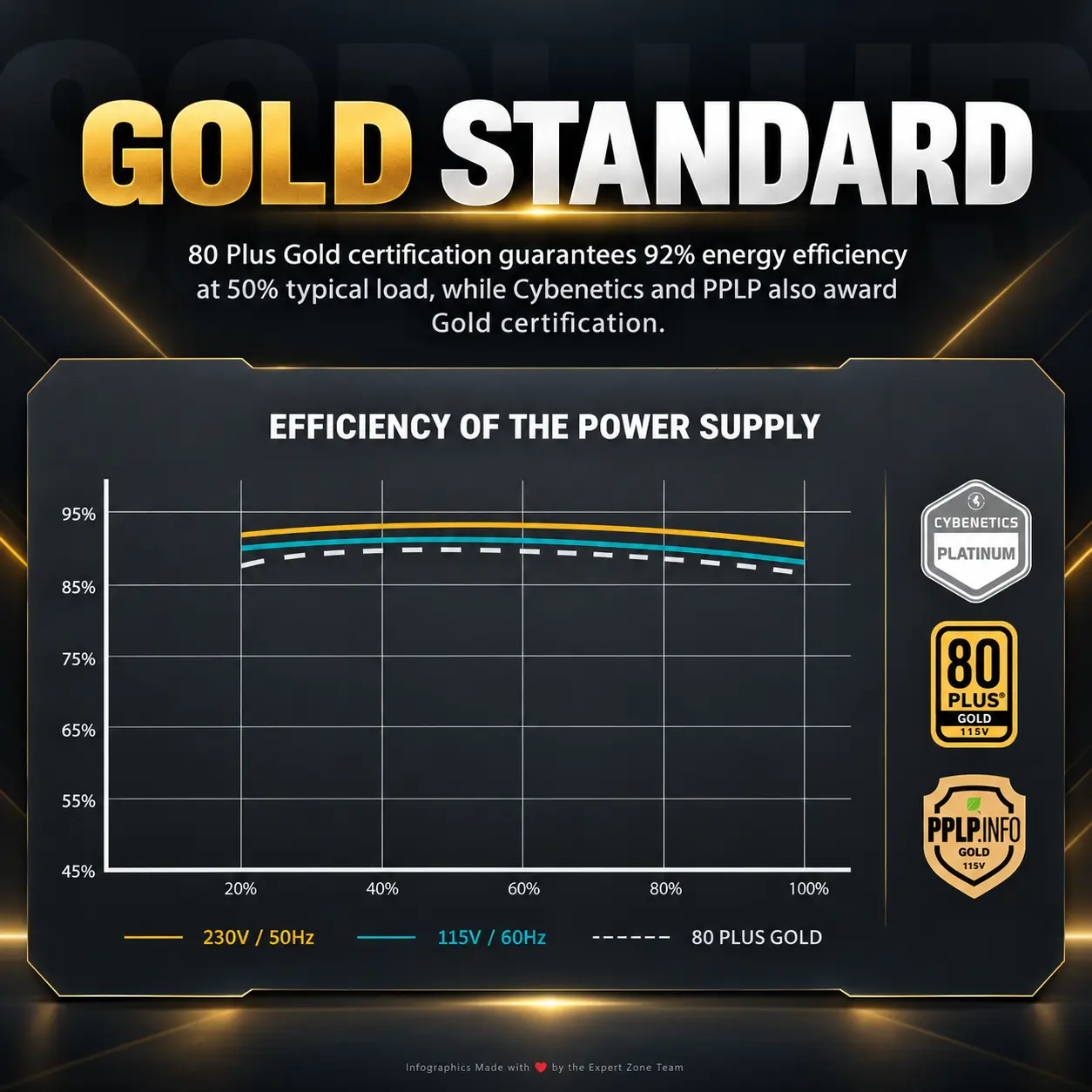

• Gold-Class Efficiency : The page identifies 80 Plus Gold certification and states up to 92% efficiency at a typical 50% load.
