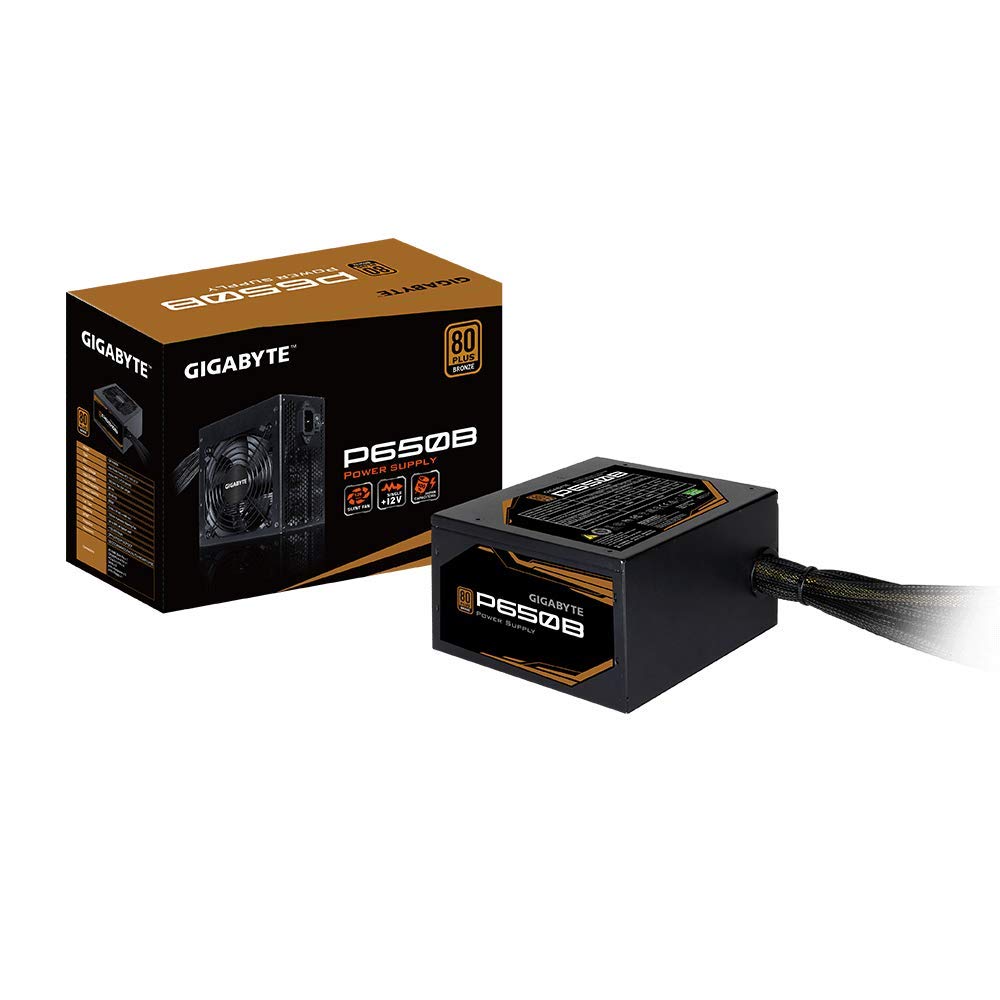

GIGABYTE P650B GP-P650B 650 W PSU Intel Form Factor ATX 12V v2.31 80 PLUS BRONZE Certified Non-Modular Active PFC (>0.9 typical) PFC Power Supply
$ 75
650 W 80 PLUS BRONZE PSU
EXPERT FEATURES
- Intel Form Factor ATX 12V v2.31
- Non-Modular
- 80 PLUS BRONZE Certified
- 100 – 240 V 50/60 Hz
- +3.3V@18A, +5V@15A, +12V@54A, -12V@0.3A, +5VSB@2.5A
- 80 PLUS bronze certified: up to 89% efficiency
- 100% Japanese Capacitors
- 120mm Hydraulic Bearing (HYB) Fan
- Single +12V rail
- Meet ErP LOT6 2013 (< 0.5W at standby mode)
- OPP/UVP/OVP/SCP/OCP protection
EXPERT SPECS
| Brand | GIGABYTE |
|---|---|
| Series | P650B |
| Model | GP-P650B |
| Type | Intel Form Factor ATX 12V v2.31 |
|---|---|
| Maximum Power | 650 W |
| Fans | 1 x 120mm Hydraulic Bearing Fan |
| PFC | Active PFC (>0.9 typical) |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 4 x 6+2-Pin |
| SATA Power Connector | 6 |
| Max PSU Length | 140 mm |
| Modular | Non-Modular |
| Efficiency | Up to 85% at typical load |
| Energy-Efficient | 80 PLUS BRONZE Certified |
| Over Voltage Protection | Yes |
| Protection | OPP / UVP / OVP / SCP / OCP |
| Input Voltage | 100 – 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 9A – 4A |
| Output | +3.3V@18A, +5V@15A, +12V@54A, -12V@0.3A, +5VSB@2.5A |
| MTBF | >100,000 Hours |
| Approvals | CE/ CCC/ BSMI/ KCC/ EAC/ UL/ TUV/ RCM/ FCC/ PSE |
| Connectors |
|
| Features | 80 PLUS bronze certified: up to 89% efficiency
100% Japanese Capacitors 120mm Hydraulic Bearing (HYB) Fan Single +12V rail Meet ErP LOT6 2013 (< 0.5W at standby mode) OPP/UVP/OVP/SCP/OCP protection |
|---|
| Dimensions | 3.39″ x 5.51″ x 5.91″ |
|---|
