Name: GIGABYTE Z790 S WIFI DDR4 LGA 1700 Intel Z790 ATX Motherboard with DDR4, Triple M.2, PCIe 4.0, USB 3.2 Gen2 Type-C, 2.5GbE LAN, PCIe EZ-Latch, Multi-Key ; Supports Intel® Core™ 14th/ 13th /12th processors
SKU: GIG-Z790-S-WIFI-DDR4
Availability: InStock

Description

GIG-Z790-S-WIFI-DDR4

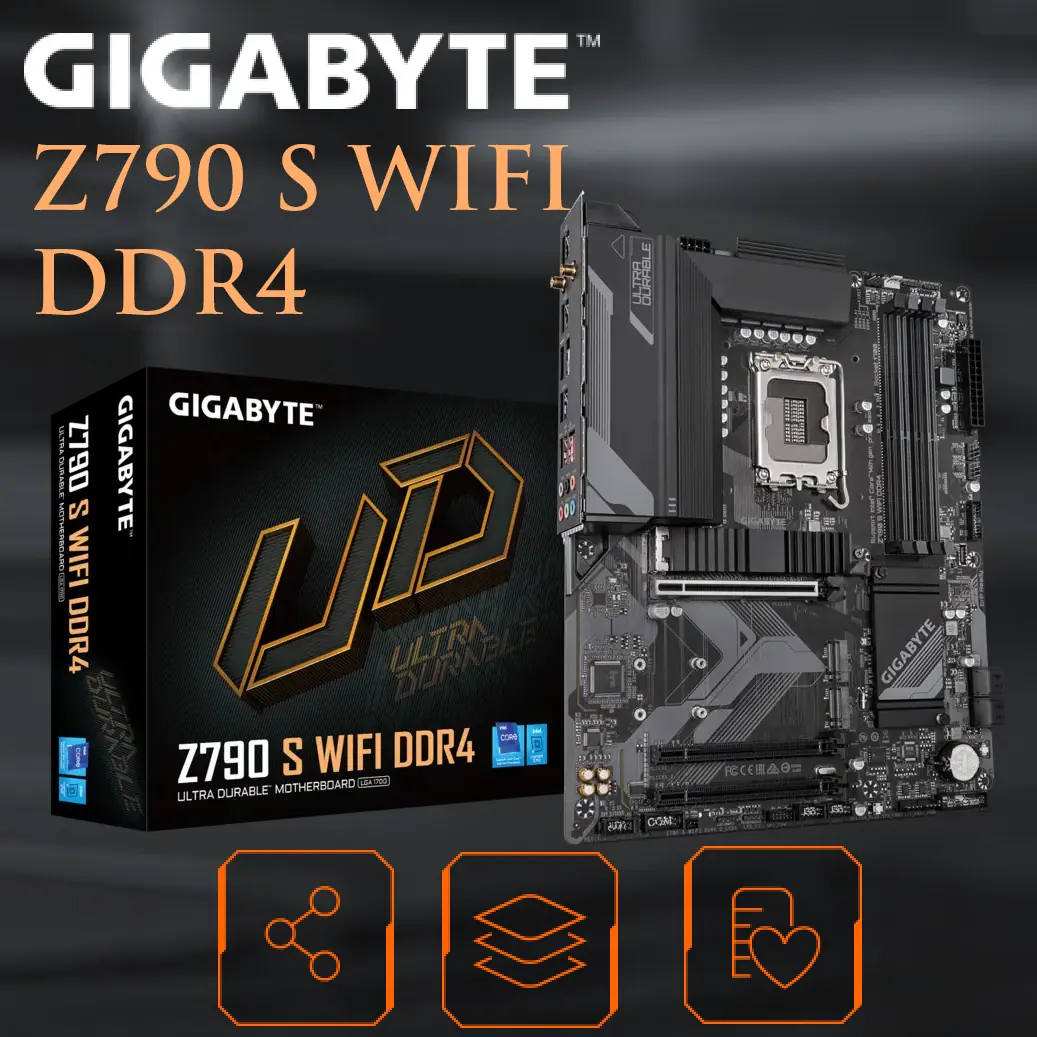

GIGABYTE Z790 S WIFI DDR4 Z790 ATX Motherboard

GIGABYTE Z790 S WIFI DDR4 LGA 1700 Intel Z790 ATX Motherboard with DDR4, Triple M.2, PCIe 4.0, USB 3.2 Gen2 Type-C, 2.5GbE LAN, PCIe EZ-Latch, Multi-Key ; Supports Intel® Core™ 14th/ 13th /12th processors

GIGABYTE Z790 S WIFI DDR4 Z790 ATX Motherboard GIGABYTE Z790 S WIFI DDR4 Z790 ATX Motherboard GIGABYTE Z790 S WIFI DDR4 Z790 ATX Motherboard GIGABYTE Z790 S WIFI DDR4 Z790 ATX Motherboard GIGABYTE Z790 S WIFI DDR4 Z790 ATX Motherboard GIGABYTE Z790 S WIFI DDR4 Z790 ATX Motherboard GIGABYTE Z790 S WIFI DDR4 Z790 ATX Motherboard GIGABYTE Z790 S WIFI DDR4 Z790 ATX Motherboard GIGABYTE Z790 S WIFI DDR4 Z790 ATX Motherboard

Additional information

VEIKK , A50 , DRAWING , TABLET , 10	{attribute:VEIKK , A50 , DRAWING , TABLET , 10

SHIPPING AND DELIVERY

Our delivery charges are calculated based on the distance between our warehouse and your location We strive to provide the best possible delivery experience for our customers and are committed to delivering your products as quickly and efficiently as possible If you have any questions or concerns regarding our delivery services, please feel free to contact us Our customer service team is always available to assist you and provide information or support you may need

GIG-Z790-S-WIFI-DDR4 GIGABYTE Z790 S WIFI DDR4 Z790 ATX Motherboard GIGABYTE Z790 S WIFI DDR4 LGA 1700 Intel Z790 ATX Motherboard with DDR4

Click to enlarge

Back to products

$ 178

Expert Features

Supports Intel® Core™ 14th/ 13th /12th processors
Unparalleled Performance：Hybrid 8+1+1 Phases Digital VRM Solution
Dual Channel DDR4：4*DIMMs XMP Memory Module Support
Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & M.2 SSD Performance
EZ-Latch：PCIe 4.0×16 Slot with Quick Release Design
Fast Networks：2.5GbE LAN & Wi-Fi 802.11ac
Extended Connectivity：Front USB-C® 10Gb/s, DP, HDMI
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Expert Specs

Model
Brand	GIGABYTE
Model	Z790 S WIFI DDR4

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors (Go to GIGABYTE’s website for the latest CPU support list.)

Chipsets
Chipset	Intel Z790

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/ DDR4 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.) / 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
Memory Feature	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.)

Expansion Slots
PCI Express 4.0 x16	CPU: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 3.0 x16	Chipset: – 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	CPU: – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: – 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
SATA RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

Onboard Audio
Audio Chipset	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 6E WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Bluetooth	BLUETOOTH 5.3

Rear Panel Ports
Back I/O Ports	1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 5 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x RJ-45 port 6 x audio jacks

Internal I/O Connectors
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0″ x 9.6″
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

Features
Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
