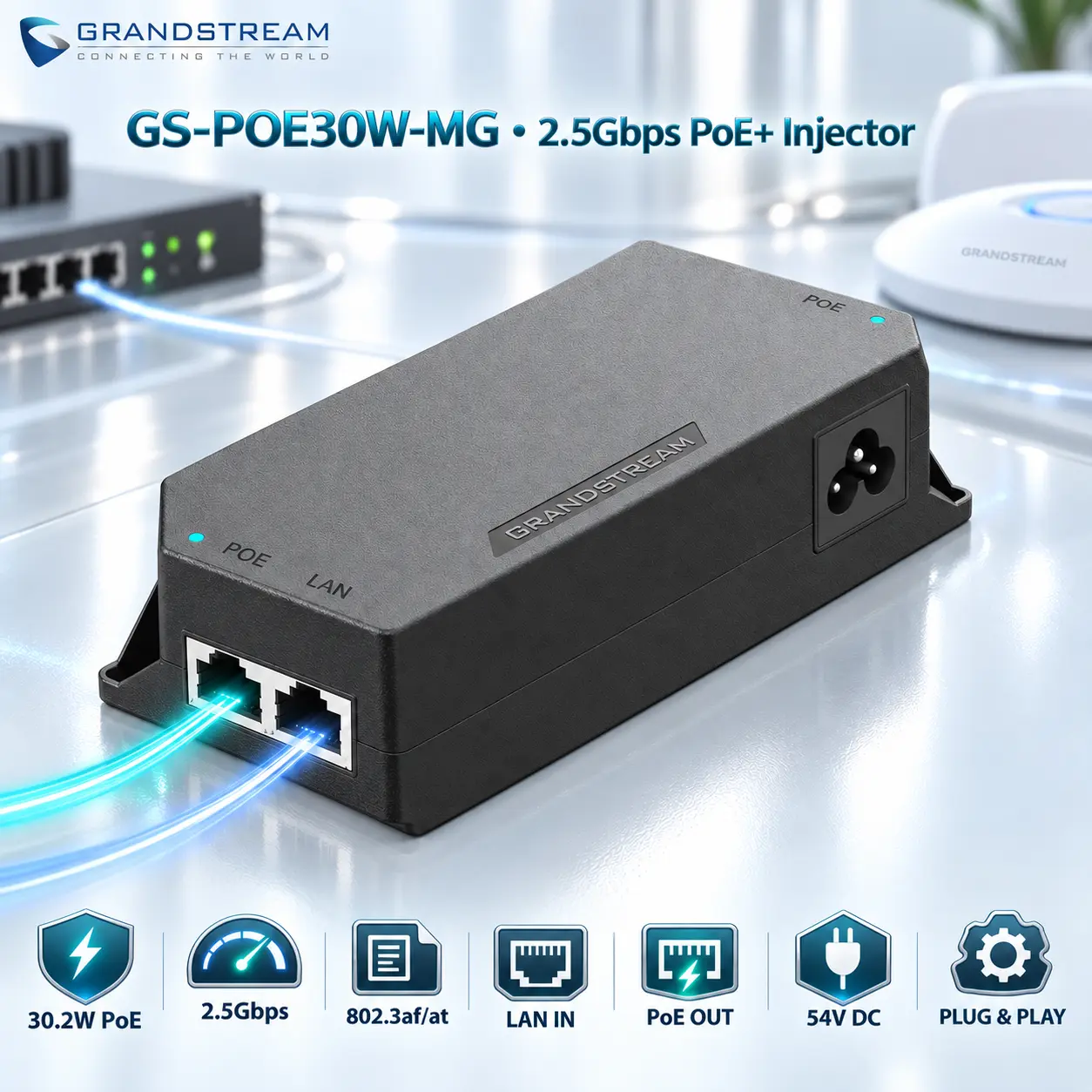

GS-POE30W-MG
GRANDSTREAM 30W 1GB POWER ETHERNET INJECTOR
Grandstream GS-POE30W-MG 2.5Gbps PoE+ Injector, 30.2W Output, IEEE 802.3af/at, Dual RJ45, 54V DC, Plug-and-Play, 1.2m AC Cable
Grandstream GS-POE30W-MG 2.5Gbps PoE+ Injector, 30.2W Output, IEEE 802.3af/at, Dual RJ45, 54V DC, Plug-and-Play, 1.2m AC Cable
27 $
EXPERT FEATURES
- 30.2W PoE Output : Supplies up to 30.2W of power through one PoE-enabled Ethernet output for a compatible powered device.
- IEEE 802.3af/at Support : Supports standard PoE and PoE+ powered devices that comply with IEEE 802.3af or 802.3at. IEEE 802.3bt is not specified for this model.
- 2.5Gbps Multi-Gigabit Ethernet : One 2.5Gbps RJ45 LAN input and one 2.5Gbps RJ45 PoE output carry the network connection to a compatible device; actual speed depends on the connected network equipment.
- One-Cable Power and Data : Combines Ethernet data and PoE power on the connection from the injector to the compatible powered device.
- 54V DC PoE Output : Provides a manufacturer-specified 54V DC output, with pins 1,2 positive and pins 3,6 negative.
- 100–240V AC Input : Accepts 100–240V AC at 50/60Hz via its built-in power adapter and AC power jack.
- Plug-and-Play Installation : Connect an Ethernet cable from your router or switch to LAN IN, connect the powered device to PoE OUT, and attach the AC cord.
- Dual-Color Status Indication : A blue power-on indicator and purple PoE-load indicator help identify power and PoE operating states.
- Compatible Device Applications : Can power compatible Grandstream access points, IP phones, and other IEEE 802.3af/at devices within the output rating.
- Compact Indoor Housing : The injector measures 140.55 × 60.3 × 35.4mm and weighs 175g, without the AC cable.
- 1.2m AC Cable Included : Grandstream lists a 1.2m AC power cable, quick installation guide, and regulatory paper with the injector.
- Model-Specific 2.5G Design : The GS-POE30W-MG is a 2.5Gbps, 30.2W model—not the separate GS-POE60W-MG with 10Gbps ports and 60W power.
EXPERT SPECS
| Specification | Details |
|---|---|
| Brand | Grandstream |
| Exact Model | GS-POE30W-MG |
| Product Type | Single-Port PoE+ Injector |
| Power-over-Ethernet Standards | IEEE 802.3af / IEEE 802.3at |
| PoE Output Power | 30.2W (manufacturer-rated) |
| LAN Input | 1 × RJ45, up to 2.5Gbps |
| PoE Output | 1 × RJ45, up to 2.5Gbps with PoE |
| PoE-Powered Output Ports | 1 |
| AC Power Input | 1 × AC power jack; built-in power adapter |
| Input Voltage / Frequency | 100–240V AC, 50/60Hz |
| DC PoE Output Voltage | 54V DC |
| Output Pin Assignment | Pins 1,2 positive (+); pins 3,6 negative (−) |
| Power-On LED | Blue |
| PoE Load LED | Purple |
| Installation | Plug-and-play; indoor use only |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | −10°C to 60°C |
| Relative Humidity | 10–90% RH, non-condensing |
| Unit Dimensions (without cable) | 140.55 × 60.3 × 35.4mm |
| Unit Weight | 175g |
| Package Dimensions | 225 × 130.5 × 46mm |
| Package Weight | 400g |
| Included Accessories | 1 × 1.2m AC cable; quick installation guide; certification/regulatory paper |
| Compliance | FCC, CE, RCM, IC |
| 10Gbps Ethernet | Not specified; 10Gbps applies to the separate GS-POE60W-MG |
| IEEE 802.3bt | Not specified; supported standards for this model are 802.3af/at |
| Source | Grandstream GS-PoE injector product page, official datasheet and quick installation guide |
