Description

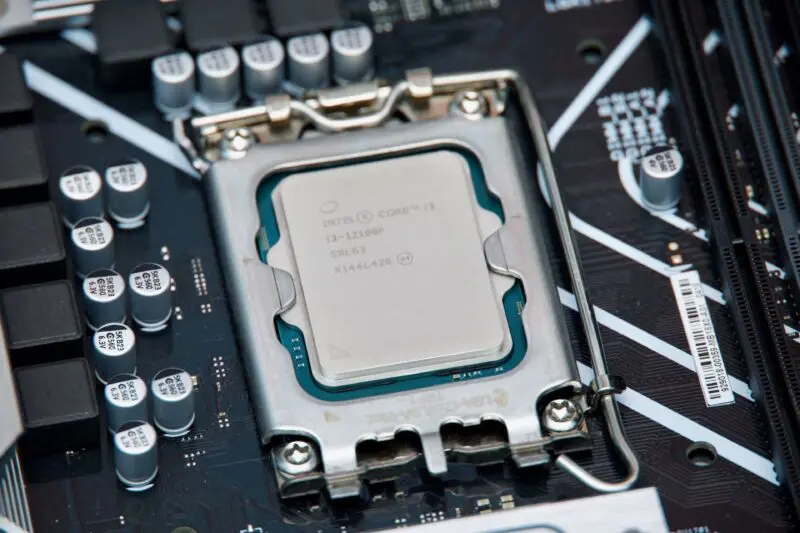

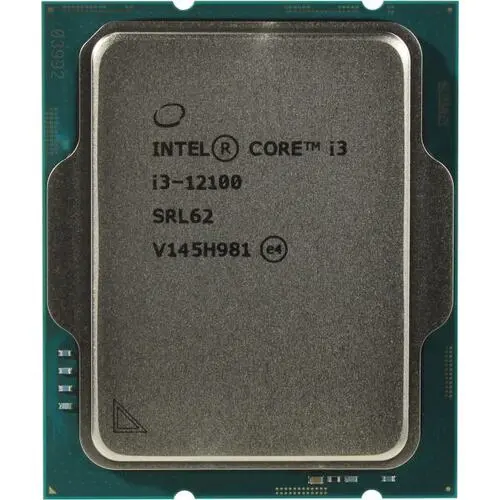

Intel Core i3-12100 Processor 12M Cache
$ 117 Original price was: $ 117.$ 88Current price is: $ 88.
Intel Core i3-12100 Processor 12M Cache
TECHNICAL SPECIFICATIONS
Essentials | |
Product Collection | 12th Generation Intel® Core™ i3 Processors |
Code Name | Products formerly Alder Lake |
Vertical Segment | Desktop |
Processor Number | i3-12100 |
Status | Launched |
Launch Date | Q1’22 |
Lithography | Intel 7 |
Use Conditions | PC/Client/Tablet |
CPU Specifications | |
Total Cores | 4 |
Total Threads | 8 |
Max Turbo Frequency | 4.30 GHz |
Performance-core Max Turbo Frequency | 4.30 GHz |
Performance-core Base Frequency | 3.30 GHz |
Cache | 12 MB Intel® Smart Cache |
Total L2 Cache | 5 MB |
Processor Base Power | 60 W |
Maximum Turbo Power | 89 W |
Memory Specifications | |
Max Memory Size (dependent on memory type) | 128 GB |
Memory Types | Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s |
Max # of Memory Channels | 2 |
Processor Graphics | |
Processor Graphics | Intel® UHD Graphics 730 |
Graphics Base Frequency | 300 MHz |
Graphics Max Dynamic Frequency | 1.40 GHz |
Graphics Output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
Max Resolution (HDMI) | 4096 x 2160 @ 60Hz |
Max Resolution (DP) | 7680 x 4320 @ 60Hz |
Max Resolution (eDP – Integrated Flat Panel) | 5120 x 3200 @ 120Hz |
Intel Core i3-12100 Processor 12M Cache
VEIKK , A50 , DRAWING , TABLET , 10 | {attribute:VEIKK , A50 , DRAWING , TABLET , 10 |
---|
Brand | CORSAIR |
---|---|
Series | Vengeance RGB |
Model | CMH32GX5M2E6000C36 |
Part Number | CMH32GX5M2E6000C36 |
Capacity | 32GB (2 x 16GB) |
---|---|
Type | 288-Pin PC RAM |
Speed | DDR5 6000 (PC5 48000) |
CAS Latency | 36 |
Timing | 36-44-44-96 |
Voltage | 1.40V |
Multi-channel Kit | Dual Channel Kit |
BIOS/Performance Profile | Intel XMP 3.0 |
Color | Black |
Heat Spreader | Yes |
Features |
|
Recommend Use | Intel 600 Series and 700 series |
LED Color | RGB |
Brand | Team |
---|---|
Series | T-Force Delta RGB |
Model | FF3D532G5600HC36DC01 |
Capacity | 32GB (2 x 16GB) |
---|---|
Type | 288-Pin PC RAM |
Speed | DDR5 5600 (PC5-48000) |
CAS Latency | 36 |
Timing | 36-36-36-76 |
Voltage | 1.20 V |
ECC | No |
Buffered/Registered | Unbuffered |
Multi-channel Kit | Dual Channel Kit |
BIOS/Performance Profile | Intel XMP 3.0 |
Color | Black |
Heat Spreader | Yes |
LED Color | RGB |
---|
Brand | DeepCool |
Power connector type | 4-Pin |
Voltage | 12 Volts (DC) |
Wattage | 1.44 watts |
Cooling method | Air |
Compatible devices | Desktop |
Noise level | 28 dB |
Material | Polycarbonate |
Maximum rotational speed | 1850 RPM |
Fan Dimensions | 120×120×25 mm(L×W×H) |
Net Weight | 170 g |
Fan Speed | 500~1850 RPM±10% |
Fan Airflow | 68.99 CFM |
Fan Air Pressure | 2.19 mmAq |
Fan Noise | ≤28 dB(A) |
Fan Connector | 4-pin PWM |
Bearing Type | Fluid Dynamic Bearing |
Fan Rated Voltage | 12 VDC |
Fan Rated Current | 0.12 A |
Fan Power Consumption | 1.44 W |
Brand | SanDisk |
Model Name | SanDisk Ultra SD UHS-I card |
Flash Memory Type | SDXC |
Memory Storage Capacity | 128 GB |
Compatible Devices | Compact to mid-range cameras, Compact to mid-range camcorders |
Brand | GIGABYTE |
---|---|
Model | B650M DS3H (rev. 1.0) |
Part Number | B650M DS3H (rev. 1.0) |
CPU Socket Type | AM5 |
---|---|
CPU Type | AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors |
Chipset | AMD B650 |
---|
Number of Memory Slots | 4x288pin (DDR5) |
---|---|
Memory Standard | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/s memory modules |
Maximum Memory Supported | 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory |
Channel Supported | Dual channel memory architecture |
ECC Supported | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
Buffer Supported | Un-buffered |
Memory Feature | Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information. |
PCI Express 4.0 x16 | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) |
---|---|
PCI Express x1 | 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
SATA 6Gb/s | 4 x SATA 6Gb/s |
---|---|
M.2 | 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) |
SATA RAID |
|
Audio Chipset | Realtek® Audio CODEC |
---|---|
Audio Channels |
|
Max LAN Speed | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
---|
Back I/O Ports | 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x DisplayPorts 1 x HDMI port 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 3 x audio jacks |
---|---|
PS/2 | 1 x PS/2 keyboard/mouse port |
Other Connectors |
|
---|
Form Factor | Micro ATX |
---|---|
Dimensions (W x L) | 24.4cm x 24.4cm |
Windows 11 | Support for Windows 11 64-bit Support for Windows 10 64-bit |
---|
Brand | ASUS |
---|---|
Model | TUF GAMING B650-E WIFI |
Part Number | 90MB1GT0-MVAAY0 |
CPU Socket Type | AM5 |
---|---|
CPU Type | Ryzen 7000 Series |
Chipset | AMD B650 |
---|
Number of Memory Slots | 4x288pin (DDR5) |
---|---|
Memory Standard | DDR5 5200 |
Maximum Memory Supported | 192GB |
Channel Supported | Dual Channel |
ECC Supported | Non-ECC |
Buffer Supported | Un-buffered |
Memory Feature | DDR5 8000+(OC)/7800(OC)/7600 (OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO) OptiMem II * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function |
PCI Express 4.0 x16 | AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0/3.0 x16 slot(s) AMD B650 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x1 mode) |
---|---|
PCI Express x1 | 1 x PCIe 4.0/3.0 x1 |
SATA 6Gb/s | 4 x SATA 6Gb/s |
---|---|
M.2 | AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
SATA RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10 |
Max LAN Speed | 2.5Gbps |
---|---|
Wireless LAN | Wi-Fi 802.11 ax |
Bluetooth | Bluetooth v5.3 |
Back I/O Ports | 2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C) 3 x USB 5Gbps port(s) (3 x Type-A) 3 x USB 2.0 port(s) (3 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button |
---|
Onboard USB | 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports |
---|---|
Other Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x Aura RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 20-3 pin System Panel header with Chassis intrude function |
Form Factor | ATX |
---|---|
Dimensions (W x L) | 12.0" x 9.6" |
Windows 11 | Supported |
---|
Features | Special Features: ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Aura RGB header(s) - Addressable Gen 2 header(s) Software Features: ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
---|
Package Contents | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Rubber Package(s) for M.2 2 x Screw package(s) for M.2 SSD Installation Media 1 x Support DVD Documentation 1 x TUF Certification card 1 x User guide |
---|
