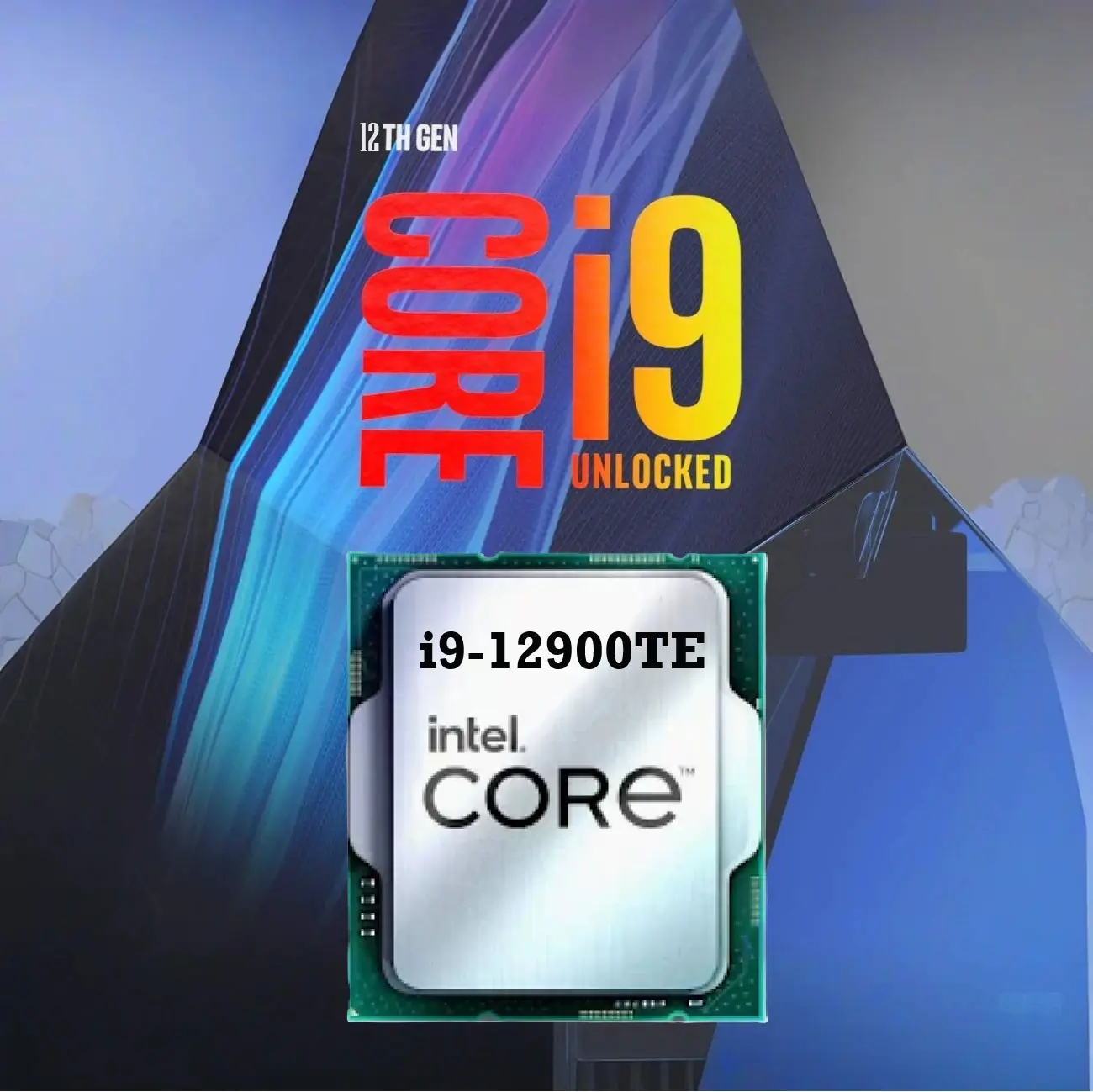

Intel Core i9-12900TE Processor –Alder Lake 16 Cores, 24 Threads, 4.80 GHz Max Turbo, Intel UHD Graphics 770, PCIe 5.0, DDR5 Support, 35W Power, Embedded Solutions | TRAY

TRAY – NO BOX – 1 YEAR WARRANTY

Expert Features:

• 16 Cores, 24 Threads – 8 Performance-cores & 8 Efficient-cores for optimized multitasking.
• Max Turbo Frequency of 4.80 GHz – High-speed performance for demanding applications.
• Intel UHD Graphics 770 – Supports up to 4 displays with resolutions up to 8K.
• Embedded & Low-Power Design – 35W base power for energy-efficient operations.
• Advanced Memory Support – Up to 128GB DDR5 at 4800 MT/s or DDR4 at 3200 MT/s.
• PCI Express 5.0 & 4.0 Support – Up to 20 PCIe lanes for high-speed expansion.
• Intel Thread Director – Smart workload distribution for efficiency.
• Intel Deep Learning Boost – AI acceleration for enhanced computing tasks.
• Enterprise-Grade Security – Features Intel vPro, AES-NI, and Secure Boot Guard.
• Embedded Solutions – Designed for industrial and commercial applications.

Expert Specs:

• Processor Model: Intel Core i9-12900TE
• Architecture: Alder Lake, Intel 7 Lithography
• Total Cores: 16 (8 Performance, 8 Efficient)
• Total Threads: 24
• Max Turbo Frequency: 4.80 GHz
• Base Frequencies: 1.10 GHz (Performance), 1.00 GHz (Efficient)
• Cache: 30MB Intel Smart Cache, 14MB L2 Cache
• Memory Support: Up to 128GB DDR5-4800 / DDR4-3200, 2 Channels
• Memory Bandwidth: 76.8 GB/s, ECC Supported
• Graphics: Intel UHD Graphics 770, 32 Execution Units
• Graphics Max Frequency: 1.55 GHz
• Max Display Resolution: 8K via DisplayPort, 4K via HDMI
• TDP (Base Power): 35W
• Socket: FCLGA1700
• PCIe Support: PCIe 5.0 & 4.0, Up to 20 Lanes
• Security Features: Intel vPro, AES-NI, Trusted Execution, Boot Guard
• Virtualization: Intel VT-x, VT-d, EPT
• Thermal Limits: Max Operating Temp: 100°C
• Launch Date: Q1 2022
• Target Use: Embedded, Industrial, Commercial Applications
