912-V536-023

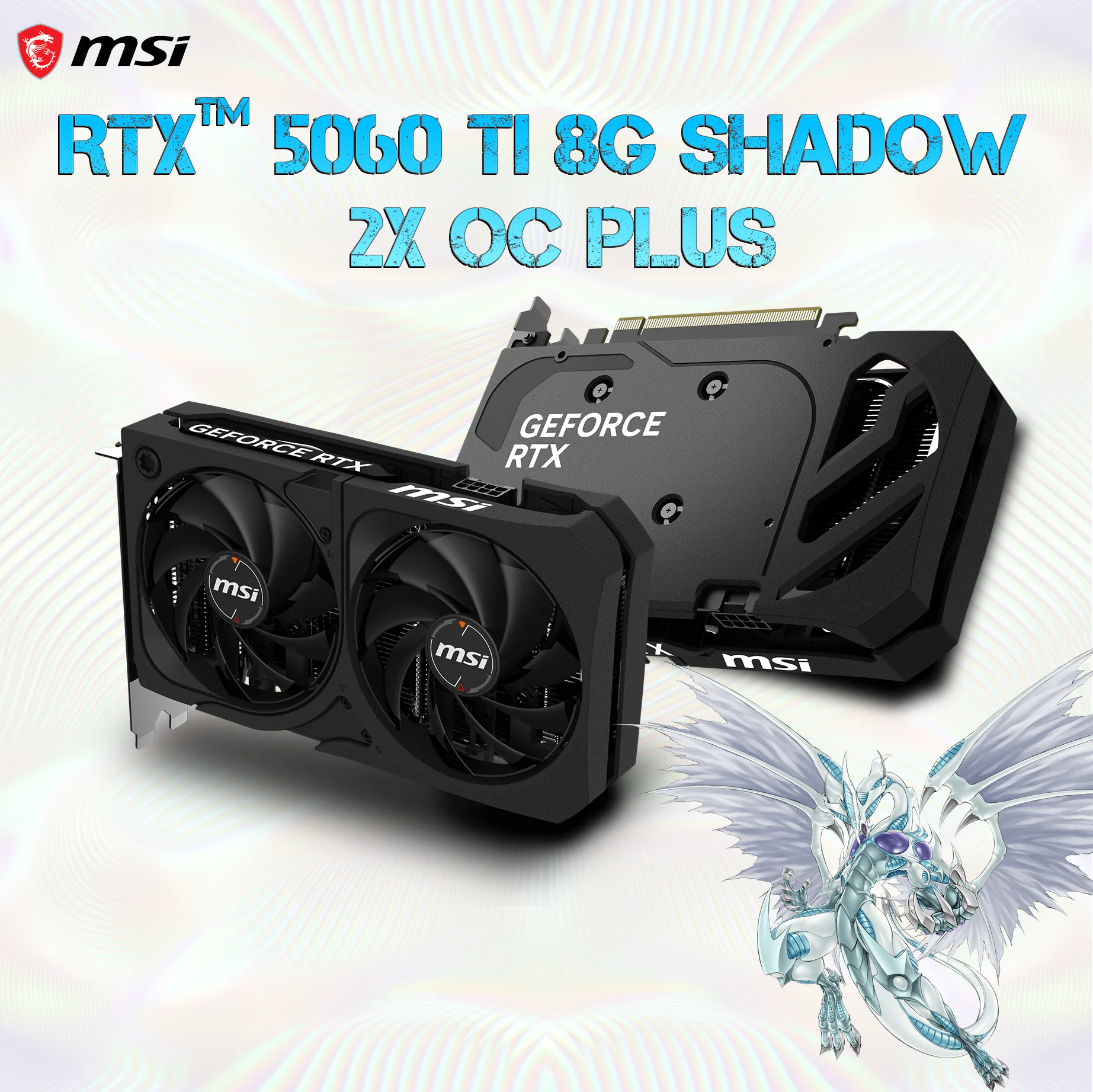

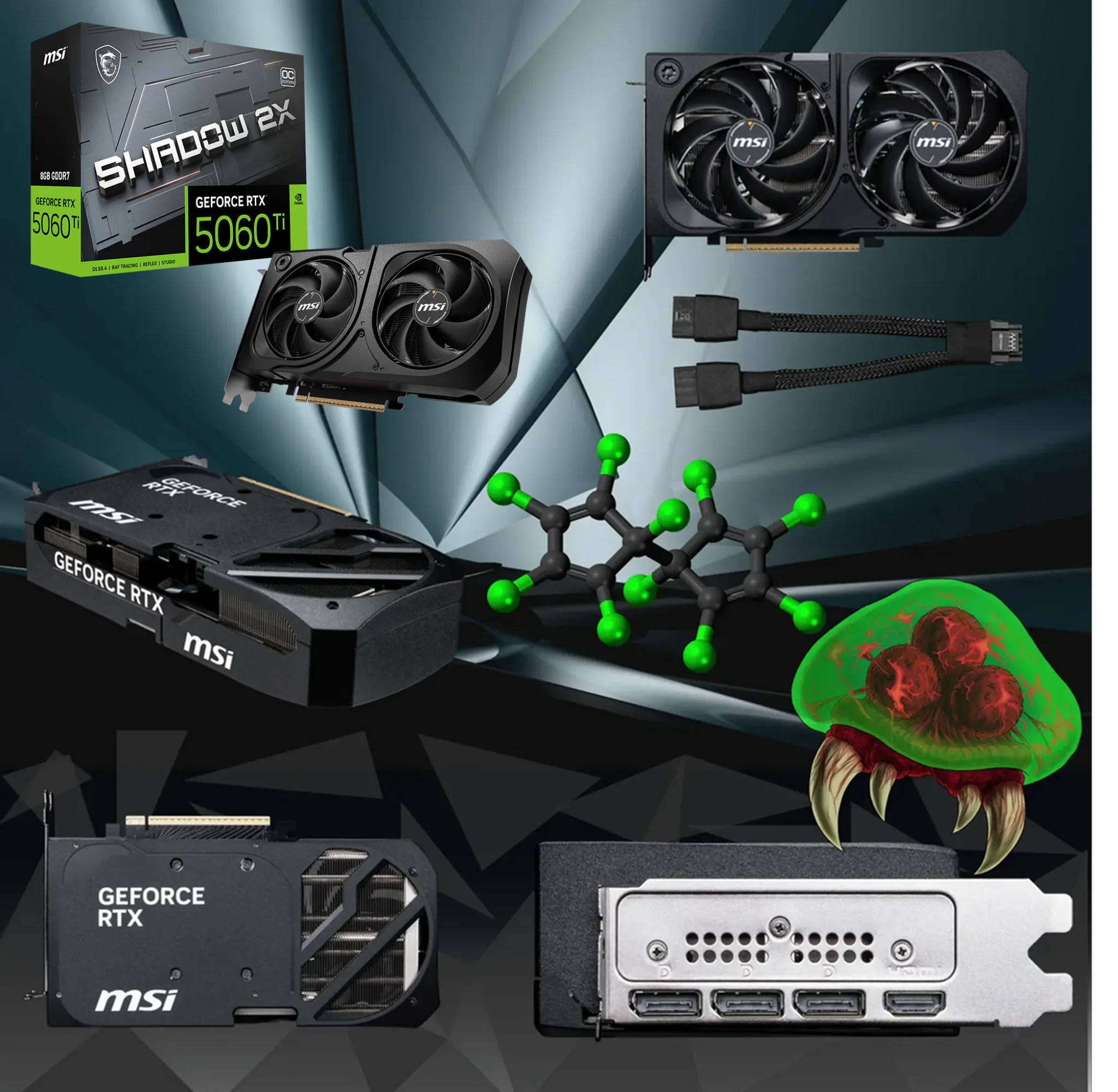

MSI GEFORCE RTX 5060 Ti 8G SHADOW 2X OC PLUS
MSI GeForce RTX 5060 Ti 8GB GDDR7 Shadow 2X OC Plus With NVIDIA Blackwell Architecture, DLSS 4, Dual-Fan Cooling, 2602 MHz Boost Clock, PCIe Gen 5, And HDMI 2.1b
MSI GeForce RTX 5060 Ti 8GB GDDR7 Shadow 2X OC Plus With NVIDIA Blackwell Architecture, DLSS 4, Dual-Fan Cooling, 2602 MHz Boost Clock, PCIe Gen 5, And HDMI 2.1b
547 $
BRAND-NEW / 1 YEAR WARRANTY
⚡ Expert Features
- NVIDIA Blackwell Architecture – Next-gen graphics foundation with neural shaders and AI-first design.
- DLSS 4 with Multi-Frame Generation – AI boosts frames and image quality so you can game harder and smoother than ever.

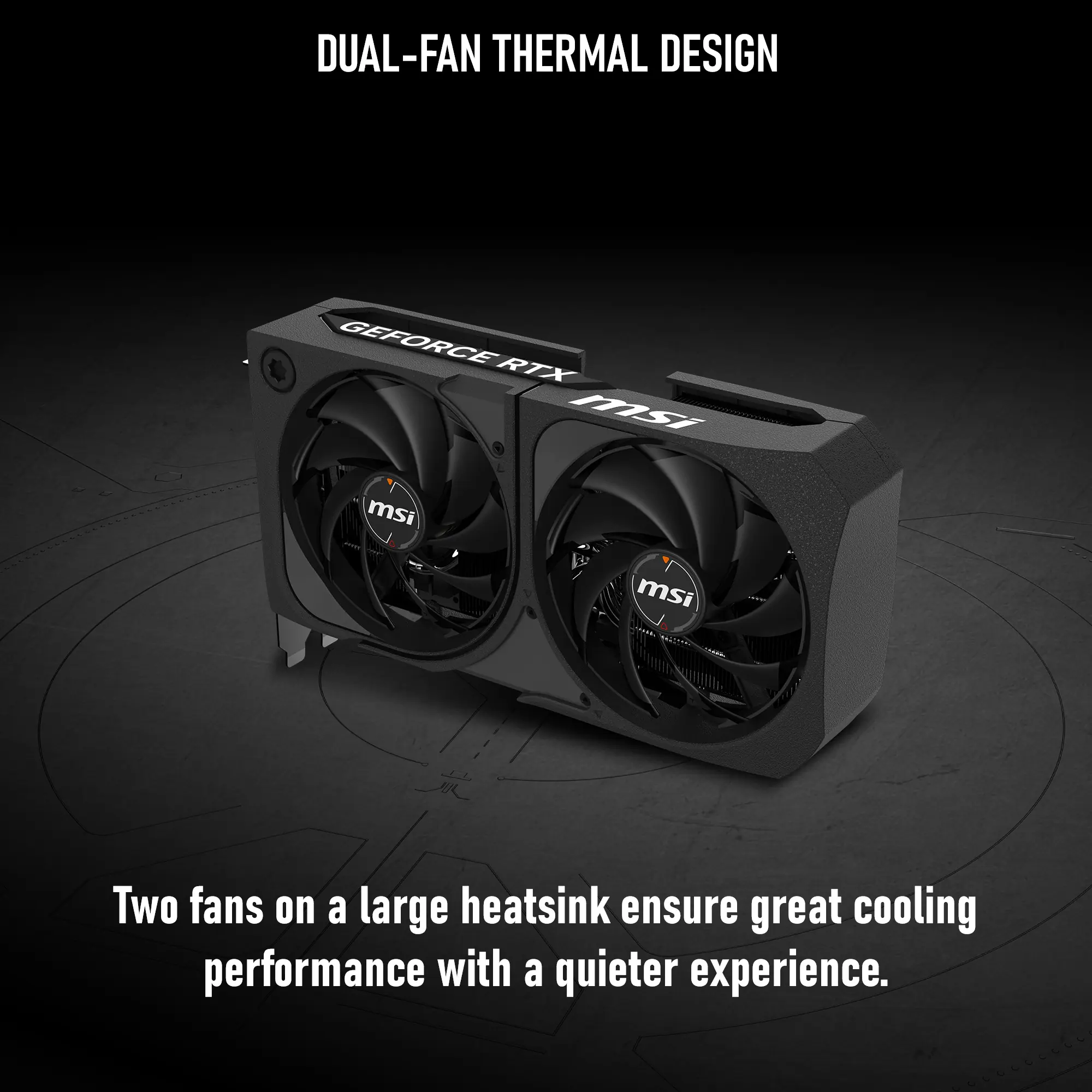

- Dual-Fan Thermal Design – Twin fans mounted on a beefy heatsink keep temps cool and noise low, ideal for long gaming sessions.

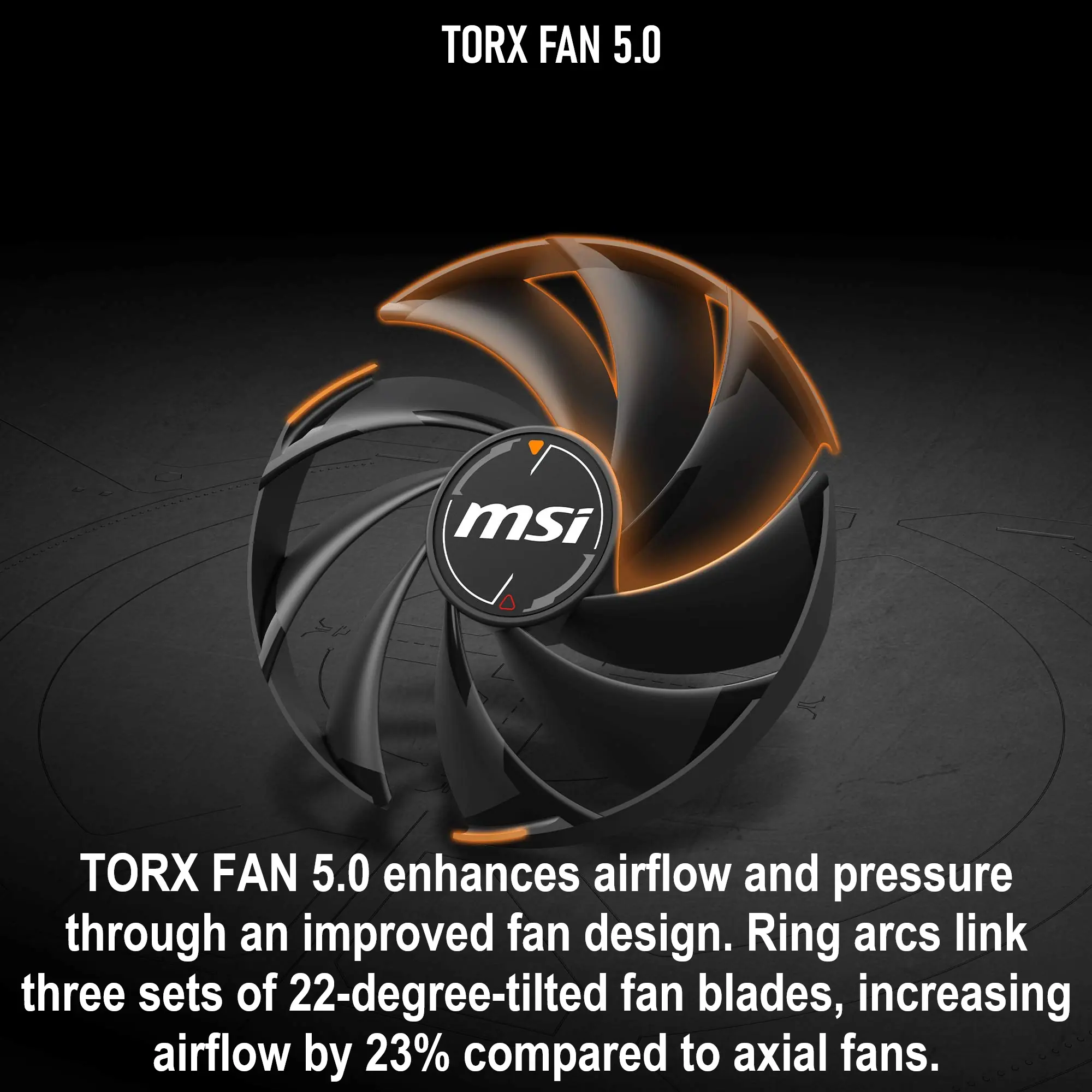

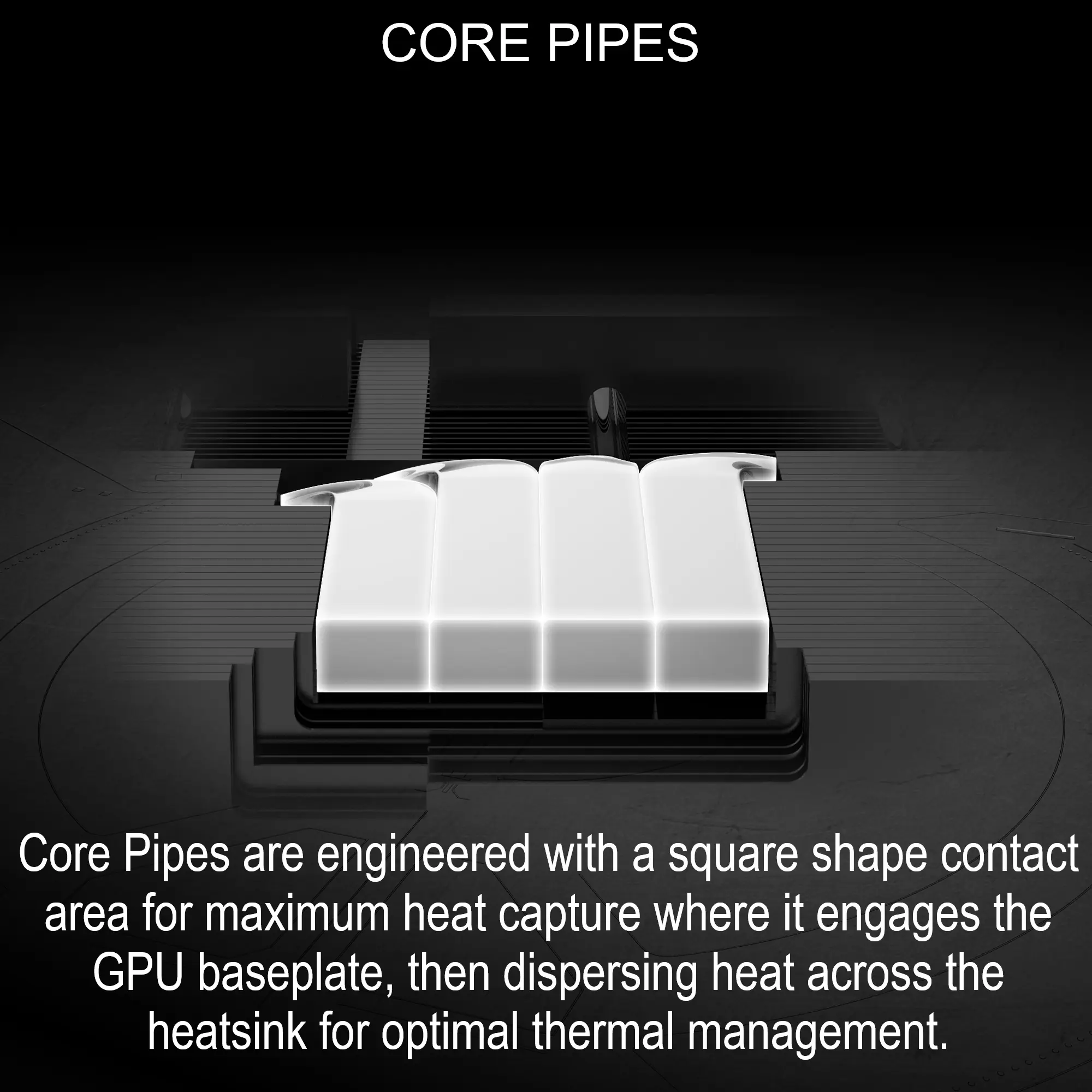

- StormForce Fan & Heat Pipes – Seven claw-textured blades + precision heat pipes = optimized airflow and efficient thermal transfer.

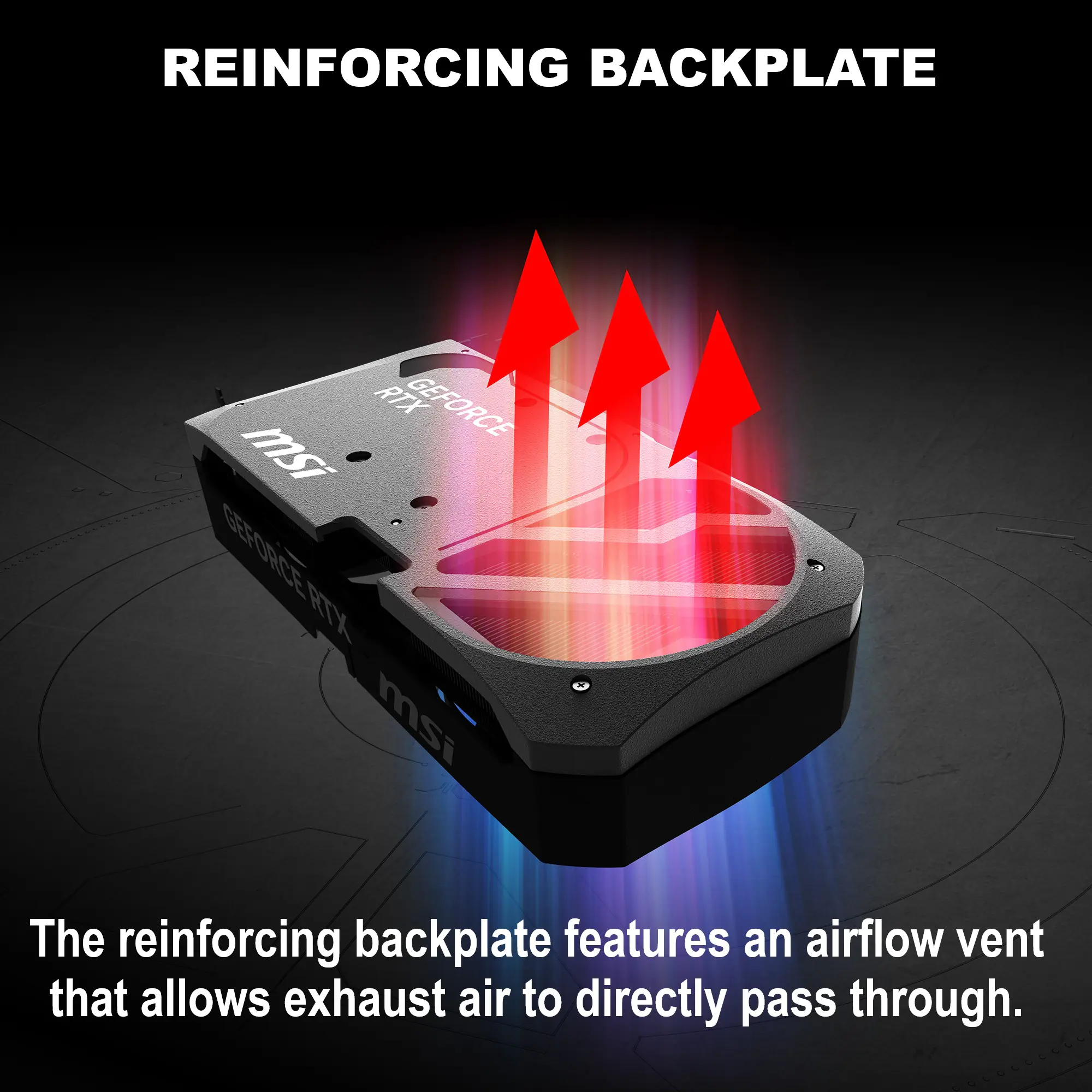

- Reinforced Backplate With Airflow Vent – Strengthens the card while directing exhaust heat out of your case for maximum efficiency.
- Compact Build Friendly – At 226mm length and under 600g weight, this card slips into most cases with ease—powerful but not bulky.
- MSI Center & Afterburner – Control performance, cooling, RGB, and overclocking in real-time with precision.
- Next-Gen Display Support – HDMI 2.1b & DP 2.1 let you push up to 8K 120Hz or 4K 480Hz with VRR and HDR.

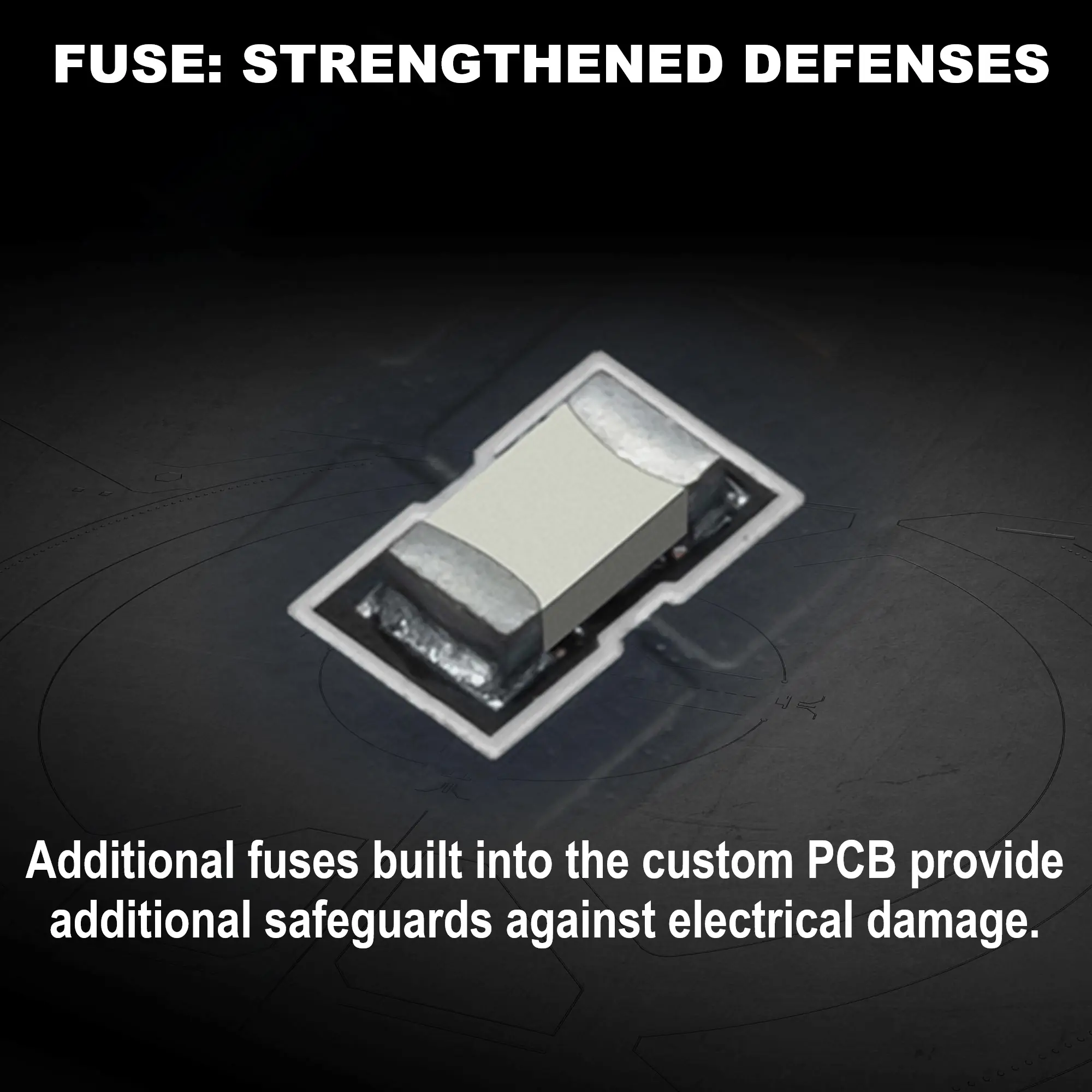

- Durability Enhancements – DrMOS power stages for efficient voltage control, premium thermal padding, and built-in fuses for added electrical defense.
- MSI App Player – Seamlessly bridge mobile and PC gaming thanks to BlueStacks collaboration.
Expert Specs
| Category | Details |
|---|---|
| Marketing Name | GeForce RTX™ 5060 Ti 8G SHADOW 2X OC PLUS |
| Model Name | G506T-8S2CP |
| GPU | NVIDIA® GeForce RTX™ 5060 Ti |
| Architecture | NVIDIA Blackwell |
| Interface | PCI Express® Gen 5 x16 (uses x8) |
| Core Clocks | Extreme Performance: 2617 MHz (MSI Center) Boost: 2602 MHz |
| CUDA® Cores | 4,608 Units |
| Memory Speed | 28 Gbps |
| Memory | 8GB GDDR7 |
| Memory Bus | 128-bit |
| Outputs | 3× DisplayPort 2.1b, 1× HDMI 2.1b (Supports 4K 480Hz or 8K 120Hz with DSC, VRR, HDR) |
| HDCP Support | Yes |
| Power Consumption | 180W |
| Power Connector | 1× 8-pin |
| Recommended PSU | 600W |
| Card Dimensions | 226 × 126 × 41 mm |
| Weight | 553 g (Card) / 814 g (Package) |
| DirectX Support | 12 Ultimate |
| OpenGL Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® | Supported |
| Digital Max Resolution | 7680 × 4320 |
| Cooling | Dual-Fan Thermal Design, StormForce Fans, Heat Pipes, Reinforcing Backplate with Vent |
| Reinforcements | DrMOS Power Stages, Premium Thermal Pads, Electrical Fuses |
| Software | MSI Center (AI Tuning, optimization), MSI Afterburner (OC & monitoring), MSI App Player |
| Extras | Compact size, efficient airflow design |
