$ 112
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
|---|---|
| Manufacturer Number | PRO A620M-E |
| Product Condition | New |
| CPU | Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
|
| Chipset | AMD® A620 Chipset |
| CPU Socket | Socket AM5 |
| Form Factor | m-ATX |
| Memory | 2 x DDR5 memory slots, support up to 96GB Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Supports Dual-Channel mode |
| LAN | Realtek® RTL8111H Gigabit LAN |
| Wireless LAN | – |
| Bluetooth | – |
| Audio | Realtek® ALC897 Codec
|
| MULTI-GPU | – |
|---|---|
| STORAGE | 1 x M.2 Gen4 x4 64Gbps slot 4 x SATA 6Gb/s ports |
| Onboard Graphics | 1 x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz 1 x VGA Support maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| I/O (Rear) | HDMI™ VGA Keyboard/Mouse USB 3.2 Gen 1 5Gbps (Type-A) LAN port Audio connectors USB 2.0 |
| Expansion Slots | 1 x PCI-E x16 slot 1 x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| USB (Front) | 2 x USB 3.2 Gen1 Type A 4 x USB 2.0 |
| USB (Rear) | 4 x USB 3.2 Gen1 Type A 2 x USB 2.0 |
| Internal Connectors | 1 x Power Connector(ATX_PWR) 1 x Power Connector(CPU_PWR) 1 x CPU Fan 2 x System Fan 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x Com Port (JCOM) 1 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0) 4 x USB 2.0 ports 2 x USB 3.2 Gen1 Type A ports |
| Dimensions | 8.30″ x 9.60″ |
911-7E28-009

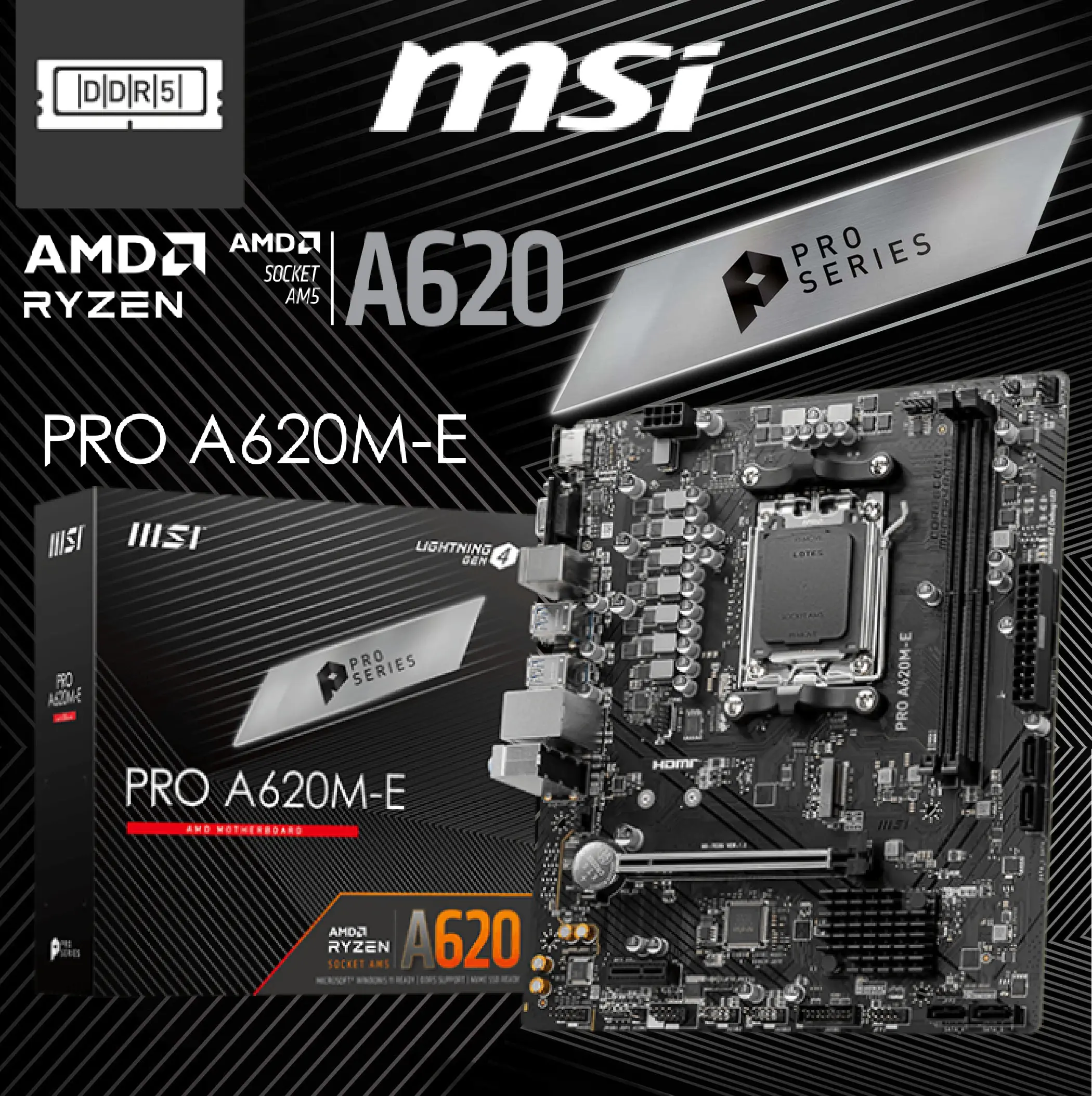

MSI PRO A620M-E AM5 AMD DDR5 mATX Motherboard
MSI PRO A620M-E AM5 AMD A620 SATA 6Gb/s DDR5 mATX Motherboard AMD Ryzen™ 7000 Series Desktop Processors , PCIe 4.0 slot, Lightning Gen 4 x4 M.2 , Dual Channel DDR5 6800+MHz (OC)
