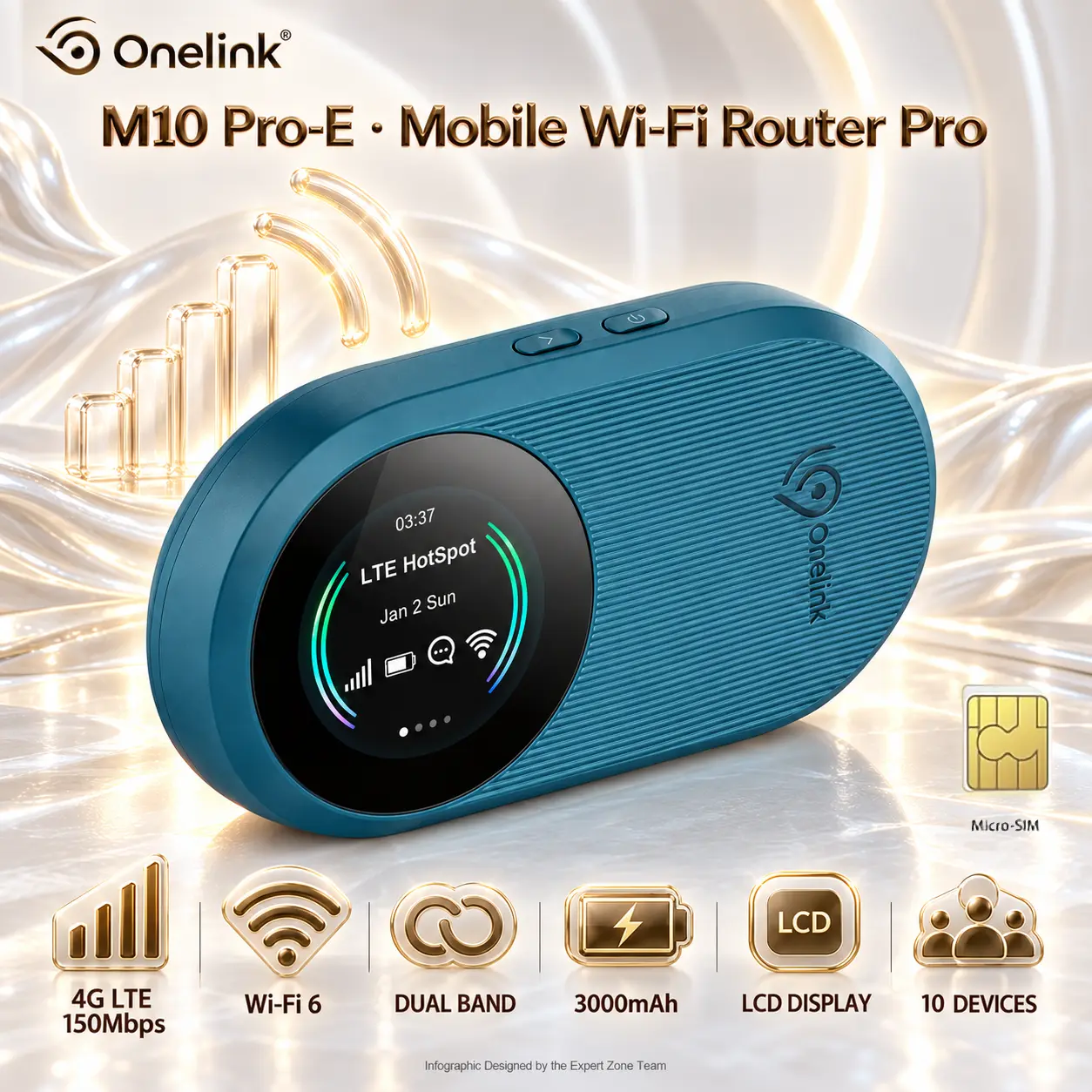

M10PRO-E
ONELINK WIRELESS MOBILE 4G WIFI ROUTER PRO 3000mAh/TYPE C
Onelink M10 Pro-E Wireless Mobile Wi-Fi Router Pro, 4G LTE Cat 4 150Mbps, Dual-Band Wi-Fi 6, 3000mAh Battery, LCD Display, Portable SIM Hotspot
Onelink M10 Pro-E Wireless Mobile Wi-Fi Router Pro, 4G LTE Cat 4 150Mbps, Dual-Band Wi-Fi 6, 3000mAh Battery, LCD Display, Portable SIM Hotspot
40 $
EXPERT FEATURES
- Portable 4G LTE Hotspot: Insert a compatible SIM card to share a mobile-data connection with Wi-Fi devices; network service and SIM plan are required.
- Confirmed LTE Cat 4 Speeds: Specified maximum cellular throughput of 150Mbps download and 50Mbps upload; real-world speeds vary with coverage and network conditions.
- Dual-Band Wi-Fi 6: Supports 2.4GHz and 5.8GHz wireless operation using 802.11b/g/n/ac/ax, including Wi-Fi 6.
- Up to 10 Connected Devices: The supplied product description advertises simultaneous connections for up to 10 devices; actual performance depends on usage and signal conditions.
- 3000mAh Rechargeable Battery: Integrated lithium-ion battery with a specified working-time range of 9–11 hours; the package advertises up to 10 hours.
- Built-In LCD Status Display: The circular front LCD provides at-a-glance network, signal, battery and time information; do not confuse it with an OLED panel.
- SIM-and-Power Setup: Insert a compatible SIM card and power on to establish a mobile Wi-Fi hotspot, subject to carrier/APN configuration.
- LTE Band Support: Specified LTE bands B1/B3/B5/B7/B8/B20/B38/B40/B41; verify local carrier band compatibility before purchase.
- WCDMA Compatibility: Packaging lists WCDMA bands 1/5/8 for compatible 3G service where still available.
- Browser-Based Management: Web UI and mobile web UI allow supported hotspot configuration without assuming a dedicated mobile app.
- Network Administration: Listed features include IPv4/IPv6, MAC/IP filtering, port forwarding, Wi-Fi allow/deny lists, SNTP and DMZ.
- Wi-Fi Security: Supports open networks, WPA2-PSK and mixed WPA-PSK/WPA2-PSK security modes.
- USB Charging and Internet: USB is specified for charging and internet connection; maximum USB charging input is 5V/1A.
- Travel-Ready Operation: Portable form factor, receive diversity and multi-language interface support for mobile working and sharing.
- Local Firmware Updates: The specifications list a local software-update function.
EXPERT SPECS
| Specification | Details |
|---|---|
| Brand | Onelink |
| Product name | Wireless Mobile Wi-Fi Router Pro |
| Exact model | M10 Pro-E (confirmed from the physical box label) |
| Product category | Portable 4G LTE mobile Wi-Fi hotspot |
| Cellular technologies | LTE and WCDMA |
| LTE category | LTE Cat 4 |
| Maximum LTE download / upload | 150Mbps / 50Mbps (confirmed variant; theoretical figures) |
| LTE bands | B1 / B3 / B5 / B7 / B8 / B20 / B38 / B40 / B41 |
| WCDMA bands | 1 / 5 / 8 (package listing) |
| Wi-Fi generation | Wi-Fi 6 |
| Wi-Fi standards | IEEE 802.11b/g/n/ac/ax |
| Wi-Fi frequencies | Dual-band 2.4GHz + 5.8GHz |
| Wi-Fi radio configuration | 1 × 1 |
| Simultaneous devices | Up to 10 |
| Display | Built-in LCD status screen; circular display area |
| Display status information | Network status, cellular signal, battery, time/date |
| Battery capacity | 3000mAh lithium-ion |
| Working time | 9–11 hours in supplied specifications; box advertises up to 10 hours |
| Standby time | 200 hours |
| Charging time | Under 4.5 hours |
| USB charging input | Maximum 5V / 1A |
| USB functions | Charging and internet |
| Baseband chipset | ZX297520V3T |
| RF chipset | ZX234230A |
| Wi-Fi chipset | AIC8800D40L |
| Memory | 256Mb RAM + 128Mb NOR |
| Receive diversity | Supported |
| Wi-Fi operating mode | Access Point (AP) |
| Management | Web UI and mobile web UI |
| Firmware update | Local update |
| Wireless security | Open, WPA2-PSK, WPA-PSK/WPA2-PSK |
| IP protocols | IPv4 and IPv6 |
| Firewall and filtering | MAC/IP address filter; Wi-Fi black/white lists |
| Advanced network functions | Port forwarding, SNTP, DMZ, HTTP |
| Controls | Power and reset buttons |
| Operating temperature | −10°C to +45°C |
| Storage temperature | −20°C to +70°C |
