OTN-2501
ONTEN USB-C MULTI-FUNCTION DOCK STATION M.2 HARD DISK ENCLOSURE

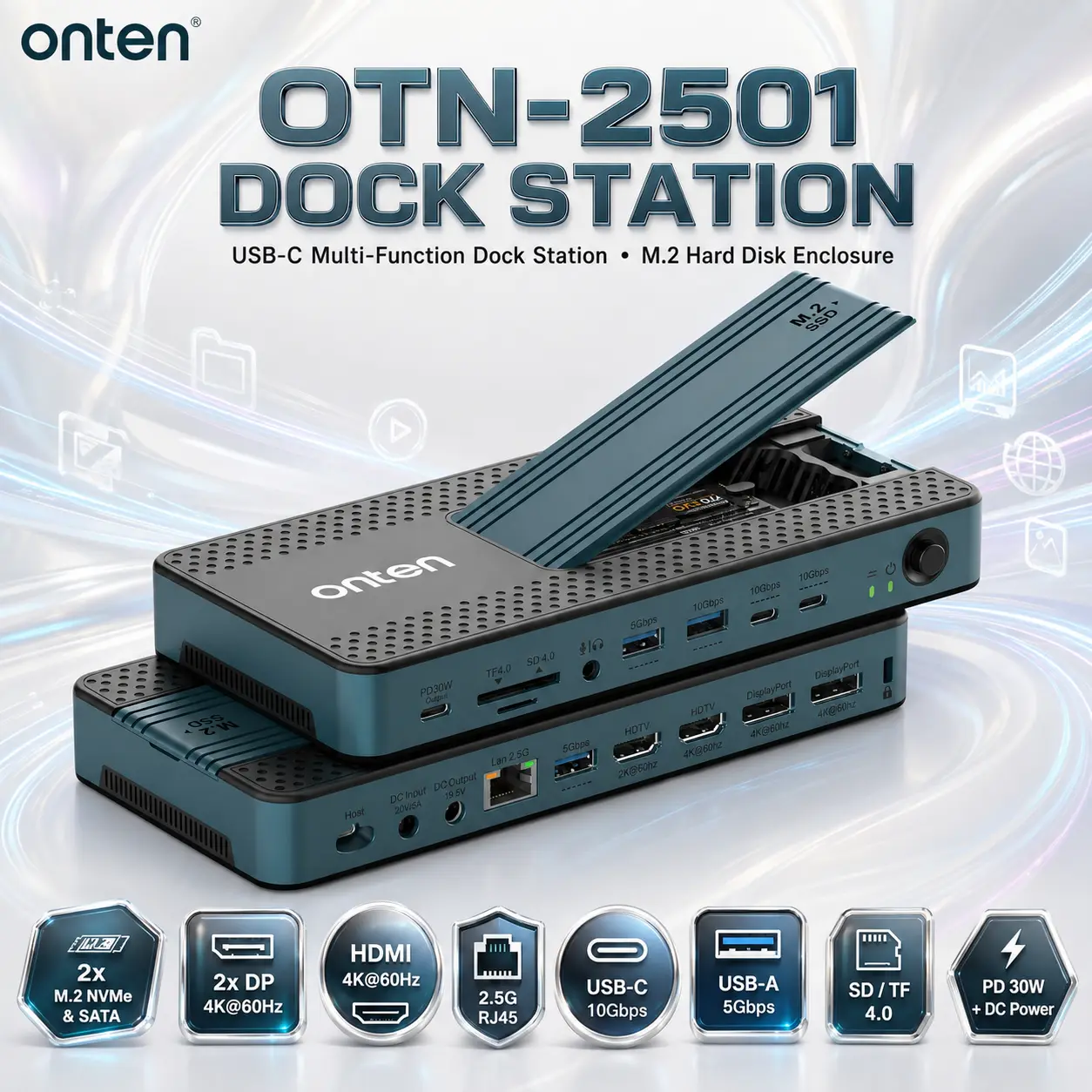

ONTEN OTN-2501 USB-C Dock Station With Dual M.2 NVMe & SATA Enclosure, 2× DP 4K@60Hz, HDMI, 2.5G LAN, USB 10Gbps, SD/TF 4.0, PD 30W Output
EXPERT FEATURES

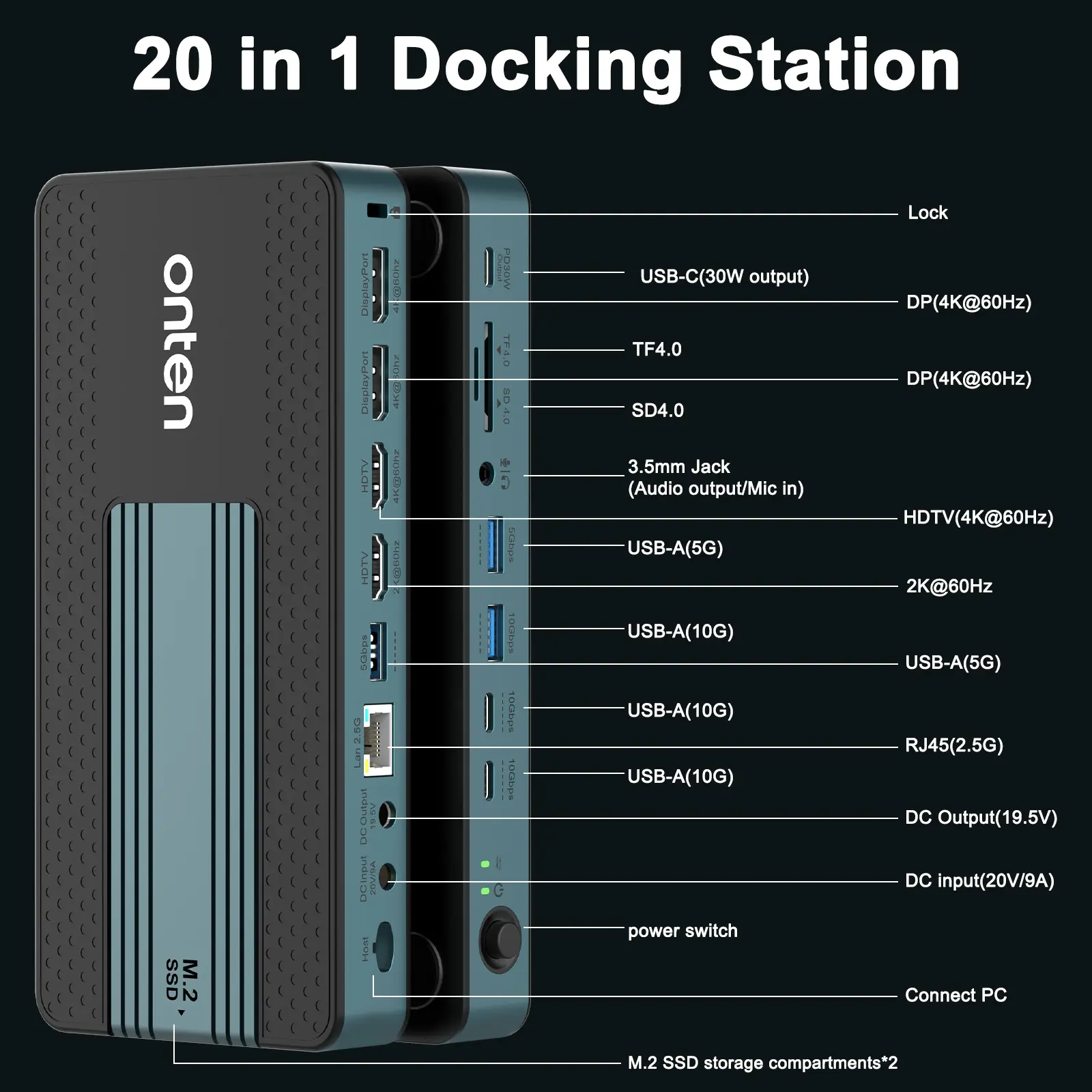

- All-In-One Docking Beast : Combines a USB-C multi-function dock station with a built-in dual M.2 SSD enclosure for a cleaner, more powerful desk setup.
- Dual M.2 SSD Support : Supports 2 SSD slots with NVMe & SATA compatibility, giving you flexible storage expansion in one unit.
- 4-Display-Class Video Connectivity : Delivers 1 × HDMI 4K@60Hz, 2 × DP 4K@60Hz, and 1 × HDMI 1080P@60Hz (driver download required for the 1080P HDMI output).
- Windows MST Support : Supports MST: A+A/B/C/D (Windows) for multi-display productivity and expanded desktop workflows.

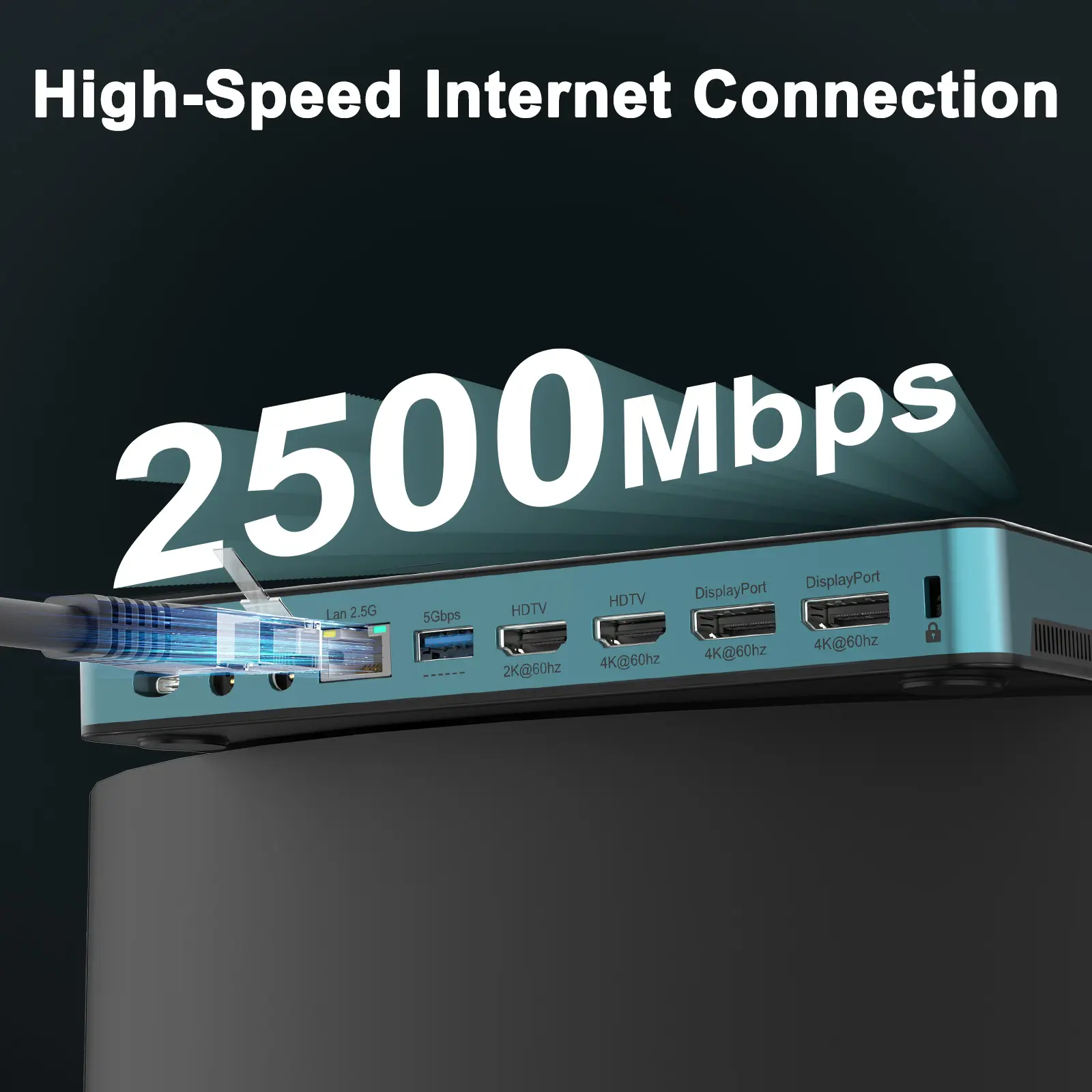

- Fast 2.5G Network Port : Equipped with 1 × RJ45 2.5Gbps / 2500Mbps LAN port for faster, more stable wired networking.
- High-Speed USB Connectivity : Includes 1 × USB 3.2 Gen2 10Gbps, 2 × USB-A 5Gbps, and 2 × USB-C 10Gbps for fast accessory and data connections.
- Power Delivery Output : Features USB-C PD 30W Output for supported device power delivery.

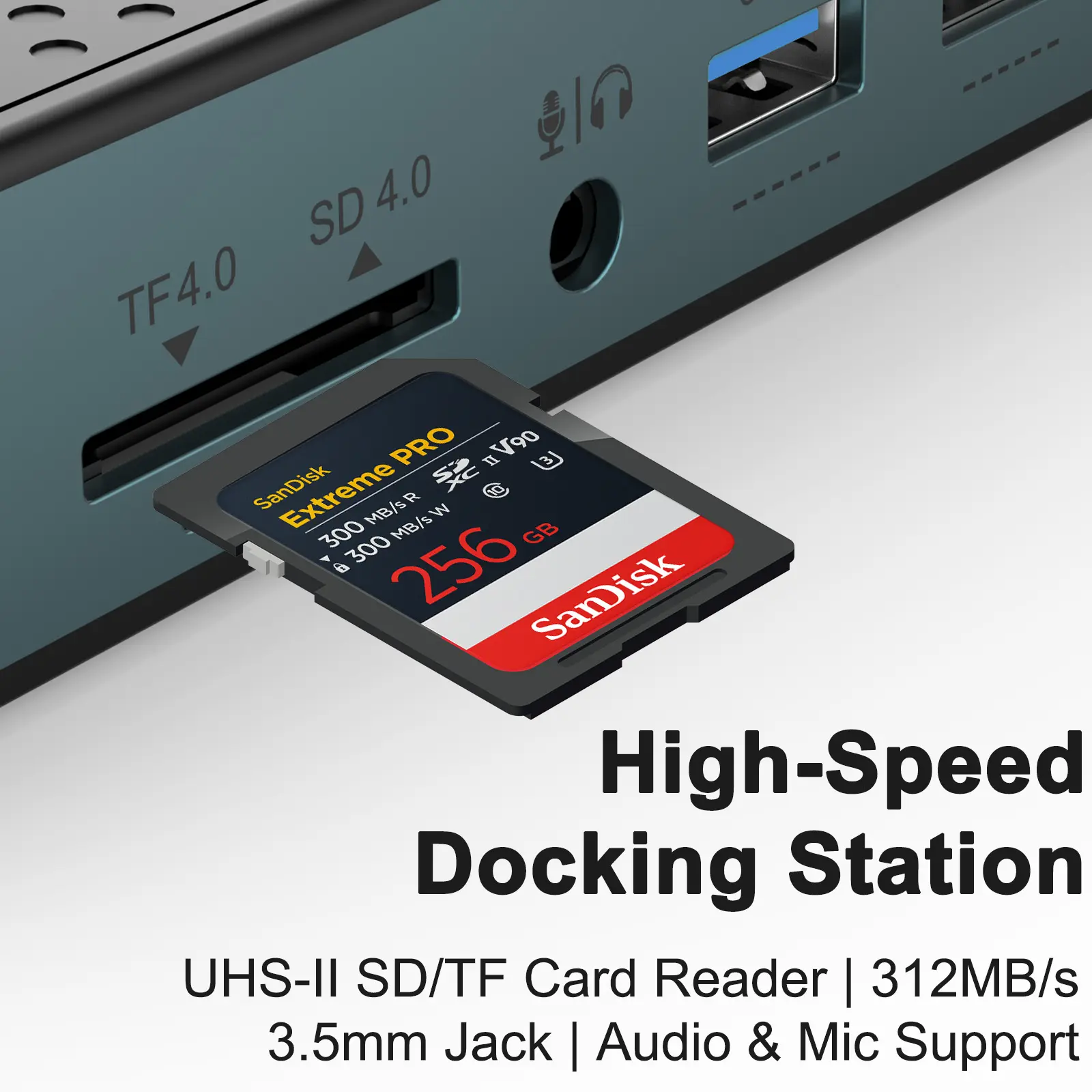

- Card Reader Built In : Includes SD / TF 4.0 card slots with 312Mb/s transfer speed support.
- Audio Ready : Built with a 3.5mm jack supporting audio out / mic in.
- Serious Power Design : Uses DC in 20V 9A and DC out 19.5V, plus a dedicated power switch for direct control.
- Security-Friendly Touch : Includes 1 lock slot for added physical security support.
EXPERT SPECS
| Specification | Details |
|---|---|
| Brand | ONTEN |
| Model | OTN-2501 |
| Product Name | USB-C Multi-Function Dock Station M.2 Hard Disk Enclosure |
| Product Type | Multi-Function Dock Station + M.2 Hard Disk Enclosure |
| Input | USB-C |
| HDMI Output 1 | 4K@60Hz |
| HDMI Output 2 | 1080P@60Hz (Driver needs to be downloaded) |
| DisplayPort Outputs | 2 × DP, each 4K@60Hz |
| MST Support | A+A/B/C/D (Windows) |
| SSD Enclosure | 2 slots |
| SSD Compatibility | NVMe & SATA |
| RJ45 | 1 × 2.5Gbps / 2500Mbps |
| USB 3.2 Gen2 | 1 × 10Gbps |
| USB-A | 2 × 5Gbps |
| USB-C | 2 × 10Gbps |
| USB-C PD | 30W Output |
| Card Reader | SD / TF 4.0 |
| Card Speed | 312Mb/s |
| Audio | 3.5mm Jack: Audio out / Mic in |
| DC In | 20V 9A |
| DC Out | 19.5V |
| Power Switch | 1 |
| Lock | 1 |
Features & Compatibility
