OTN-CC202
ONTEN USB 4 & THUNDERBOLT 4 DATA CHARGING CABLE 1M 40Gbps
ONTEN OTN-CC202 USB4 Gen 3 & Thunderbolt 4 USB-C Cable 1M – 40Gbps Data, PD 100W 5A/20V Charging, E-Marker, 8K Display & Nylon Braided Aluminum Design
EXPERT FEATURES
- USB4 + Thunderbolt 4 Connectivity : Designed as a USB4 Gen 3 Type-C to Type-C cable with Thunderbolt 4 support for high-performance compatible devices.
- 40Gbps Data Transmission : Supports data-transfer speeds up to 40Gbps for demanding file transfers, storage devices, docks, and compatible peripherals.
- PD 100W Fast Charging : Supports charging up to 100W at 5A/20V for compatible USB-C devices and chargers.
- PD 2.0 / 3.0 / 3.1 Support : Compatible with the specified PD2.0, PD3.0, and PD3.1 fast-charging standards.
- 4K / 5K / 8K Screen Mirroring : Supports video transmission for compatible displays at resolutions up to 8K, including 4K and 5K.
- Built-In E-Marker Chipset : Includes an E-Marker chipset to support the specified high-current charging operation.
- Silver-Plated Coaxial Conductors : Uses silver-plated coaxial conductors for the cable’s internal signal construction.
- 8 Coaxial Conductor Strands : Built with 8 strands of coaxial conductors for high-performance signal transmission.
- Nylon Braided Design : Features a reinforced black nylon braided exterior for a premium and durable cable construction.

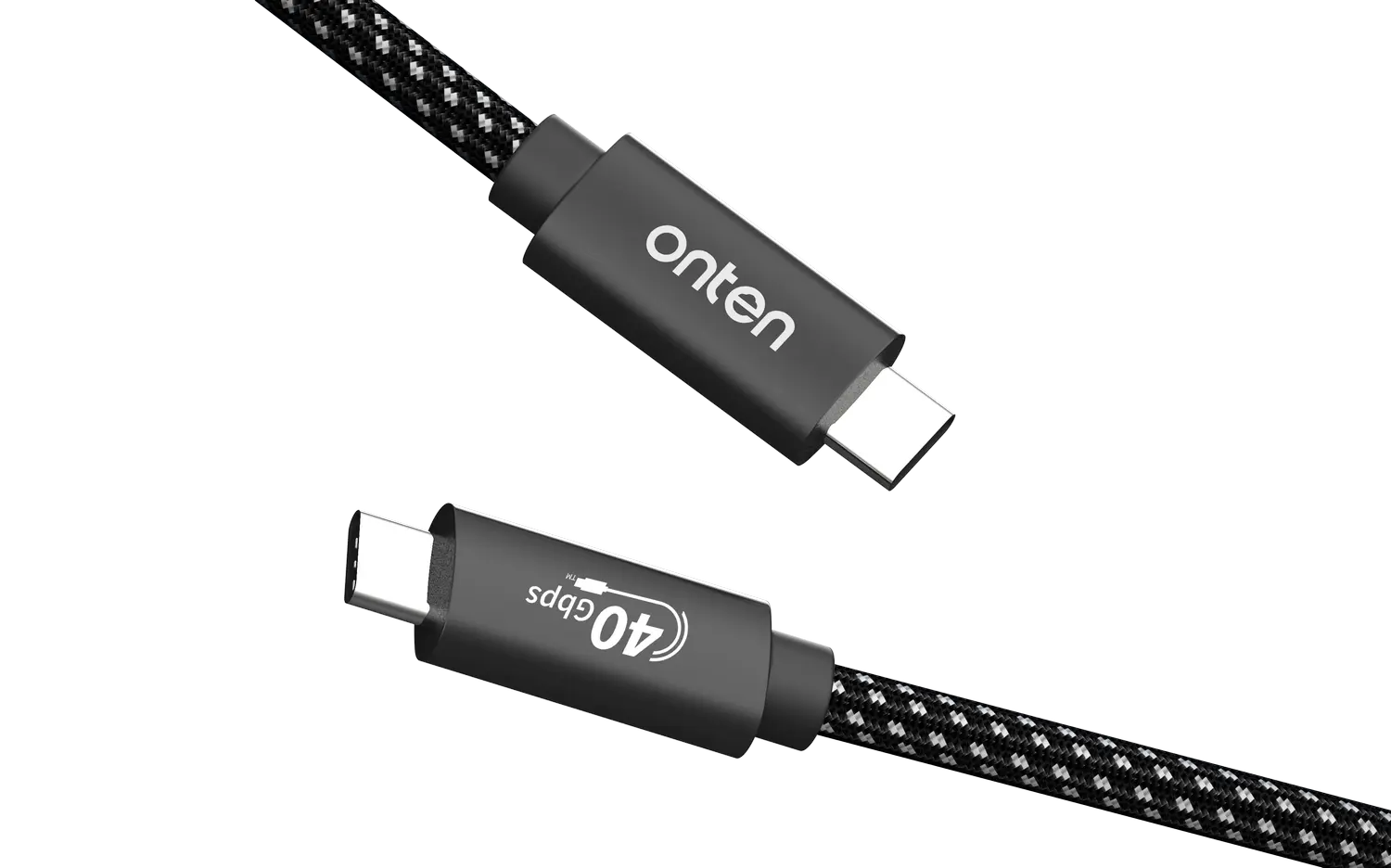

- Aluminum Shell Connectors : Uses aluminum shell molding around the USB-C connector housings.
- 1-Meter Length : Practical 1m cable length for laptops, docks, monitors, high-speed storage, and charging setups.
- Charging + Data + Display : Combines power delivery, high-speed data transmission, and screen mirroring through one Type-C to Type-C cable.
EXPERT SPECS
| Specification | Details |
|---|---|
| Brand | ONTEN |
| Model | OTN-CC202 |
| Product Name | USB4 & Thunderbolt 4 Data Charging Cable |
| Connector Type | USB-C to USB-C |
| USB Standard | USB4 Gen 3 |
| Thunderbolt Support | Thunderbolt 4 |
| Maximum Data Transmission | 40Gbps |
| Maximum Charging Power | 100W |
| Charging Rating | 5A / 20V |
| Power Delivery Support | PD 2.0 / PD 3.0 / PD 3.1 |
| Video Support | 4K / 5K / 8K Screen Mirroring |
| E-Marker | Yes |
| Cable Length | 1m |
| Internal Conductors | Silver-Plated Coaxial Conductors |
| Coaxial Conductors | 8 Strands |
| Cable Exterior | Nylon Braided |
| Connector Housing | Aluminum Shell Molding |
| Main Color | Black |
