OTN-CS22DP
ONTEN DP 1.4 BIDIRECTIONAL SWITCHER DISPLAY SPLITTER 8K@30Hz

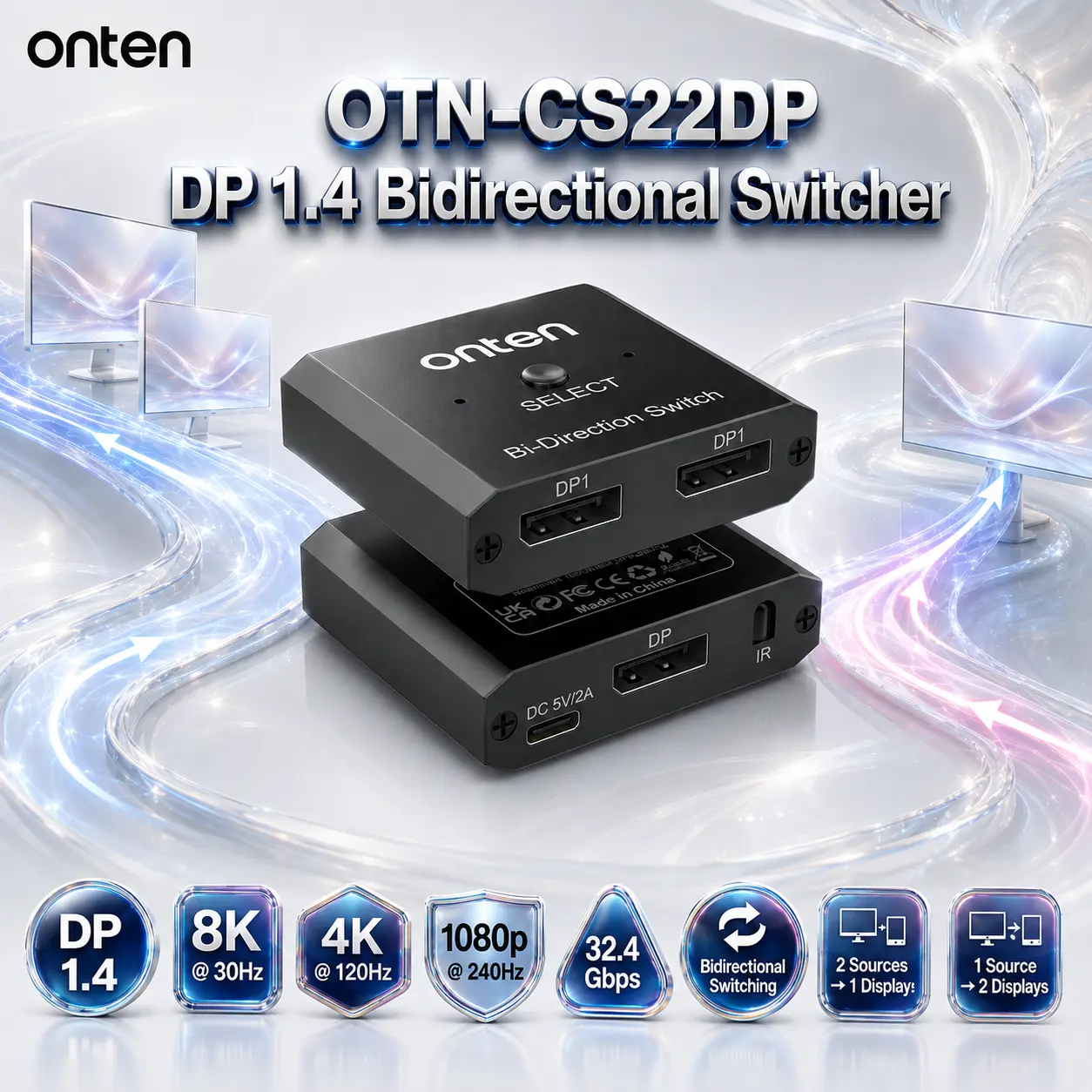

ONTEN OTN-CS22DP DisplayPort 1.4 Bidirectional Switcher – 8K@30Hz, 4K@120Hz, 1080p@240Hz, 32.4Gbps, 2 DP Sources to 1 Display or 1 Source to 2 Displays
Expert Features
- 8K Ultra-High Resolution : Supports up to 8K@30Hz for ultra-detailed DisplayPort video output.
- 4K High-Refresh Performance : Supports up to 4K@120Hz, ideal for compatible high-resolution, high-refresh displays.
- 240Hz Full HD Support : Handles up to 1080p@240Hz for extremely smooth motion on supported monitors.
- 32.4Gbps Transfer Rate : Provides DisplayPort bandwidth of up to 32.4Gbps for demanding video signals.
- Bidirectional DisplayPort Switching : Connect two DP sources to one DP display, or connect one DP source and switch between two DP displays.
- Simple SELECT Button Control : Quickly change the active DisplayPort connection using the built-in SELECT button.
- DisplayPort 1.4 Performance : Designed for use with a standard DP 1.4 cable to achieve the specified high-resolution and high-refresh visual performance.
- Backward-Compatible DP Support : Compatible with previous DisplayPort standards.
- Important Dual-Monitor Limitation : When one source is connected to two displays, both displays cannot operate simultaneously; only one display can be selected at a time.
Expert Specs
| Specification | Details |
|---|---|
| Brand | ONTEN |
| Model | OTN-CS22DP |
| Product Type | DisplayPort 1.4 Bidirectional Switcher / Display Splitter |
| Interface | DisplayPort |
| DisplayPort Standard | DP 1.4 |
| Maximum Resolution | 8K@30Hz |
| 4K Resolution Support | Up to 4K@120Hz |
| Full HD Support | Up to 1080p@240Hz |
| Maximum Transfer Rate | Up to 32.4Gbps |
| Bidirectional Mode 1 | 2 DisplayPort Sources → 1 Display |
| Bidirectional Mode 2 | 1 DisplayPort Source → 2 Selectable Displays |
| Simultaneous Dual-Display Output | No |
| Switching Control | Physical SELECT Button |
| Backward Compatibility | Compatible with Previous DisplayPort Standards |
| Recommended Cable | Standard DisplayPort 1.4 Cable |
| Product Color | Black |
