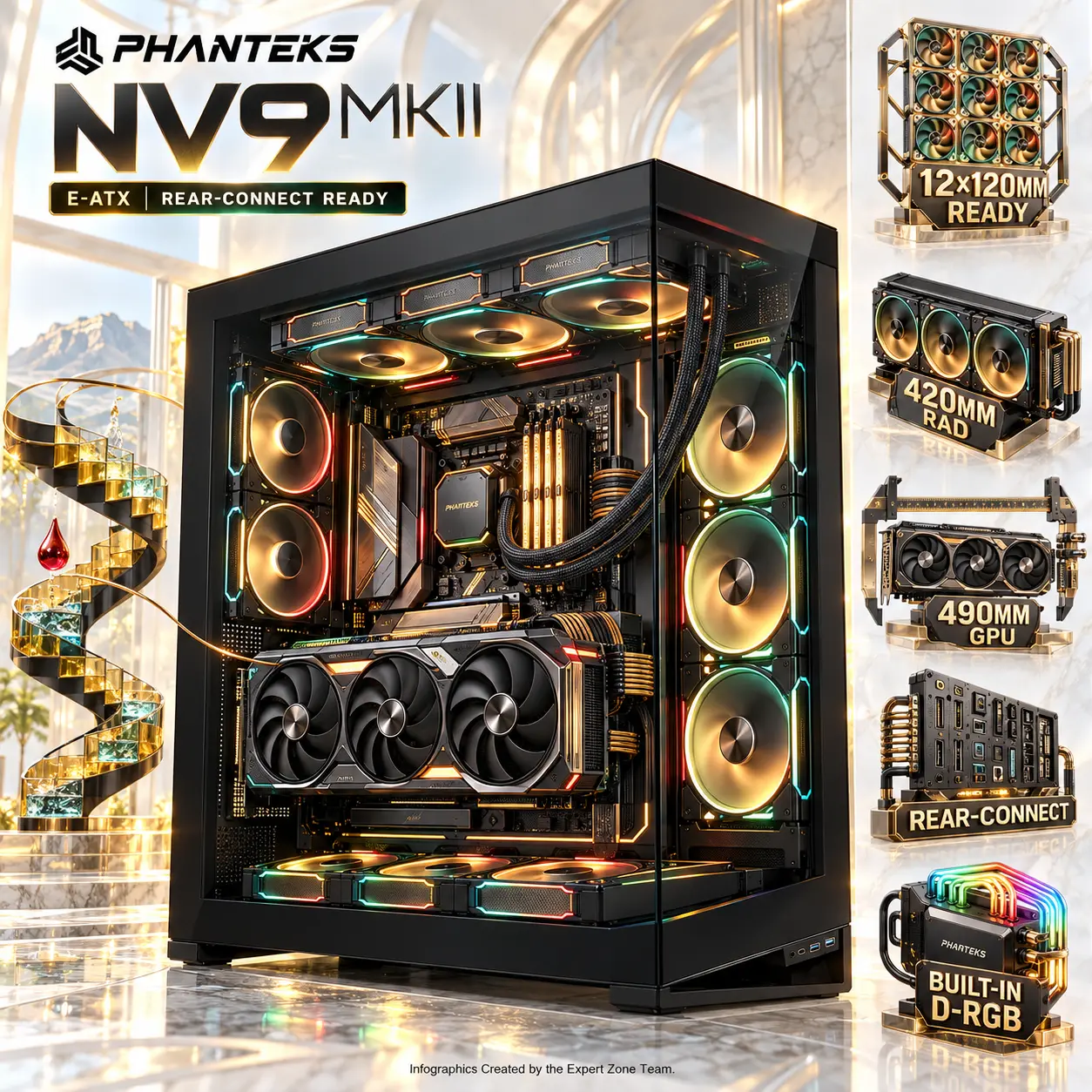

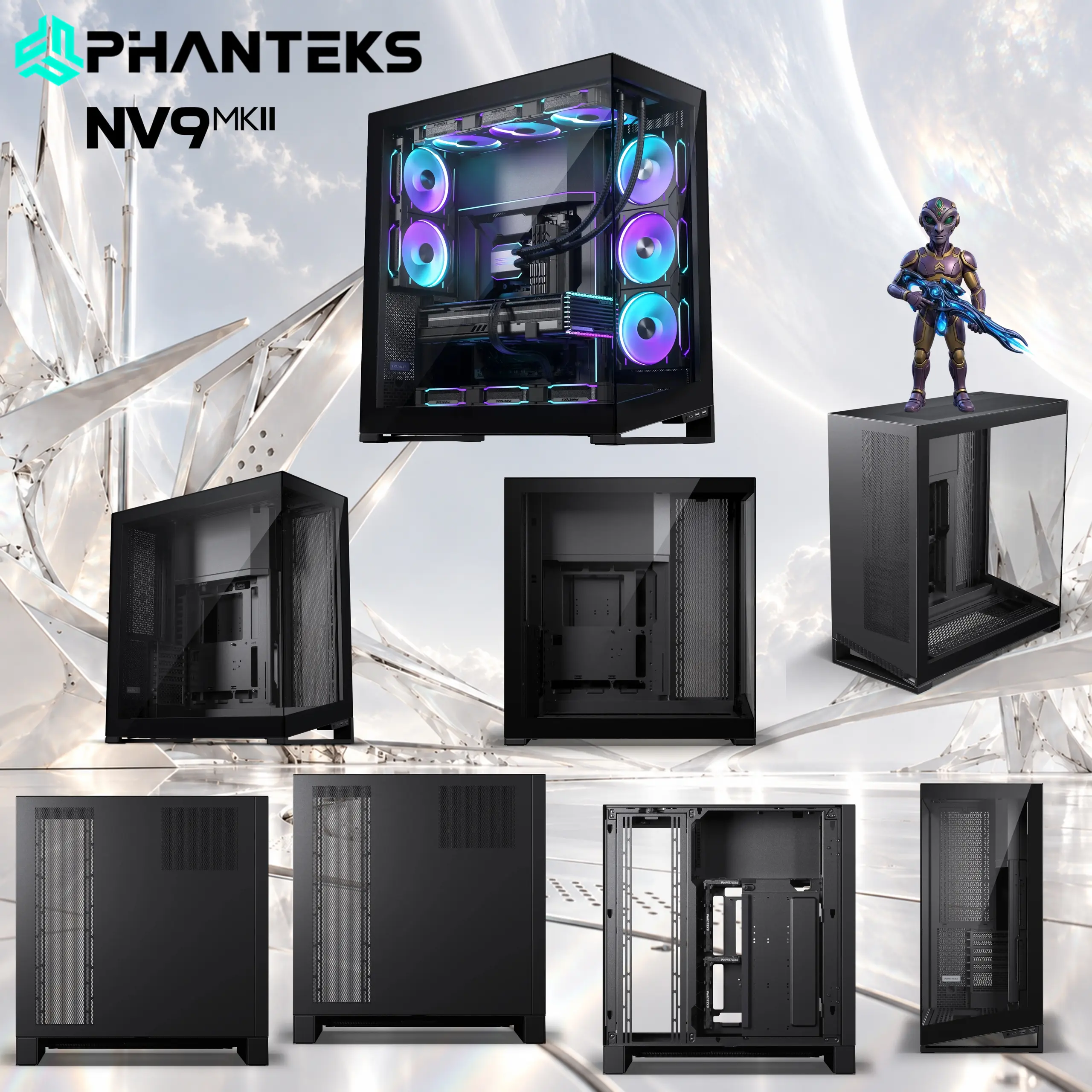

Phanteks NV9 MKII  Full-Tower Gaming Case, Panoramic Tempered Glass, E-ATX/Rear-Connect, 12×120mm Fan Support, 420mm Radiators, 490mm GPU, Built-In D-RGB | BLACK

Expert Features

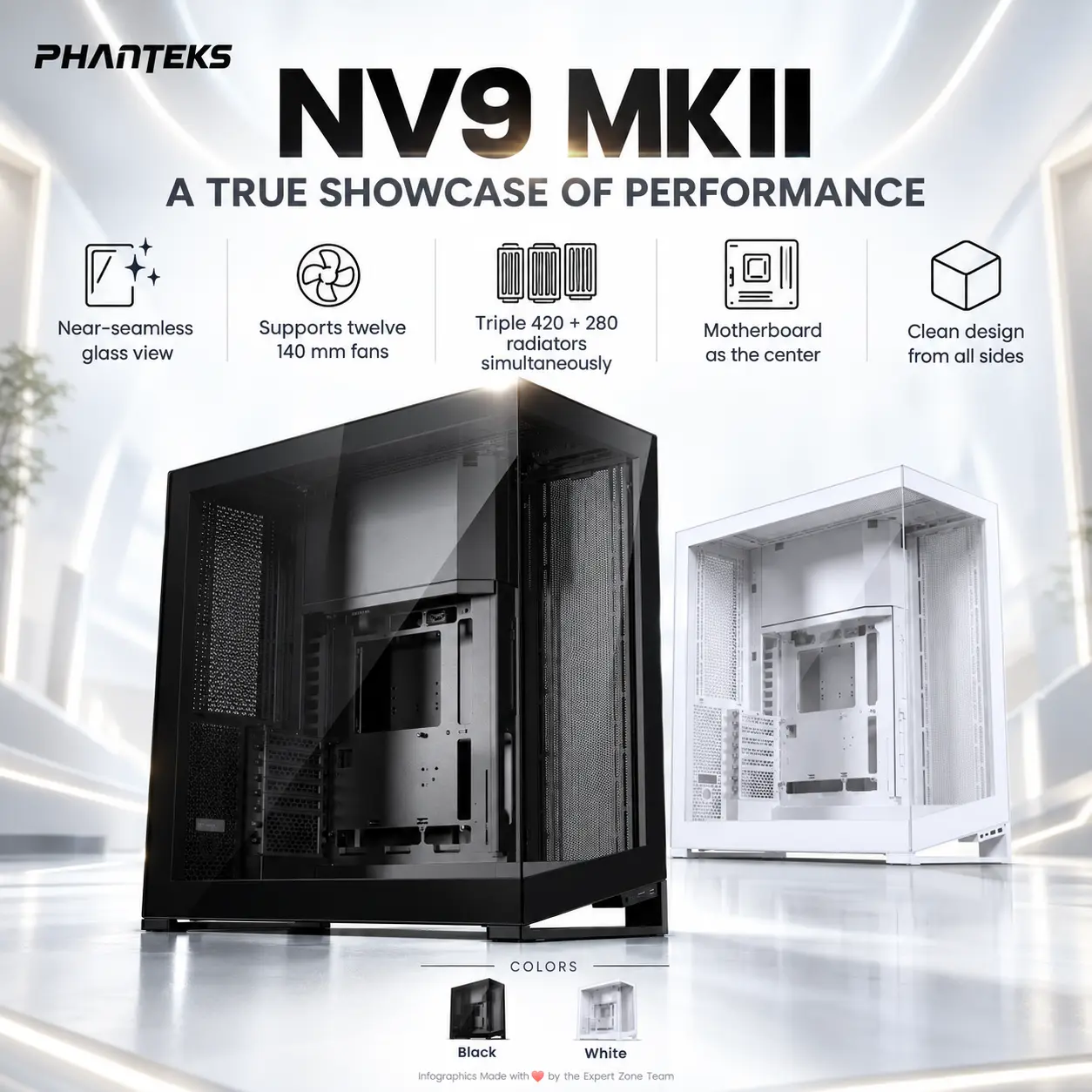

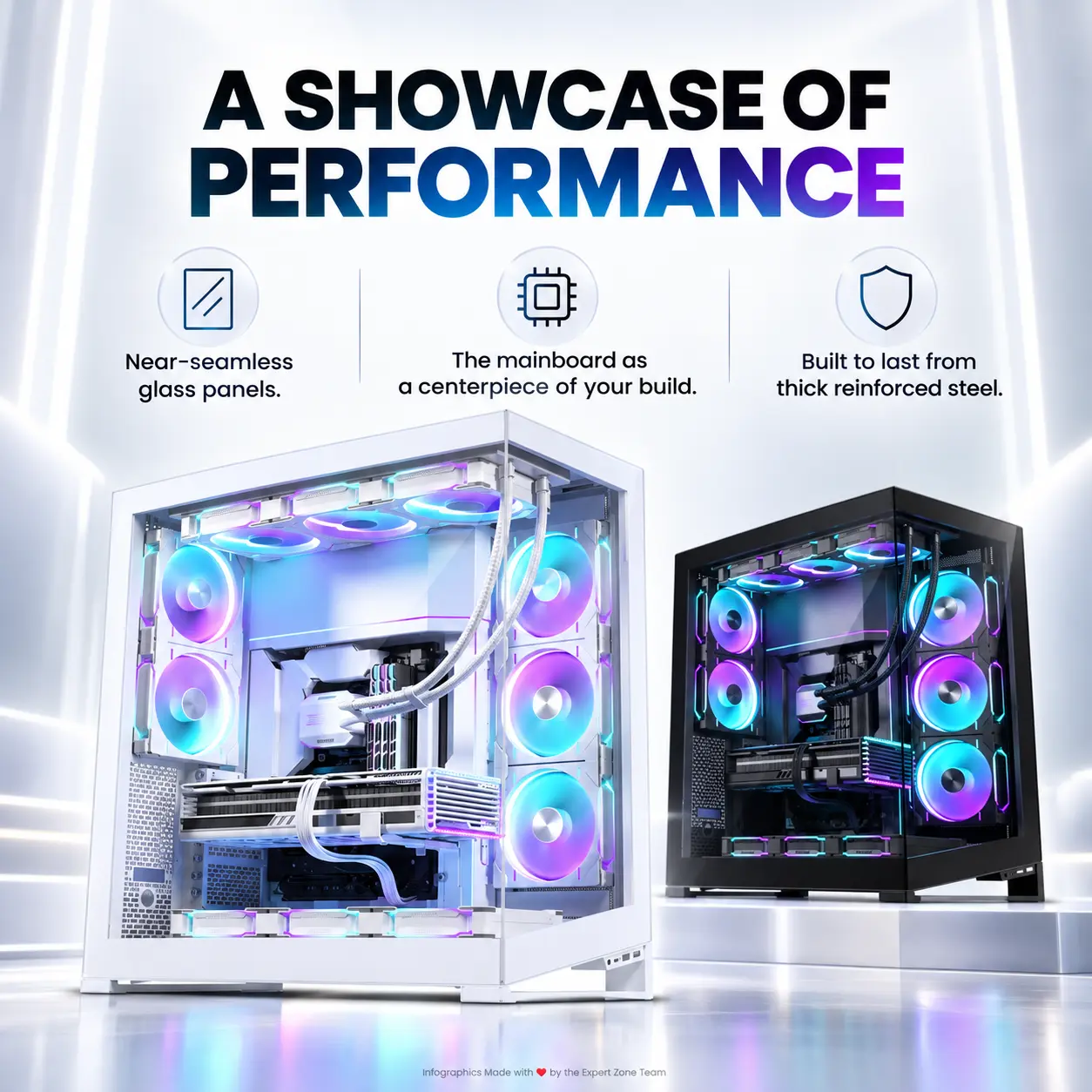

• Near-Seamless Panoramic Tempered Glass: Expansive front and side tempered-glass panels deliver an uninterrupted view of your gaming components.
• Spacious Full-Tower Showcase: A reinforced 575 × 280 × 615mm frame leaves room for elaborate cooling, oversized graphics cards and sophisticated cable routing.
• MKII Rear-Connect Motherboard Support: Supports compatible rear-connector motherboard designs to conceal power and signal cables behind the mainboard.
• E-ATX and SSI-CEB Compatibility: Supports E-ATX up to 280mm wide, SSI-CEB, ATX, Micro-ATX and Mini-ITX motherboards.

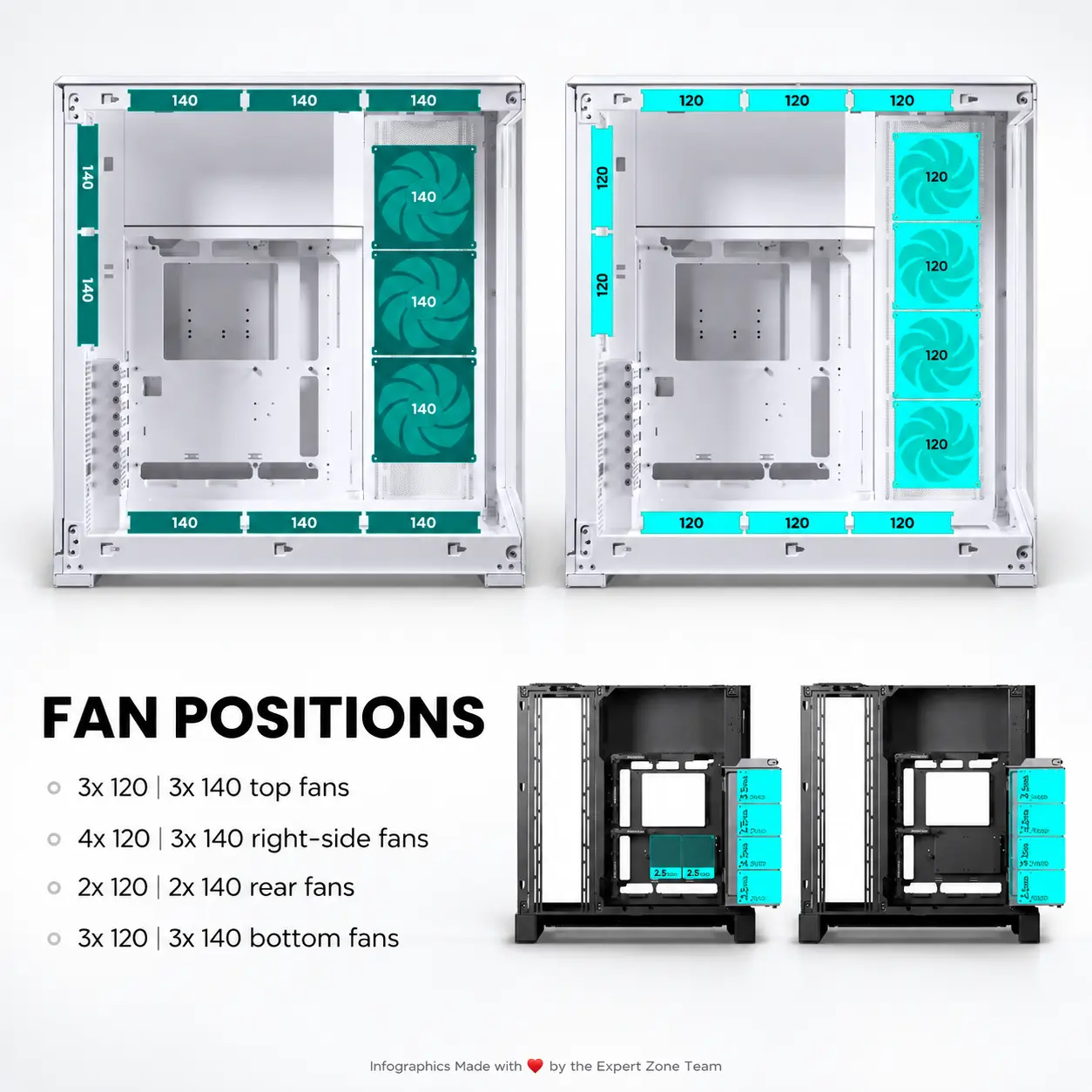

• 12 × 120mm Fan Positions: Fits three top, four side, two rear and three bottom 120mm fans; fans are not included.
• 11 × 140mm Fan Positions: Alternatively accommodates three top, three side, two rear and three bottom 140mm fans.

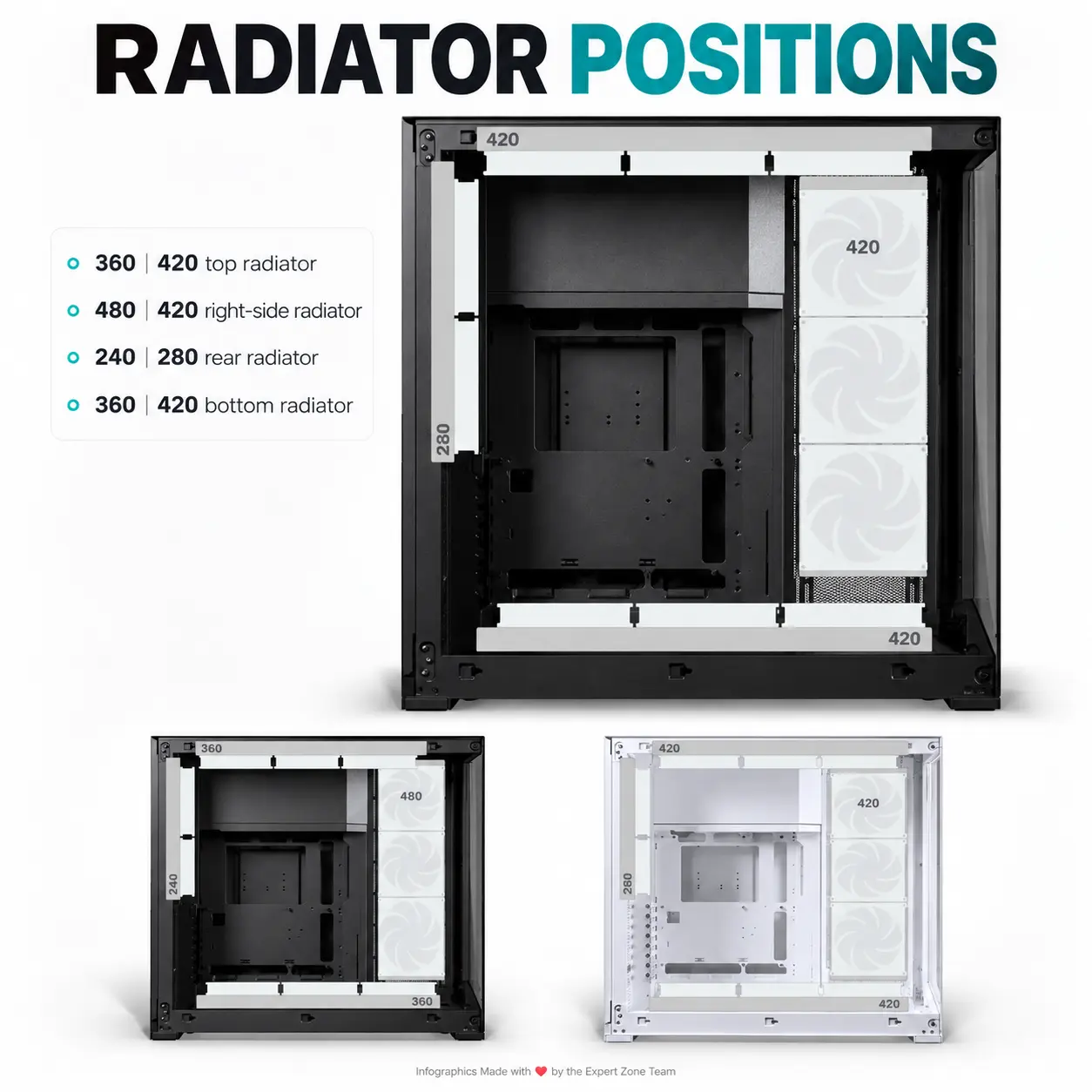

• Extreme 420mm Radiator Support: Supports up to 420mm radiators at the top, side and bottom, plus up to 280mm at the rear, subject to combined-component clearance.

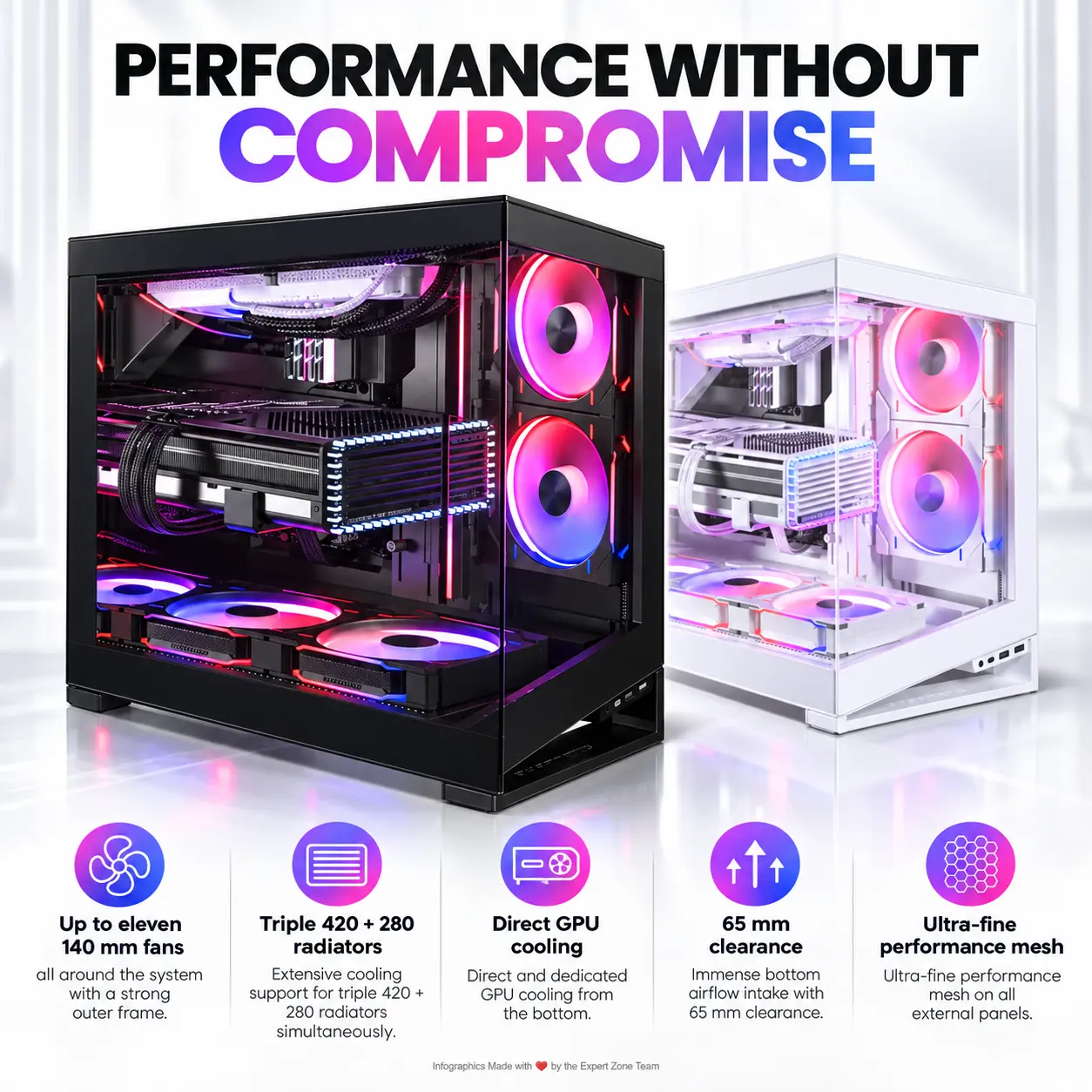

• Dedicated Bottom GPU Airflow: Raised bottom intake directs fresh air towards demanding high-performance GPUs.
• 65mm Elevated Bottom Intake: Provides 65mm clearance beneath the chassis to help bottom-mounted cooling fans breathe.
• Ultra-Fine Airflow Mesh: Fine ventilation mesh on external cooling panels balances airflow access with protection from larger debris.
• 490mm GPU Length Clearance: Supports unusually long flagship graphics cards and custom gaming builds.
• 205mm GPU Width Clearance: Allows broad graphics cards within the specified width envelope; verify cables and accessories separately.
• 205mm CPU Cooler Clearance: Accommodates compatible oversized air-cooling towers.
• 210mm PSU Length Support: Fits compatible ATX power supplies up to 210mm long.

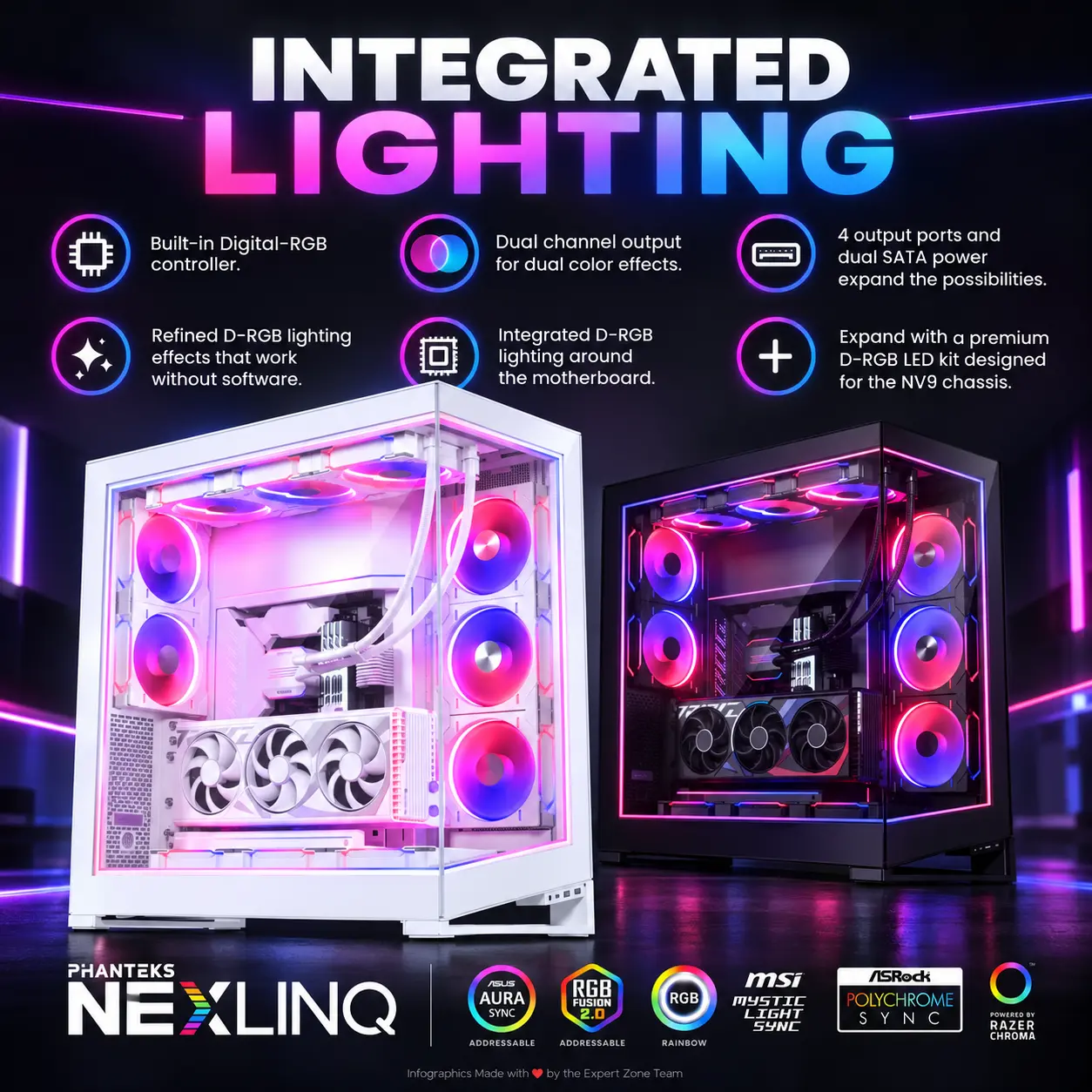

• Integrated D-RGB Illumination: Factory lighting frames the motherboard showcase without requiring an optional lighting kit.
• Dual-Channel D-RGB Controller: Built-in controller offers two lighting channels, four output ports and hardware-based lighting effects.

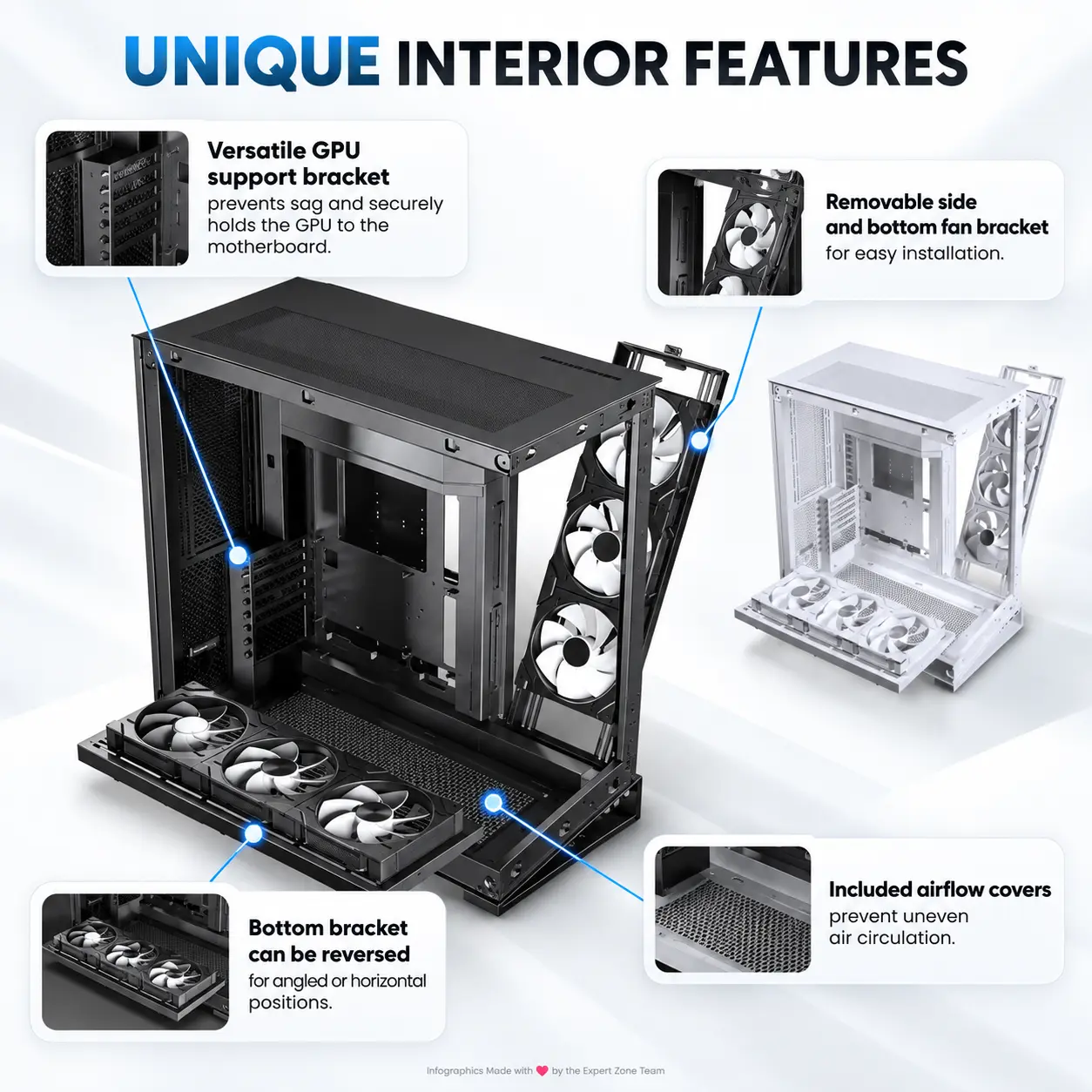

• Included Adjustable GPU Support: An adjustable support bracket helps support the weight of installed heavy graphics cards.
• Removable Side Cooling Bracket: Provides easier access for installing side fans or a compatible radiator.
• Reversible Bottom Cooling Bracket: Can be arranged for angled or horizontal fan installation.

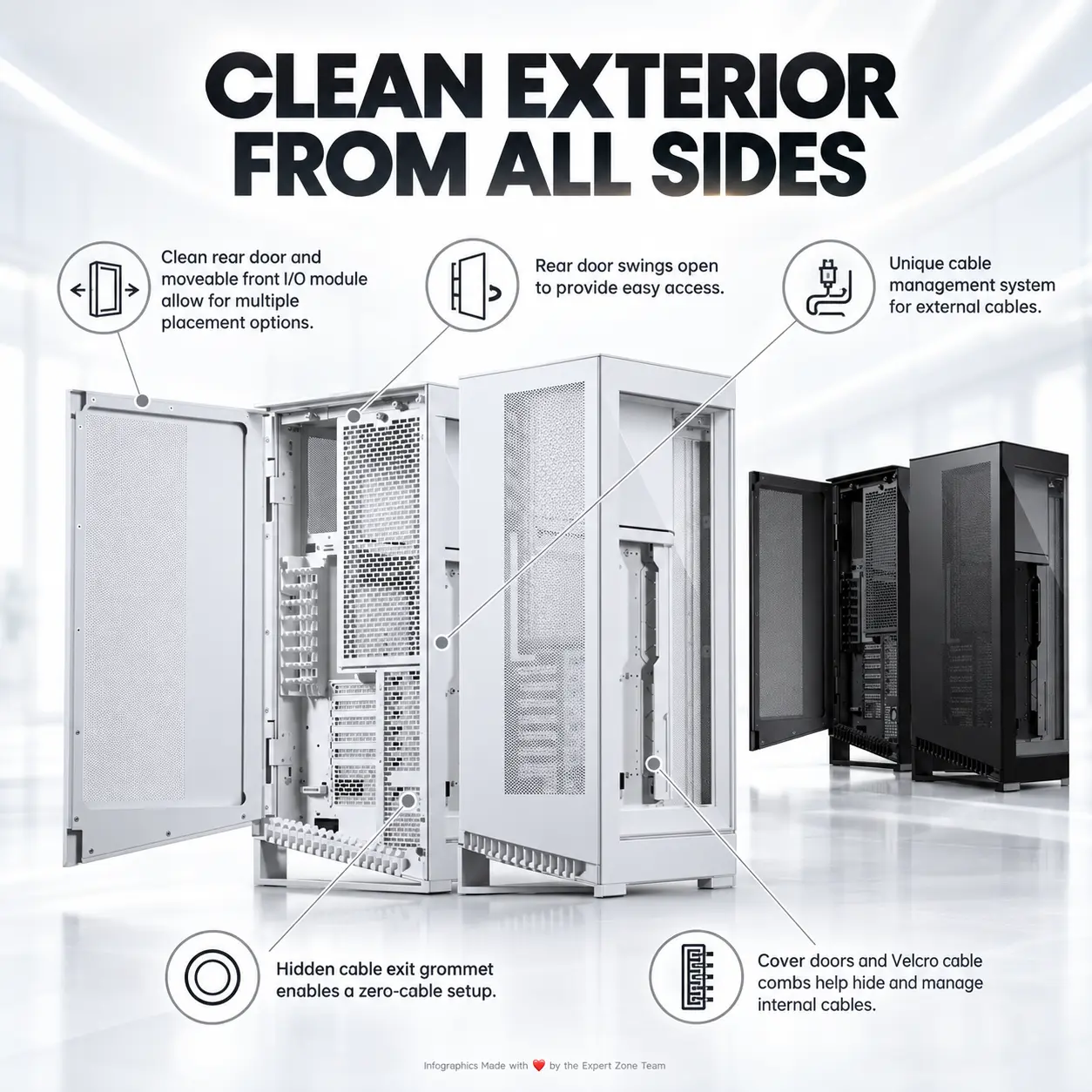

• Swing-Open Rear Cable Door: Conceals cabling while allowing convenient rear access for maintenance and upgrades.
• Repositionable Front I/O Module: Lets users arrange the accessible connectors to better suit their case position.
• Hidden External Cable Exit: A dedicated rear grommet and cable management features help reduce visible wiring.

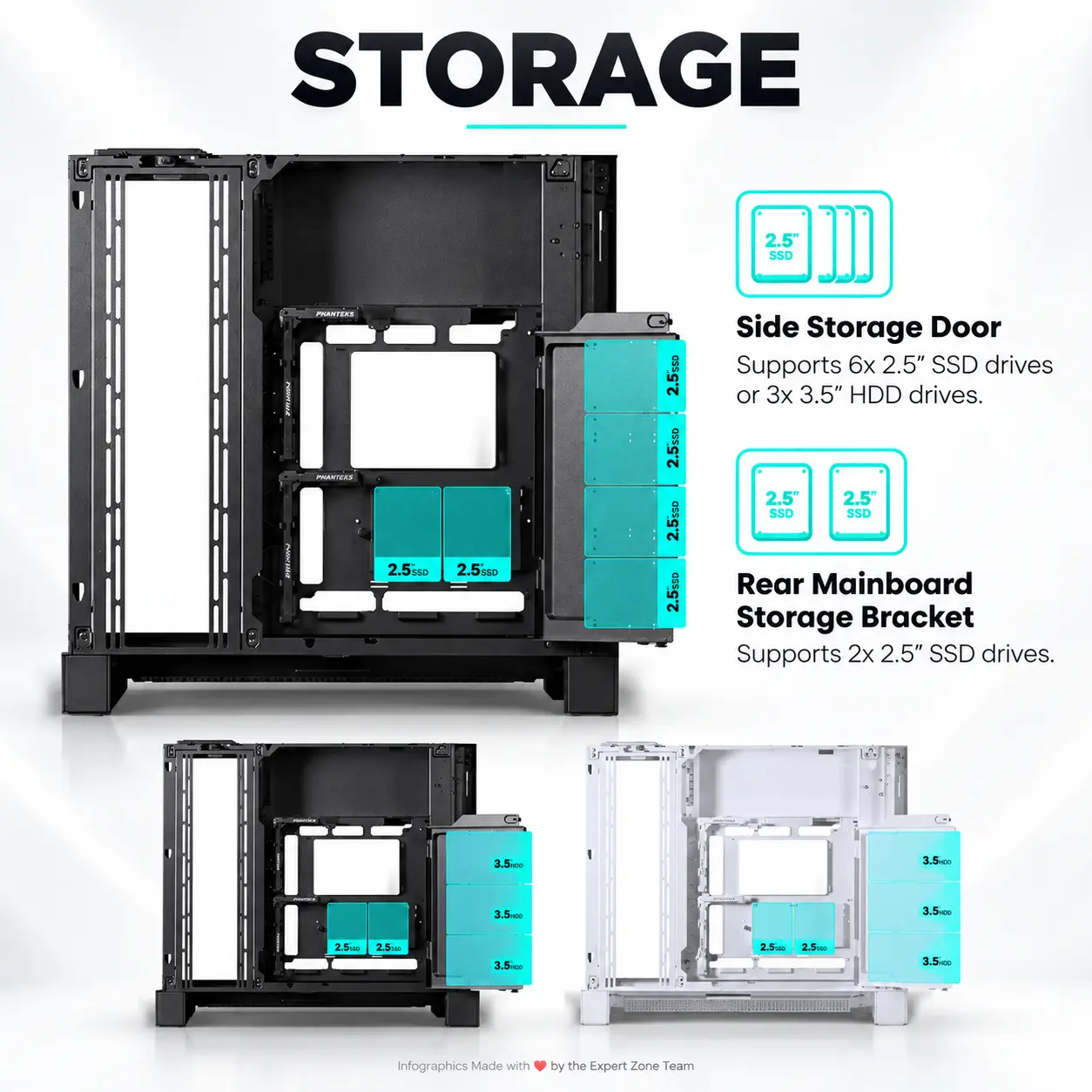

• Versatile Drive Configurations: Supports multiple 2.5-inch SSD and 3.5-inch HDD combinations, plus rear motherboard storage positions.
• Optional Vertical GPU Presentation: Compatible with separately purchased vertical GPU bracket and riser accessories.
• Modern USB-C and USB-A I/O: Provides USB-C 3.2 Gen 2×2, two USB 3.0 Type-A ports and a combined audio connection.
• Build Accessories Included: Ships with a preinstalled storage bracket, GPU support, airflow covers, ties, mounting screws, D-RGB adapter and microfiber cloth.
