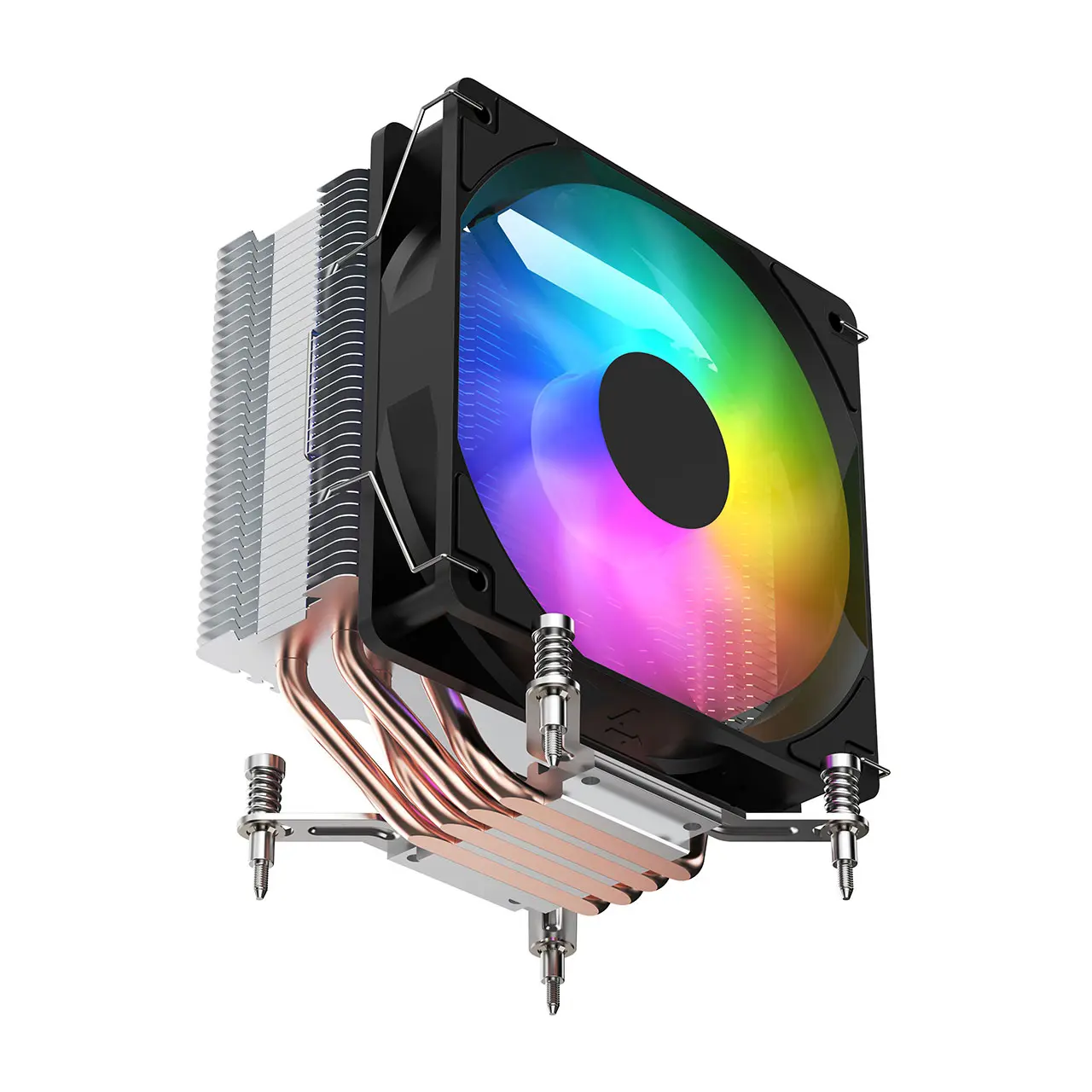

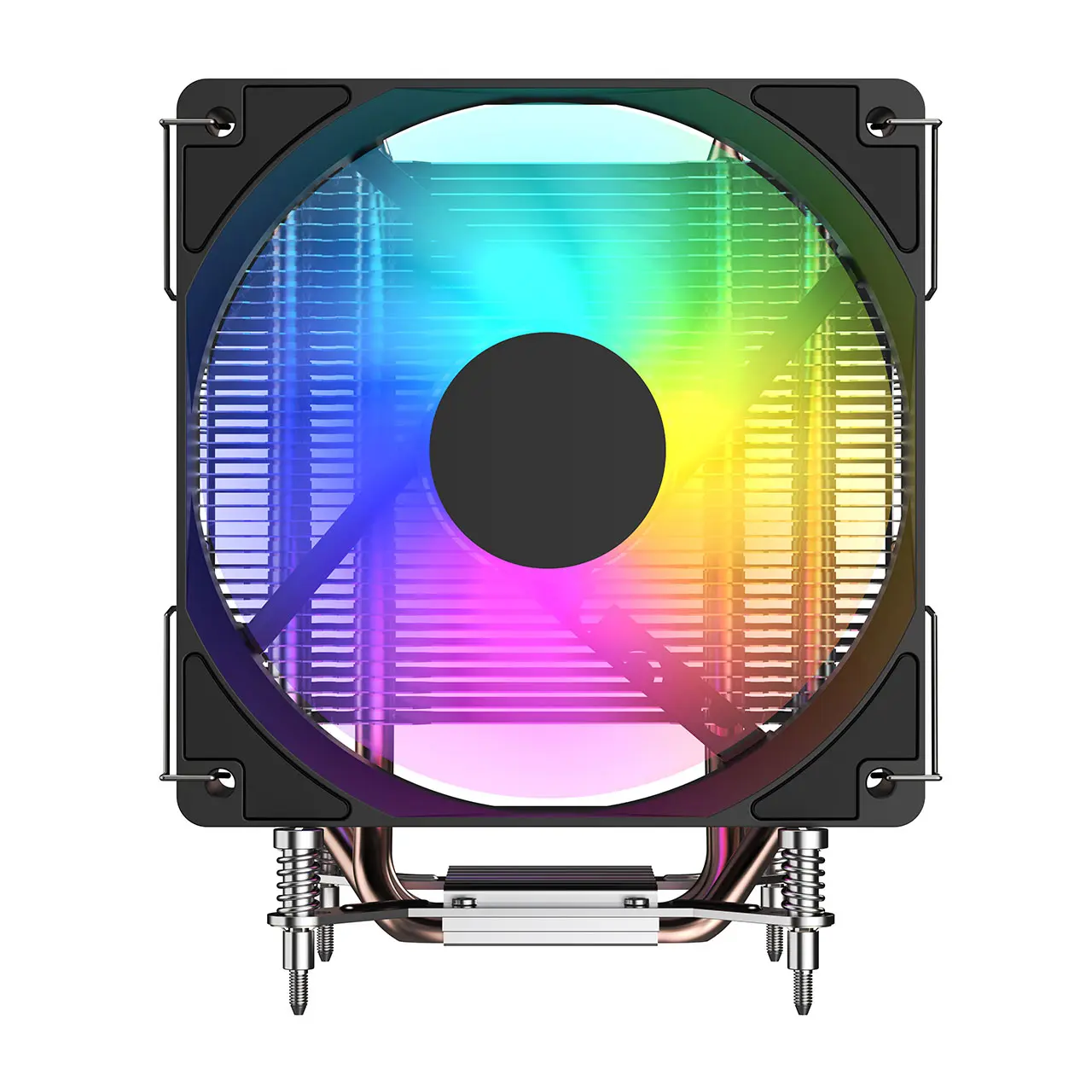

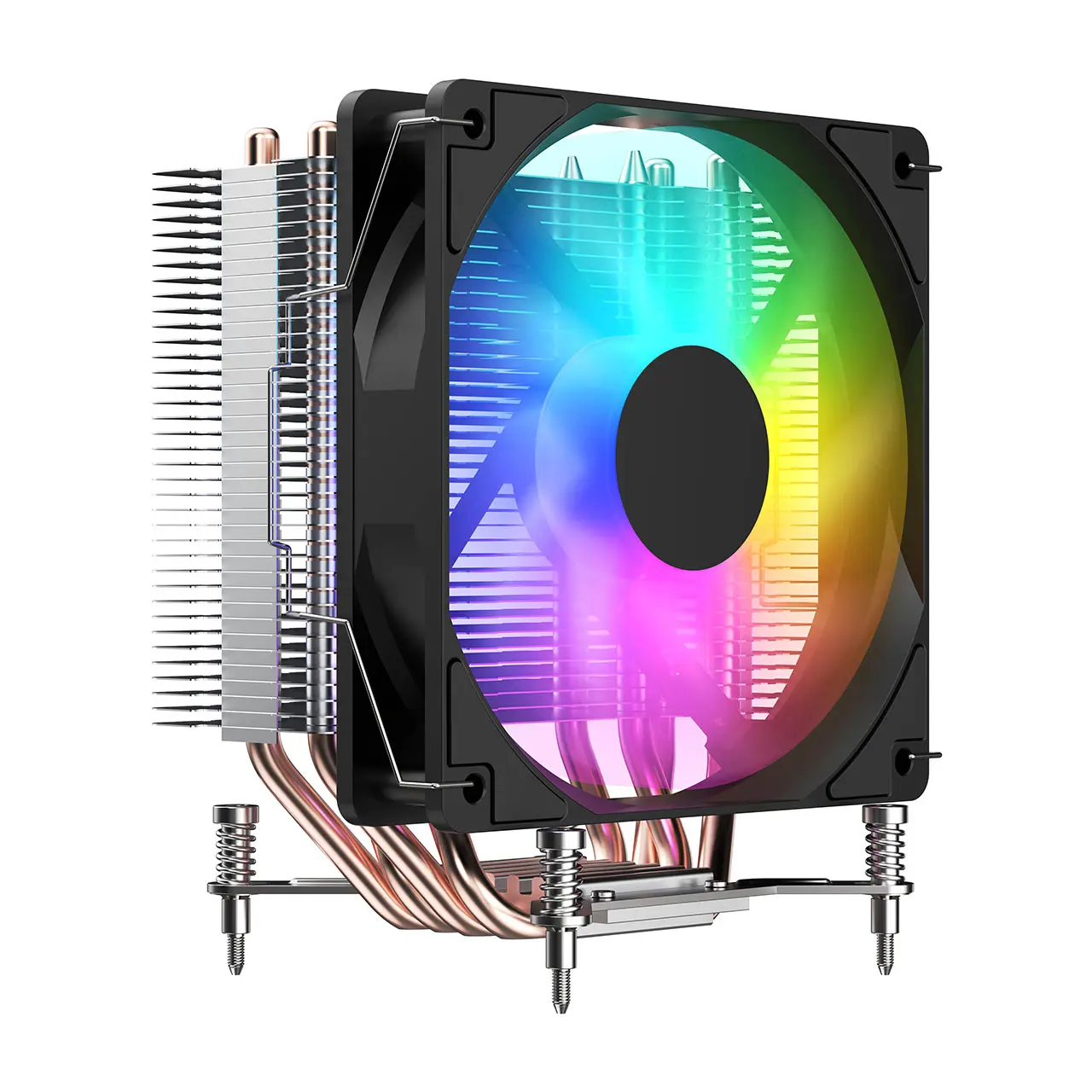

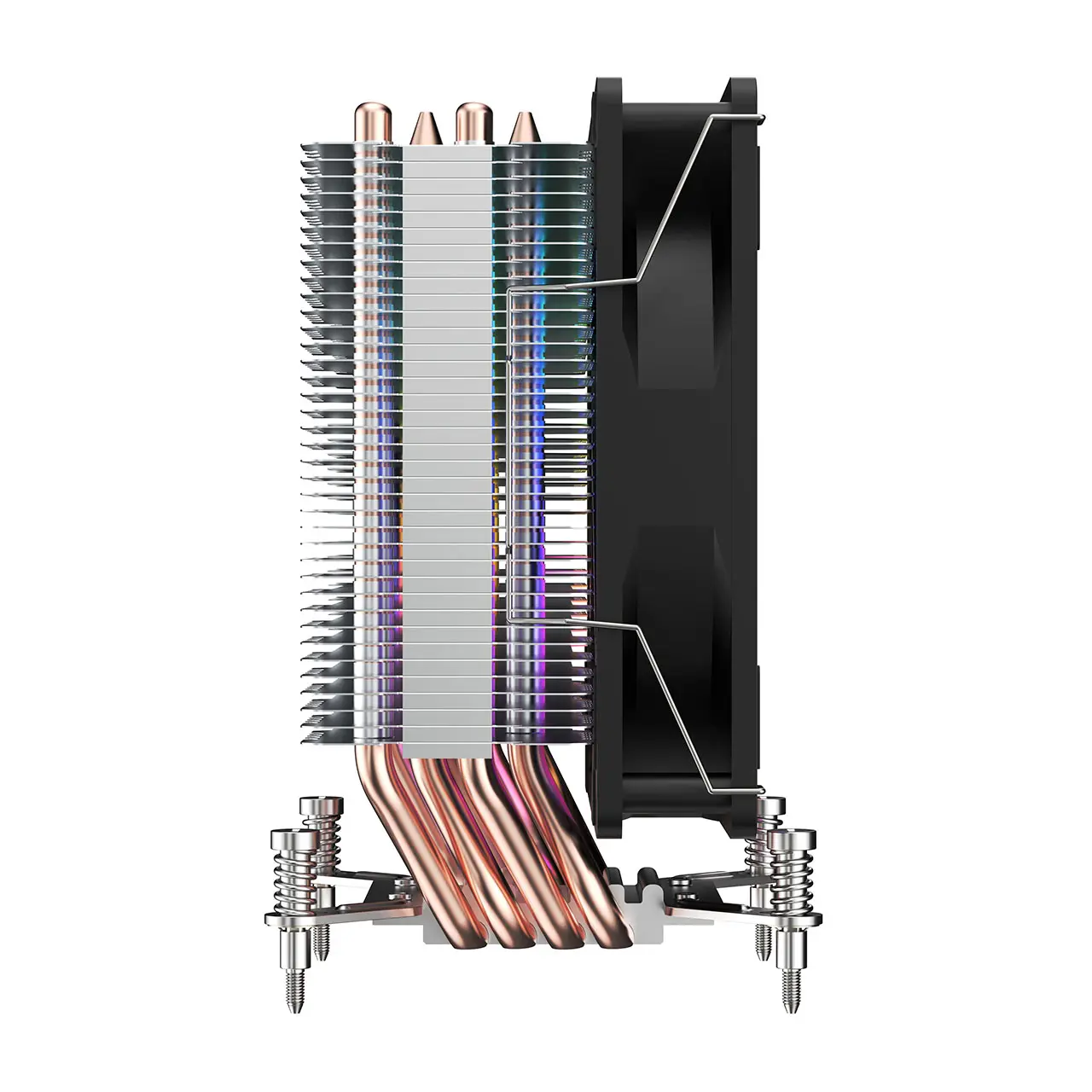

Power Train DL-130X RGB CPU Air Cooler with 4 Heatpipes, Copper Base, 2200RPM, 65CFM, Hydro Bearing, 22.5dBA Low Noise, Intel LGA1700 115X 1200, Compact 90mm RGB Fan | BLACK

12 $

⚡ Expert Features

  • 4 Direct-Contact Heatpipes : Efficient heat transfer straight from CPU to fins—no thermal lag, just instant dissipation.
  • Veneer Copper Base : Enhanced thermal conductivity—pulls heat faster than basic aluminum blocks.
  • High-Speed 2200RPM Fan : Aggressive airflow when needed—pushes hot air out before it builds up.
  • 65 CFM Airflow Output : Strong air volume for its size—perfect for compact builds that still run hot.
  • Ultra-Quiet Operation : Max 22.5 dBA—your system stays cool without sounding like a jet engine.
  • Hydro Bearing Fan Core : Longer lifespan (40,000 hours) with smoother, quieter rotation.
  • RGB Lighting Accent : Clean visual upgrade—adds glow without overdoing it.
  • Compact Tower Design : Fits tight cases easily with a 128mm height—no clearance nightmares.
  • Low Power Consumption : Efficient 0.3A draw—keeps your system balanced and stable.
  • Wide Intel Compatibility : Supports LGA1700 / 1200 / 115X—ready for mainstream builds.
  • Stable Voltage Range : Operates smoothly between 8V–13.2V—no random fan drops or spikes.
  • Lightweight Build : ~375g—reduced motherboard strain, safer long-term mounting.

🧠 Expert Specs

Category Specification
Product Name Power Train RGB CPU Air Cooler
Cooling Type Air Cooler
Heatpipes 4
Base Material Veneer Copper
Supported Sockets Intel LGA1700 / 1200 / 115X

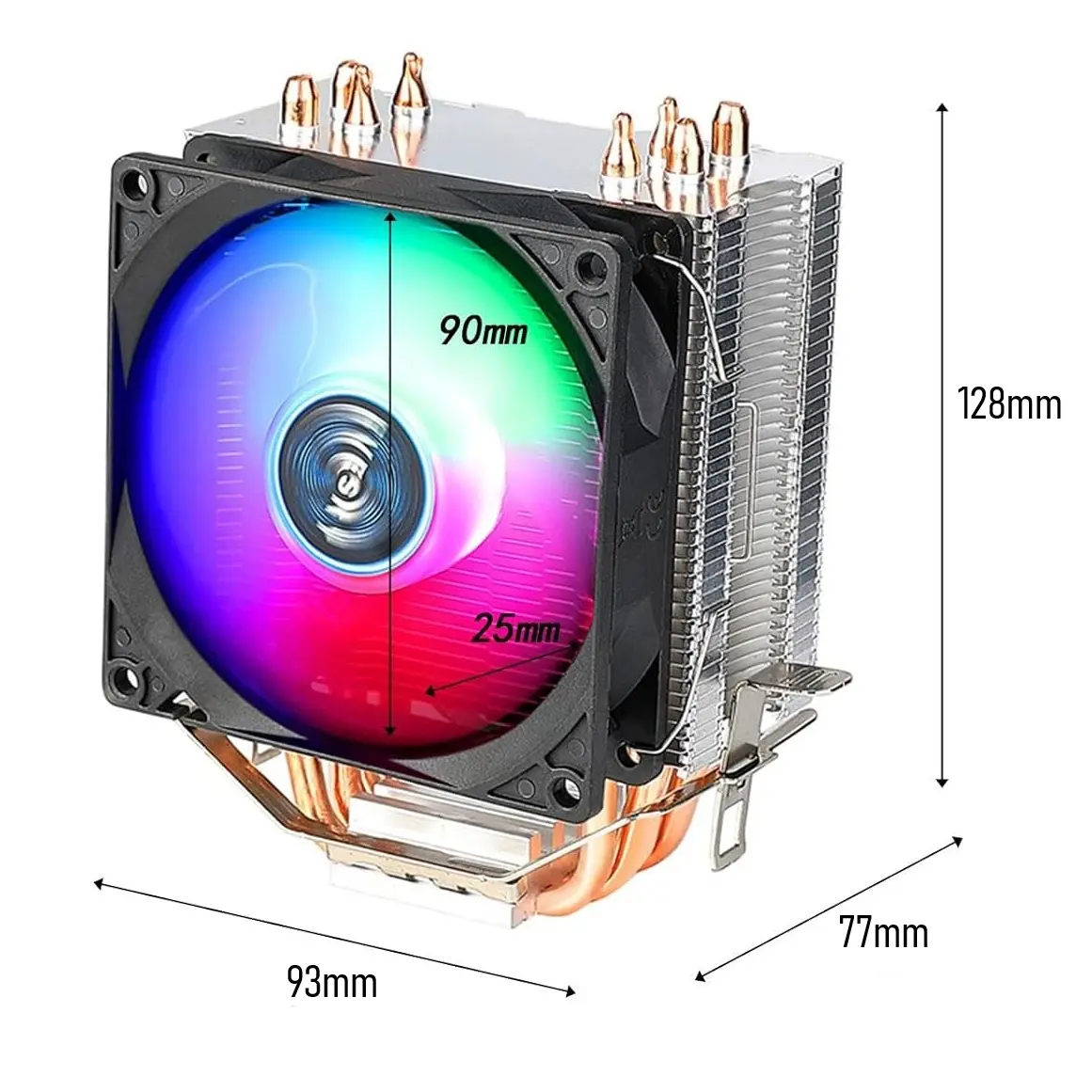

Overall Dimensions 93 × 77 × 128 mm
Fan Dimensions 90 × 25 mm
Net Weight ≈375 g
Fan Speed 2200 ±10% RPM
Max Airflow 65 ±10% CFM
Max Noise 22.5 dBA
Bearing Type Hydro Bearing
Fan Lifetime 40,000 Hours
Rated Voltage 12V DC
Operating Voltage 8 – 13.2V DC
Rated Current 0.3A ±0.03A
Lighting RGB

Features & Compatibility

DL-130X

Power Train DL-130X RGB CPU Air Cooler with 4 Heatpipes, Copper Base, 2200RPM, 65CFM, Hydro Bearing, 22.5dBA Low Noise, Intel LGA1700 115X 1200, Compact 90mm RGB Fan | BLACK

Power Train DL-130X

“HIGH-END CPU AIR COOLER” feature icons on a white background. Each icon is a DIFFERENT 3D Freeform badge The style is futuristic, industrial, and high-tech. Use realistic rendering with ray-traced reflections and lens flares.

The icons must include specific technical text:



  1. 4 Heatpipes Cooling
  2. Copper Base
  3. 2200RPM Fan
  4. 65CFM Airflow
  5. Ultra Quiet 22.5dBA
  6. Hydro Bearing
  7. RGB Lighting
  8. Compact Size
  9. 90mm Fan
  10. Intel Compatible



Sharp typography, volumetric lighting, 8k resolution, cinematic composition.”

Key Elements that Define this Image:

Composition: “Grid layout,” “icon set,” or “UI badge kit.”

Lighting: “Chiaroscuro” (high contrast between white background and bright icons) and “anamorphic lens flares.”

 text to occupy maximum area of each icon, enhance readability and clarity of text. Text should be of maximum contrasting colors with respect to the badge, text is incorporated inside the icon

Context: “HIGH-END RGB Gaming hardware aesthetic”
