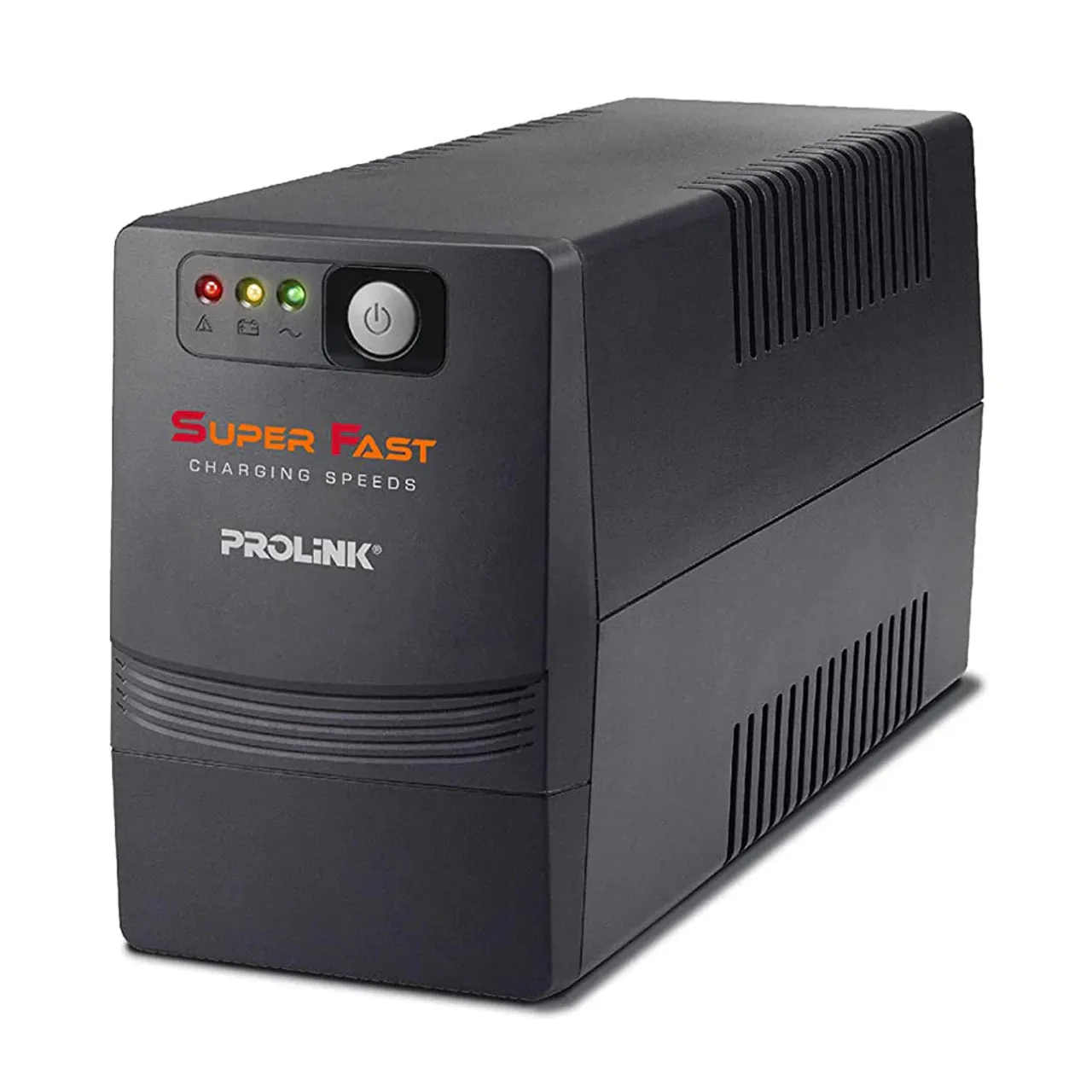

PROLINK Enerhome Ups 2kva Line Interactive With AVR | PRO2000
$ 143
PROLINK Enerhome Ups 2kva Line Interactive With AVR | PRO2000
Technical Specs |
|||||||||||||||||||||||||||||
GENERAL
INPUT
OUTPUT
BATTERY
ALARM & INDICATORS

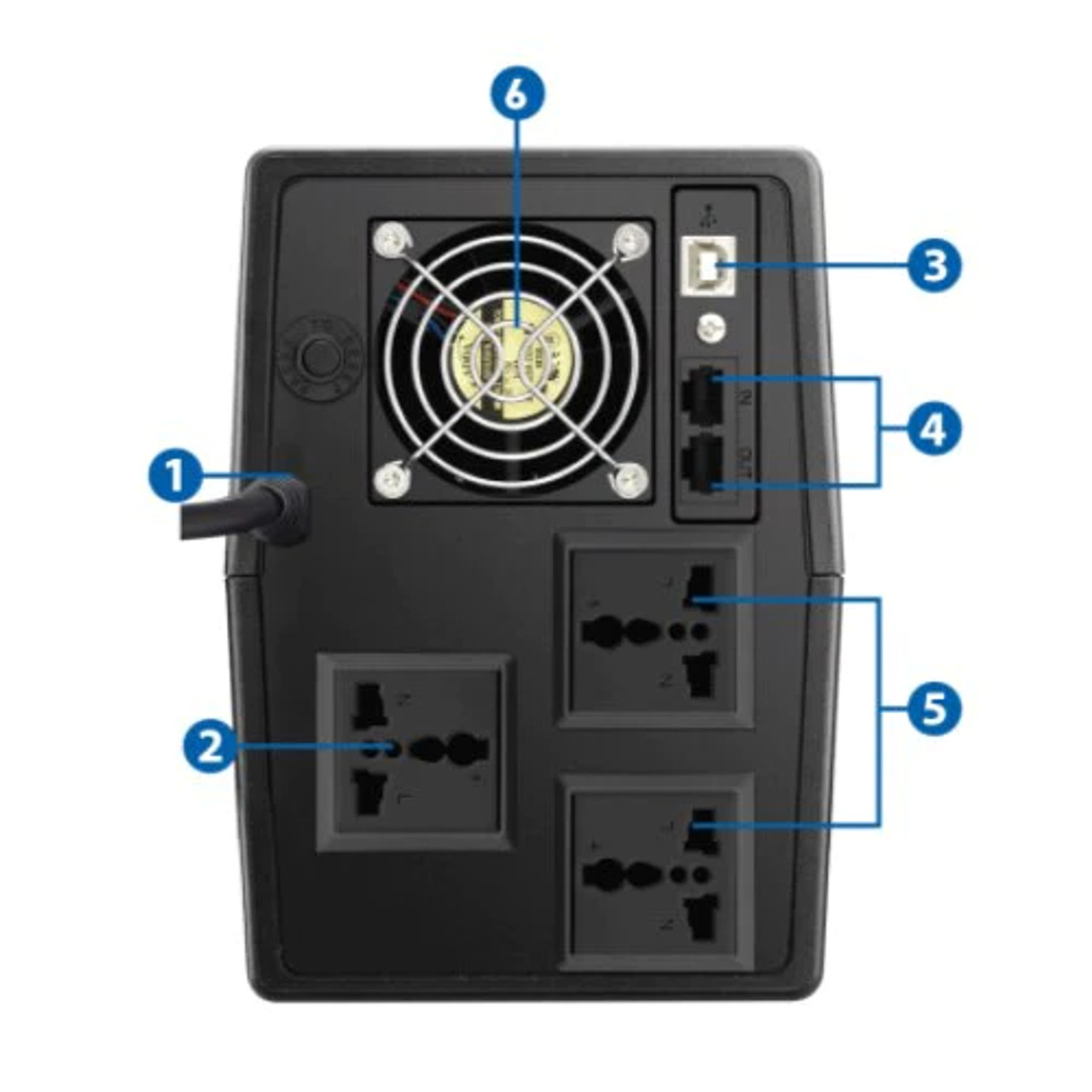

Rear Panel
|
Additional information
Related products
Sky Gate Mini UPS Battery Backup Uninterruptible Power Supply for Router, Modem, Security Camera with Input DC Output DC 9V 12V , Built-in 20000mAh (74Wh) Battery – Black
Mini UPS Battery Backup Uninterruptible PSU
Expert Features
- Mini uninterrupted power supply for power outage, compatible with router, modem, security camera, telephone, fax, printer, fingerprint recorder, LED strip lights, etc, and can still use the network in case of power outage.
- Output maximum 1×5V USB- C, 1×5V DC USB , 1×12V/9V DC Socket , 1×12V/9 DC Selector, can support router and modem at the same time.
- Built-in 20000mAh (74Wh) batterypack with a standard USB output, can be used as a normal power bank as well.
- Input: DC 12V5.5A, Output: USB 5V=3A, DC 5V=3A, 9V=3A, 12V=2A, 12V=3.5A.
- Multiple smart protections: short circuit protection, voltage fluctuation protection, overcharge protection, over discharge protection, temperature protection, safe to use.
Expert Specs
- Phase : Single Phase
- Protection : Overload & Short-circuit & Over-charge & Over-discharge Protection
- Weight : 0.4kg
- Type : Mini
- Application : Small DC Communication Equipment/Network Peripherals
- Transfer Time: 0ms
- Rated Working Voltage : 100-240Vac/50-60Hz
- Output Power(Max.) : 18W
- USB Output : 5V2.5A
- DC Output : 9V1.8A,12V1.35A
- POE Output : 24V 0.63A
- QTY. & Capacity of Battery : 2200mAh
- Unit Dimension(mm) : 206*120*35mm
UPS NCTS 6KVA 4.8KW NU6K16 ONLINE
Smart UPS On-Line SRV 6000VA / 6KVA
NCTS Smart UPS On-Line SRV 6000VA 4.8KW / 4.8KW battery group voltage 192V
- Load power factor is 0.8, adaptive for the development trend for electrical Equipment and the load capacity is more strong
- Active input power factor correction (PFC), input power factor is over 0.98
- Wide input voltage and frequency range, adaptive for extreme adverse grid environment of remote areas
- It can be connected with generators
- Zero transfer time effective ensures the safety and reliability of load operation
Smart UPS On-Line SRV 6000VA / 6KVA ; Specifications
Specification |
Single Phase In & Out | |
Rated output capacity |
6KVA/4.8KW | |
Rated |
Rated voltage |
220VAC |
AC input |
Input voltage range |
120-275VAC±5 |
Inputfrequency range |
(45-55)±0.5Hz | |
bypass voltage |
80VACx(1±5%)-285VACx(1±5%) | |
Battery Input |
battery group voltage |
192V |
battery method |
Internal | |
Battery capacity & quantity |
12V 7ah X16 PCS | |
backup time(half/full) |
half load≥10 minutes，full load≥5minutes(standard) | |
maximum input current when power on |
<150% of rated current | |
batterychargingtime |
5hours can charge to 90%(standard) | |
AC output |
Outputvoltage |
220VAC±1%(invert output) |
Output frequency |
50±5Hz(when AC input is normal) 50Hz±1% (when ac inout is abnormal ) | |
wave form |
sine wave THD<3%( linear load) sine waveTHD<8%(Nonlinear load) | |
output power factor |
0.8 | |
Overload Protection |
105-125% ,Transfer to Bypass after 1 Min | |
Output current peak coefficient |
03:01 | |
Transfer time between AC and Battery |
0ms | |
Communication and monitoring functions |
RS232(can transfer to 485，Dry node，Smart slot(can expand to SNMP,SMS and other monitoring methods) | |
Tower |
N.W(KG) |
57 |
G.W(KG) |
64 | |
Unit Size(W X H X D)mm |
515*250*620 | |
Carton Size(W X H X D)mm |
660*365*730 | |
10800mAh UPS Uninterruptible Power Supply Mini UPS 9/12V OUTPUT – Battery Backup for WiFi Camera Router LED Light Modems Speaker
Power Supply Mini UPS
EXPERT FEATURES
- Built-in lithium battery
- Microprocessor controller guarantees high reliability
- Auto start when plugged in
- Manual power off switch
- Overload & short-circuit protection
- Over-charge and over-discharge protection
- User's friendly multi-LED status indicators
- Allows to set output voltage-9/12VDC via switch
- 5VDC USB charger
- Application: router, modem, wireless phone, CCTV
Line Interactive Uninterruptible Power Supply Offline UPS 2000VA / 700W, 12V 9Ah*2 – LED Light – EU Socket, EU Plug – 230VAC, 60/50HZ – Short Circuit ,Overload, Battery Discharge And Overcharge, Surge Protection – For Home Office, Desktop PC & Home Electronics
Offline UPS 2000VA 700W
Expert Features
- •Excellent microprocessor control optimizes reliability
- •Wide range of power input
- •boost and buck AVR for voltage stabilization
- •Auto restart while AC is recovering
- •Off mode charging function
- •Simulated sine wave
- •Cold start function
- •Perfect protection for overload ,short circuit ,over-voltage ,low-voltage and over-heating etc.
- •Display: LED display selection providing status, load and battery information
- •Intelligent battery management
Expert Technical Specs
| Model | STE2000 | ||||
| Capacity | 2000VA/700W | ||||
| INPUT | |||||
| Voltage | 110/120 VAC or 220/230/240 VAC | ||||
| Voltage Range | 81-145VAC or 162-290VAC | ||||
| Frequency Range | 60/50 Hz (Auto sensing) | ||||
| OUTPUT Voltage | 110/120 VAC or 220/230/240 VAC | ||||
| AC Voltage Ragulation (Bat Mode) | ±10% | ||||
| Frequency Range (Bat Mode) | 60Hz or 50Hz ± 1Hz | ||||
| Transfer time | Typical 2-6ms | ||||
| Waveform (Bat Mode) | Simulated Sinewave | ||||
| Battery | |||||
| Battery Type&Number | 12V 9Ah*2 | ||||
| Charging ability | 4-6 hours recover to 90% capacity | ||||
| Protection | |||||
| Full protection | Overload, discharge and overcharge protection | ||||
| INDICATIONS | |||||
| LCD Display | AC/Battery Mode, Load/Battery Level, Input /Output Voltage ,Overload, Fault, and low Battery | ||||
| LED Display | AC Mode | Green lighting | The right green LED lighting& the 2nd to 5th green LEDs gradually lighting indicating load level | ||
| Battery Mode | Yellow flashing | The right green LED flashing& the 2nd to 5th green gradually lighting indicating battery capacity | |||
| Fault | Red lighting | ||||
| Battery mode | Sounding every 10 seconds | ||||
| Low battery | Sounding every second | ||||
| Overload | Sounding every 0.5 seconds | ||||
| Battery Replacement Alarm | Sounding every 2 seconds | ||||
| Fault | Continuously sounding | ||||
| Dimension, D*W*H(mm) | 370*135*165 | ||||
| Net Weight (kgs) | 11.5 | ||||
| Environment | |||||
| Humidity | 0-90% Relative Humidity 0-40 ℃ (Non-condensing) | ||||
| Noisy Level | Less than 40dB | ||||
ONLINE UPS NCTS NU3K6 3KVA 7A
ONLINE UPS 3KVA 7A
Expert Description
MODEL |
NCTS-NU3K6 |
||||||
|
|
|||||||
● Load power factor is 0.8, adaptive for the development trend for electrical Equipment and the load capacity is more strong Active input power factor correction (PFC), input power factor is over 0.98 Wide input voltage and frequency range, adaptive for extreme adverse grid environment of remote areas It can be connected with generators Zero transfer time effective ensures the safety and reliability of load operation |
|||||||
Specification |
Single Phase In & Out |
||||||
Rated output capacity |
3KVA/2.4KW |
||||||
Rated |
Rated voltage |
220VAC |
|||||
AC input |
Input voltage range |
115-300VAC±5 |
|||||
Input frequency range |
(45-55)±0.5Hz |
||||||
bypass voltage |
80VACx(1±5%)-285VACx(1±5%) |
||||||
Battery Input |
battery group voltage |
72V |
|||||
battery method |
Internal |
||||||
UPS PROLINK Super Fast Charging 650A 350WATT
GENERAL
| Capacity | 650VA |
| Dimension (mm) | 286 x 96 x 138 (D x W x H) |
| Weight (kg) | 4.3 |
INPUT
| Voltage Range | 162 ~ 290VAC (Single boost) 140 ~ 300VAC (Double boost) |
| Frequency | 50Hz/60Hz (Auto-sensing) |
| Phase | Single + GND |
OUTPUT
| Voltage Range | 220-240VAC |
| Battery Mode | 220-240VAC |
| Frequency | 50Hz ±1% (Battery mode) |
| Waveform | Simulated sine wave (Battery mode) Sine wave (AC mode) |
| Transfer Time | 2ms typical |
BATTERY
| Type | 12V/8.2AH x 1 |
| Backup Time | 8 - 20 mins depending on load |
| Recharge Time | 2-4 hours recover to 90% capacity |
INTERFACE & INDICATORS
| Interface | RS232, USB port, RJ45/RJ11 (Optional) |
| Display | LED/LCD Optional |
| Alarm | Batt. Mode, low battery, overload, fault, etc. |
PROTECTION/MONITORING
| Short Circuit Protection | Yes (Line mode & battery mode) |
| Surge Protection | Yes |
| Alarm | Audible & Visual |
| Overload Protection | Line mode : 100 - 120% 1 min change to fault mode >120% change to fault mode immediatelyBattery mode : 100 - 120% 1 min change to fault mode >120% change to fault mode immediately |
| Intelligent Battery | Prevent overcharging of battery |
| Management | Protect battery and prolong battery life |
Real Panel
| 1. AC Mode Indicator Green LED Lighting 2. Battery Mode Indicator Battery Normal : Yellow LED Lighting and Blinking every 30s Battery Low : Yellow LED Lighting and Blinking every 2s 3. Overload and Fault Indicator Overload : Red LED Blinking every 2s Fault : Red LED Lighting 4. Power Switch 5. Power AC Input 6. Backup Outlets |
NCTS1290 Battery 12V 9AH SLA Rechargeable Replacement Battery with T2 Terminal for UPS Back Up , Electric Scooter, Emergency Lighting, Wheel Chair, and More
12V 9AH SLA Rechargeable UPS Battery
NCTS1290
12V 9AH SLA Rechargeable UPS Battery
NCTS1290 Battery 12V 9AH SLA Rechargeable Replacement Battery with T2 Terminal for UPS Back Up , Electric Scooter, Emergency Lighting, Wheel Chair, and More
Expert Features
- LONGEVITY --- 12v 7ah 8ah Rechargeable Sealed Lead Acid Replacement Battery. Low self-discharge, up to 600 charging and discharging cycles . High Capacity and efficiency low internal resistance for high discharge current.
- ADVANCED TECHNOLOGY --- Top-Quality materials and careful processing. With 99,9% above-average high purity level and corrosion resistant micro crystal structure. AGM processing technology, Maintenance-free, Leak proof.
- EASY TO INSTALL --- The 12V 9Ah battery is configured with standard F2 Style Terminal. Accumulators in general are fully-charged on delivery.
- WIDE RANGE OF APPLICATIONS --- Emergency power UPS- equipments , Power wheels, Electric scooter, Emergency light, Home alarm equipment, Elevator backup power supply, Kids ride-on toy, Firefighting equipment , Rehab, Small starter batteries and more.
NCTS1290
12V 9AH SLA Rechargeable UPS Battery
NCTS1290 Battery 12V 9AH SLA Rechargeable Replacement Battery with T2 Terminal for UPS Back Up , Electric Scooter, Emergency Lighting, Wheel Chair, and More
