11354-01-20G

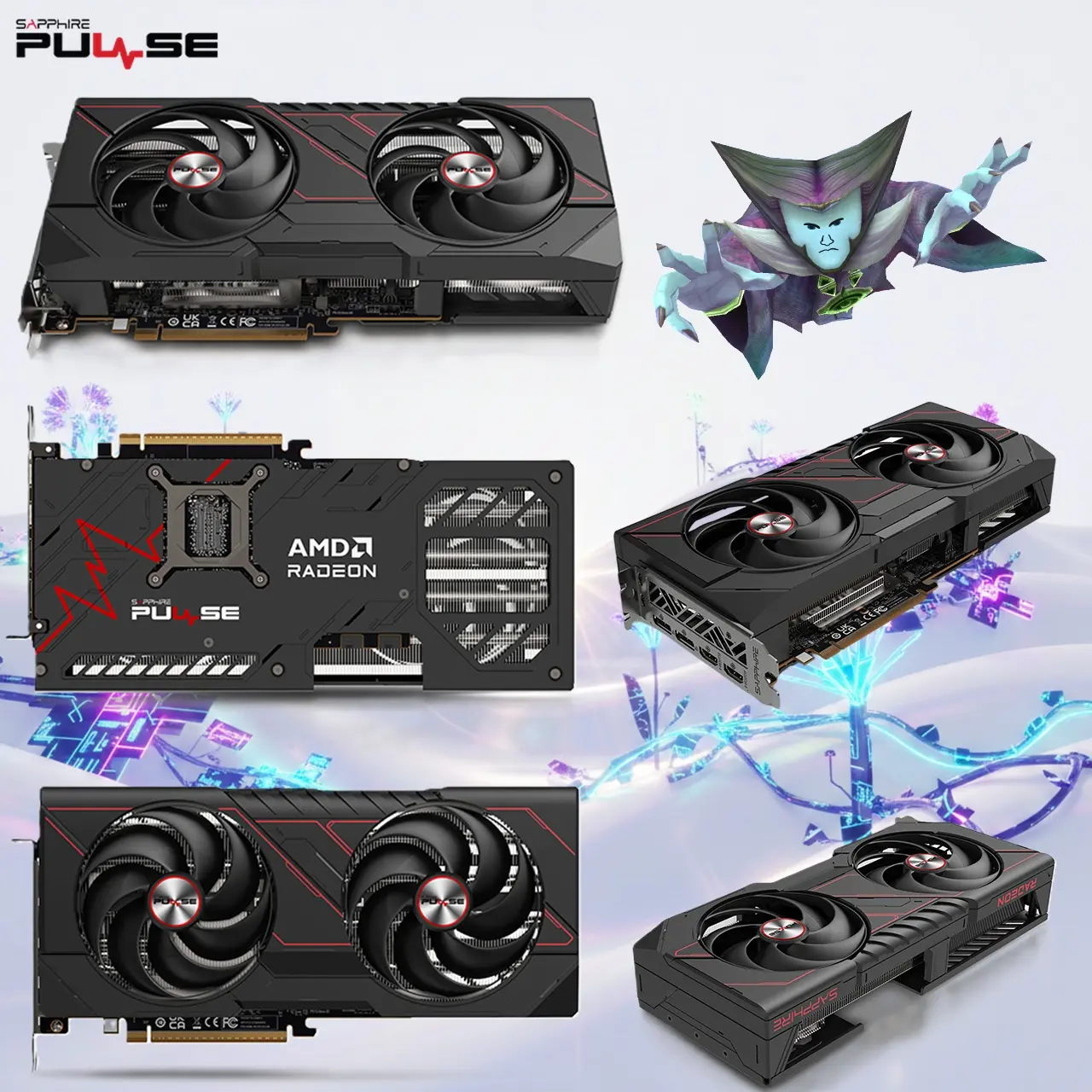

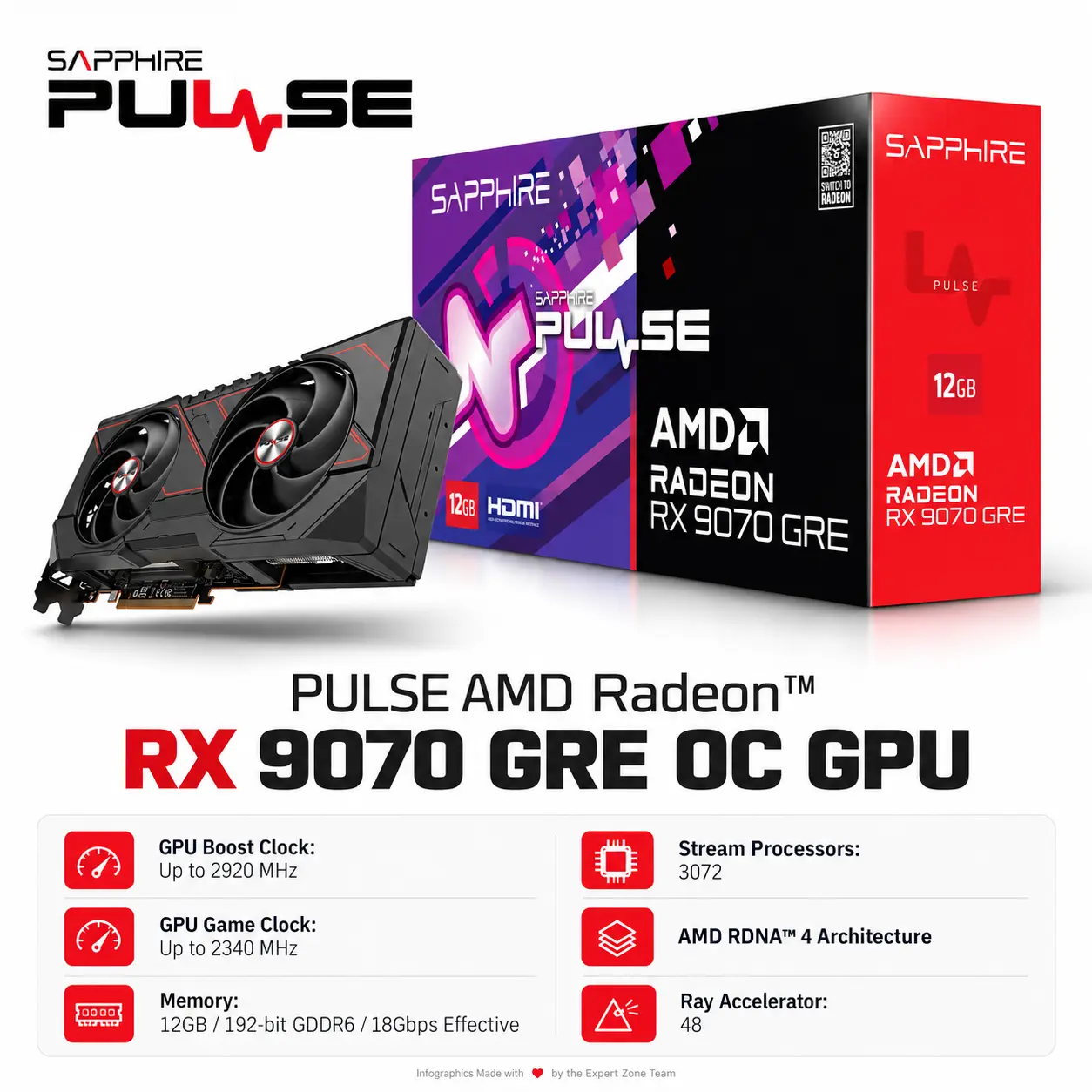

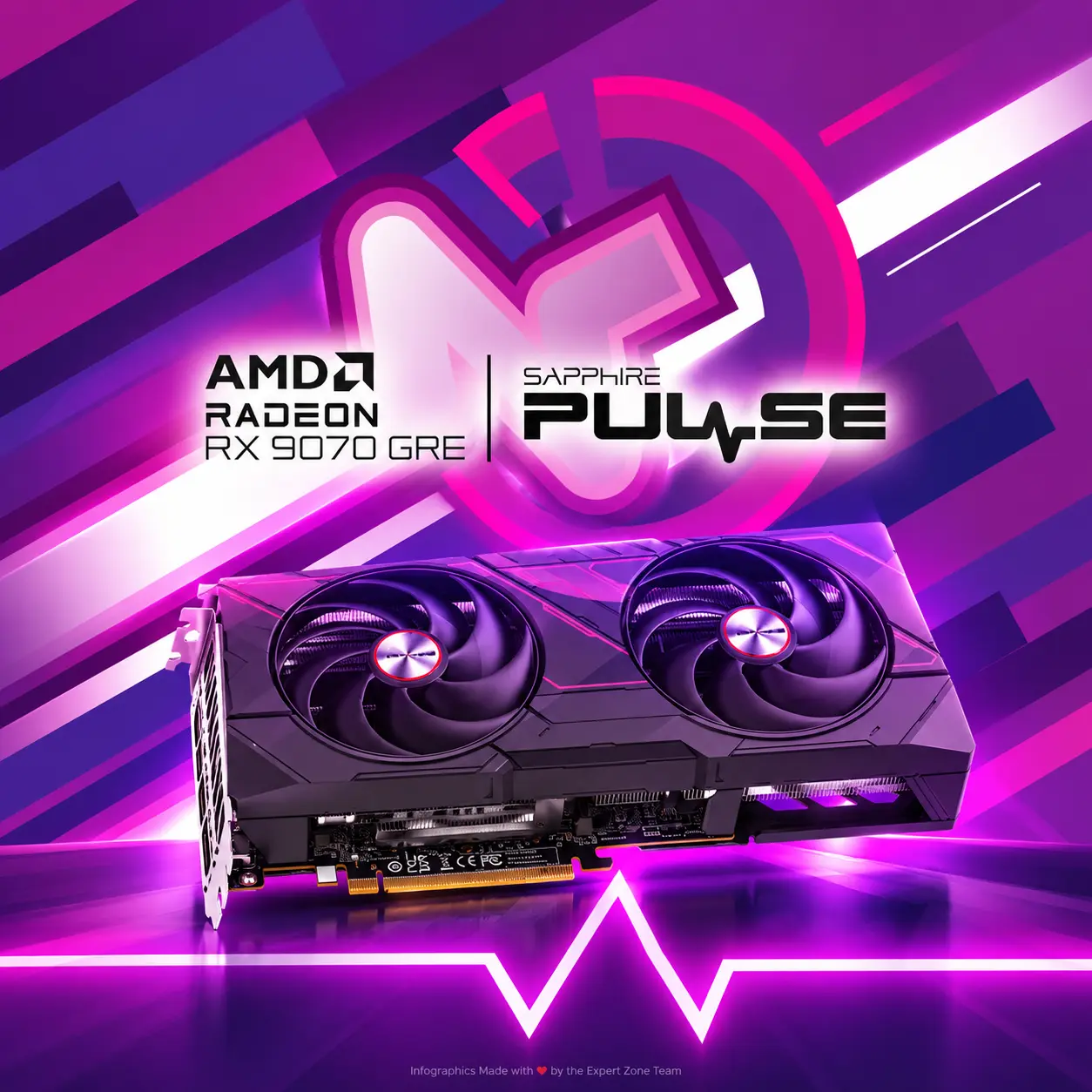

SAPPHIRE PULSE AMD RADEON RX 9070 GRE 12GB GAMING OC
SAPPHIRE PULSE Radeon RX 9070 GRE OC 12GB GDDR6, RDNA 4, 2920MHz Boost, PCIe 5.0, FSR 4 AI Upscaling, Dual-X Cooling, HDMI 2.1b & DP 2.1a
SAPPHIRE PULSE Radeon RX 9070 GRE OC 12GB GDDR6, RDNA 4, 2920MHz Boost, PCIe 5.0, FSR 4 AI Upscaling, Dual-X Cooling, HDMI 2.1b & DP 2.1a
690 $
EXPERT FEATURES

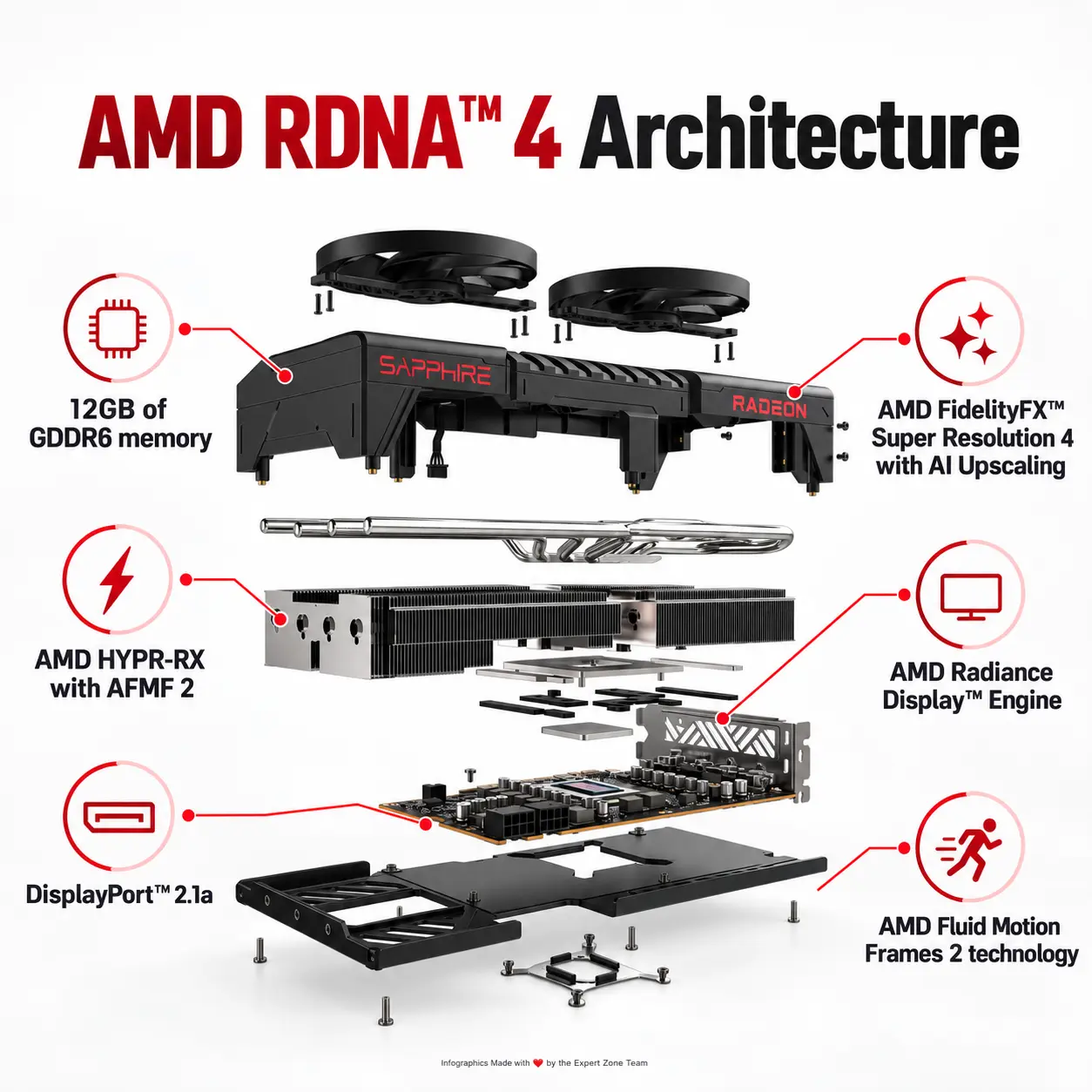

- RDNA 4 Gaming Architecture : 48 Compute Units, 48 third-generation Ray Accelerators and 96 second-generation AI Accelerators.
- Factory-Overclocked PULSE Performance : Boost clock up to 2920MHz and game clock up to 2340MHz.
- 12GB GDDR6 Memory : 12GB GDDR6 on a 192-bit bus at 18Gbps effective, backed by 48MB Infinity Cache.
- FSR 4 With AI Upscaling : Supports AMD FidelityFX Super Resolution 4 with AI upscaling.
- HYPR-RX + AFMF 2 : Supports AMD HYPR-RX, Fluid Motion Frames 2 and Radeon Anti-Lag 2.

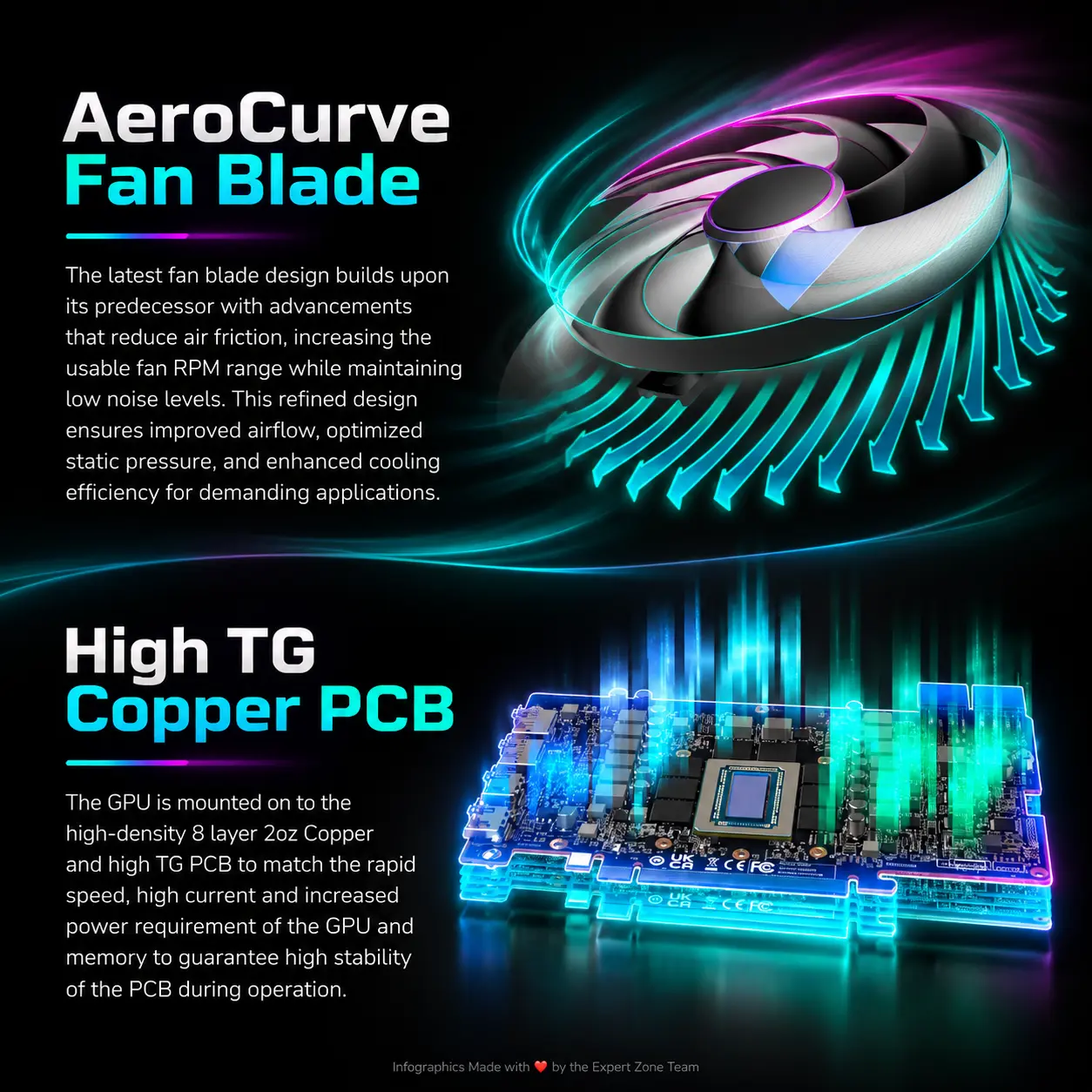

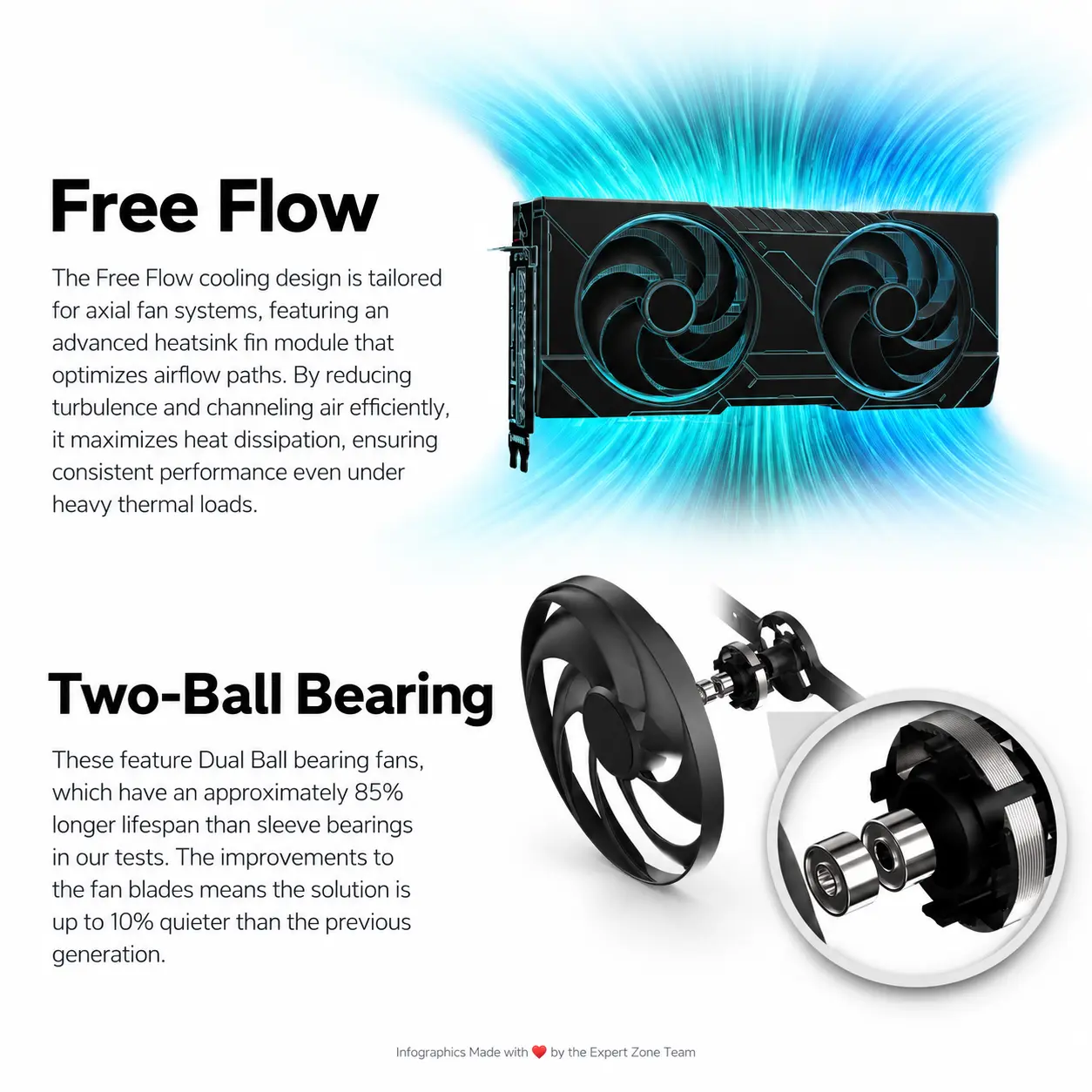

- Dual-X Cooling : AeroCurve fan blades, optimized composite heatpipes, integrated cooling module, Free Flow and two-ball-bearing fans.

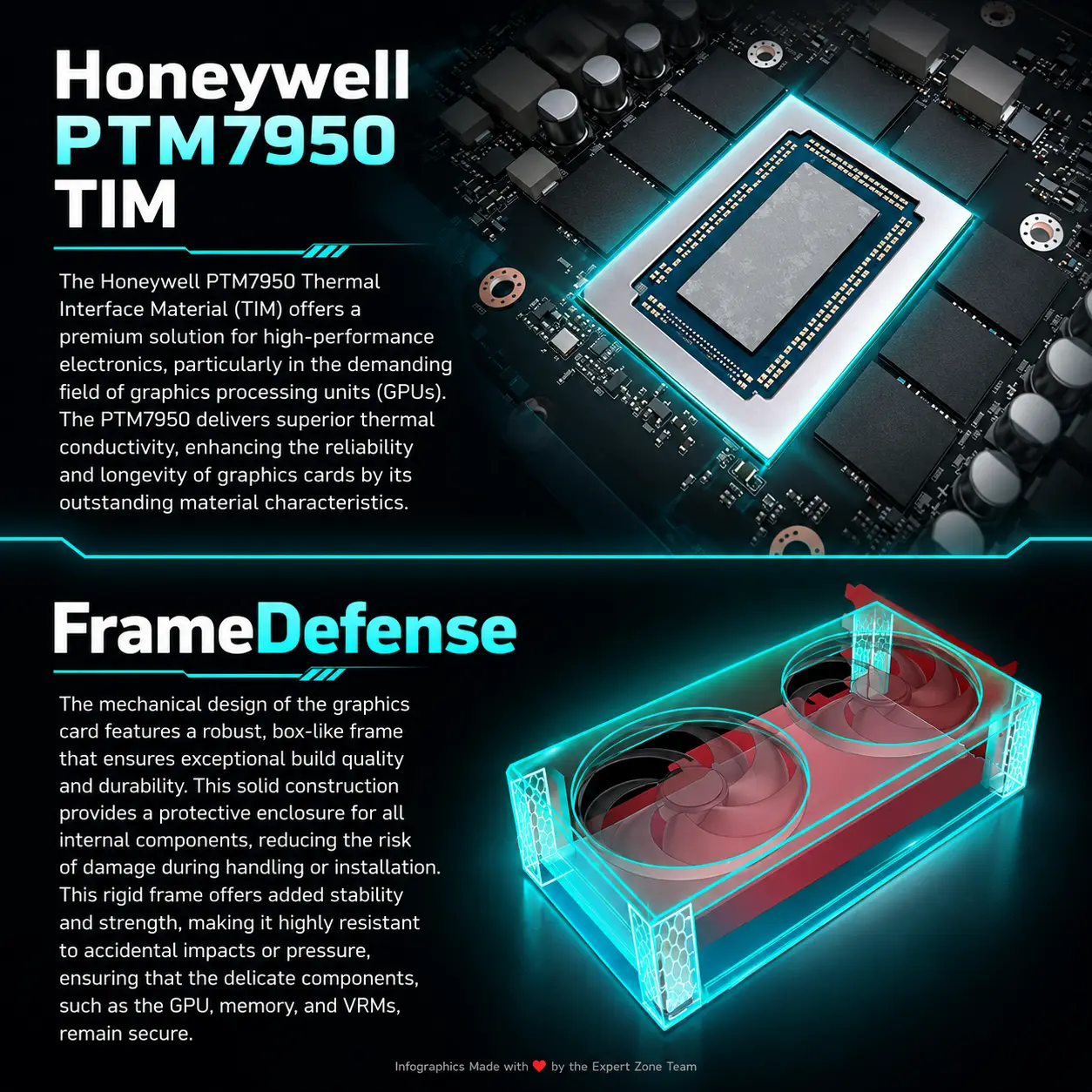

- Honeywell PTM7950 TIM : Premium thermal interface material for the GPU contact surface.
- 14-Phase Digital Power : High TG copper PCB, 14-phase digital power design and fuse protection.
- PCIe 5.0 x16 : Modern PCI Express 5.0 x16 interface.
- Four Display Outputs : 2 × HDMI 2.1b and 2 × DisplayPort 2.1a, up to four displays and up to 7680 × 4320.
- 1440p Gaming Focus : SAPPHIRE lists this model with a 1440p game index.
EXPERT SPECS
| Specification | Details |
|---|---|
| Model | SAPPHIRE PULSE AMD Radeon RX 9070 GRE OC GPU |
| SKU | 11354-01-20G |
| GPU | AMD Radeon RX 9070 GRE |
| Architecture | AMD RDNA 4 |
| Boost Clock | Up to 2920MHz |
| Game Clock | Up to 2340MHz |
| Stream Processors | 3072 |
| Compute Units | 48 |
| Ray Accelerators | 48 |
| AI Accelerators | 96 |
| Infinity Cache | 48MB |
| Memory | 12GB GDDR6 |
| Memory Bus | 192-bit |
| Memory Speed | 18Gbps effective |
| Interface | PCIe 5.0 x16 |
| Outputs | 2 × HDMI 2.1b + 2 × DisplayPort 2.1a |
| Maximum Displays | 4 |
| Maximum Resolution | 7680 × 4320 via HDMI 2.1b / DisplayPort 2.1a |
| Cooling | Dual-X Cooling, AeroCurve Fan Blade, Free Flow, Integrated Cooling Module, Optimized Composite Heatpipes, Two-Ball Bearing Fans |
| TIM | Honeywell PTM7950 |
| Power Design | 14-Phase Digital Power Design |
| PCB | High TG Copper PCB |

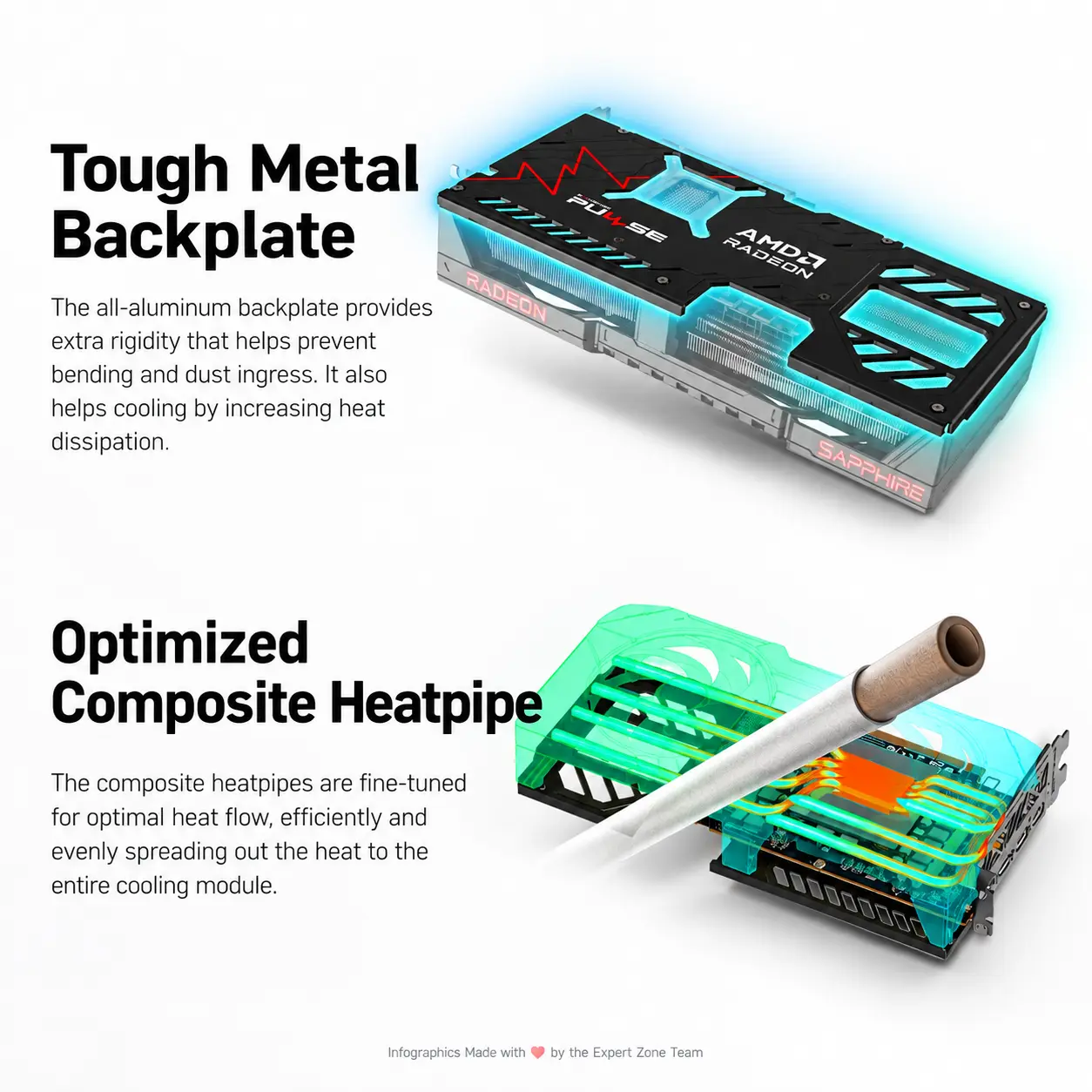

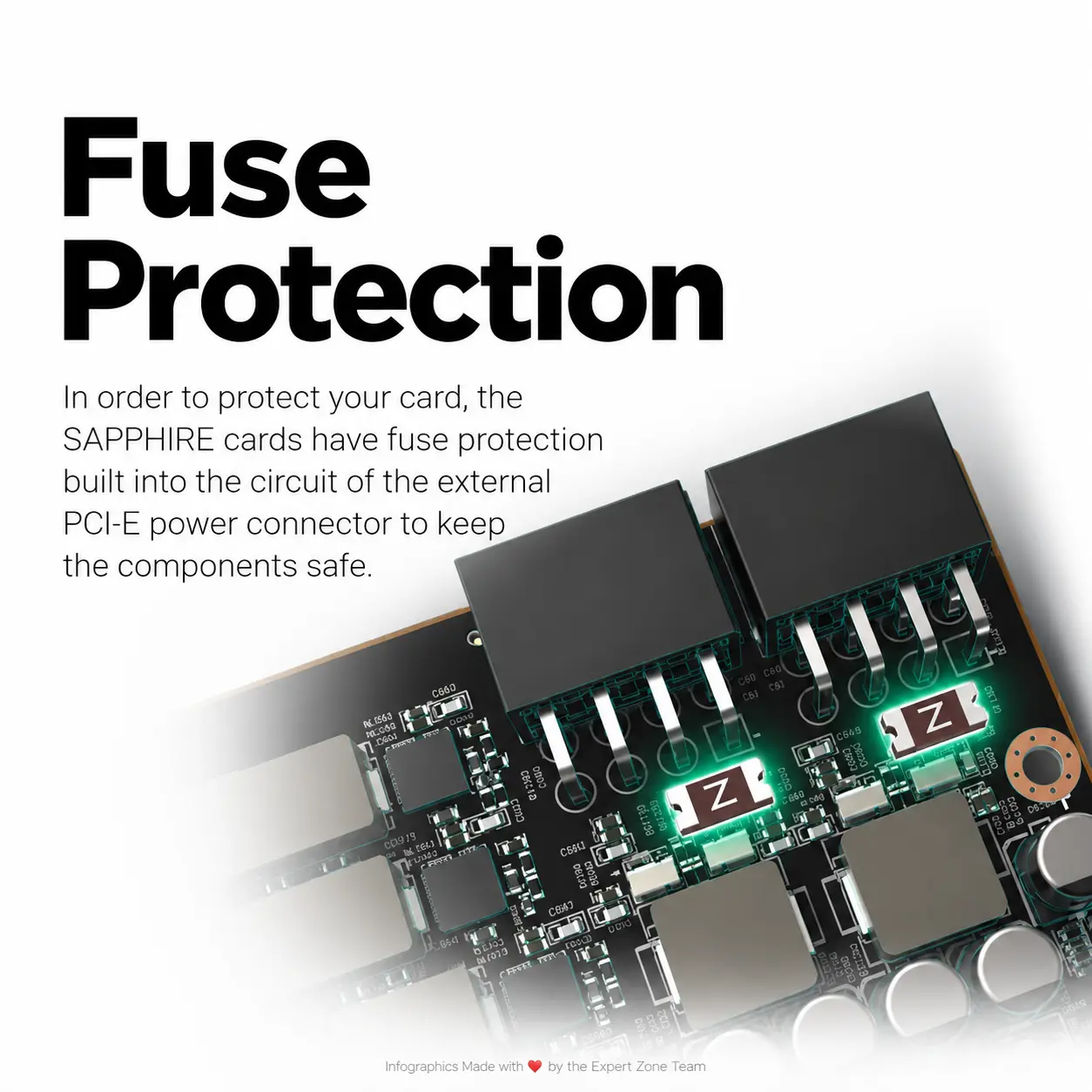

| Protection | Fuse Protection, Metal Backplate |
| Software | SAPPHIRE TriXX, TriXX Boost, AMD Software: Adrenalin Edition |
| AMD Features | FSR 4 with AI Upscaling, HYPR-RX with AFMF 2, Radeon Anti-Lag 2, Fluid Motion Frames 2, FidelityFX, FreeSync, DirectX 12 Ultimate |
| Form Factor | 2.5-slot, ATX |

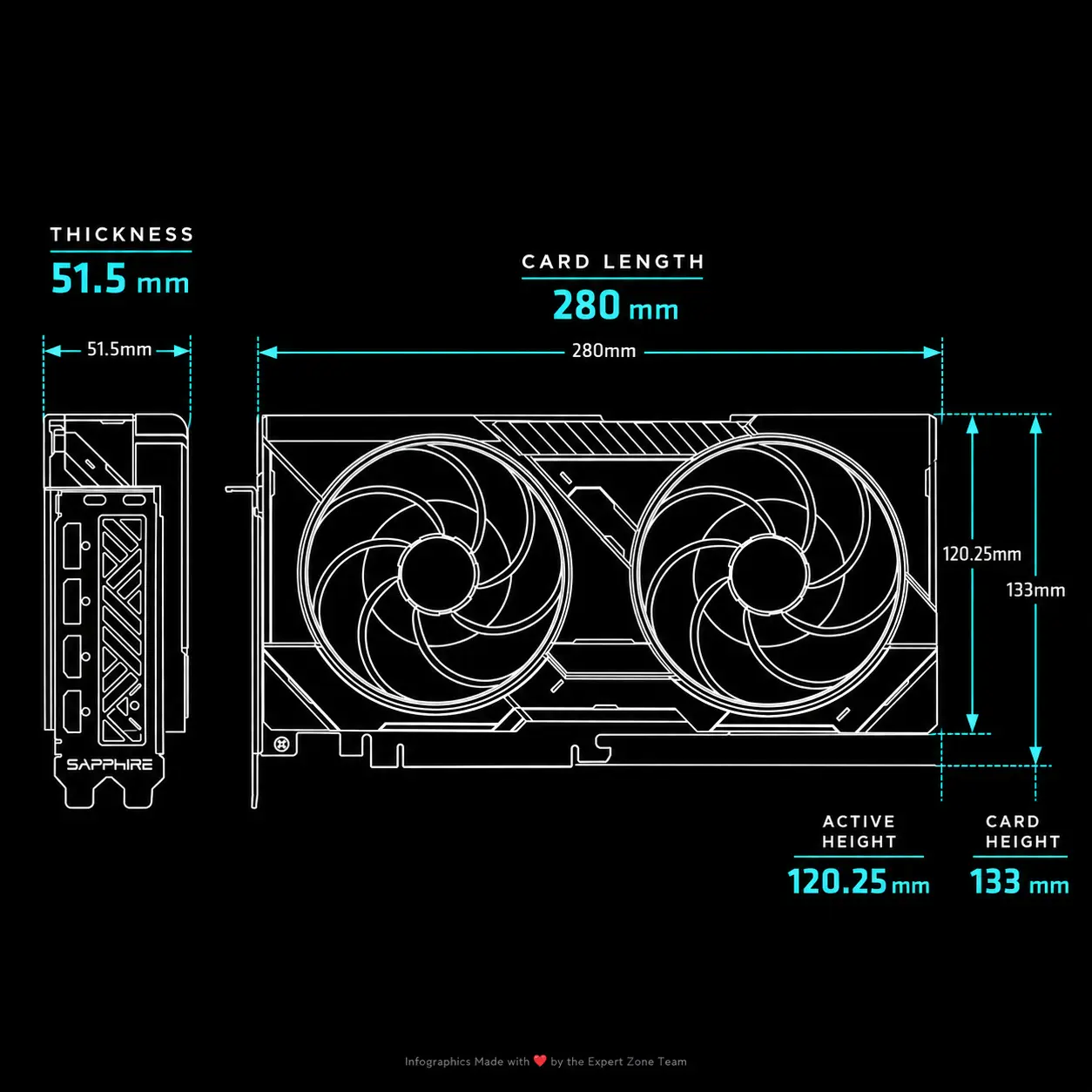

| Dimensions | 280 × 120.25 × 51.5mm |
| Typical Board Power | 240W |
| Power Connectors | 2 × 8-pin |
| Recommended PSU | Minimum 650W |
| System Memory | 8GB minimum, 16GB recommended |
| BIOS | UEFI |
| Game Index | 1440p |
| OS Support | Windows 10 64-bit, Windows 11 64-bit, Linux 64-bit |
