Description

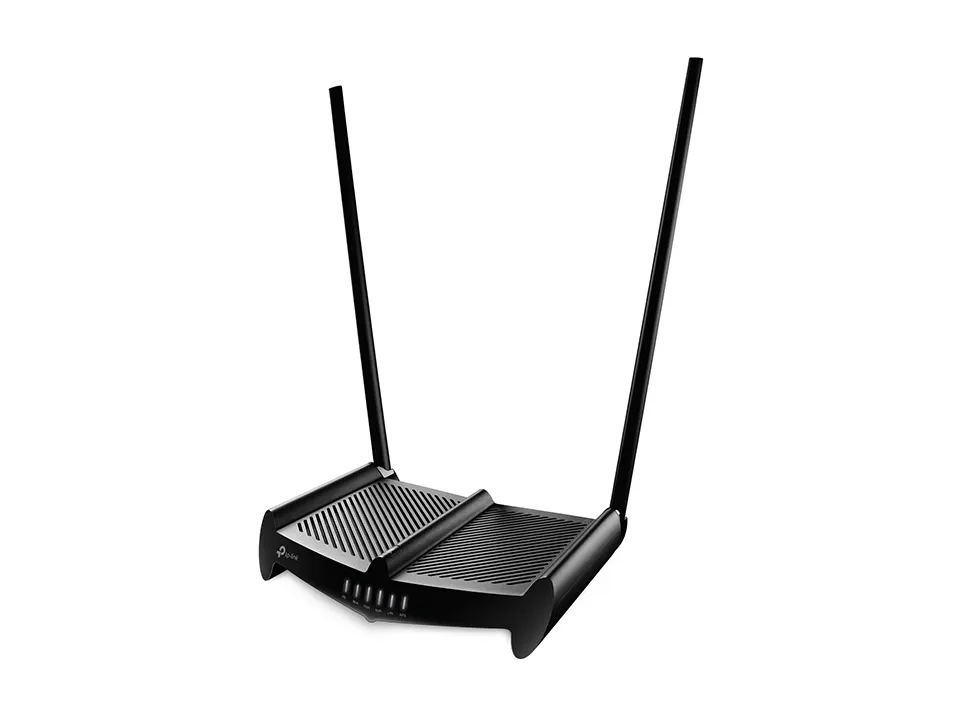

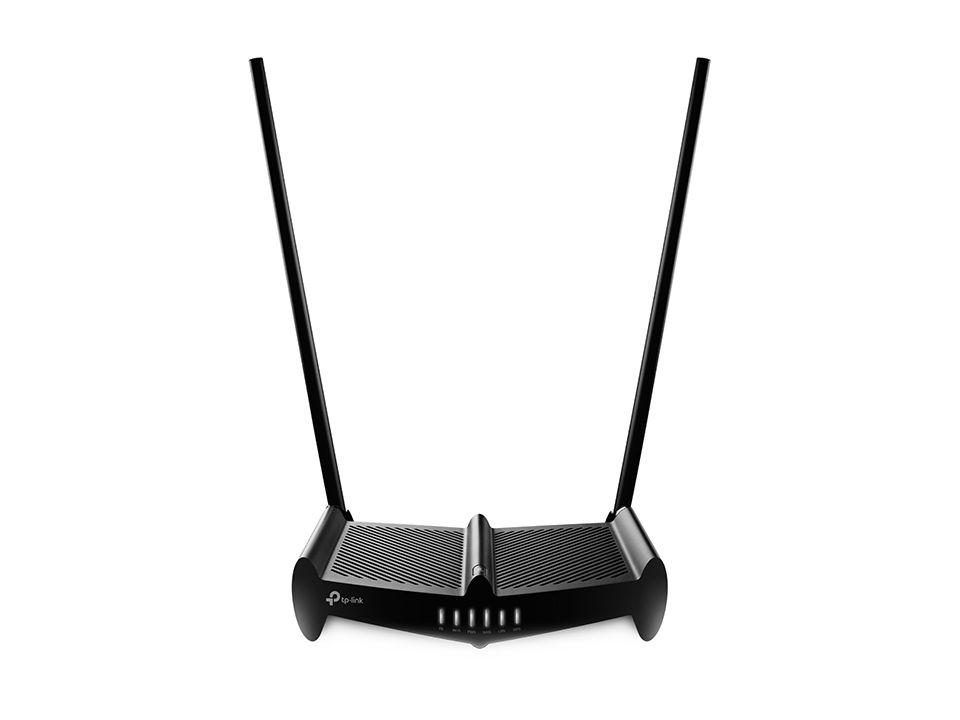

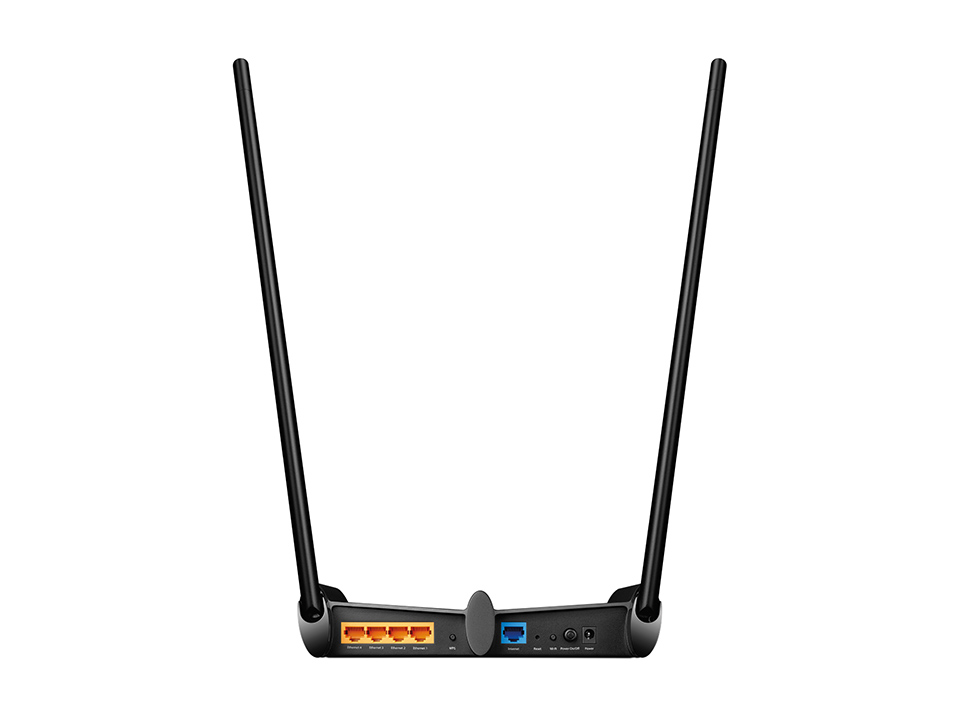

TPLINK 300Mbps High Power Wireless N Router TL-WR841HP
Previous product
Back to products
TP-LINK Load Balance Broadband Router (TL-R470T+) Up to 4 WAN ports, PPPoE Server, Marshals bandwidth resource
Original price was: $ 64.$ 63Current price is: $ 63.
TL-WR841HP 300Mbps High Power Wireless N Router ; Superior Range – Wall-Penetrating Wi-Fi –300Mbps Wireless Speed – 3 Modes Functionality
$ 33
300Mbps High Power Wireless N Router
- Superior Range – High power amplifiers and high-gain antennas provide enhanced wireless range.
- Wall-Penetrating Wi-Fi – Enhanced Wi-Fi signal cuts through walls and obstacles, eliminating dead zones
- 3 Modes Functionality – Offers three wireless modes, including Router, Range Extender, and Access Point
- 300Mbps Wireless Speed – Ideal for video streaming, online gaming, and VoIP
HARDWARE FEATURES |
|
|---|---|
| Interface | 4 10/100Mbps LAN Ports 1 10/100Mbps WAN Port |
| Button | WPS/Reset Button |
| External Power Supply | 12VDC / 1A |
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Dimensions ( W x D x H ) | 9.0 x 7.4 x 1.9 in. (227.5 x 187.3 x 48.3mm) |
| Antenna | 2*9dBi Detachable Omni Directional Antenna (RP-SMA) |
| Compatibility | NBN – Fibre to the Premises (FTTP) NBN – Fibre to the Home (FTTH)For further information on NBN connections please visit: http://www.nbnco.com.au/learn-about-the-nbn/network-technology.html |
WIRELESS FEATURES |
|
|---|---|
| Frequency | 2.4-2.4835GHz |
| Signal Rate | 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| Reception Sensitivity | 270M: -71dBm@10% PER 130M: -74dBm@10% PER 108M: -74dBm@10% PER 54M: -77dBm@10% PER 11M: -91dBm@8% PER 6M: -89dBm@10% PER 1M: -97dBm@8% PER |
| Transmit Power | CE: <20dBm(2.4GHz) FCC: <30dBm |
| Wireless Functions | Enable/Disable Wireless Radio, Range Extend, WMM, Wireless Statistics |
| Wireless | 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK |
SOFTWARE FEATURES |
|
|---|---|
| Quality of Service | WMM, Bandwidth Control |
| WAN Type | Dynamic IP/Static IP/PPPoE/ PPTP/L2TP/BigPond |
| Management | Access Control Local Management Remote Management |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server,Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, Comexe, NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec (ESP Head) |
| Access Control | Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
| Firewall Security | DoS, SPI Firewall IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding |
OTHERS |
|
|---|---|
| Certification | CE, FCC, RoHS, NCC, BSMI |
| Package Contents | 300Mbps Wireless N High Power Router RJ45 Ethernet Cable Power Adapter Quick Installation Guide Technical Support Card |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows8/ 8.1/10 MAC® OS, NetWare®, UNIX® or Linux |
| Environment | Operating Temperature: 0????~40???? (32????~104????) Storage Temperature: -40????~70???? (-40????~158????) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
