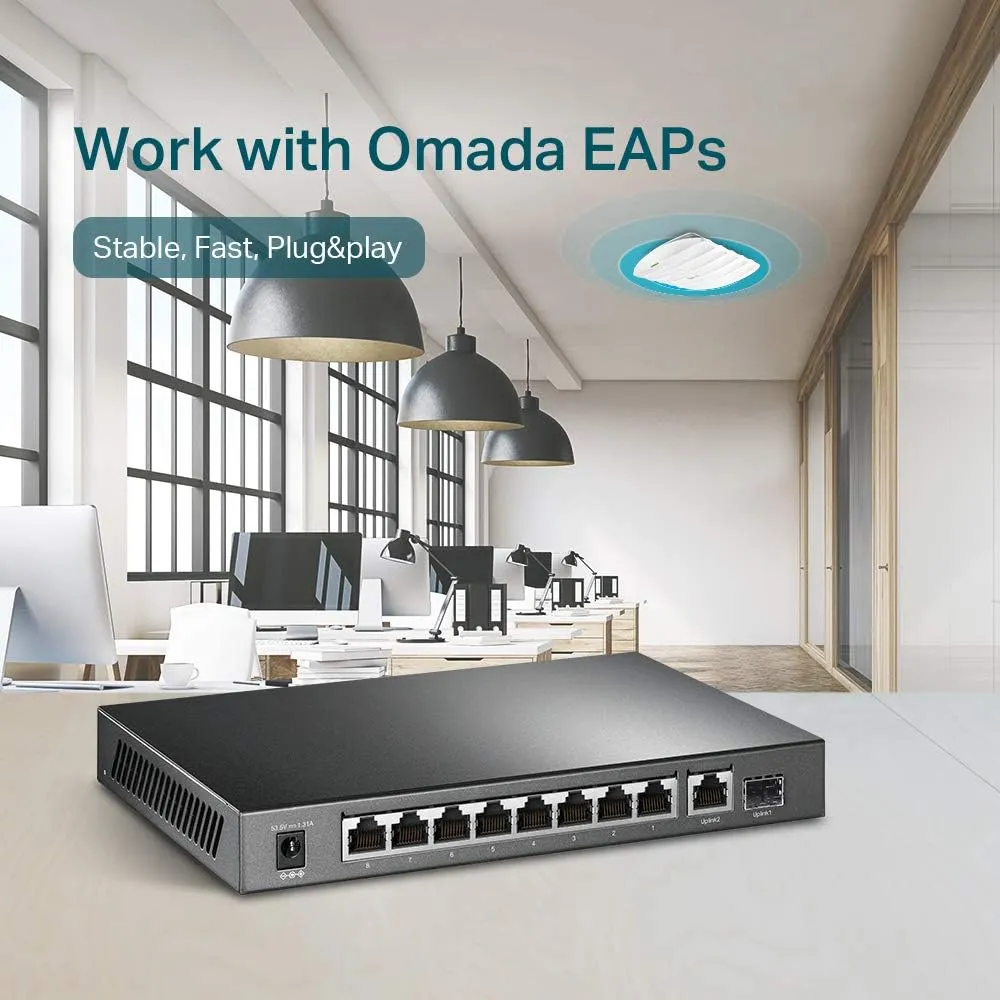

TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+
$ 75
TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+
- 9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port
- With 8 PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs and expands office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports
- Easy to use, with no configuration and installation needed
HARDWARE FEATURES |
|
---|---|
Interface | 8 PoE+ 10/100/1000Mbps RJ45 Ports 1 10/100/1000Mbps RJ45 Port 1 Gigabit SFP Slot |
Network Media |
|
Fan Quantity | Fanless |
Physical Security Lock | Yes |
Power Supply | External Power Adapter(Output: 53.5VDC / 1.31A) |
Packet Forwarding Rate | 14.88 Mpps |
PoE+ Ports(RJ45) |
|
Mac Address Table | 4K |
Jumbo Frame | 16 KB |
Switching Capacity | 20 Gbps |
Dimensions ( W x D x H ) | 209 × 126 × 26 mm |
Max Power Consumption |
|
Max Heat Dissipation |
|
SOFTWARE FEATURES |
|
---|---|
Advanced Features | Compatible With IEEE 802.3af/at Compliant PDs EEE802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping |
Transmission Method | Store-And-Forward |
OTHERS |
|
---|---|
Certification | CE, FCC, RoHS |
Package Contents |
TL-SG1210P, Power Adapter, Installation Guide |
Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing |
