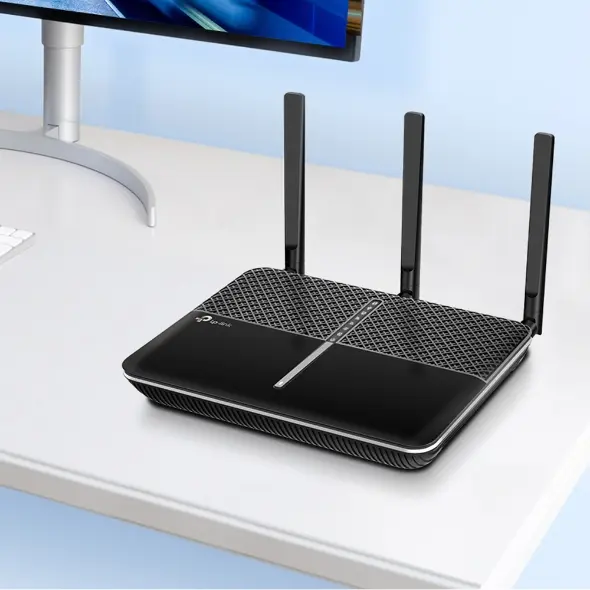

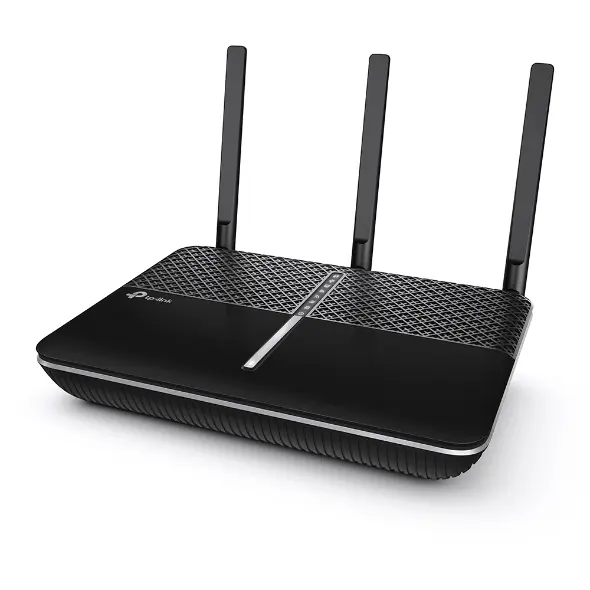

TL-VDSL-VR600
HARDWARE FEATURES | |
---|---|
Ports | 3 Gigabit LAN Ports, 1 Gigabit LAN/WAN Port, 1 RJ11 Port, 1 USB Port |
Button | WPS Button, Reset Button, Power On/Off Button, Wi-Fi Button, LED On/Off Button |
External Power Supply | 12V/1.5A |
IEEE Standards | IEEE 802.3, IEEE 802.3u, 802.3ab |
VDSL2 Standards | ITU G.993.2, Up to 35b profile (POTS) ITU-T G.993.5 (G.vector) ITU-T G.998.4 (G.INP) |
ADSL Standards | Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1 (G.hs) |
ADSL2 Standards | ITU-T G.992.3 (G.DMT.bis), |
ADSL2+ Standards | ITU-T G.992.5 |
Dimensions ( W x D x H ) | 8.5 × 6.5 × 1.4 in (216 × 164 × 36.8 mm) |
Antenna Type | 3 External Dual Band Antennas + 1 Internal 5 GHz Antenna |
WIRELESS FEATURES | |
---|---|
Wireless Standards | IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
Frequency | 2.4 GHz and 5 GHz |
Signal Rate | 1733 Mbps on 5 GHz, 300 Mbps on 2.4 GHz |
Transmit Power | <20dBm (2.4 GHz), <23dBm (5 GHz) |
Wireless Functions | Enable/Disable Wireless Radio, Wireless Statistics |
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions |
Wireless Schedule | Support 2.4 GHz and 5 GHz Wireless Schedule |
SOFTWARE FEATURES | |
---|---|
Security | NAT Firewall, SPI Firewall, Access Control, Service Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding |
Operating Modes | VDSL/ADSL Modem Router, 3G/4G Router, Wireless Router |
Management | Web-Based Configuration (HTTP / HTTPS ), Remote management, Command Line Interface, SSL for TR-069, SNMP v1/2c, Firmware Upgrade, Diagnostic Tools, Free Online Firmware Update |
DHCP | Server, Client, DHCP Client List, Address Reservation, DHCP Relay |
Port Forwarding | Virtual Server, Port Triggering, DMZ, ALG, UPnP |
Dynamic DNS | DynDns, NO-IP, TP-Link |
VPN | OpenVPN, PPTP VPN, IPSec VPN |
Protocols | Supports IPv4 and IPv6 |
ATM/PPP Protocols | ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MERIPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs |
Advanced Features | Parental Controls, Network Address Translation (NAT), Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3 |
Guest Network | 2.4 GHz Guest Network, 5 GHz Guest Network |
IPSec VPN | Supports up to 10 IPSec VPN tunnels |
VEIKK , A50 , DRAWING , TABLET , 10 | {attribute:VEIKK , A50 , DRAWING , TABLET , 10 |
---|
HARDWARE FEATURES | |
---|---|
Processor | Qualcomm Atheros 560MHz CPU, MIPS 74Kc |
Memory | 64MB DDR2 RAM, 8MB Flash |
Interface | 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough) 1 Grounding Terminal 1 Reset Button |
Power Supply | Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range: 16-27VDC |
Power Consumption | 10.8 Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. |
Dimensions ( W x D x H ) | 11×3.1×2.1 inch (276×79×60 mm) |
Antenna Type | Built-in 12dBi 2x2 Dual-polarized Directional Antenna Beam Width: 60° (H-Plane) / 30° (E-Plane) Note: For more details, please refer to datasheet |
Protection | 15KV ESD Protection 6KV Lightning Protection |
Enclosure | Outdoor ASA stabilized plastic material IPX5 waterproof Certification |
WIRELESS FEATURES | |
---|---|
Wireless Standards | IEEE 802.11b/g/n (with Pharos MAXtream disabled) |
Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
Wireless Speeds | Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic) |
Frequency | 2.4~2.483GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. |
Transmission Power | 30dBm/1000mw (Adjustable power by 1dBm) Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used. |
SOFTWARE FEATURES | |
---|---|
Wireless Configurations | Pharos MAXtream TDMA Technology 802.11b/g/n Modes Selectable Channel Width: 5/10/20/40MHz Automatic Channel Selection Transmission Power Control Dynamic Frequency Selection (DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging (AP mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: > Beacon Interval/RTS Threshold/Fragmentation >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia |
Management | Discovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System Log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server |
System Tools | Wireless Signal Quality Indicators: Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute |
System-level Optimizations | Optimized IGMP Snooping/Proxy for multicast applications Hardware watch dog |
Brand | TP-Link |
---|---|
Model | Archer T6E |
Part Number | Archer T6E |
Color | Black |
---|---|
Standards | IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
Wireless Data Rates | 867 Mbps at 5 GHz, 400 Mbps at 2.4 GHz |
Security | Support 64 / 128-bit WEP, WPA-PSK / WPA2-PSK, 802.1x |
Interface | PCI Express |
Frequency Band | 2.4 GHz / 5 GHz |
Modulation | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
Transmitted Power | 5 GHz: <23 dBm (EIRP) 2.4 GHz: <20 dBm (EIRP) |
Antenna | 2 x Dual Band Detachable Antennas |
System Requirements | Windows 10 (32 / 64-bit), Windows 8.1 (32 / 64-bit), Windows 8 (32 / 64-bit), Windows 7 (32 / 64-bit), Windows XP (32 / 64-bit) |
Features |
|
---|
Dimensions | 0.85" x 4.80" x 4.50" |
---|
