Additional information
VEIKK , A50 , DRAWING , TABLET , 10 | {attribute:VEIKK , A50 , DRAWING , TABLET , 10 |
---|
$ 55
HARDWARE FEATURES | |
---|---|
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at |

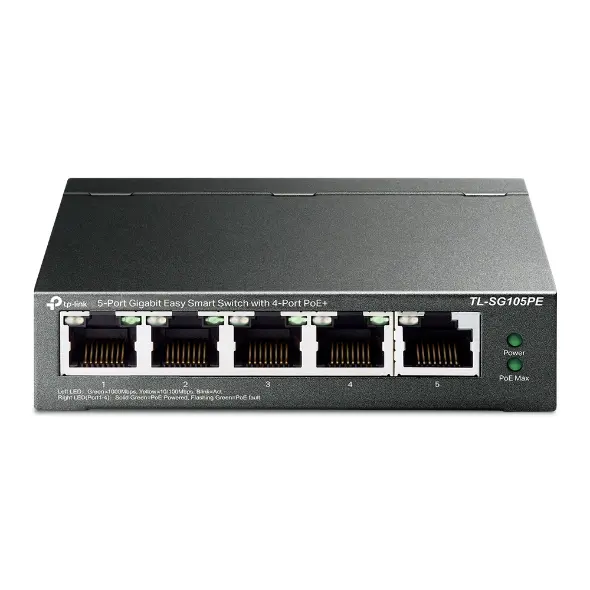

Interface | Five 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
Fan Quantity | Fanless |

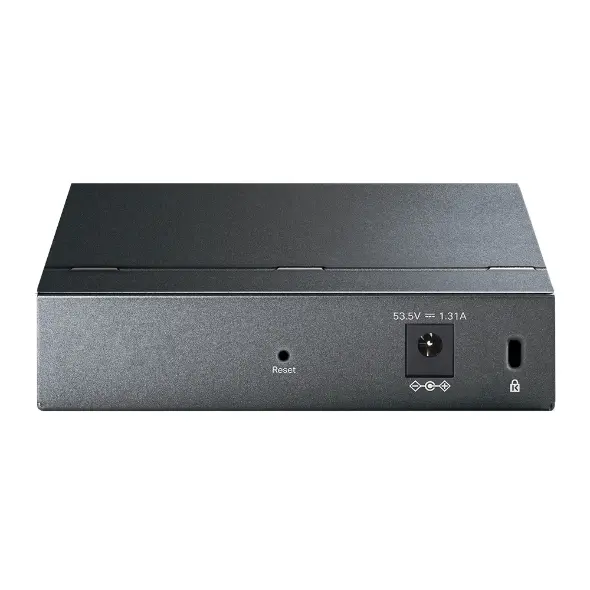

Power Supply | External Power Adapter (Output: 53.5 VDC/1.3 A) |
PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Port 1- Port 4 PoE Power Budget: 65 W |
Dimensions ( W x D x H ) | 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm) |
Max Power Consumption | 4.5 W (with no PD connected) 75.2 W (with 65 W PD connected) |
Max Heat Dissipation | 15.4 BTU/h (with no PD connected) 256.3 BTU/h (with 65 W PD connected) |
PERFORMANCE | |
---|---|
Switching Capacity | 10 Gbps |
Packet Forwarding Rate | 7.44 Mpps |
MAC Address Table | 2 K |
Packet Buffer Memory | 1.5 Mb |
Jumbo Frame | 16 KB |
SOFTWARE FEATURES | |
---|---|
Quality of Service | Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
L2 Features | IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention PoE Auto Recovery Extend Mode |
VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
Management | Web-based GUI Easy Smart Configuration Utility |
Transmission Method | Store-And-Forward |
VEIKK , A50 , DRAWING , TABLET , 10 | {attribute:VEIKK , A50 , DRAWING , TABLET , 10 |
---|
Standards and Protocols | • IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP |
---|---|
Interface | • 1 Fixed Gigabit WAN Port • 2 Fixed Gigabit LAN Ports • 2 Changeable Gigabit WAN/LAN Ports • 1 USB 2.0 Port (Connecting 4G/3G Modem as WAN Backup‡) |
Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) • 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
Button | Reset Button |
Power Supply | External 12V/1A DC Adapter |
Flash | 128 MB NAND |
DRAM | 256 MB DDR |
LED | PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB |
Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm) |
Max Power Consumption | 7.94 W |
PERFORMANCE | |
---|---|
Concurrent Session | 150,000 |
New Sessions /Second | 2,600 |
NAT (Static IP) | • Upload: 945.77 Mbps • Download: 945.56 Mbps • Bi-Directional: 1808.29 Mbps |
NAT(DHCP) | • Upload: 945.93 Mbps • Download: 945.43 Mbps • Bi-Directional: 1808.11 Mbps |
NAT(PPPoE) | • Upload: 940.44Mbps • Download: 940.52 Mbps • Bi-Directional: 1804.27 Mbps |
NAT (L2TP) | • Upload: 845.64 Mbps • Download: 802.65 Mbps • Bi-Directional: 931.96 Mbps |
NAT (PPTP) | • Upload: 771.66 Mbps • Download: 874.81 Mbps • Bi-Directional: 999.54 Mbps |
64 Byte Packet Forwarding Rate | • Upload/Download: 1,402,238 pps • Bi-Directional: 1,681,548 pps |
IPsec VPN Throughput | • ESP-MD5-AES256: 171.26 Mbps • ESP-SHA1-AES256: 224.86 Mbps • ESP-SHA2-AES256: 248.04 Mbps |
OpenVPN | • 21.70 Mbps |
L2TP VPN Throughput | • Unencrypted: 864.65 Mbps • Encrypted: 47.11 Mbps |
PPTP VPN Throughput | • Unencrypted: 703.20 Mbps • Encrypted: 76.65 Mbps |
BASIC FUNCTIONS | |
---|---|
WAN Connection Type | • Static/Dynamic IP • PPPoE • PPTP • L2TP • Mobile Broadband: 4G/3G modem for backup via USB port‡ |
MAC Clone | Modify WAN/LAN MAC Address† |
DHCP | • DHCP Server/Client • DHCP Address Reservation • Multi-net DHCP* • Multi-IP Interfaces* |
IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough |
VLAN | 802.1Q VLAN |
IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
𝐍𝐞𝐭𝐢𝐬 Wireless N Router convenient for web surfing, emailing, file sharing, and online chatting. WF2409E offers a better performance 300Mbps high speed to connect your computers, smartphones, wireless cameras, and other Wi-Fi devices. Bundled with three 5dBi high gain antennas greatly increase the wireless robustness and stability, it ensures better wireless coverage and allows you to enjoy wireless freedom anywhere around your home, ideal for faster downloading, Internet calling, and HD video streaming.
Feature:
![]() |
![]() |
![]() |
---|---|---|
HIGH GAIN WIFI ANTENNABundled with MIMO three 5dBi high gain antennas. Three 5dBi antennas ensure better wireless coverage and maximum range with stable connections. |
ONE PRESS WPS SETUPComes with one button press WPS connection. Also, it has various WAN connection types in AP Router mode like DHCP, Static IP, PPPoE, l2tp, PPTP, Dual Access, WISP. |
WIDE APPLICATIONThis is ideal for faster downloading, Internet calling, and HD video streaming. This allows you to enjoy the wireless freedom anywhere around your home. |
Hardware interface | Ethernet, PCI from expert zone |
Data transfer rate | 1000 megabits per second |
Hardware Interface | Ethernet, PCI, PCI Express x1 |
Color | 4 Port / x4 / 82576EB |
Compatible Devices | Desktop |
Data Link Protocol | IEEE 802.3 |
Data Transfer Rate | 1000 Megabits Per Second expert zone |
HARDWARE FEATURES | |
---|---|
Interface | • 24× 10/100/1000 Mbps RJ45 Ports • 4× Gigabit SFP Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port |
Fan Quantity | Fanless |
Power Supply | 100-240 V AC~50/60 Hz |
Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
Mounting | Rack Mountable |
Max Power Consumption | • V1: 19.22 W (110 V/60 Hz) • V2: 19.9 W (220 V/50 Hz) |
Max Heat Dissipation | • V1: 65.58 BTU/hr (110 V/60 Hz) • V2: 67.73 BTU/h (220 V/50 Hz) |
PERFORMANCE | |
---|---|
Switching Capacity | 56 Gbps |
Packet Forwarding Rate | 41.66 Mpps |
MAC Address Table | • V1: 8K • V2 and above: 16K |
Packet Buffer Memory | 12 Mbit |
Jumbo Frame | 9 KB |
SOFTWARE FEATURES | |
---|---|
Quality of Service | • 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling - SP (Strict Priority) - WRR (Weighted Round Robin) - SP+WRR • Bandwidth Control - Port/Flow based Rating Limiting • Smoother Performance • Action for Flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark |
L2 and L2+ Features | • Link Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group • Spanning Tree Protocol - 802.1d STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect • Loopback Detection - Port-based - VLAN based • Flow Control - 802.3x Flow Control - HOL Blocking Prevention • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Tx/Rx/Both |
L2 Multicast | • Supports 511 (IPv4, IPv6) IGMP groups • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - IGMP Authentication • IGMP Authentication • MVR • MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config - Limited IP Multicast • Multicast Filtering: 256 profiles and 16 entries per profile |
VLAN | • VLAN Group - Max 4K VLAN Groups • 802.1q Tagged VLAN • MAC VLAN: 30 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • GVRP • VLAN VPN (QinQ) - Port-Based QinQ - Selective QinQ • Voice VLAN |
Access Control List | • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL - Source IP - Destination IP - Fragment - IP Protocol - TCP Flag - TCP/UDP Port - DSCP/IP TOS - User Priority • Combined ACL • Packet Content ACL • IPv6 ACL • Policy - Mirroring - Redirect - Rate Limit - QoS Remark • ACL apply to Port/VLAN |
