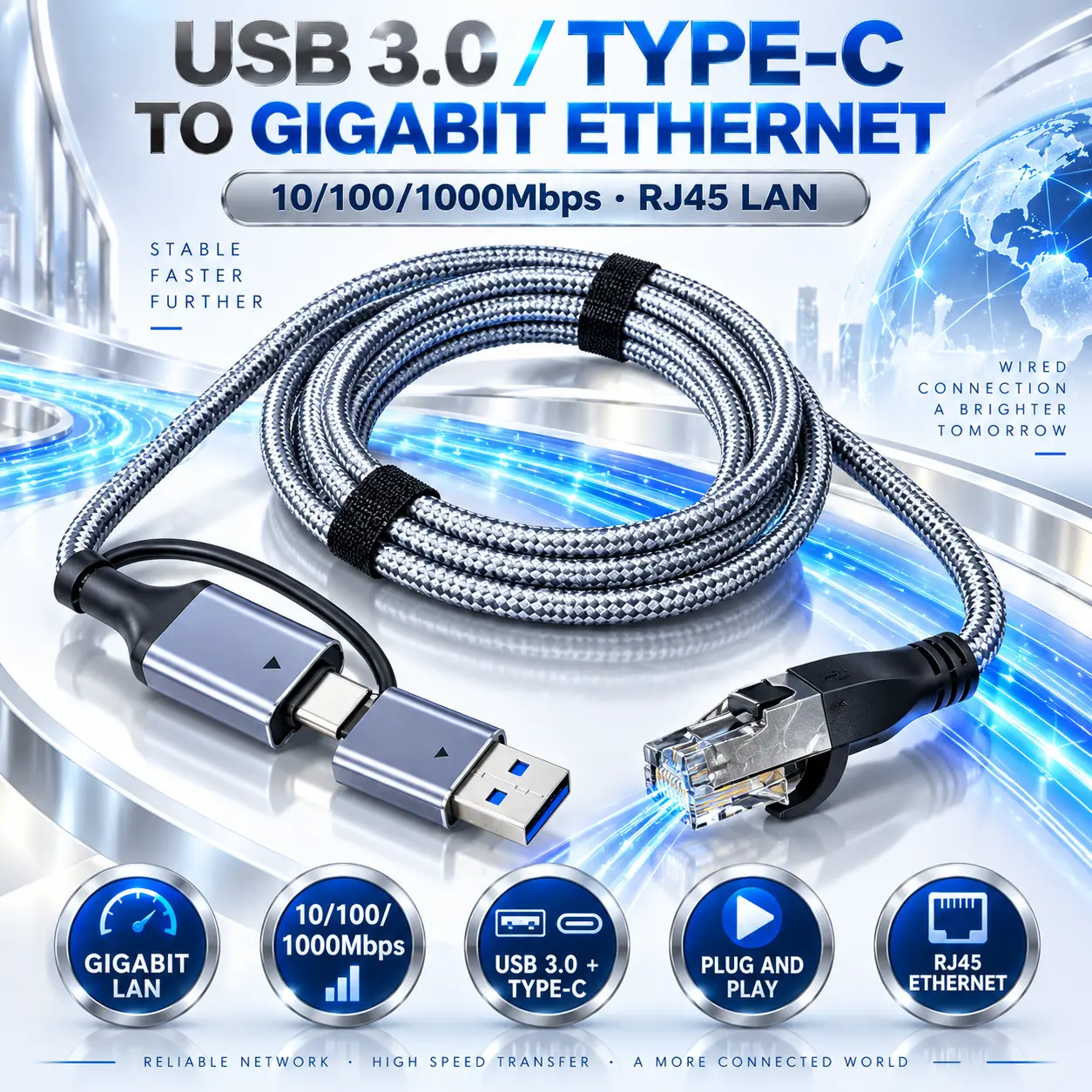

USB 3.0/TYPE C TO GIGABIT ETHERNET ADAPTER 10/100/1000MBPS
USB3.0-TYPEC-TO-LAN
USB 3.0 And Type-C To Gigabit Ethernet Adapter With RJ45 LAN, 10/100/1000Mbps Speed, Auto MDI/MDIX, Plug And Play And USB 2.0 Backward Compatibility
EXPERT FEATURES
- Gigabit Ethernet Performance : Supports 10/100/1000Mbps network speeds for fast and stable wired connectivity.
- USB 3.0 And Type-C Compatibility : Includes USB and USB Type-C connection options for use with modern laptops, desktops and other devices.
- RJ45 Ethernet Port : Connects your device to a wired network using a standard Ethernet cable.
- Auto-Sensing Speed Detection : Automatically detects the connected network speed between 10Mbps, 100Mbps and 1000Mbps.
- USB 3.0 And USB 2.0 Backward Compatibility : Works with USB 3.0 and USB 2.0 connections.
- Auto MDI/MDIX Support : Automatically detects straight-through and crossover network cables.
- Full And Half Duplex Support : Supports both full-duplex and half-duplex Fast Ethernet operation.
- Jumbo Packet Support : Supports jumbo packets up to 9KB for efficient network data transfer.
- Plug And Play Installation : Simple bus-powered installation without requiring a separate power adapter.
- Wake-On-LAN Support : Supports remote wake-up through link-up and Magic Packet functions.
- Wide Operating System Compatibility : Supports Windows, macOS, Linux, Nintendo Switch and Android systems.
- Compact Cable Design : Flexible braided cable with a practical adapter design for travel, office and home use.
EXPERT SPECS
| Specification | Details |
|---|---|
| Product Type | USB / USB Type-C to Gigabit Ethernet Adapter |
| Product Code | USB3.0-TYPEC-TO-LAN |
| Network Speed | 10/100/1000Mbps |
| Network Interface | Female RJ45 Ethernet port |
| Host Interfaces | USB 3.0 and USB Type-C |
| USB Compatibility | USB 3.0 and backward-compatible with USB 2.0 |
| Network Standards | IEEE 802.3, IEEE 802.3u and IEEE 802.3ab |
| Ethernet Compatibility | 10Base-T, 100Base-TX and 1000Base-T |
| Speed Detection | Auto-sensing |
| Cable Detection | Auto MDI/MDIX |
| Duplex Modes | Full-duplex and half-duplex |
| Jumbo Packet Support | Up to 9KB |
| LED Indicator | Link / 1000Mbps indicator |
| Power | USB bus-powered |
| Power Supply | Single 3.3V supply with integrated voltage regulator |
| Wake-On-LAN | Supported |
| Remote Wake-Up | Link-up and Magic Packet support |
| Installation | Plug and play |
| Operating Temperature | 0°C to 70°C |
| Supported Operating Systems | Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, macOS, Linux, Nintendo Switch and Android |
| Nintendo Switch Support | Driver-free |
| Android Support | Driver-free |
| RAM | Embedded 20KB SRAM for RX and TX packet buffering |
| Cable Type | Braided cable |
| Ethernet Connector | RJ45 female |
| Color | Silver and black |
