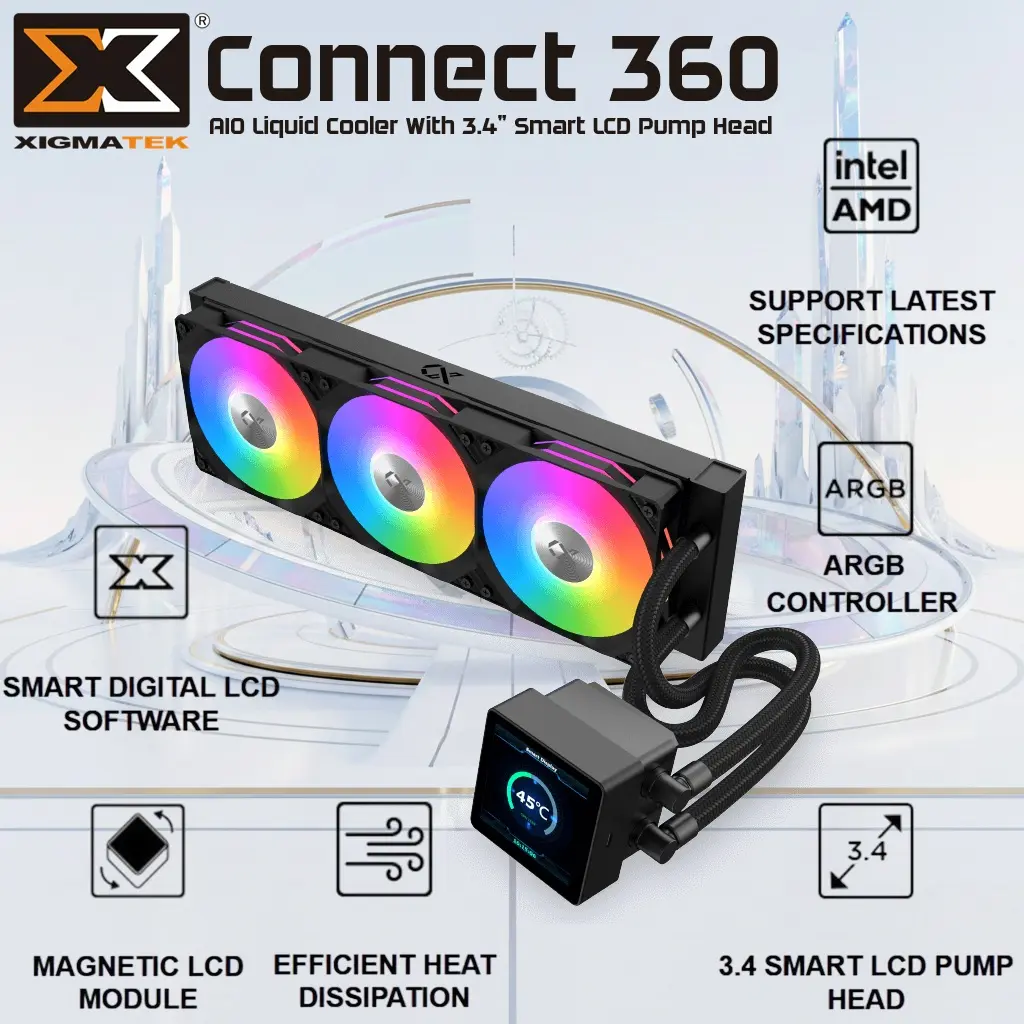

XIGMATIC Connect 360 — 360mm AIO Liquid CPU Cooler With 3.4” Smart LCD Pump Head, ARGB PWM Fans, 320W TDP, Intel LGA 1851 & AMD AM5 Support | BLACK ~ EN45233

121 $

Expert Features

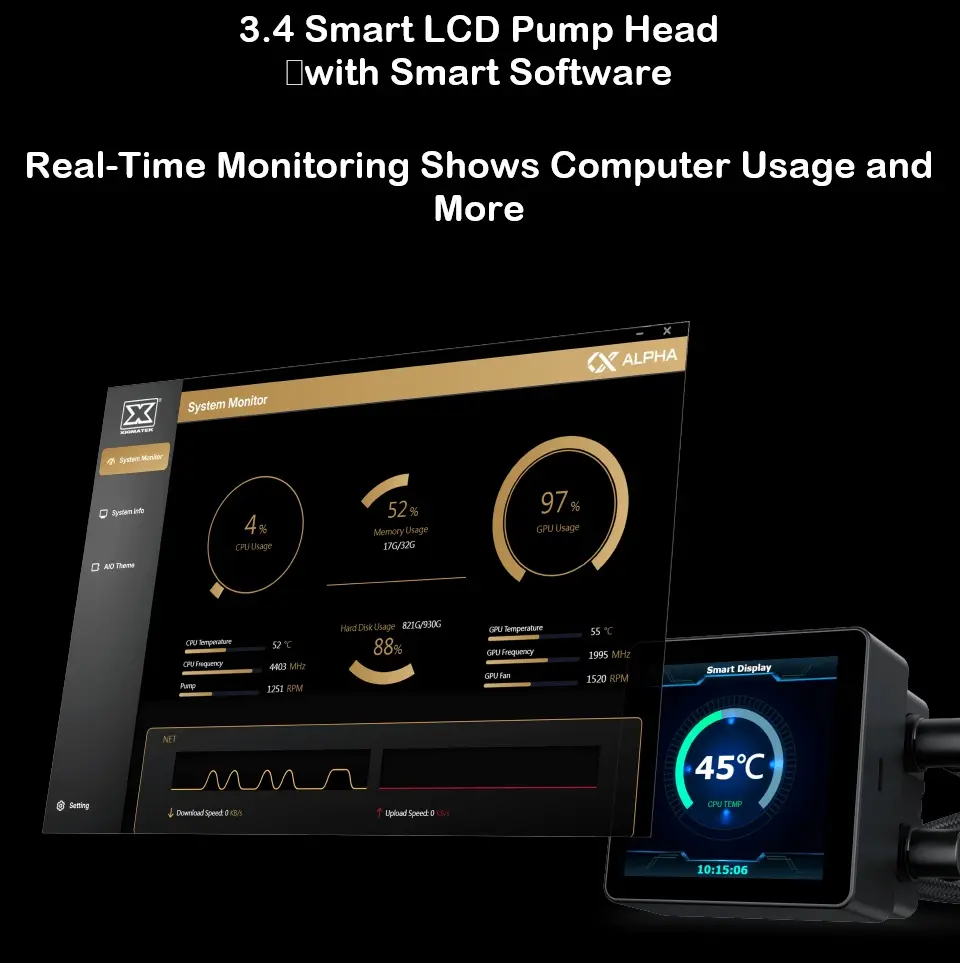

  • 3.4” Smart LCD Pump Head : Integrated LCD display provides real-time system monitoring and customizable visual layouts via smart digital software.
  • Smart Digital LCD Software : Enables hardware monitoring, theme selection, brightness control, and adjustable screen orientation for personalized system feedback.

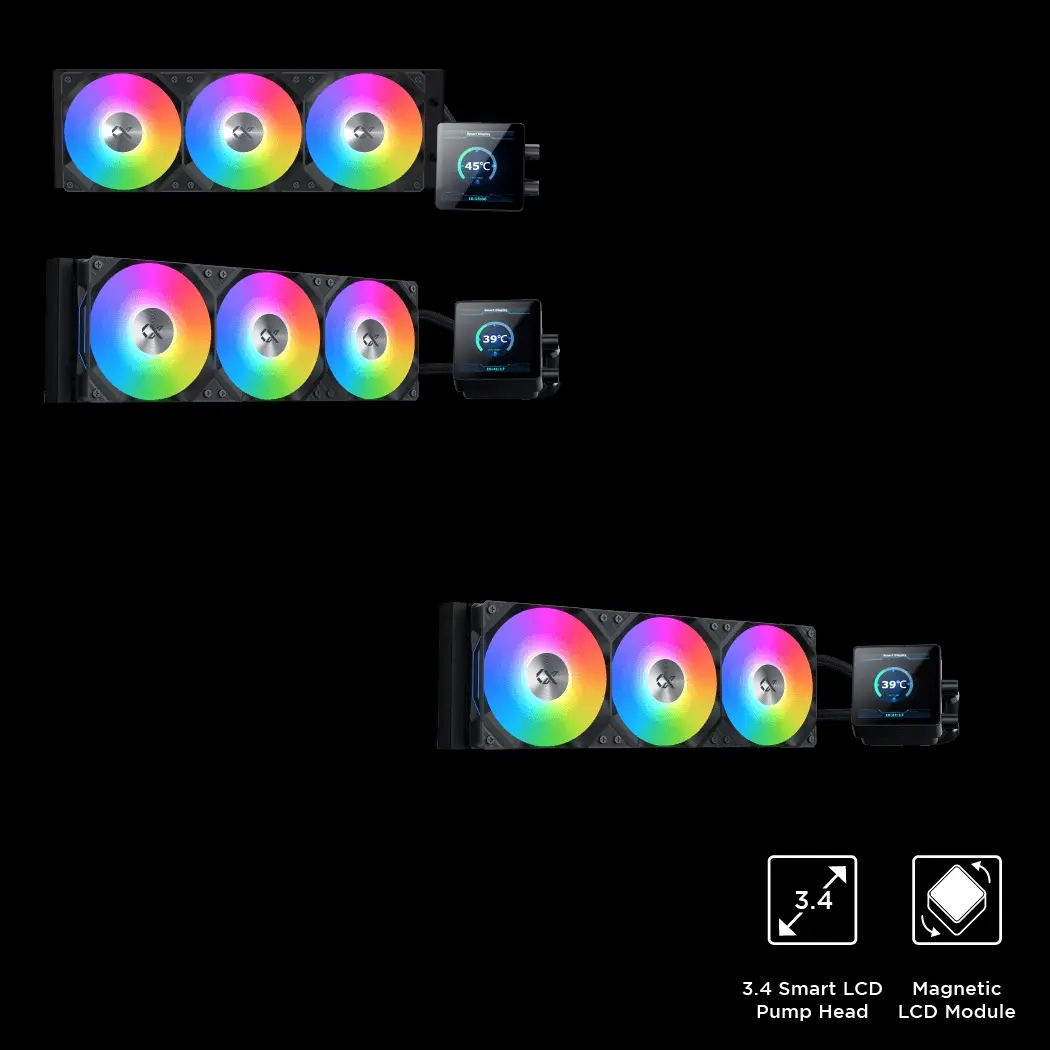

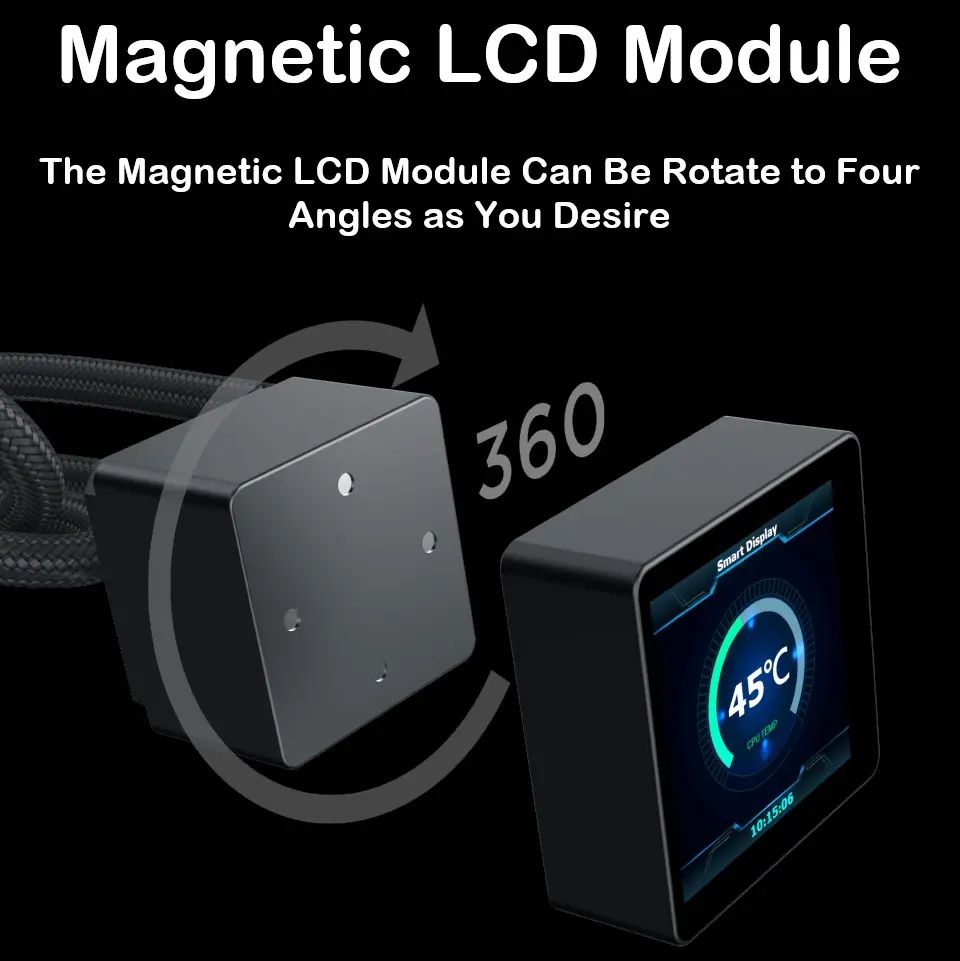

  • Magnetic LCD Module : Detachable magnetic LCD design allows rotation to four different angles for optimal visibility in any case orientation.

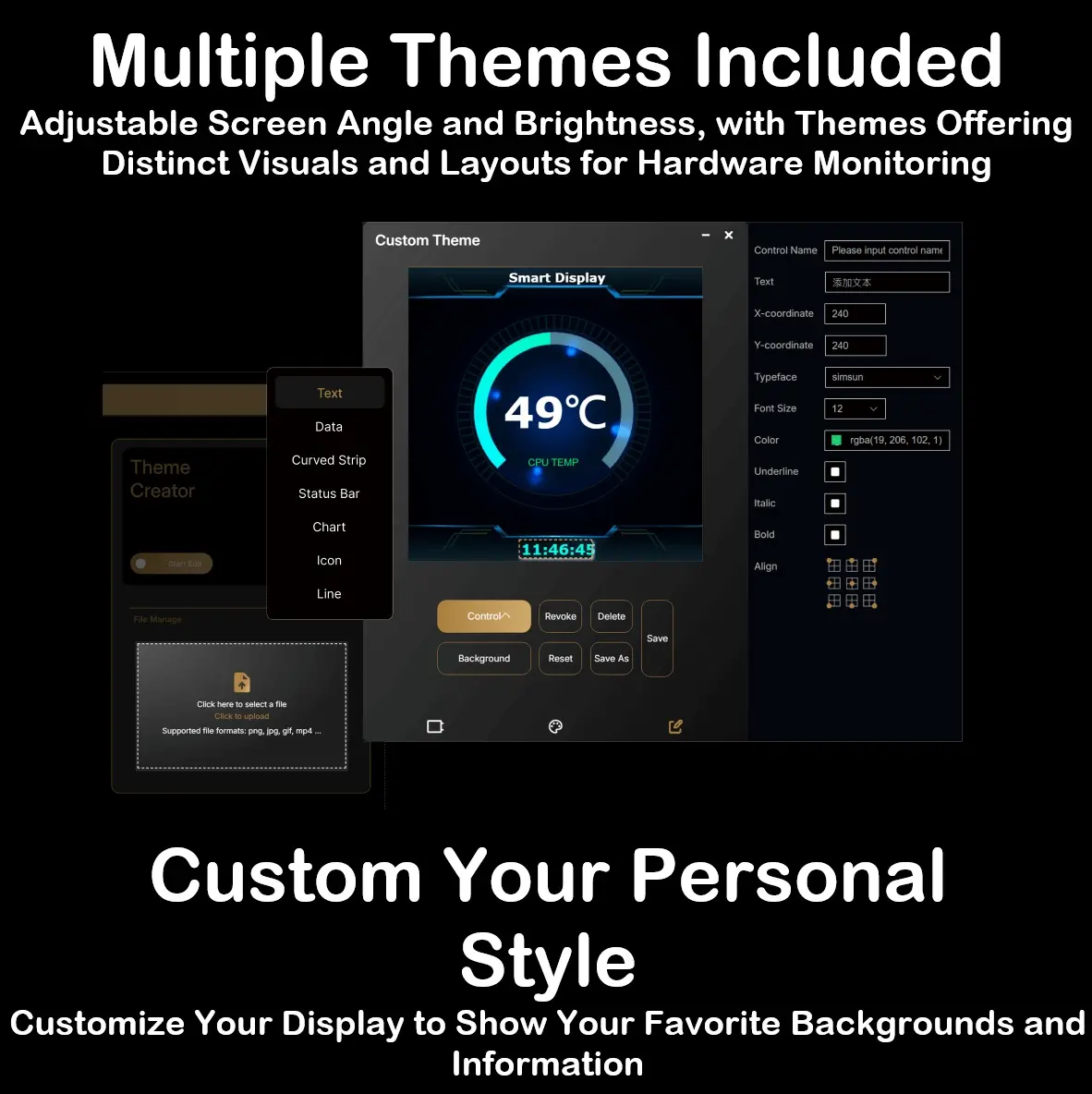

  • Multiple Display Themes : Preloaded themes offer varied visual styles and layouts to present performance data clearly and stylishly.
  • Custom Personal Display Support : Allows users to customize backgrounds and displayed information for a unique system identity.

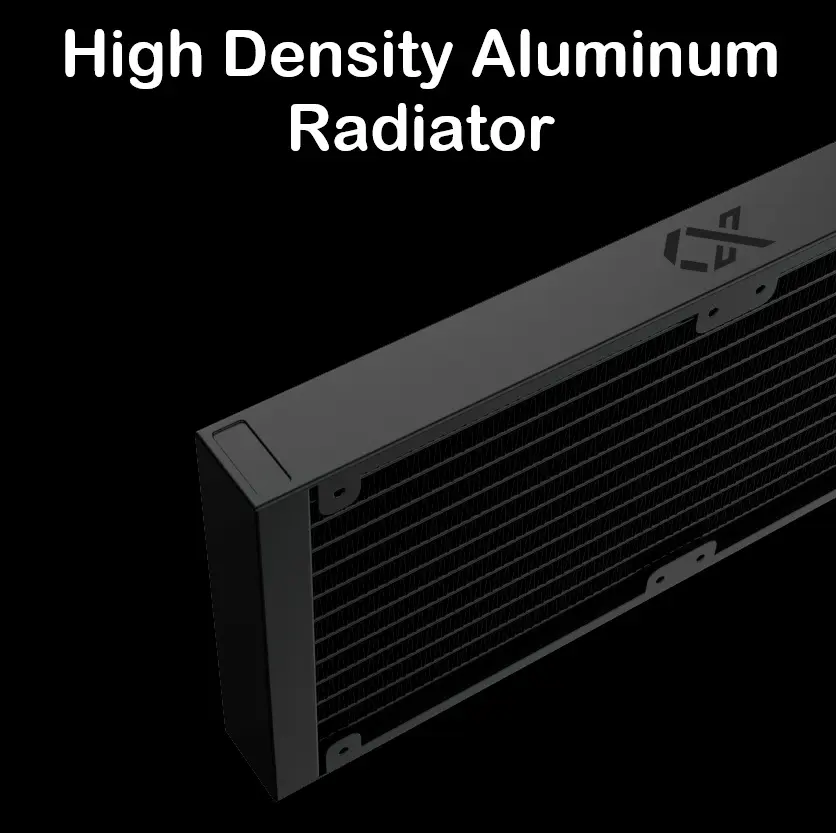

  • High-Density Aluminum Radiator : 360mm radiator engineered for efficient heat dissipation and sustained thermal performance.

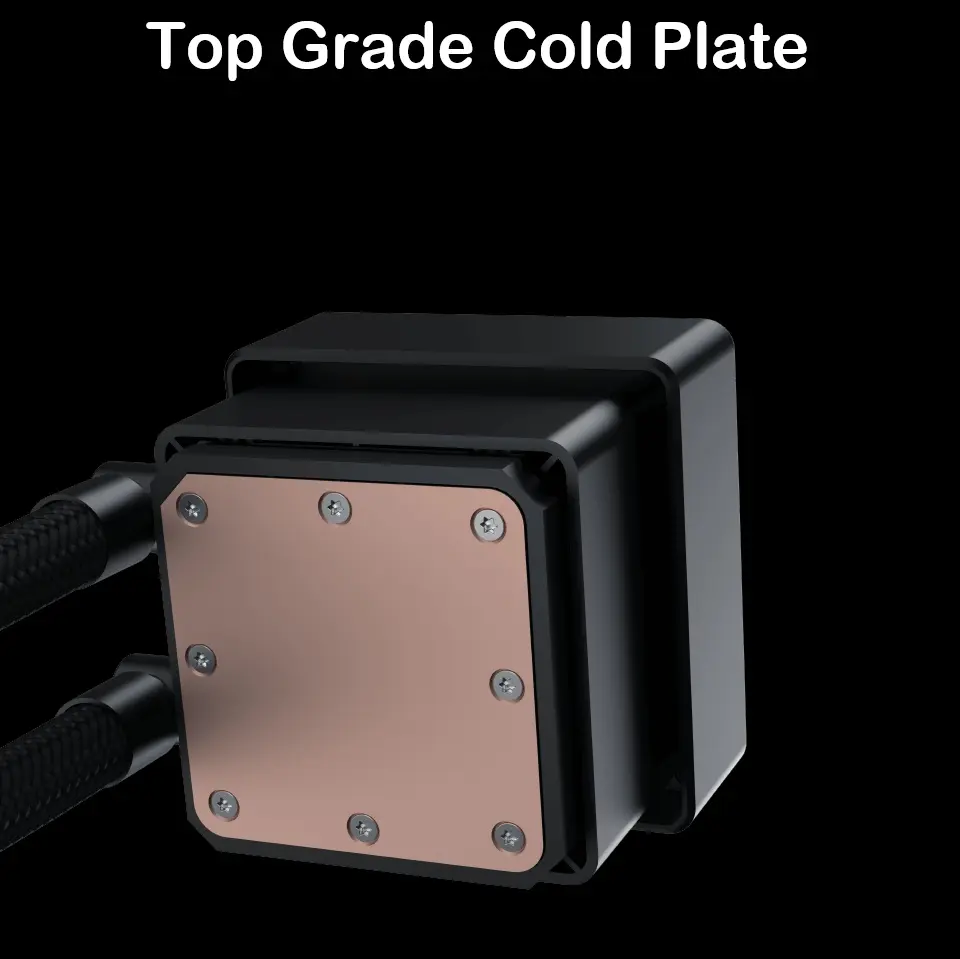

  • Top-Grade Cold Plate : Optimized contact surface enhances heat transfer efficiency from CPU to liquid loop.

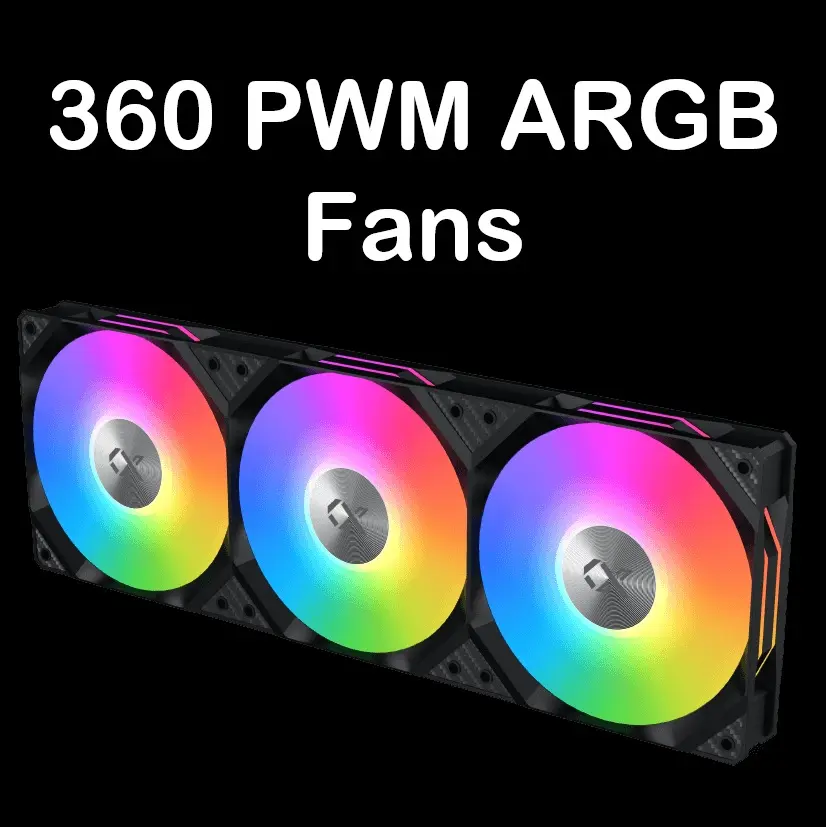

  • 360mm PWM ARGB Fan Array : Triple ARGB PWM fans deliver high airflow and static pressure while maintaining controlled noise levels.

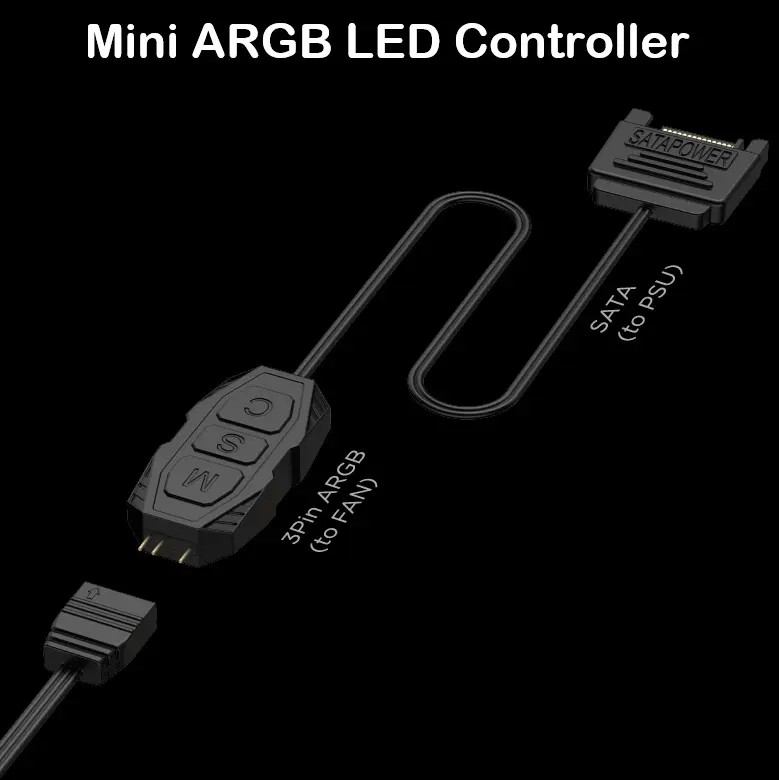

  • Mini ARGB LED Controller : Included controller simplifies lighting synchronization and ARGB management.
  • Long-Life Hydro Bearing Fans : Ensures stable rotation, durability, and consistent airflow across extended usage.
  • Ceramic Bearing Pump Design : Enhances pump longevity while maintaining smooth and quiet operation.

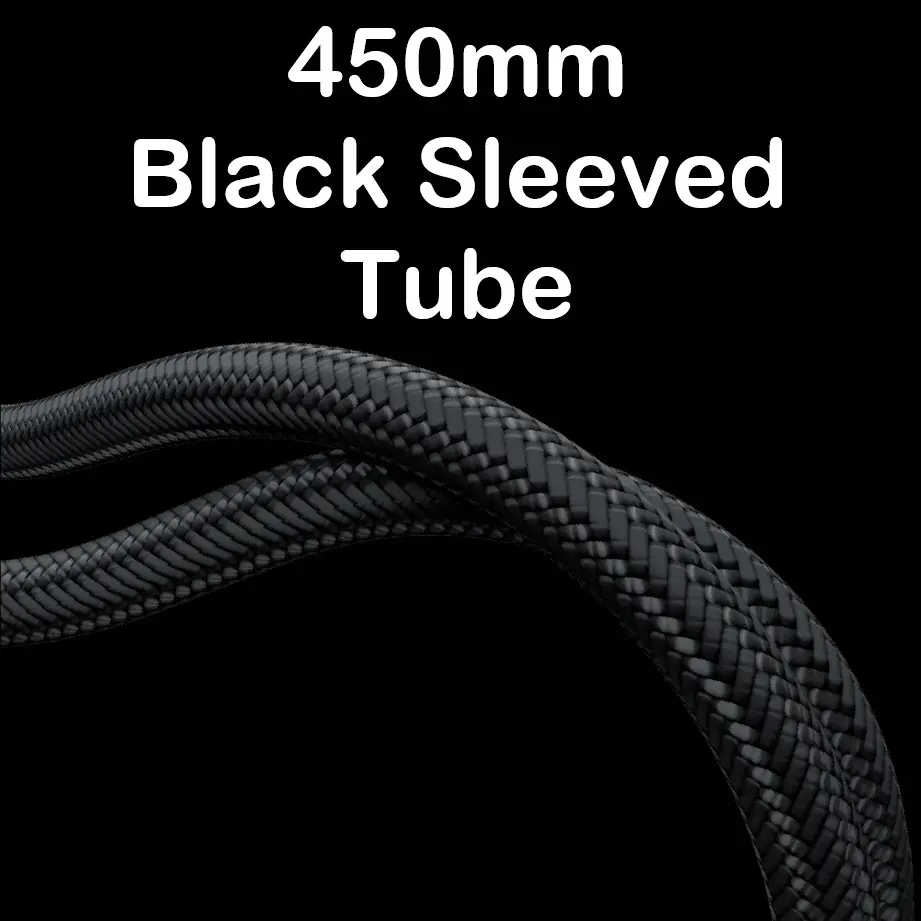

  • 450mm Sleeved Tubing : Flexible, black sleeved tubes provide extended reach and clean cable routing.

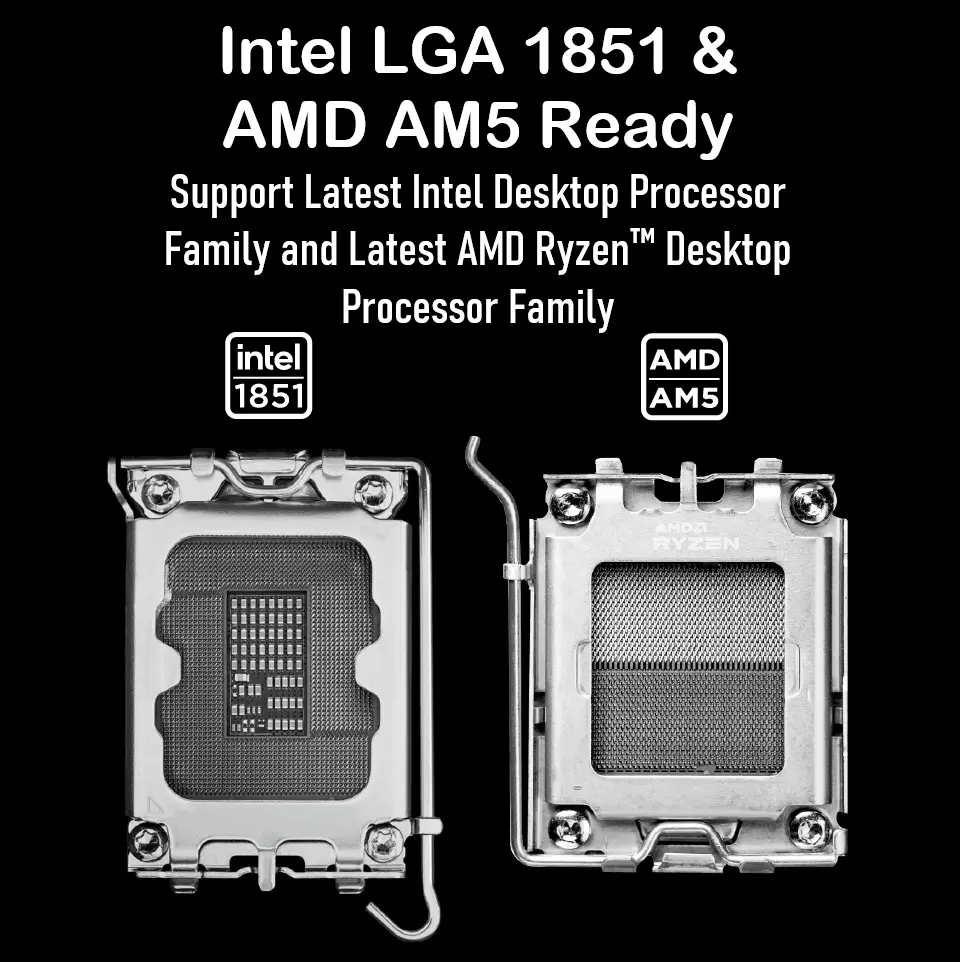

  • Wide CPU Socket Compatibility : Supports latest Intel LGA 1851 and AMD AM5 platforms, along with multiple previous generations.

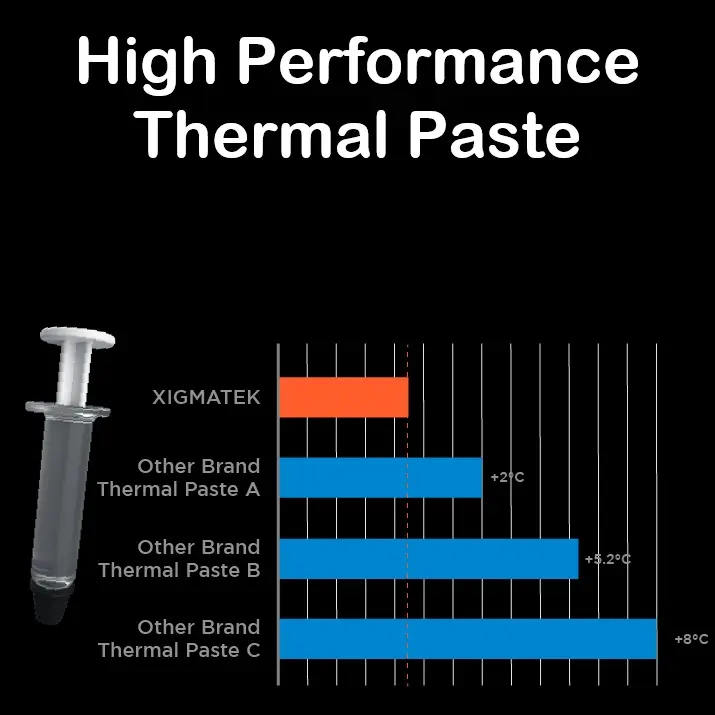

  • High Performance Thermal Paste Included : Ensures optimal heat transfer out of the box.

Expert Specs

Specification Details
Product Name Connect 360
Cooler Type AIO Liquid CPU Cooler
TDP Support 320W
CPU Socket Support Intel® LGA 1851 / 1700 / 1200 / 115X / 20XX, AMD® AM5 / AM4
Radiator Dimensions 397 × 120 × 27 mm
Radiator Material Aluminum
Tube Length 450 mm Black Sleeved Tube
Pump Dimensions 90 × 76 × 67 mm
Pump Bearing Ceramic Bearing
Pump Speed 2700 ±10% RPM
Pump Noise Level ≤27 dBA
Pump Rated Voltage 12VDC
Pump Rated Current 0.48A
Pump Power Consumption ≤5.76W
Pump Display 3.4” LCD Pump Head
Fan Dimensions 360 × 120 × 28 mm
Fan Bearing Long Life Hydro Bearing
Fan Speed 800–2100 ±10% RPM
Fan Airflow 80 CFM ×3
Fan Air Pressure 3.14 mm-H₂O
Fan Noise Level ≤29 dBA
Fan Rated Voltage 12VDC
Fan Rated Current 0.65A
Fan Power Consumption ≤8W
Lighting Addressable RGB Rainbow
Controller Mini ARGB LED Controller
SKU EN45233
EAN 4711409545233

Features & Compatibility

EN45233

XIGMATEK CONNECT 360 SMART LCD ARGB CPU LIQUIED COOLER-BLK

XIGMATIC Connect 360 — 360mm AIO Liquid CPU Cooler With 3.4-inch Smart LCD Pump Head, ARGB PWM Fans, 320W TDP, Intel LGA 1851 & AMD AM5 Support | BLACK ~ EN45233

SKU Info
EN45233 EAN:4711409545233

Connect 360 (BK, AIO Liquid Cooler, 3.4″LED Display Pump Head, ARGB PWM Fan, Mini ARGB Controller)
