R-PF700X-HD0B-JGEU
DEEPCOOL PSU PF700X 700 WATT 80+ WHITE ” BLACK COLOR”

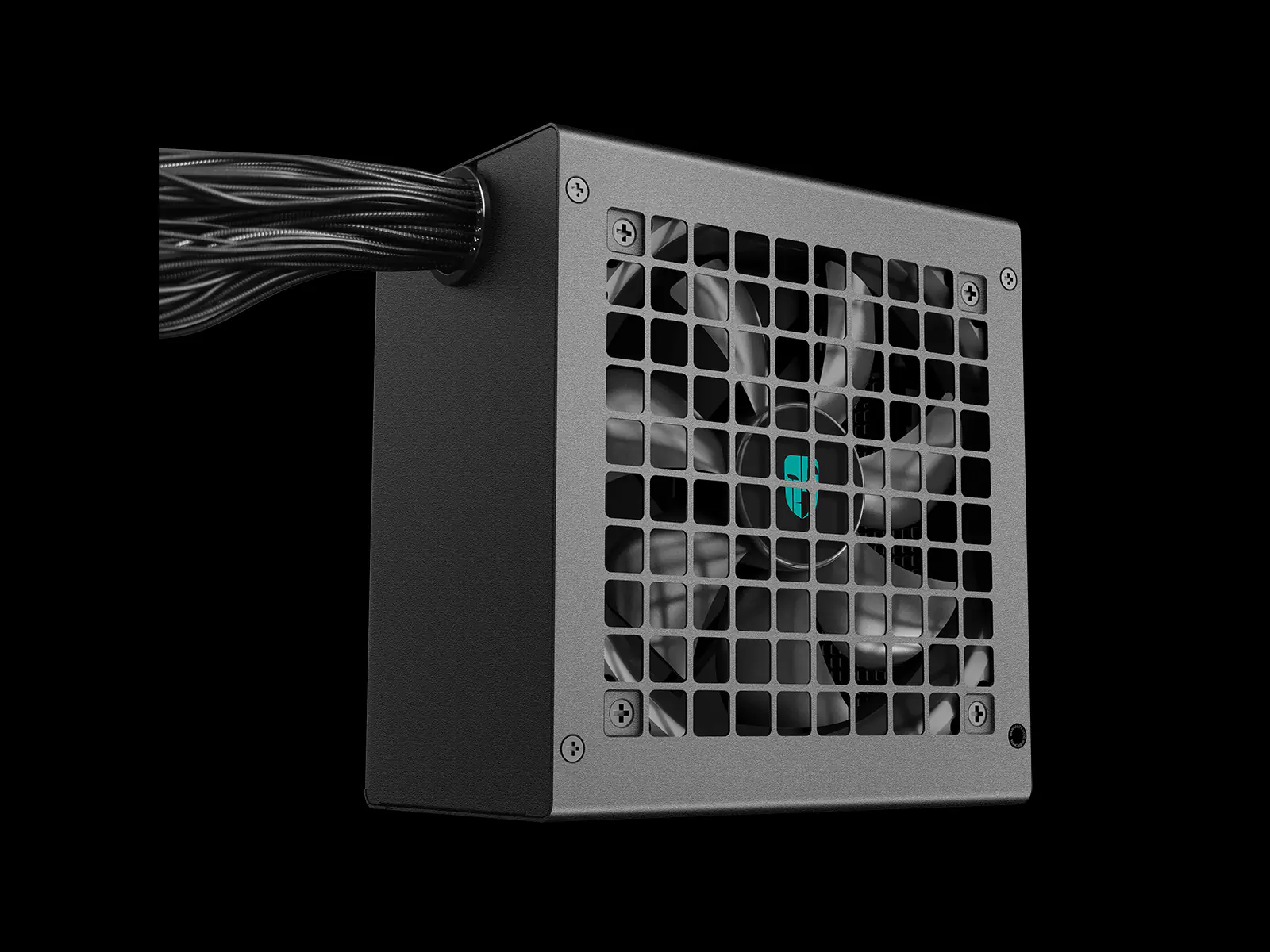

DeepCool PF700X 700W Power Supply With Triple Bronze Certifications, Premium Japanese Capacitors, Active PFC DC-To-DC Topology, 8 Protections, 120mm HYB Fan
DeepCool Gamer Storm PF700X 700W Power Supply With Triple Bronze Certifications, Premium Japanese Capacitors, Active PFC DC-To-DC Topology, 8 Protections, 120mm HYB Fan
57 $
š Expert Features
- Triple Bronze Certified Efficiency ā Carries 80 PLUS Bronze, Cybenetics Bronze, and PPLP Bronze seals of approval, guaranteeing ā„88% efficiency at 50% load.
- Premium Capacitors Combo ā Fitted with Taiwanese solid + Japanese electrolytic capacitors, including top-tier Japanese 5VSB caps rated for 4Ć normal lifespan.

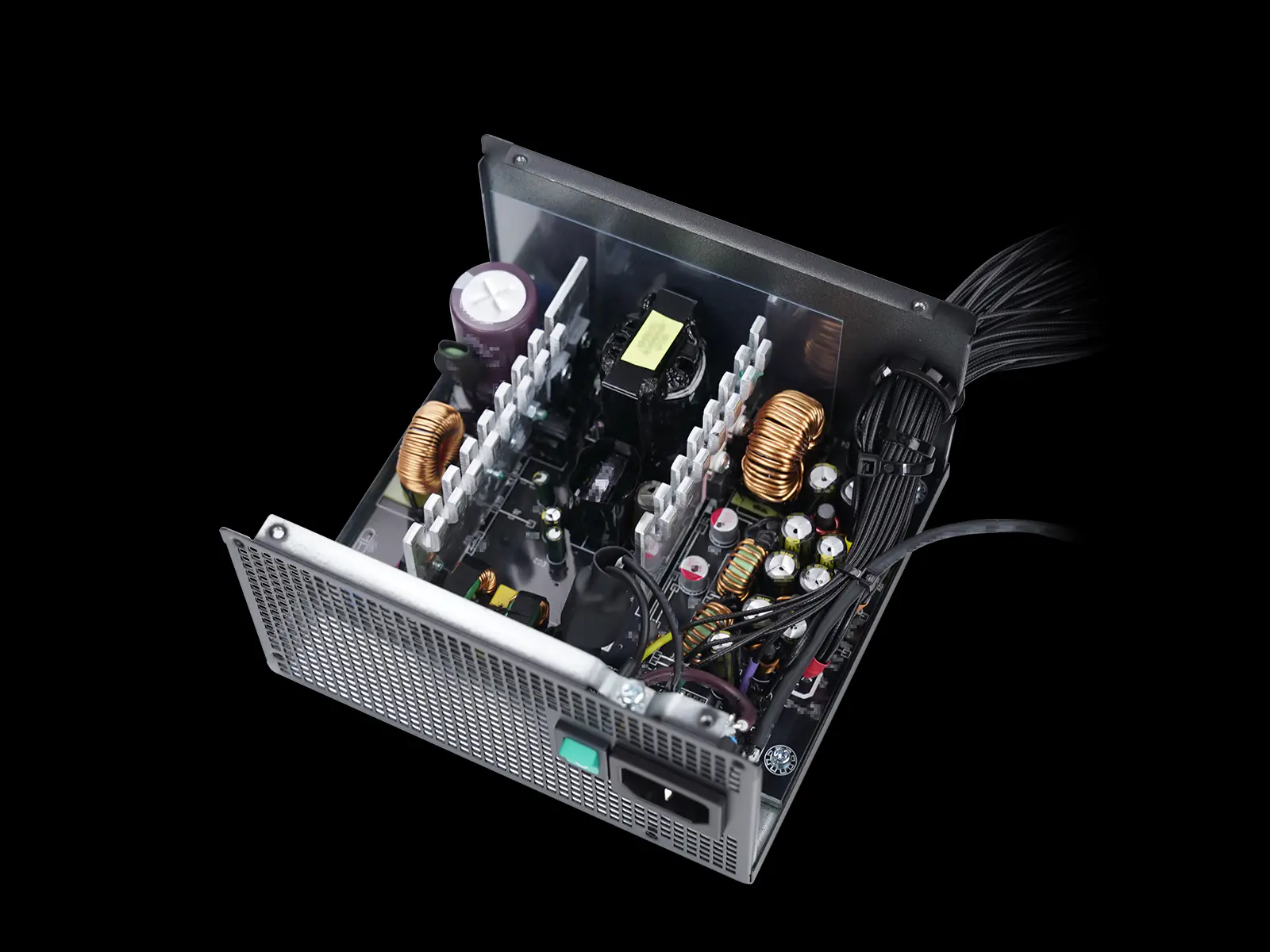

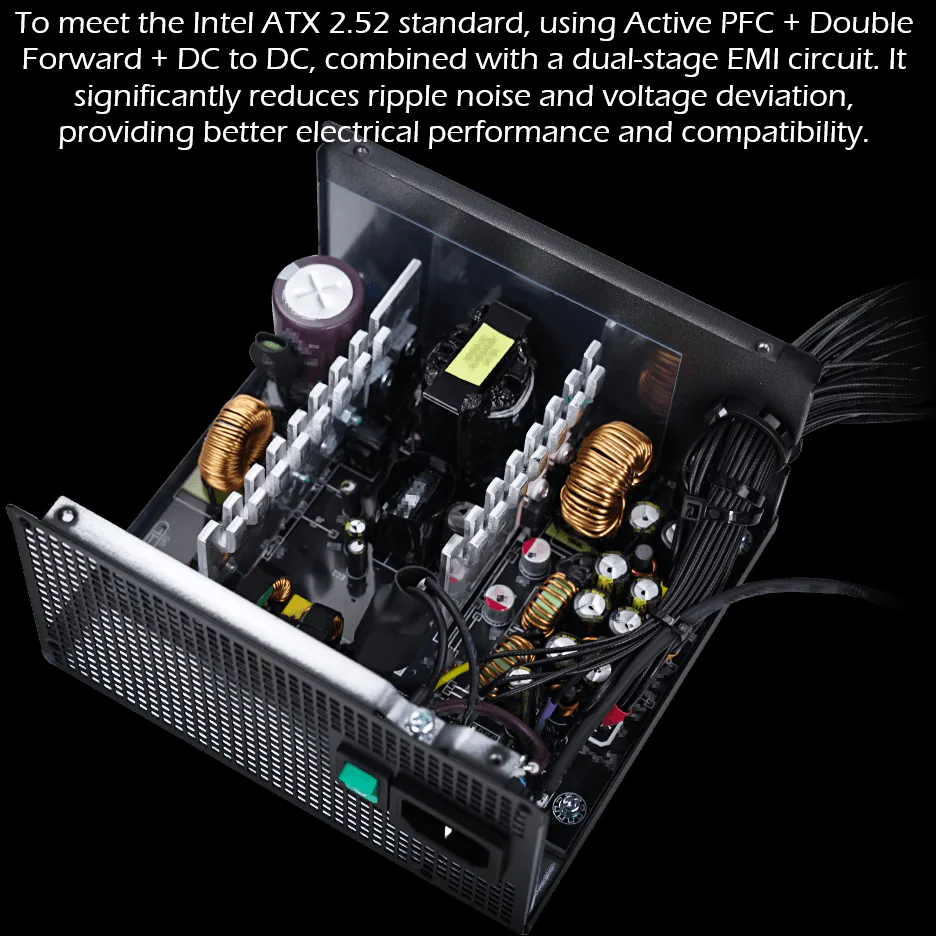

- Reliable DC-To-DC Topology ā Active PFC + Double Forward + DC-to-DC conversion + dual-stage EMI filtering for ultra-stable, low-ripple performance.

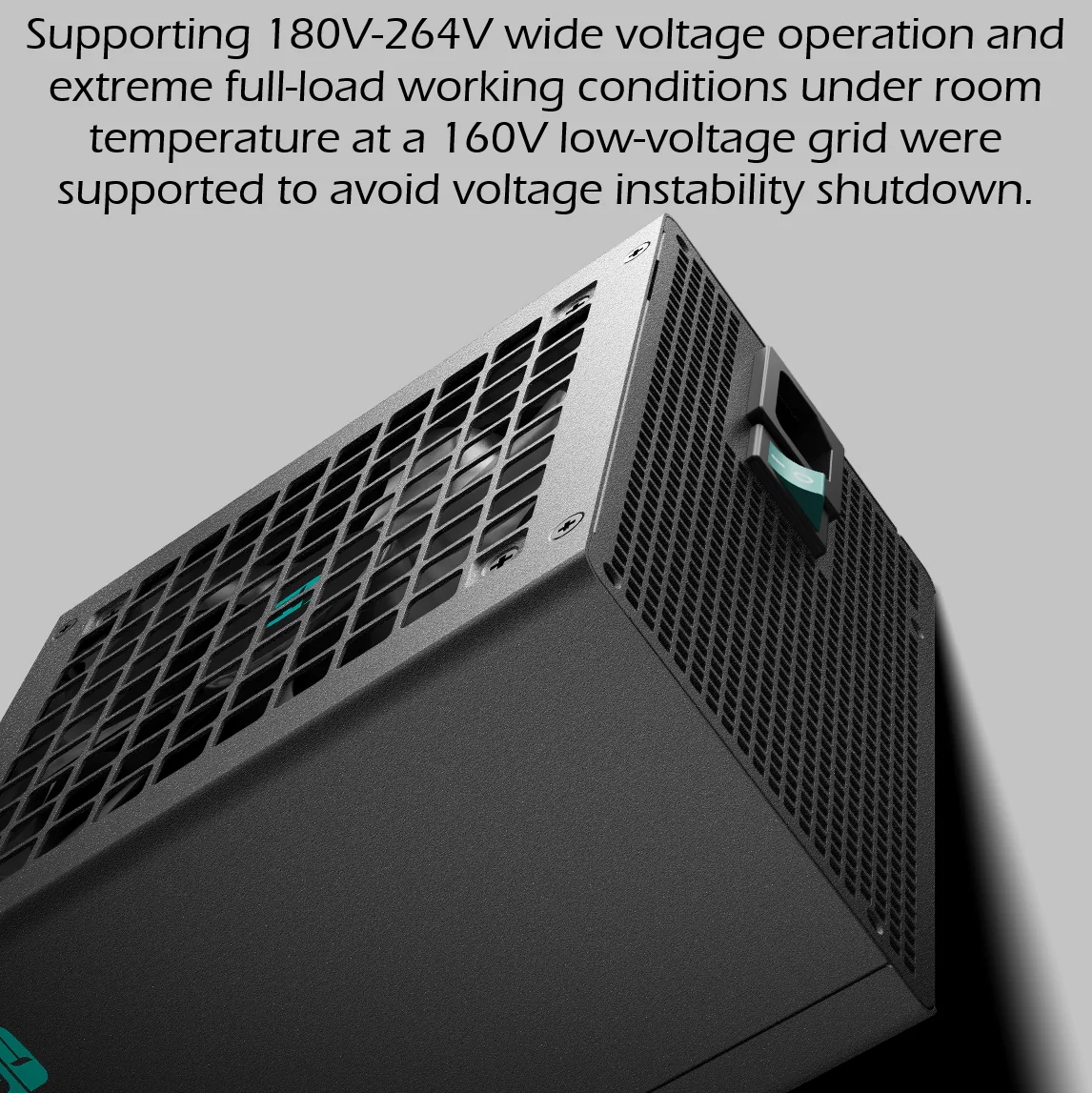

- Wide Voltage Adaptability ā Operates flawlessly from 180Vā264V, and even endures extreme full-load at 160V grids to prevent sudden shutdowns.

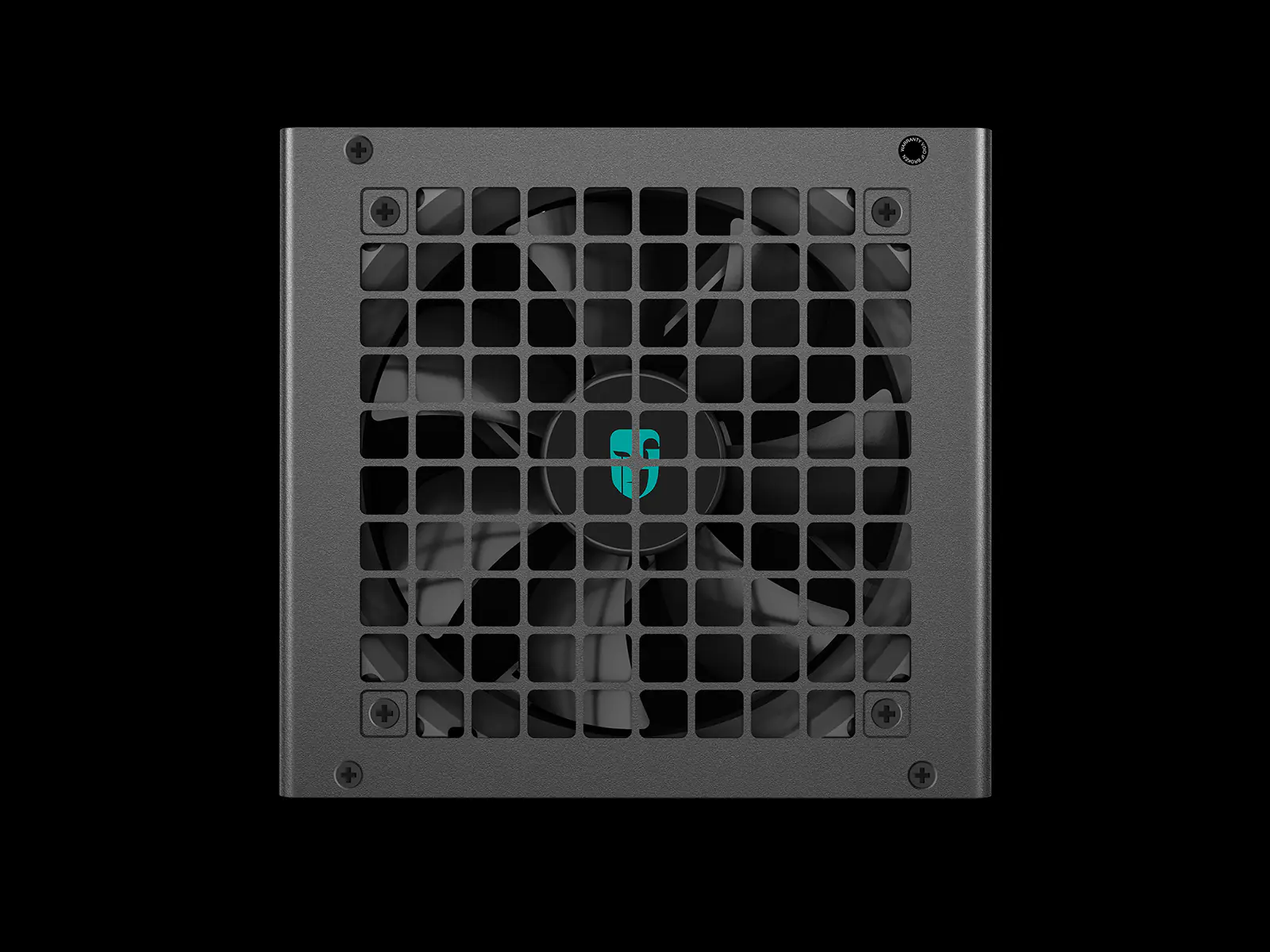

- Long-Life Cooling Power ā 120mm long-life HYB fan engineered for 24/7 operation in 40Ā°C environments, boasting a 30% longer lifespan than standard fans.
- Comprehensive Protection ICs ā Equipped with eight-layer safety armor: OPP, OVP, SCP, OTP, OCP, UVP, SIP, and NLO.

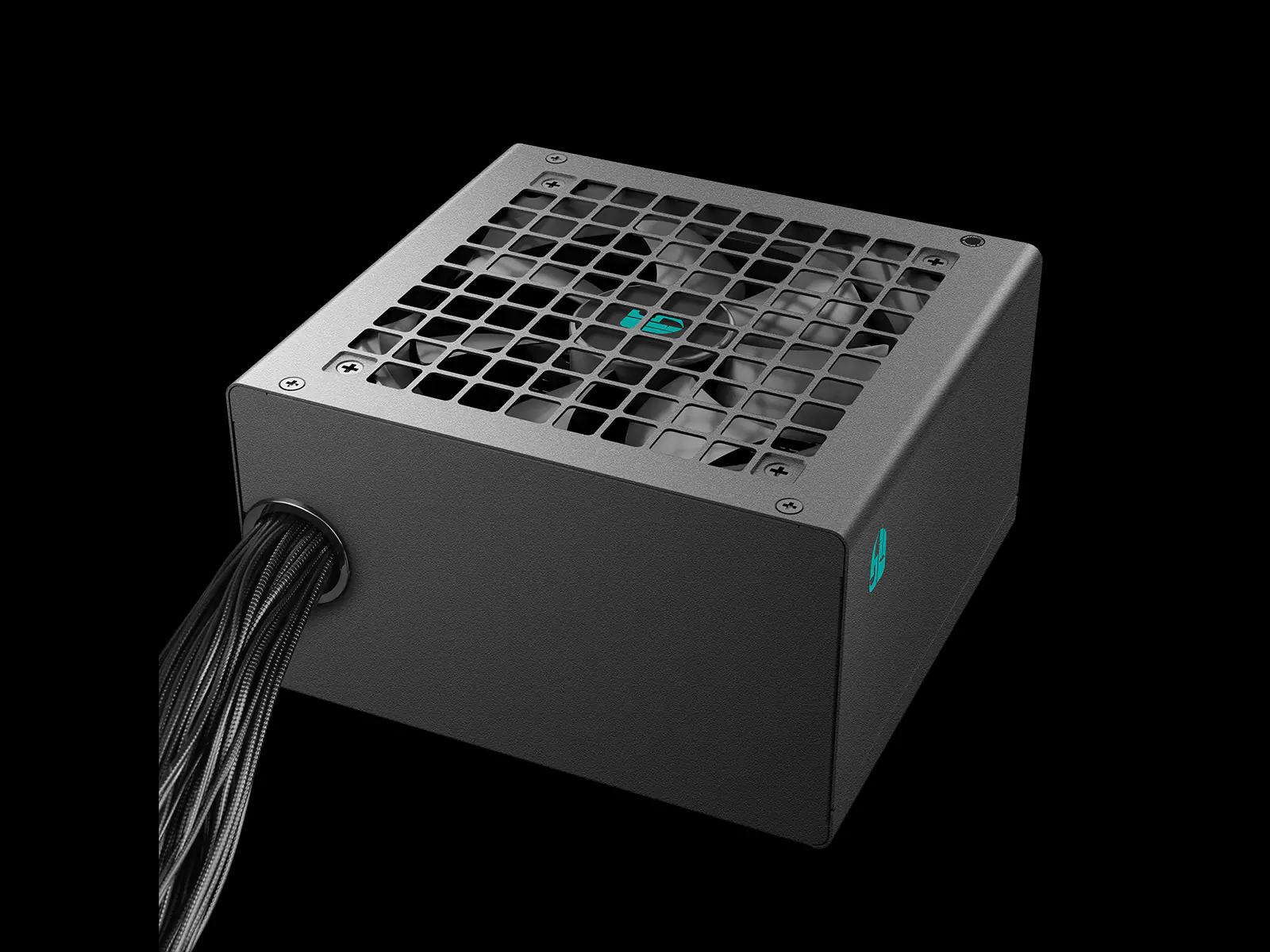

- Built For Gamers ā Outfitted with custom-molded sleeved cables from Gamer Storm for a sleek, durable, and tangle-free build experience.
- Tough Environmental Compliance ā Meets global safety certifications (CE, TUV-RH, CCC, RCM, KC) and eco-standards (ErP 2014, RoHS, WEEE, Triman).
- Peace Of Mind Warranty ā Backed by a solid 1-year limited warranty so you can build, game, and overclock without sweating your PSU.
š Expert Specs
| Category | Details |
|---|---|
| Model | PF700X |
| Model No. | PF700X-HD |
| Total Output | 700W |
| Type | ATX12V V2.52 |
| Dimensions (WĆLĆH) | 150 Ć 140 Ć 86 mm |
| Efficiency Certification | 80 PLUS 230V EU Bronze, Cybenetics Bronze, Cybenetics A-230V, PPLP 230V Bronze |
| Fan Size | 120 mm |
| Fan Bearing | Long-Life HYB |
| Topology | Active PFC + Double Forward + DC-to-DC |
| Capacitors | Taiwanese + Japanese Electrolytic Capacitors |
| Power Good Signal | 100ā150 ms |
| Hold Up Time | ā„16 ms (75% Load) |
| Efficiency | ā„88% at 50% Load |
| Protections | OPP, OVP, OCP, SCP, OTP, UVP, SIP, NLO |
| Operating Temperature | 0ā40Ā°C |
| Regulatory | CE, TUV-RH, CCC, RCM, KC |
| ErP Regulation | ErP 2014 |
| Environmental Compliance | WEEE, China RoHS, Triman |
| MTBF | 40,000 Hours |

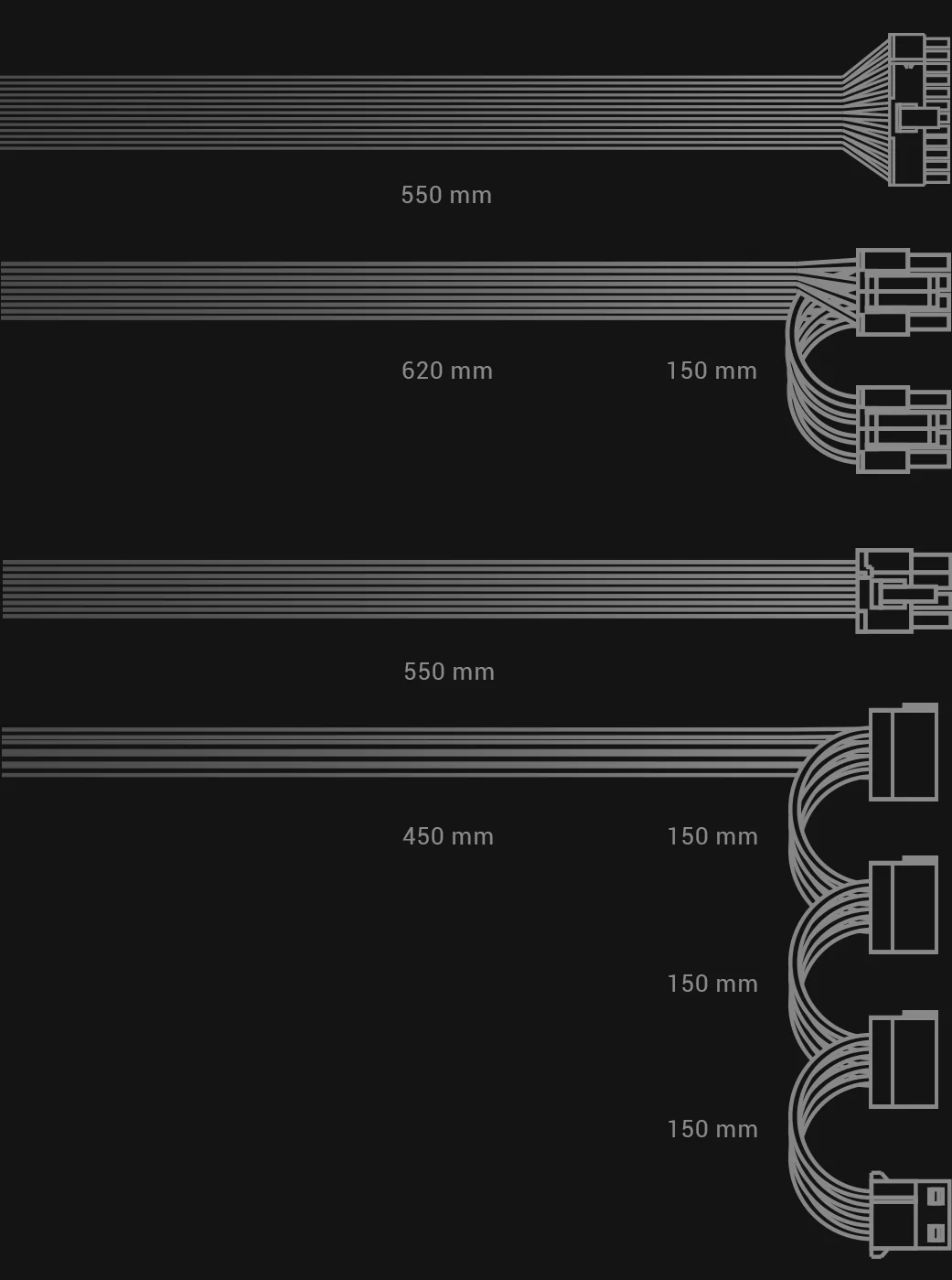

| Connectors | 24-pin (20+4) Ć1, CPU 8-pin (4+4) Ć2, PCI-E (6+2) Ć2, SATA Ć3 + 4-pin Peripheral Ć1 Ć2 |
