Q5M-M1
KEYCHRON Q5 MAX WIRELESS MECHANICAL KEYBOARD/HOT SWAP/RGB/RED SWITCH-BLK-KNOB NEW

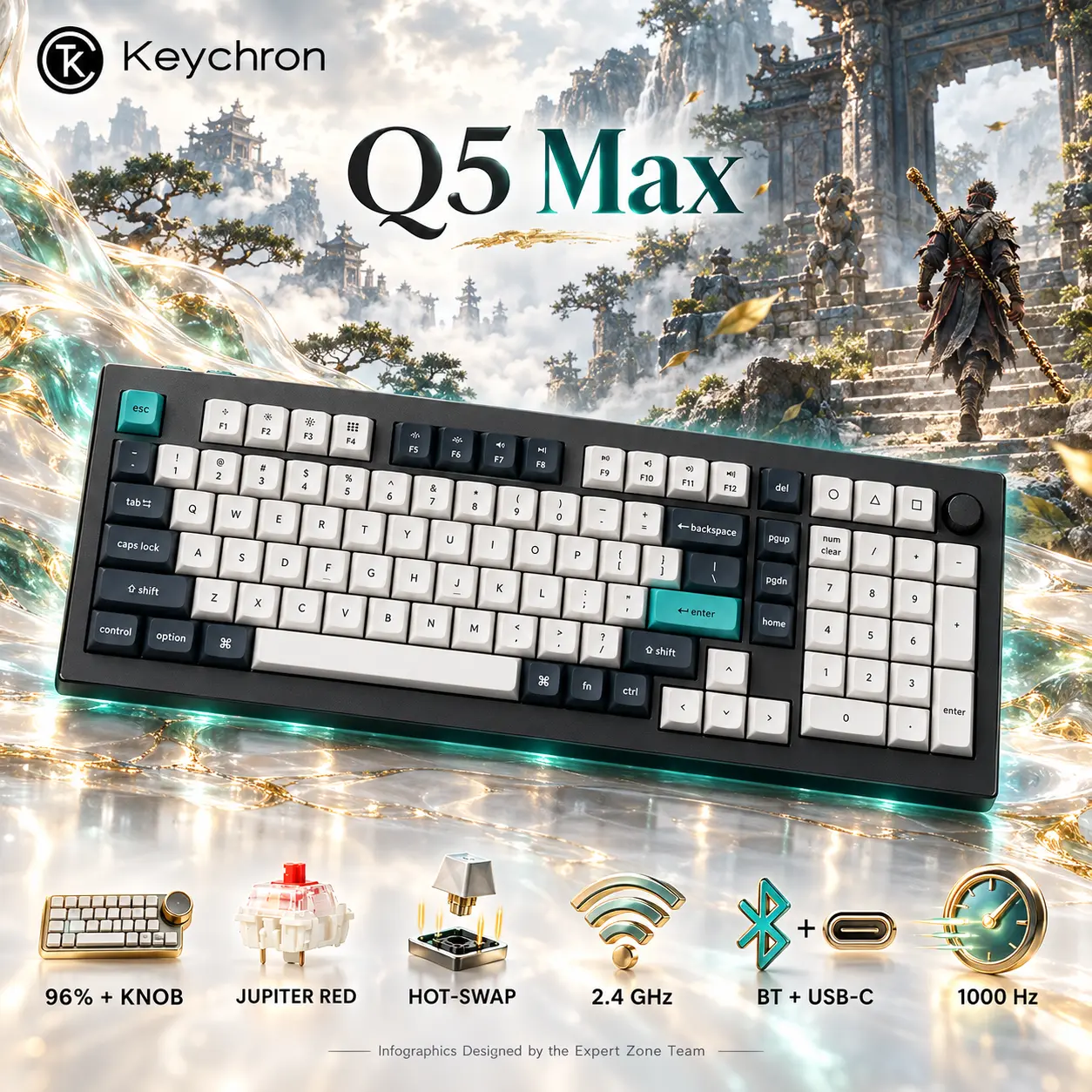

Keychron Q5 Max Black Wireless Mechanical Keyboard with Knob, 96% Layout, Gateron Jupiter Red Hot-Swap Switches, QMK/VIA, RGB, 2.4 GHz, Bluetooth, USB-C, Aluminum Body
158 $
EXPERT FEATURES
- 96% Layout with Knob : Keep a compact footprint while retaining the number pad and a programmable rotary knob.
- Gateron Jupiter Red Switches : Pre-lubed linear switches deliver smooth keystrokes; Keychron rates them for up to 80 million keystrokes.
- Hot-Swappable Switches : Replace compatible mechanical switches without soldering.
- Three Connection Modes : Connect through 2.4 GHz wireless, Bluetooth 5.1, or USB-C wired.
- 1000 Hz Polling : Get a 1000 Hz polling rate over 2.4 GHz and wired connections; Bluetooth polling is 90 Hz.
- QMK and VIA Support : Remap keys and create macros to personalize your keyboard.
- Aluminum Build : A CNC aluminum body, gasket mount, and PC plate give the keyboard a solid, refined build.
- Customizable RGB : South-facing RGB LEDs provide customizable backlighting.
- Acoustic Foam Layers : Multiple internal foam layers are designed to improve typing acoustics.
- Mac, Windows, and Linux Support : Compatible with all three operating systems; the fully assembled version includes Mac and Windows keycaps.
EXPERT SPECS
| Specification | Details |
|---|---|
| Product | Keychron Q5 Max QMK/VIA Wireless Custom Mechanical Keyboard |
| Item code | Q5M-M1 |
| Configuration | Fully Assembled Knob |
| Color | Carbon Black |
| Layout | 96%, ANSI, with knob |
| Switches | Gateron Jupiter Red, pre-lubed |
| Switch lifespan | Up to 80 million keystrokes |
| Hot-swappable | Yes |
| Connectivity | 2.4 GHz, Bluetooth 5.1, Type-C wired |
| Bluetooth device support | Up to 3 devices |
| Polling rate | 1000 Hz wired and 2.4 GHz; 90 Hz Bluetooth |
| N-key rollover | Yes, wireless and wired |
| Keycaps | KSA double-shot PBT, non-shine-through |
| Backlight | South-facing RGB LED |
| Body material | Aluminum |
| Mount style | Gasket mount |
| Plate material | PC |
| Stabilizers | Screw-in PCB stabilizers |
| Battery | 4000 mAh rechargeable lithium-polymer |
| Wireless working time | Up to 180 hours with backlight off; up to 100 hours at lowest RGB brightness |
| Compatible systems | macOS, Windows, Linux |
| MCU | Not specified in the product specifications consulted |
| Dimensions | 408 × 145 mm |
| Front height | 22.6 mm without keycaps |
| Back height | 35.8 mm without keycaps |
| Feet height | 2.4 mm |
| Typing angle | 5.2° |
| Weight | 2215 g ± 10 g, fully assembled |
| Operating environment | −10°C to 50°C |
| Bluetooth device name | Keychron Q5 Max |
