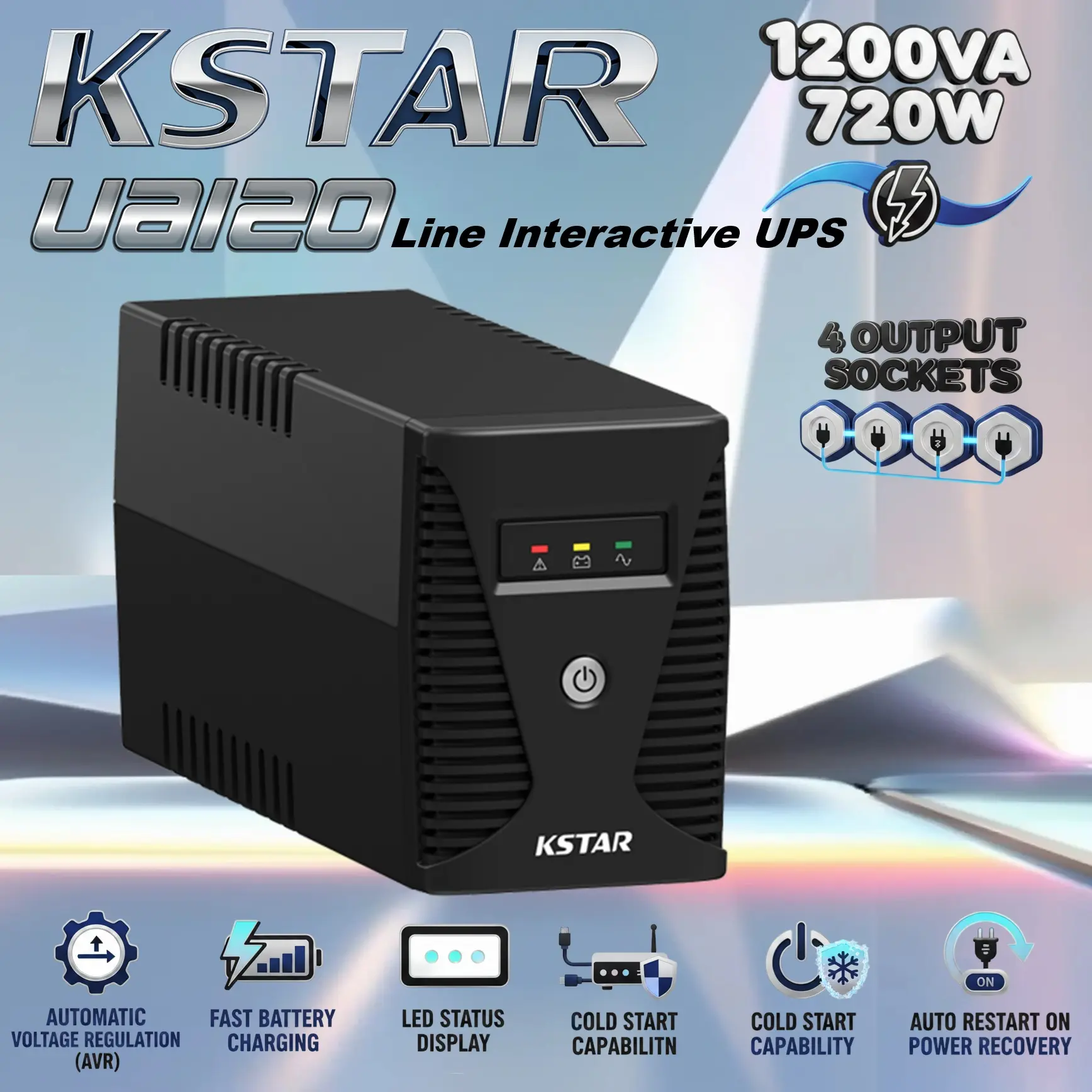

KSTAR UA120 1200VA Line Interactive UPS With AVR Double Boost Single Buck, 720W Output, Simulated Sinewave, Cold Start, Fast Charging, Auto Restart, Four Output Sockets , 12V / 7Ah × 2 Batteries

Name: KSTAR UA120 1200VA Line Interactive UPS With AVR Double Boost Single Buck, 720W Output, Simulated Sinewave, Cold Start, Fast Charging, Auto Restart, Four Output Sockets , 12V / 7Ah × 2 Batteries
SKU: KSTAR-UA120
Price: 60 USD
Availability: InStock

60 $

Add to wishlist

Expert Features

Line Interactive UPS Architecture : Delivers reliable power protection with fast response time for unstable electrical environments.
1200VA / 720W Power Capacity : Built to support multiple desktop systems, networking equipment, POS systems, and office electronics.
Double Boost & Single Buck AVR : Actively stabilizes voltage in harsh power conditions without unnecessary battery usage.
Simulated Sinewave Output : Provides dependable backup power for sensitive electronic devices during outages.
Cold Start Function : Enables the UPS to power connected equipment directly from the battery when utility power is unavailable.
Automatic Restart Function : Restarts automatically once AC power is restored after a shutdown.
Fast Battery Charging System : Recharges internal batteries to 90% capacity within 6–8 hours.
Auto Charging In Off Mode : Battery continues charging even when the UPS is switched off but connected to mains power.
Built-In Self-Diagnostic Function : Continuously monitors internal status to ensure long-term reliability.
Modem / LAN Surge Protection : Shields internet and network lines from electrical surges.
Generator Compatible : Designed to operate with generator power where supported.
LED Status Panel : Clearly displays AC mode, battery mode, load level, and battery level.
Lightweight And Compact Design : Saves desk space and reduces shipping and installation effort.
Low Noise Operation : Operates under 40dB, ideal for offices and quiet work environments.

Expert Specs

Specification	Details
Brand	KSTAR
Series	UA Series
Model	UA120
UPS Type	Line Interactive
Phase	Single Phase (1:1)
Power Factor	0.6
Capacity	1200VA / 720W
Nominal Input Voltage	110/120 Vac or 220/230/240 Vac
Input Voltage Range	81–145 Vac / 162–290 Vac
Input Frequency Range	50/60 Hz (±10%)
Output Voltage (Battery Mode)	Simulated Sinewave ±10%
Output Frequency (Battery Mode)	50 Hz or 60 Hz ±1 Hz
Transfer Time	Typical 2–6 ms, Max 10 ms
Battery Type	12V / 7Ah × 2
Typical Recharge Time	6–8 Hours (To 90% Capacity)
Protection	Overload And Overcharge Protection
Indicators (LED Version)	AC Mode, Battery Mode, Load Level, Battery Level
Alarm – Battery Mode	Beep Every 10 Seconds
Alarm – Battery Low	Beep Every Second
Alarm – Overload	Beep Every 0.5 Second
Alarm – Battery Replacement	Beep Every 2 Seconds
Alarm – Fault	Continuous Beep
Management Interface	NONE
Supported OS (Optional)	NONE
Operating Temperature	0°C – 40°C
Humidity Range	0–95% (Non-Condensing)
Noise Level	<40dB (1 Meter)
AC Input	1
Output Sockets	4
Dimensions (W×D×H)	158 × 380 × 198 mm
Net Weight	8 kg
Safety Standards	IEC/EN62040-1; IEC/EN60950-1
EMC Standards	IEC/EN62040-2; IEC61000-4-2/3/4/5/6/8
