LENOVO LOQ 15AHP9 AI PC: AMD Ryzen 7 7445HS | 16GB DDR5 RAM ; 512GB NVMe | RTX 3050 (6GB) | 15.6-inch FHD 100% sRGB 144Hz Display | White Backlit Keyboard | DOS | Luna Grey - Image 1

Click to enlarge

LENOVO LOQ 15AHP9 AI PC: AMD Ryzen 7 7445HS | 16GB DDR5 RAM ; 512GB NVMe | RTX 3050 (6GB) | 15.6-inch FHD 100% sRGB 144Hz Display | White Backlit Keyboard | DOS | Luna Grey

928 $

Add to wishlist

Expert Features

Real Gaming Core : The exact 83DX00F1PB configuration packs an AMD Ryzen 7 7445HS with 6 cores / 12 threads, paired with an NVIDIA GeForce RTX 3050 6GB—a proper entry-to-mid gaming combo for esports, story titles, study work, and creator side missions without fake flex.
Fast, Color-Clean Display : You get a 15.6-inch FHD IPS anti-glare panel with 144Hz, 300 nits, and 100% sRGB, so motion stays smoother and colors stay more honest whether you’re gaming, editing, or doom-scrolling between matches.
AI-Tuned Performance : Lenovo’s AI Engine+ with the LA1 AI chip helps tune the machine more intelligently, especially through Balance Mode in Lenovo Vantage, so the laptop adjusts behavior without you babysitting settings all day.
Smarter Thermal Design : The LOQ 15AHP9 family’s cooling design uses dual fans spinning in opposite directions to throw heat out the rear, reduce disturbance from hot air, and keep things quieter and cooler under pressure.
Gamer-Safe Visual Flow : With NVIDIA G-SYNC and Advanced Optimus, the display experience is smoother and more efficient—less tearing, better flow, and smarter switching between performance and battery behavior.
Upgradeable Memory & Storage Path : The exact SKU includes 1x 16GB DDR5-5600 SODIMM and a 512GB SSD, which is a solid start for gaming and daily use while keeping the machine in upgrade-friendly territory.

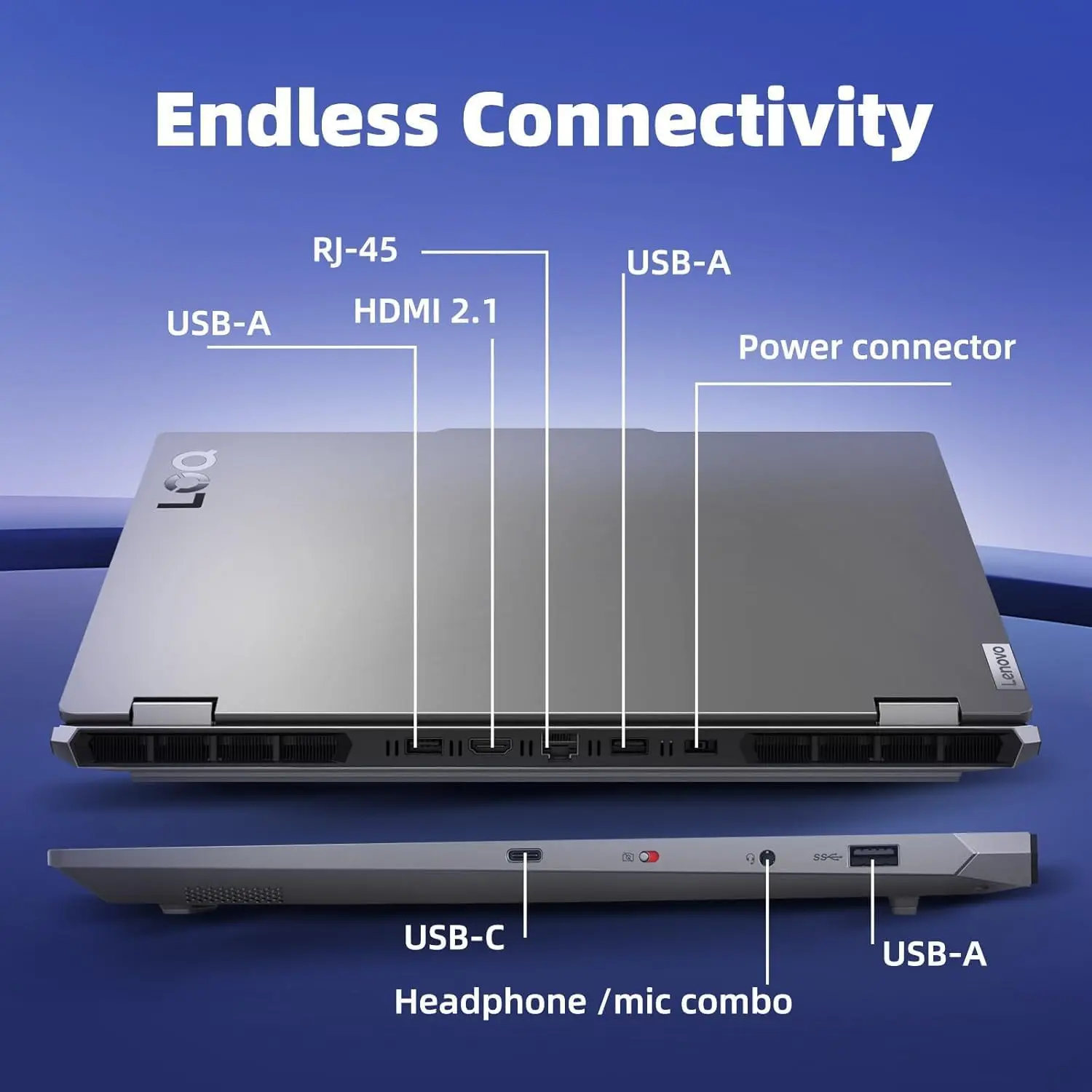

Useful Port Arsenal : Connectivity is strong: 3x USB-A (5Gbps), 1x USB-C (10Gbps) with Power Delivery 65–100W and DisplayPort 1.4, plus HDMI 2.1, RJ-45 Ethernet, a 3.5mm combo jack, and the Slim Tip power connector. In plain Expert Zone language: peripherals, monitor, wired internet, done.
Portable but Not Fragile : The machine is rated MIL-STD-810H and comes in Luna Grey, giving you a cleaner, less childish gaming look while still feeling ready for campus, office, or late-night grind sessions.
Privacy + Practicality : The exact SKU has an HD 720p camera with E-shutter, so you stay visible when needed and covered when not. Small detail, big daily-life value.
Gaming Utility Software : Lenovo Vantage and Nahimic Audio by SteelSeries add real value—performance tuning, fan control, and more immersive audio. Mesh 7ake fadi; these are the kinds of extras users actually touch.

Expert Specs

PERFORMANCE
Processor	AMD Ryzen™ 7 7445HS (6C / 12T, 3.55 / 4.7GHz, 6MB L2 / 16MB L3)
AI PC Category	AI-Powered Gaming PC
NPU	None
Graphics	NVIDIA GeForce RTX™ 3050 6GB GDDR6, Boost Clock 1732MHz, TGP 95W, 142 AI TOPS
Chipset	AMD SoC Platform
Memory	1x 16GB SODIMM DDR5-5600
Memory Slots	Two DDR5 SODIMM slots, dual-channel capable
Max Memory	Up to 32GB DDR5-5600
Storage	512GB SSD M.2 2242 PCIe^® 4.0×4 NVMe^®
Storage Slot	Two M.2 2280 PCIe^® 4.0 x4 slots
Max Storage Support	Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB each
Optical	None
Card Reader	No Card Reader
Audio Chip	High Definition (HD) Audio, Realtek^® ALC3287 codec
Speakers	Stereo speakers, 2W x2, optimized with Nahimic Audio
Microphone	2x, Array
Camera	HD 720p with E-shutter
Battery	60Wh
Power Adapter	170W Slim Tip (3-pin)
Special Features	AI Chip: LA1
DESIGN
Display	15.6″ FHD (1920×1080) IPS 300nits Anti-glare, 100% sRGB, 144Hz, G-SYNC^®
Touchscreen	None
Screen-to-Body Ratio	88% AAR (active area ratio)
Color Calibration	No Color Calibration
Pen	Pen Not Supported
Keyboard	White Backlit, English
Touchpad	Buttonless Mylar^® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
Dimensions (WxDxH)	359.86 x 258.7 x 21.9-23.9 mm (14.17 x 10.19 x 0.86-0.94 inches)
Weight	Starting at 2.38 kg (5.25 lbs)
Case Color	Luna Grey (with White Backlit Keyboard)
Case Material	PC-ABS (Top), PC-ABS (Bottom)
Surface Treatment	Painting
SOFTWARE
Operating System	None
Bundled Software	None
CONNECTIVITY
WLAN + Bluetooth	Wi-Fi^® 6, 802.11ax 2×2 + BT5.2
WWAN	WWAN Not Supported
Ethernet	100/1000M (RJ-45)
Standard Ports	3x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x USB-C^® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 1.4 1x HDMI^® 2.1, up to 8K/60Hz 1x Headphone / microphone combo jack (3.5mm) 1x Ethernet (RJ-45) 1x Slim tip Power connector
Docking	Various docking solutions supported via USB-C^®.
SECURITY & PRIVACY
Security Chip	Firmware TPM 2.0 Enabled
Fingerprint Reader	No Fingerprint Reader
Other Security	E-shutter
SERVICE
Base Warranty	2-year, Courier or Carry-in with 1-year Battery
Included Upgrade	None
ACCESSORIES
Bundled Accessories	None
CERTIFICATIONS
Green Certifications	ErP Lot 3 RoHS compliant
Mil-Spec Test	MIL-STD-810H military test passed
MODEL INFORMATION
Model	83DX00F1PB

Guaranteed Safe Checkout

Features & Compatibility

83DX00F1PB

LENOVO LOQ 15AHP9 7-7445HS 16GB DDR5/512GB/RTX3050 6GB/EN/15.6″/DOS-LUNA GREY

Lenovo LOQ 15AHP9 15.6″ FHD 144Hz Gaming Laptop, Ryzen 7 7445HS, RTX 3050 6GB, 16GB DDR5, 512GB SSD, LA1 AI Chip, Wi‑Fi 6, Luna Grey
