911-7D99-065
B760M GAMING PLUS WIFI DDR4

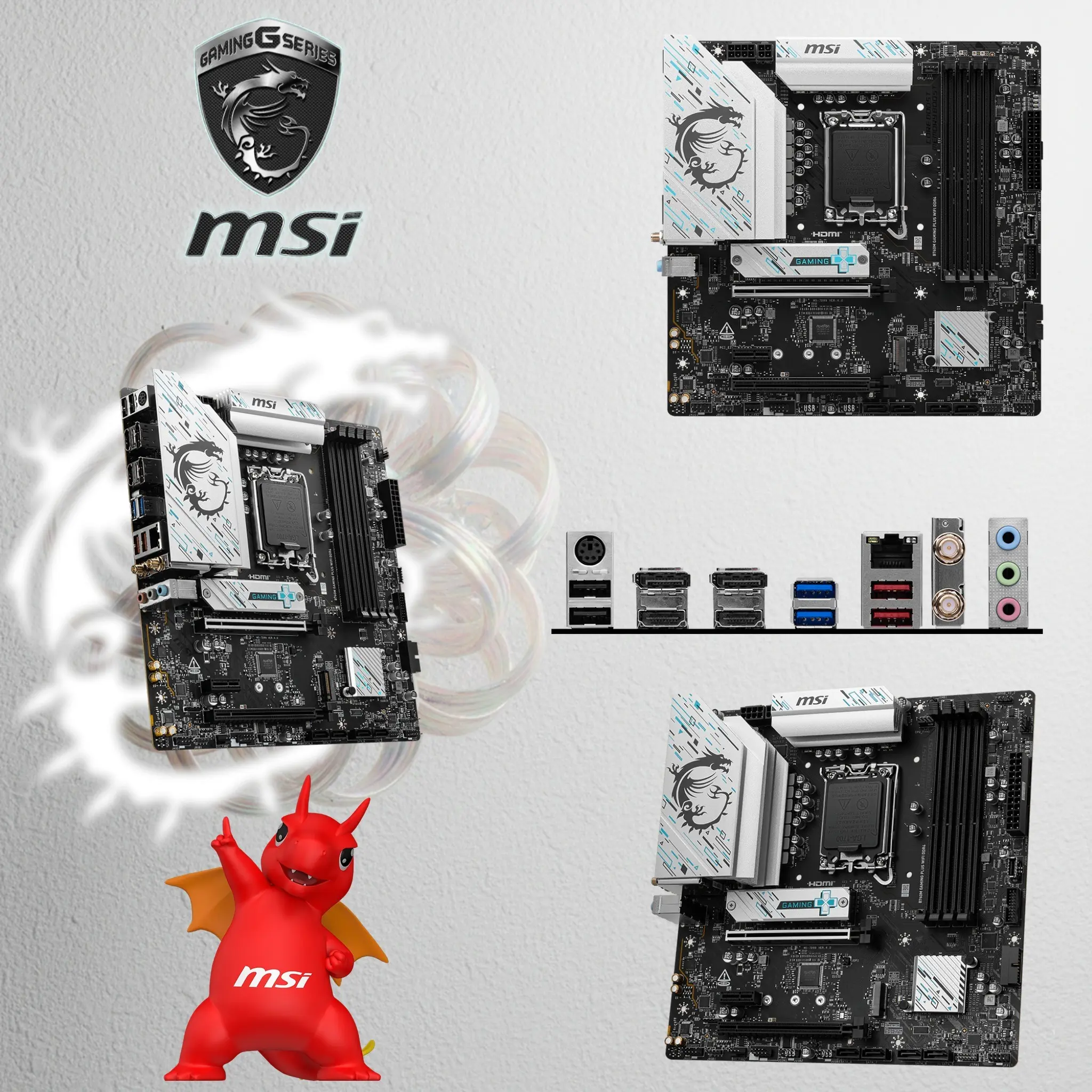

MSI B760M Gaming Plus WiFi DDR4 Motherboard – Intel 14th/13th/12th Gen Support, Wi-Fi 6E, 2.5G LAN, PCIe 4.0, Dual M.2, DDR4 5333+ MHz, Audio Boost, mATX, Core Boost Power Design
MSI B760M Gaming Plus WiFi DDR4 Motherboard – Intel 14th/13th/12th Gen Support, Wi-Fi 6E, 2.5G LAN, PCIe 4.0, Dual M.2, DDR4 5333+ MHz, Audio Boost, mATX, Core Boost Power Design | 1 YEAR WARRANTY
160 $
Expert Features
- Built for Intel Powerhouses: Supports Intel® Core™ 14th, 13th, and 12th Gen CPUs, Pentium® Gold & Celeron® on LGA 1700 socket — ready for gaming marathons and creative workloads alike.
- Memory Mastery: Supports up to 128GB DDR4, reaching 5333+ MHz (OC) with Intel® XMP 3.0 profiles — stability meets overclocking fun.

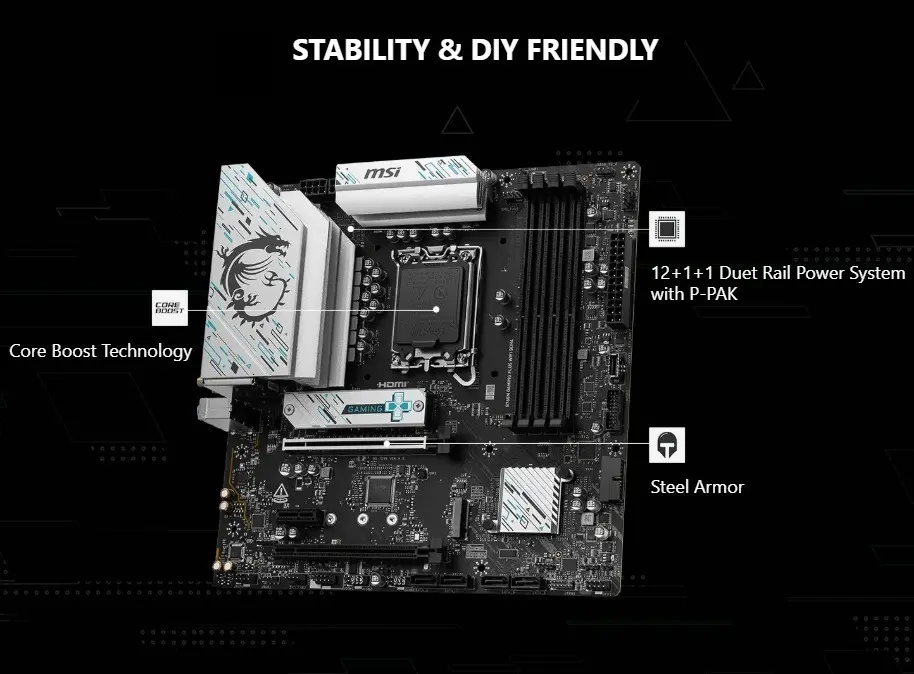

- 12+1+1 Duet Rail Power System: Military-grade VRM architecture ensures rock-solid CPU power delivery with Core Boost and Memory Boost tech for max performance.

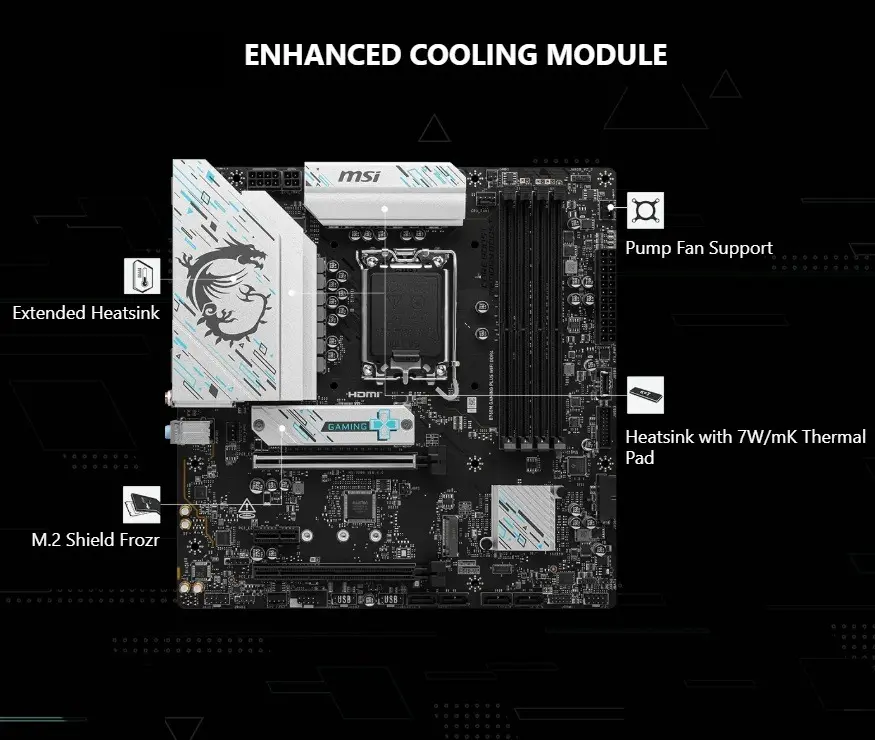

- Cool Under Fire: Features an Extended Heatsink, M.2 Shield Frozr, and 7W/mK MOSFET pads to keep thermals tamed even when your system’s on a rampage.

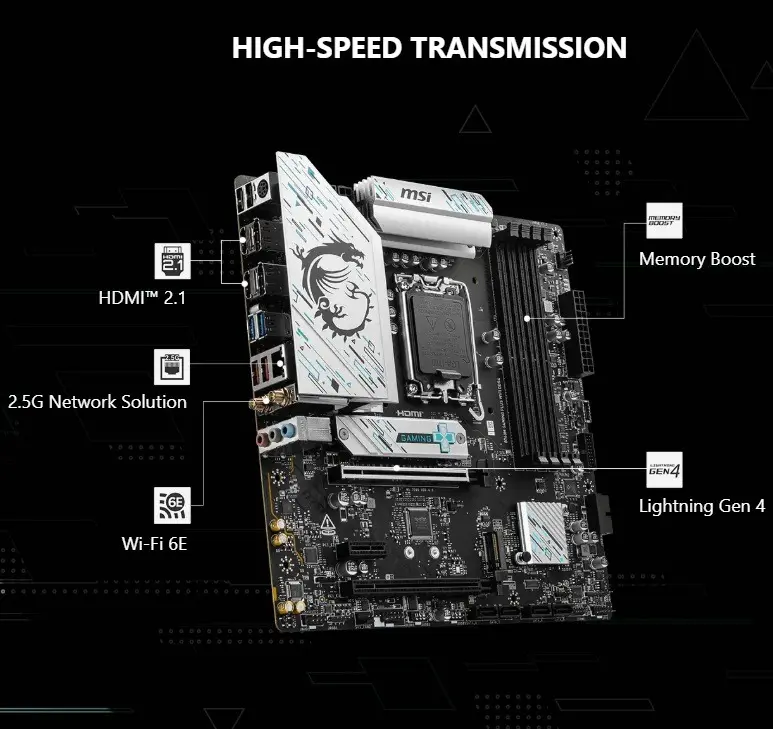

- Next-Gen Networking: Dual threat connectivity with 2.5G LAN and Wi-Fi 6E + Bluetooth 5.3 — because lag belongs in the past.

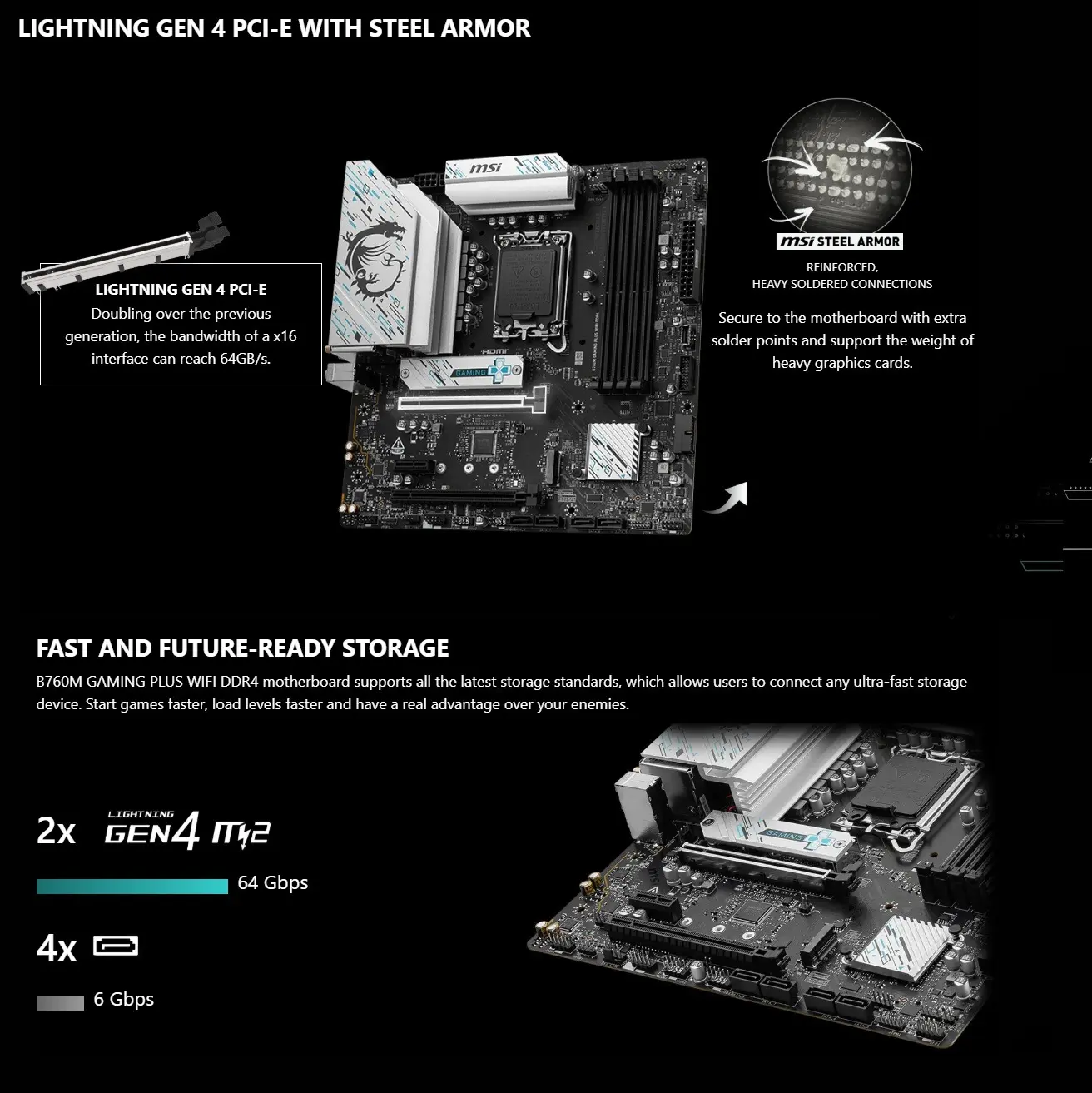

- Fast Storage for Faster Respawns: Dual PCIe 4.0 x4 M.2 slots and 4× SATA 6Gb/s ports — load your games faster than you can say “GG.”
- Graphics-Ready Build: PCIe 4.0 x16 slot with Steel Armor reinforcement supports heavy GPUs with zero flex and max signal integrity.
- Audio Boost Technology: Integrated Realtek® ALC897 7.1-channel HD audio codec for crisp highs, deep lows, and immersive in-game sound.
- RGB That Speaks Your Language: Mystic Light RGB & ARGB headers let you sync your rig’s glow with your mood — no external controller needed.
- DIY Gamer’s Dream: Comes with EZ M.2 Clip, EZ Debug LEDs, solid pin power connectors, and a pre-installed anti-corrosive I/O shield — smooth setup from start to finish.
- Supercharged PCB: 6-layer PCB made from 2oz thickened copper, ensuring better power efficiency, heat conduction, and signal stability.
- Smart Software Suite: Includes MSI Driver Utility Installer, AIDA64 Extreme (60-day trial), and Norton 360 Deluxe (60-day trial) for system monitoring and digital safety.
- Overcurrent & Voltage Protection: Integrated Transient Voltage Suppressors (TVS) and OCP safeguard every component from power spikes and surges.
- Compact Yet Mighty: Micro-ATX form factor fits snugly into smaller builds without cutting any corners — a true space-saving powerhouse.
🧠 Expert Specs
| Category | Details |
|---|---|
| Chipset | Intel® B760 |
| CPU Support | Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold, Celeron® |
| Socket | LGA 1700 |
| Memory | 4× DDR4 DIMM, Up to 128GB |
| Memory Speeds (OC) | 5333 / 5200 / 5066 / 5000 / 4800 / 4600 / 4400 / 4266 / 4200 / 4000 / 3800 / 3733 / 3600 / 3466 / 3400 / 3333 / 3200 (JEDEC) / 2933 / 2666 / 2400 / 2133 |
| XMP Support | Intel® XMP 3.0 OC |
| Memory Channels | Dual Channel, Non-ECC, Unbuffered |
| Graphics Outputs | 2× HDMI™ 2.1 (4K@60Hz), 2× DisplayPort 1.4 (4K@60Hz) |
| Expansion Slots | 2× PCIe x16 (Gen4 from CPU / Gen3 from Chipset), 1× PCIe x1 (Gen3) |
| Storage | 2× M.2 (PCIe 4.0 x4 / SATA) + 4× SATA 6Gb/s |
| RAID Support | RAID 0, 1, 5, 10 for SATA devices |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| Wireless | Intel® Wi-Fi 6E (2.4GHz / 5GHz / 6GHz up to 2.4Gbps) |
| Bluetooth | Version 5.3 |
| Audio | Realtek® ALC897 Codec, 7.1-Channel HD Audio |
| USB Ports (Rear) | 2× USB 10Gbps Type-A, 2× USB 5Gbps Type-A, 2× USB 2.0 |
| USB Ports (Front) | 4× USB 5Gbps Type-A, 1× USB 5Gbps Type-C, 4× USB 2.0 |
| Internal I/O Headers | ATX_PWR, 2× CPU_PWR, CPU Fan, Pump Fan, 2× System Fan, JFP, JCI, JAUD, JCOM, 2× JARGB_V2, 1× JRGB, TPM 2.0, Front USB |
| Cooling Support | AIO & Custom Water Cooling Ready (3A Pump Header) |

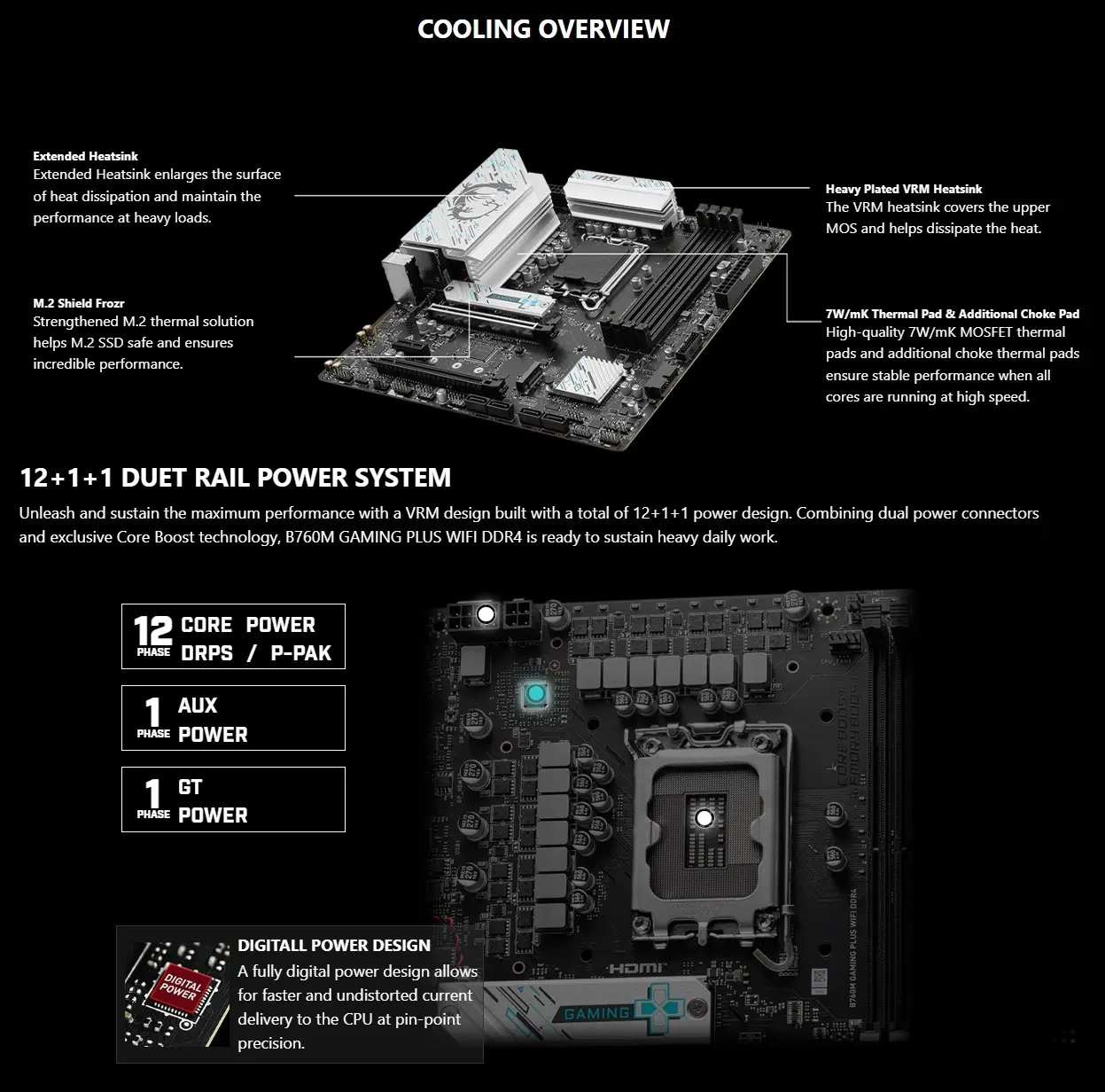

| Power Design | 12+1+1 Duet Rail Power System with P-PAK |
| Thermal Solution | Extended Heatsink, M.2 Shield Frozr, 7W/mK MOSFET & Choke Pads |
| RGB Support | Mystic Light RGB & ARGB Extension Headers |
| LED Indicators | 4× EZ Debug LEDs |

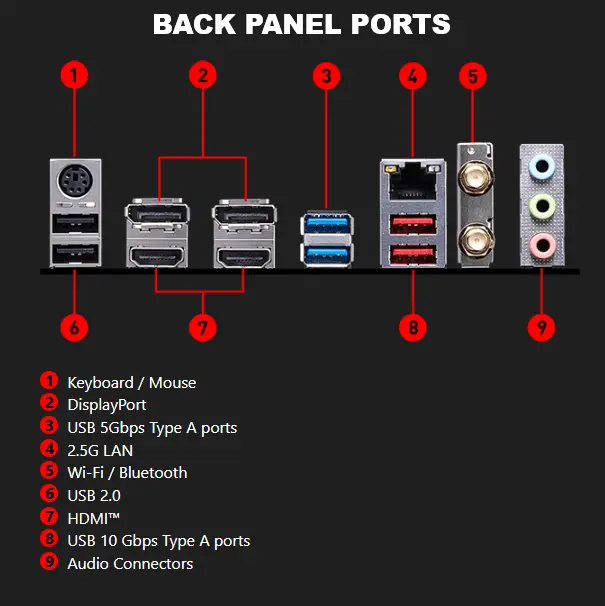

| Back Panel Ports | Keyboard/Mouse, DisplayPort, HDMI™, 2.5G LAN, Wi-Fi Antennas, USB 2.0, USB 5Gbps, USB 10Gbps, Audio Jacks |
| PCB Design | 6 Layers, 2oz Thickened Copper |
| Protection | OCP, TVS, Solid Pin Connectors, Stainless Steel I/O Shield |
| Operating System | Windows® 11 / 10 (64-bit) |
| Form Factor | Micro-ATX (243.84 × 243.84 mm) |

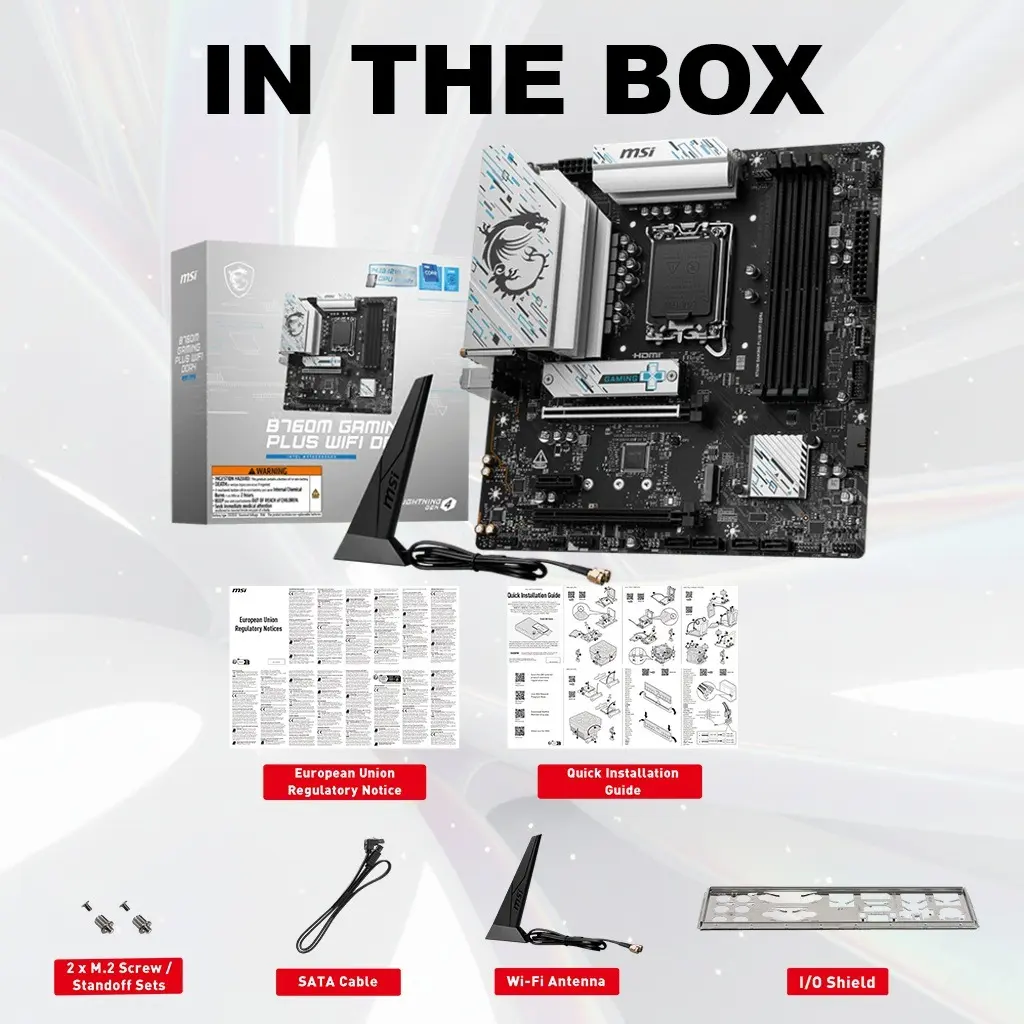

| Box Contents | B760M Gaming Plus WiFi DDR4 Motherboard, Wi-Fi Antennas, I/O Shield, SATA Cables, Manuals, Driver Kit |
💬 Geek’s Verdict:
The MSI B760M Gaming Plus WiFi DDR4 is that no-nonsense, battle-tested motherboard that gives you next-gen power without the next-gen price tag. It’s compact, cool, and connected — the ideal sidekick for any gamer or builder who wants Intel 14th Gen performance with DDR4 affordability. Plug it in, power it up, and prepare for warp speed. ⚔️💻
