OTN-CS122
ONTEN 4K 2X2 HDMI VIDEO WALL CONTROLLER 4K@30HZ

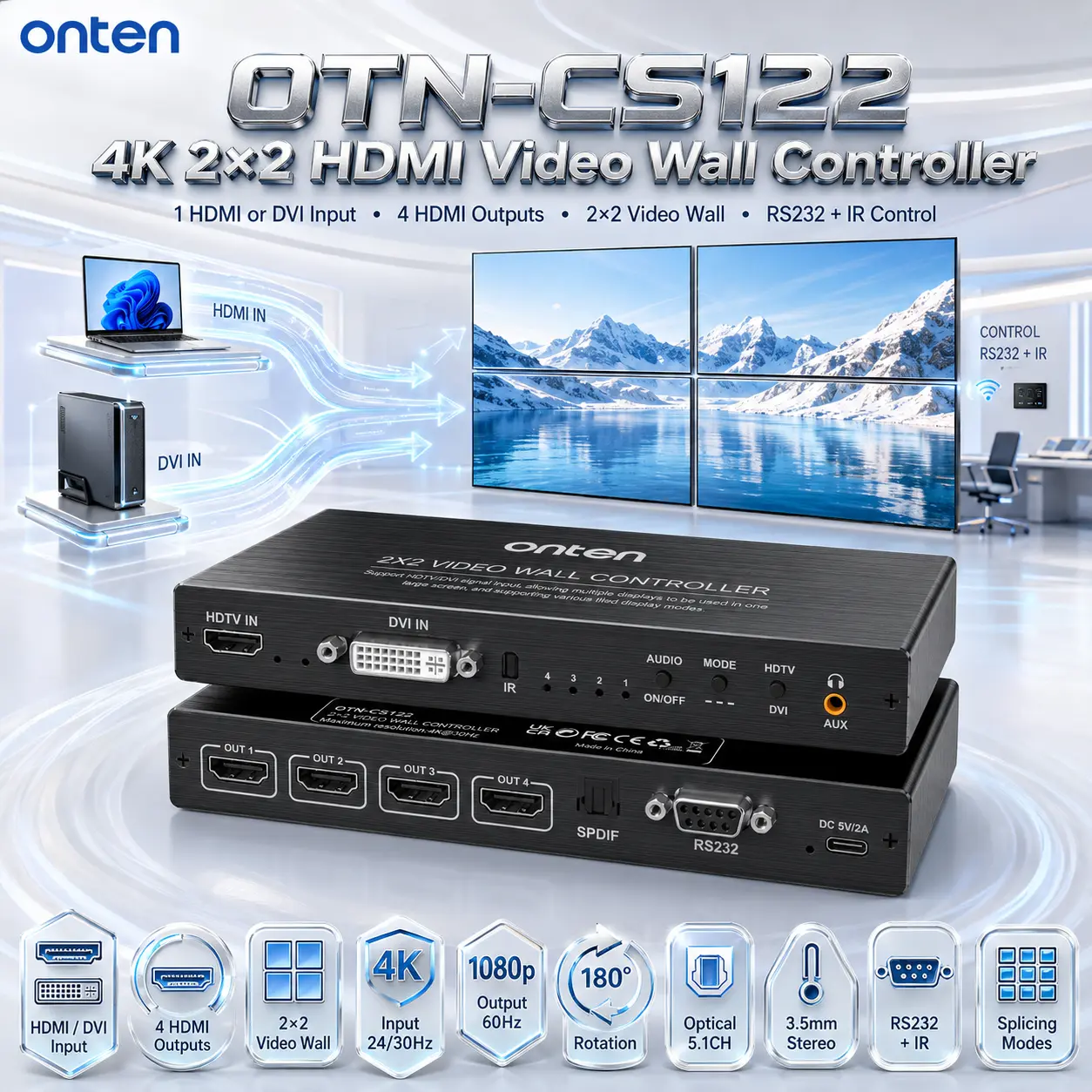

ONTEN OTN-CS122 4K 2×2 HDMI Video Wall Controller – HDMI 1.4 / DVI Input, 4 HDMI Outputs, 1080P@60Hz Output, Optical 5.1CH, 3.5mm & RS232 + IR
Expert Features
- 2×2 Video Wall Controller : Supports 2×2 video wall splicing using 1 HDMI or 1 DVI input and 4 HDMI outputs.
- 4K HDMI Input Support : Supports HDMI 1.4 input up to 3840 × 2160P @ 24/30Hz for Ultra HD input compatibility.
- 1080P Multi-Refresh HDMI Input : Supports 1920 × 1080P @ 25/30/50/60Hz through HDMI input.
- DVI Input Support : Includes DVI input with 1080P support for broader source-device compatibility.
- Four HDMI Outputs : Provides 4 HDMI outputs at 1920 × 1080P 60Hz for video wall display distribution.
- 180° Image Rotation Support : Supports 180° image rotation for more flexible display-wall configuration.
- Dual Audio Output Options : Supports Optical 5.1CH audio output and 3.5mm stereo audio output.
- Multiple Splicing Modes : Supports switching between multiple splicing modes for more flexible wall-display arrangements.
- RS232 Serial Control : Supports RS232 serial control for integration into controlled AV environments.
- IR Remote Control Support : Supports IR remote control for easier device management and switching.
- HDMI or DVI Source Flexibility : Lets the user choose either HDMI input or DVI input as the video source for the 2×2 wall setup.
Expert Specs
| Specification | Details |
|---|---|
| Brand | ONTEN |
| Model | OTN-CS122 |
| Product Type | 4K 2×2 HDMI Video Wall Controller |
| Primary Function | 1 HDMI or DVI Input → 4 HDMI Outputs for 2×2 Video Wall Splicing |
| HDMI Input | HDMI 1.4 |
| HDMI Input Resolution | 1920 × 1080P @ 25/30/50/60Hz; 3840 × 2160P @ 24/30Hz |
| DVI Input | Yes |
| DVI Input Resolution | 1080P |
| Output Ports | 4 × HDMI |
| Output Resolution | 1920 × 1080P @ 60Hz |
| Image Rotation | 180° |
| Audio Output | Optical 5.1CH, 3.5mm Stereo Audio |
| Video Wall Mode | 2×2 Splicing |
| Control Methods | RS232 Serial Control, IR Remote Control |
| Splicing Modes | Multiple Splicing Modes Supported |
| Product Color | Black |
