OTN-CS118
ONTEN 1.4 HDMI SPLITTER 1X8 4K@30HZ

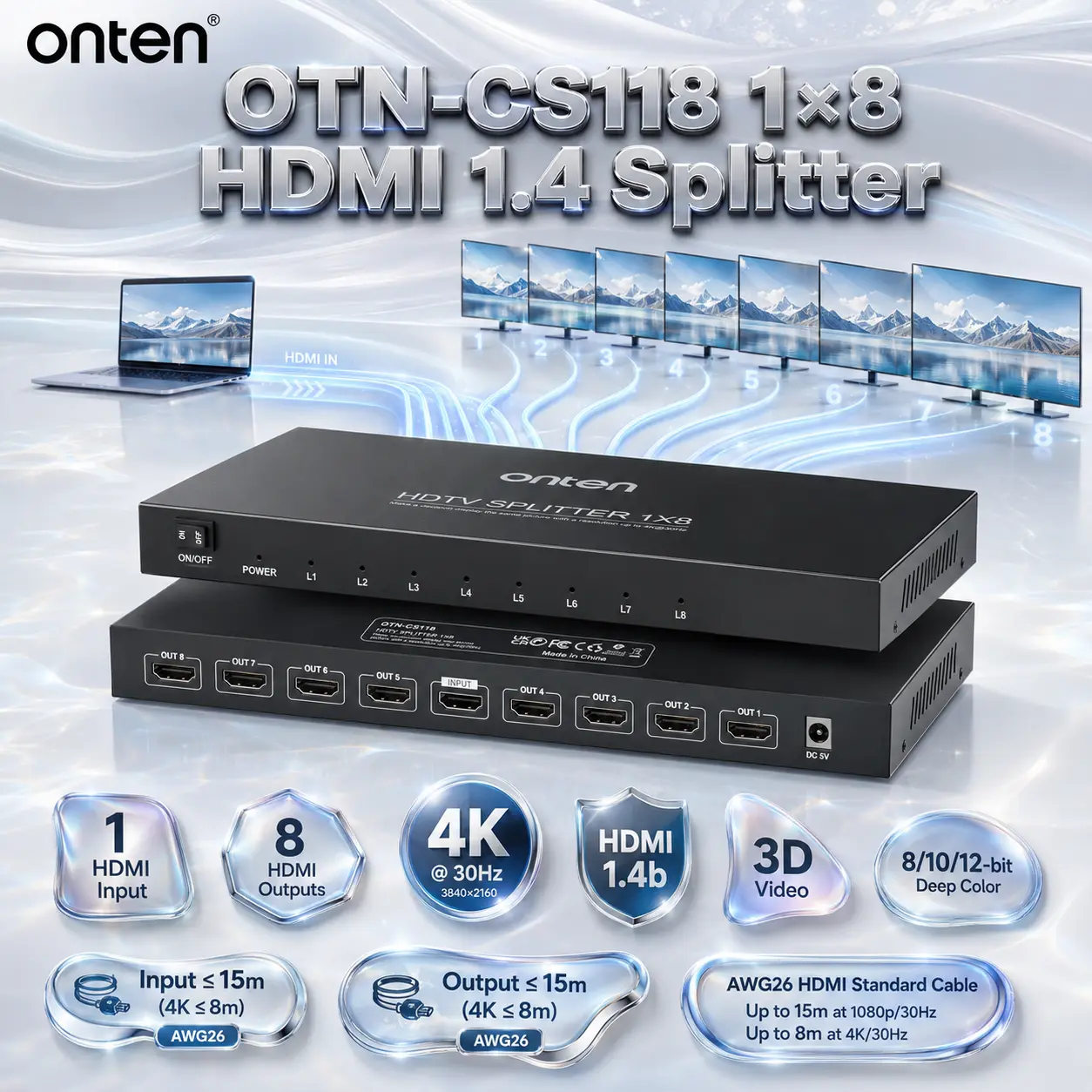

ONTEN OTN-CS118 1×8 HDMI 1.4b Splitter – 1 HDMI Input to 8 Outputs, 4K@30Hz, 3D Video, 8/10/12-Bit Deep Color & Long AWG26 Cable Support
Expert Features
- 1-to-8 HDMI Signal Distribution : Distributes 1 HDMI input to 8 identical HDMI outputs for multi-screen display setups.
- 4K Ultra HD Support : Supports resolution up to 3840 × 2160 @ 30Hz for clear high-resolution output.
- HDMI 1.4b Support : Built on HDMI 1.4b specification for compatible HDMI source and display connectivity.
- 3D Video Support : Supports 3D video format for compatible 3D playback environments.
- Deep Color Compatibility : Supports 8-bit, 10-bit and 12-bit deep color for richer compatible color output.
- Eight Display Outputs : Features 8 HDMI outputs, making it ideal for sending the same source to multiple displays.
- Long Input Cable Support : Supports AWG26 HDMI standard cable with input distance up to 15 meters, or up to 8 meters at 4K resolution.
- Long Output Cable Support : Supports AWG26 HDMI standard cable with output distance up to 15 meters, or up to 8 meters at 4K resolution.
- Practical AV Distribution Solution : Ideal for showrooms, offices, signage and multi-screen display setups where one source must feed several screens.
Expert Specs
| Specification | Details |
|---|---|
| Brand | ONTEN |
| Model | OTN-CS118 |
| Product Type | 1×8 HDMI Splitter |
| Function | 1 HDMI Input to 8 Identical HDMI Outputs |
| HDMI Version | HDMI 1.4b |
| Input Ports | 1 × HDMI |
| Output Ports | 8 × HDMI |
| Maximum Resolution | Up to 3840 × 2160 @ 30Hz |
| 3D Video Support | Yes |
| Deep Color Support | 8-bit / 10-bit / 12-bit |
| Supported Cable Type | AWG26 HDMI Standard Cable |
| Input Cable Length | Up to 15m |
| Output Cable Length | Up to 15m |
| Input Cable Length at 4K | Up to 8m |
| Output Cable Length at 4K | Up to 8m |
| Primary Use | HDMI 8-Way Signal Distribution |
| Product Color | Black |
