OTN-CS144

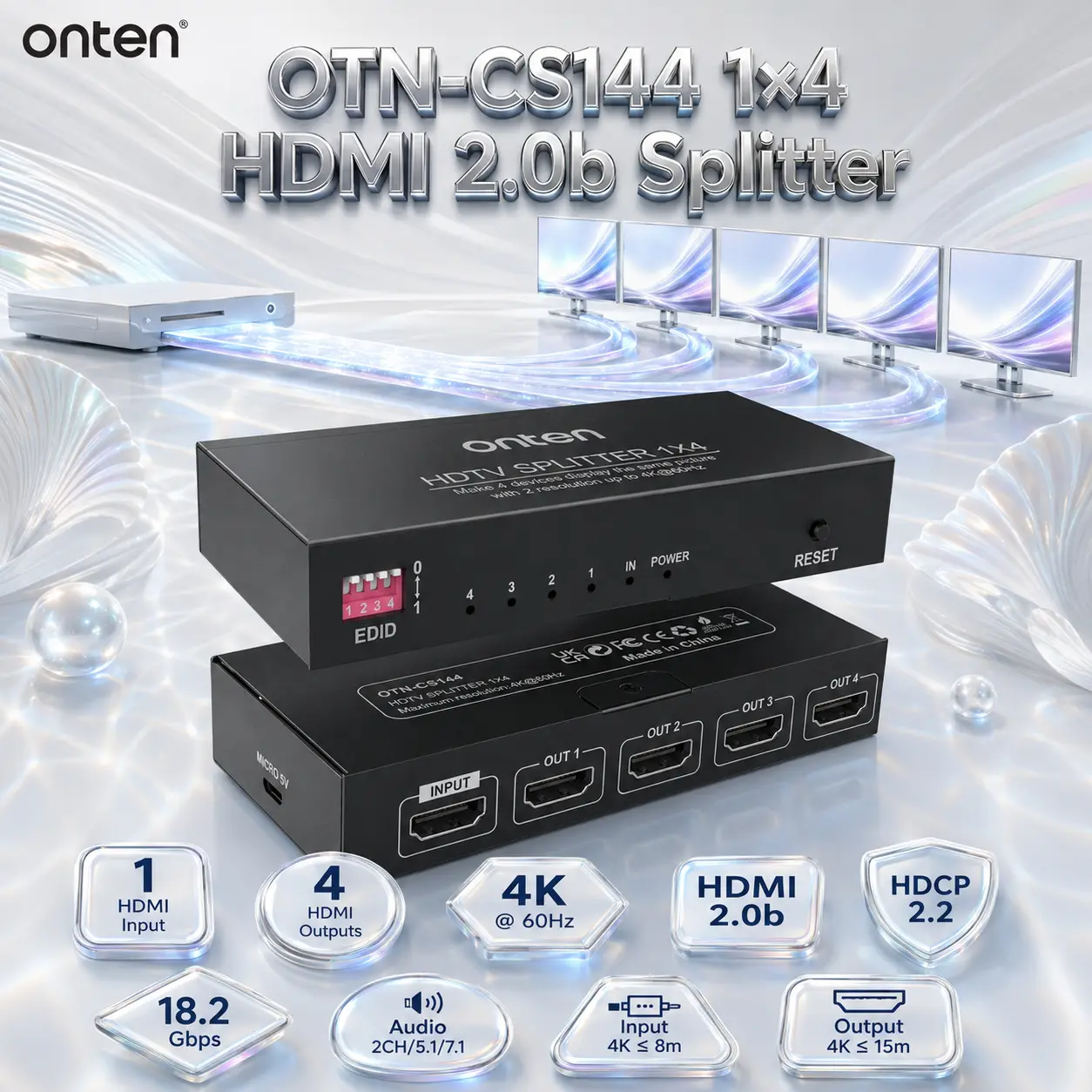

ONTEN 1X4 HDMI 2.0 4K@60Hz SPLITTER
ONTEN OTN-CS144 1×4 HDMI 2.0b Splitter – 1 HDMI Input, 4 HDMI Outputs, 4K@60Hz, HDCP 2.2, 18.2Gbps, EDID Control & Multi-Channel Audio Support
Expert Features
- 1-to-4 HDMI Splitting : Connect 1 HDMI source and distribute the same signal to 4 HDMI displays.
- 4K@60Hz Ultra HD Support : Supports output resolution up to 3840 × 2160 @ 60Hz for sharp and smooth Ultra HD performance.
- HDMI 2.0b Input Support : Uses 1 × HDMI 2.0b input for modern high-quality source connectivity.
- HDCP 2.2 Compatibility : Compatible with HDCP 2.2 for supported protected-content playback setups.
- Four HDMI Outputs : Equipped with 4 HDMI outputs for multi-display distribution from a single source.
- 18.2Gbps Transfer Rate : Supports up to 18.2Gbps transfer bandwidth for stable high-resolution signal transmission.
- Advanced Audio Format Support : Supports TrueHD, DTS-HD, Dolby-AC3 and DSD audio formats.
- Multi-Channel Audio Support : Supports 2CH, 5.1 and 7.1 audio channels for broader audio compatibility.
- Long Input Cable Support : Supports AWG26 input cable length up to 8m at 4K and up to 15m at 1080p.
- Long Output Cable Support : Supports AWG26 output cable length up to 15m at 4K and up to 25m at 1080p.
- EDID Control Support : Includes EDID switching for display-communication configuration management.
- Convenient Multi-Display Solution : Ideal for sending one HDMI source to multiple screens in showrooms, offices or AV setups.
Expert Specs
| Specification | Details |
|---|---|
| Brand | ONTEN |
| Model | OTN-CS144 |
| Product Type | 1×4 HDMI 2.0b Splitter |
| Input Ports | 1 × HDMI |
| Input Standard | HDMI 2.0b |
| HDCP Compatibility | HDCP 2.2 |
| Output Ports | 4 × HDMI |
| Maximum Output Resolution | Up to 3840 × 2160 @ 60Hz |
| Transfer Rate | Up to 18.2Gbps |
| Audio Formats | TrueHD, DTS-HD, Dolby-AC3, DSD |
| Supported Audio Channels | 2CH / 5.1 / 7.1 |
| Input Cable Length (AWG26) | 4K ≤ 8m; 1080p ≤ 15m |
| Output Cable Length (AWG26) | 4K ≤ 15m; 1080p ≤ 25m |
| EDID Support | Yes |
| Power Input | Micro 5V |
| Primary Function | 1 HDMI Input to 4 HDMI Outputs |
| Product Color | Black |
