OTN-CS420
ONTEN 4X2 4K HDMI 2.0 SWITCH @60HZ

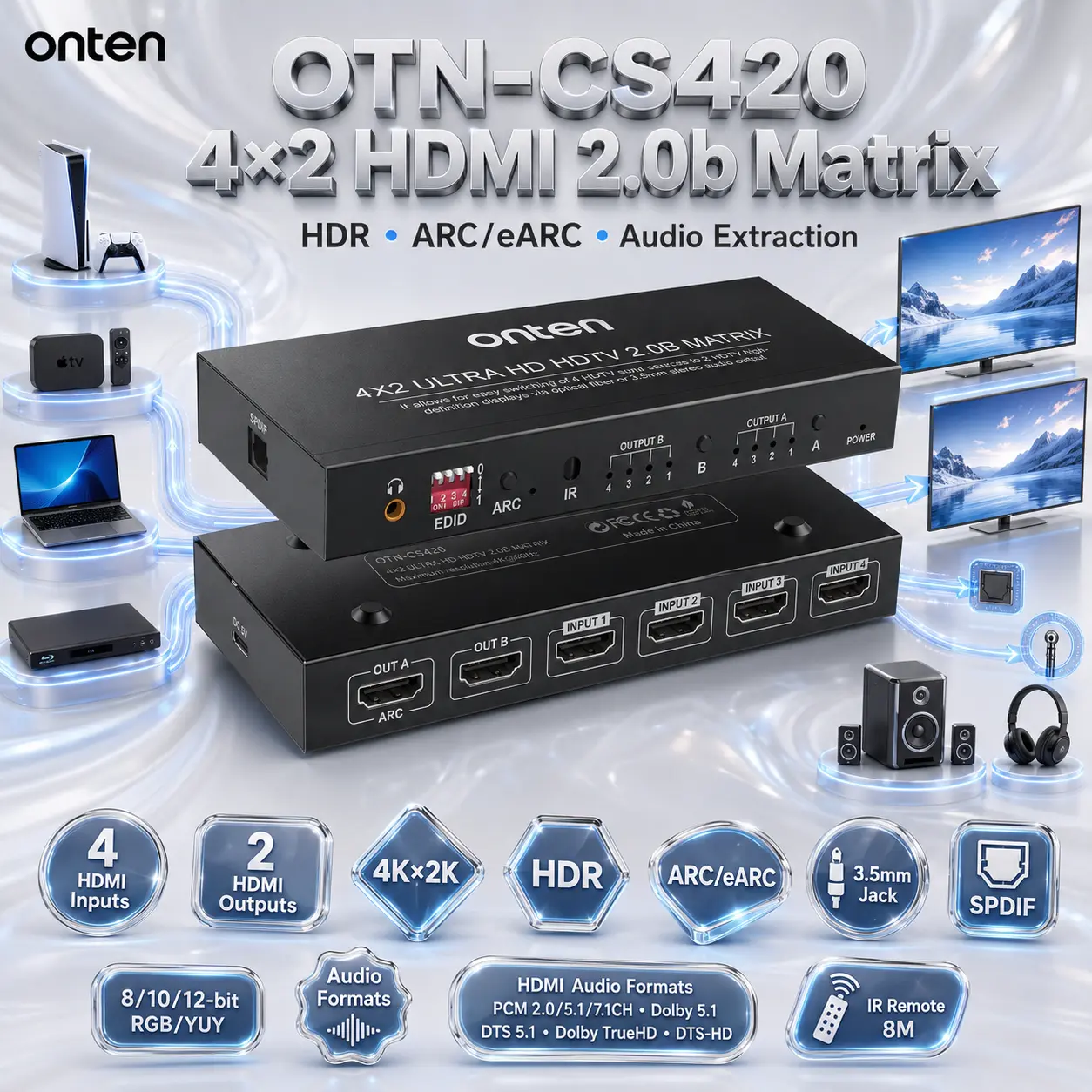

ONTEN OTN-CS420 4×2 HDMI 2.0 Matrix – 4 HDMI Inputs, 2 HDMI Outputs, 4K×2K, HDR, ARC/eARC, 3.5mm Jack, SPDIF, IR Remote Control
Expert Features
- 4×2 HDMI Matrix Switching : Connect 4 HDMI source devices and route them flexibly to 2 HDMI outputs for smarter multi-display signal control.
- 4K×2K Ultra HD Support : Supports up to 4K×2K resolution for sharp, detailed high-definition display output.
- HDR Visual Support : Supports HDR for compatible enhanced image depth, contrast and visual richness.
- ARC / eARC Functionality : Supports ARC/eARC for broader audio-return compatibility in supported setups.
- Dual HDMI Outputs : Features 2 HDMI outputs for flexible display routing through the matrix design.
- Multiple Audio Output Options : Includes 3.5mm JACK and SPDIF outputs for additional audio-output flexibility.
- HDMI 2.0 Input Connectivity : Equipped with 4 × HDMI 2.0 inputs for connecting multiple modern HDMI source devices.
- Advanced Color Depth Support : Supports 8-bit, 10-bit and 12-bit RGB / YUY color space and color depth configurations.
- Broad HDMI Audio Format Support : Supports PCM 2.0 / 5.1 / 7.1CH, Dolby 5.1, DTS 5.1, Dolby TrueHD and DTS-HD.
- Additional Audio Format Compatibility : Supports LPCM 2CH, LPCM 5.1, Dolby Digital 2 / 5.1CH and DTS 2 / 5.1CH.
- IR Remote Control : Includes IR remote control support for convenient switching and control.
- 8M Remote Distance : Supports a maximum IR remote-control distance of 8 meters.
Expert Specs
| Specification | Details |
|---|---|
| Brand | ONTEN |
| Model | OTN-CS420 |
| Product Type | 4×2 HDMI Matrix Switcher |
| Function | 4-in / 2-out HDMI Matrix |
| Input Ports | 4 × HDMI |
| Input Standard | HDMI 2.0 |
| Output Ports | 2 × HDMI |
| Additional Audio Outputs | 3.5mm JACK, SPDIF |
| Resolution Support | 4K×2K |
| HDR Support | Yes |
| ARC / eARC Support | Yes |
| Color Space & Color Depth | 8-bit, 10-bit, 12-bit RGB / YUY |
| HDMI Audio Formats | PCM 2.0 / 5.1 / 7.1CH, Dolby 5.1, DTS 5.1, Dolby TrueHD, DTS-HD |
| Audio Formats | LPCM 2CH, LPCM 5.1, Dolby Digital 2 / 5.1CH, DTS 2 / 5.1CH |
| Remote Control | IR Remote Control |
| Maximum IR Distance | 8M |
| Product Color | Black |
