OTN-CS220
ONTEN 2×2 HDMI 2.0 MATRIX SPECIFICATION 4K@60HZ

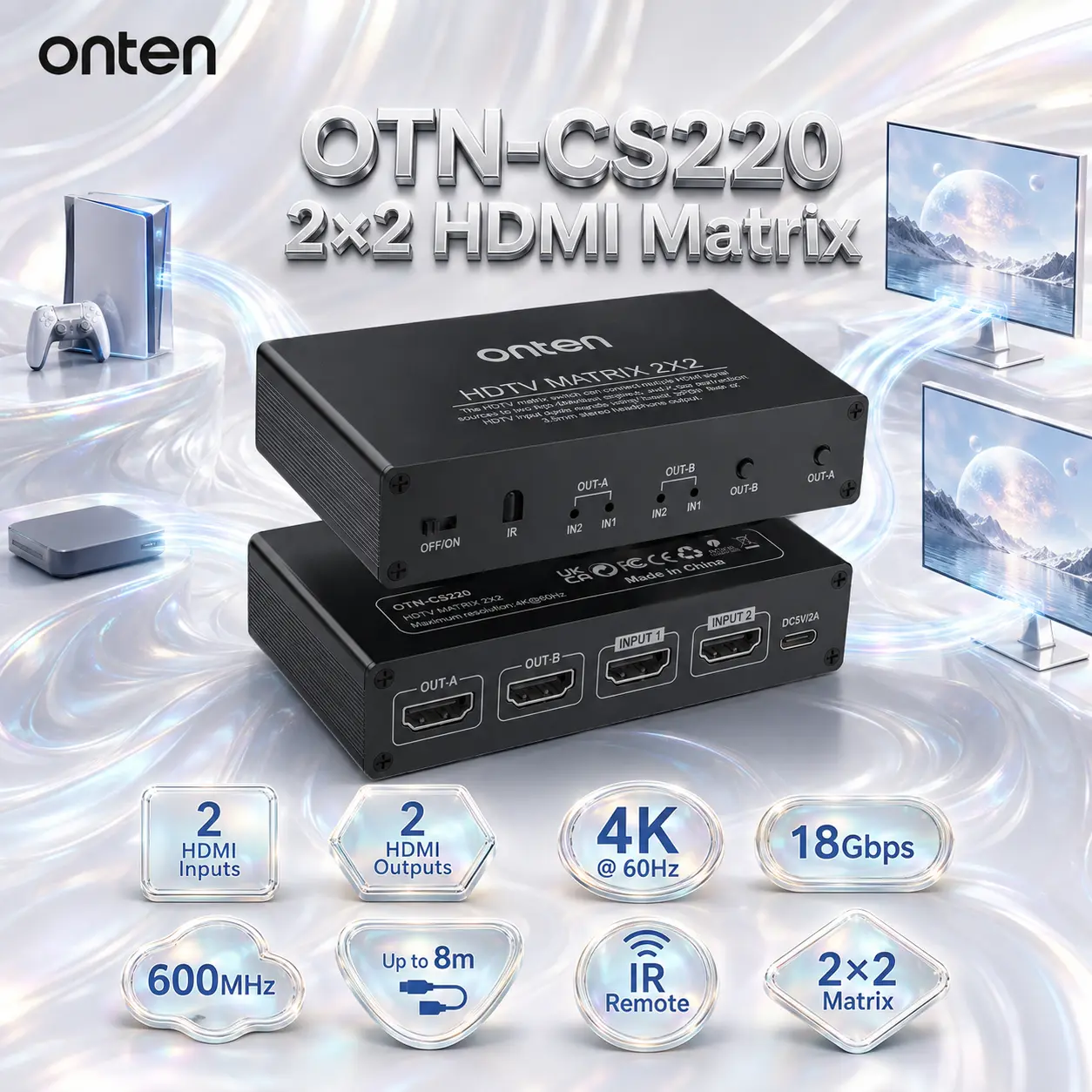

ONTEN OTN-CS220 2×2 HDMI Matrix – 2 HDMI Inputs, 2 HDMI Outputs, 4K@60Hz, 18Gbps / 600MHz, Up to 8m Output Distance & IR Remote Control
Expert Features
- 2×2 HDMI Matrix Routing : Connect 2 HDMI source devices and distribute them across 2 HDMI outputs for flexible multi-display signal management.
- 4K@60Hz Ultra HD Output : Supports output resolution up to 3840 × 2160 @ 60Hz for crisp and smooth Ultra HD viewing.
- Dual HDMI Input Design : Equipped with 2 HDMI inputs for connecting multiple source devices in one compact matrix unit.
- Dual HDMI Output Design : Features 2 HDMI outputs for flexible routing to two separate display connections.
- 18Gbps High-Speed Bandwidth : Supports a maximum bandwidth of 18Gbps / 600MHz for stable high-resolution signal transmission.
- HDMI 1.4 Input Compatibility : Uses HDMI 1.4 inputs for supported source connectivity.
- Extended Output Distance : Supports output cable distance up to 8m when using AWG26 HDMI 2.0 standard cable.
- IR Remote Control Support : Includes IR remote control for more convenient matrix operation.
- 8M Remote-Control Range : Supports a maximum IR remote distance of 8 meters for flexible day-to-day usage.
- Practical AV Matrix Solution : Ideal for users needing a 2-input / 2-output HDMI matrix for smarter signal routing.
Expert Specs
| Specification | Details |
|---|---|
| Brand | ONTEN |
| Model | OTN-CS220 |
| Product Type | 2×2 HDMI Matrix |
| Input Ports | 2 × HDMI |
| Input Standard | HDMI 1.4 |
| Output Ports | 2 × HDMI |
| Maximum Output Resolution | Up to 3840 × 2160 @ 60Hz |
| Output Format | YUV 4:2:0 |
| Maximum Bandwidth | 18Gbps / 600MHz |
| Output Cable Distance | Up to 8m |
| Recommended Cable | AWG26 HDMI 2.0 Standard Cable |
| Remote Control | IR Remote Control |
| Maximum IR Distance | 8M |
| Primary Function | 2 HDMI Inputs to 2 HDMI Outputs Matrix Switching |
| Product Color | Black |
