ST4000VN3300
SYNOLOGY HAT3300 4TB HDD SATA

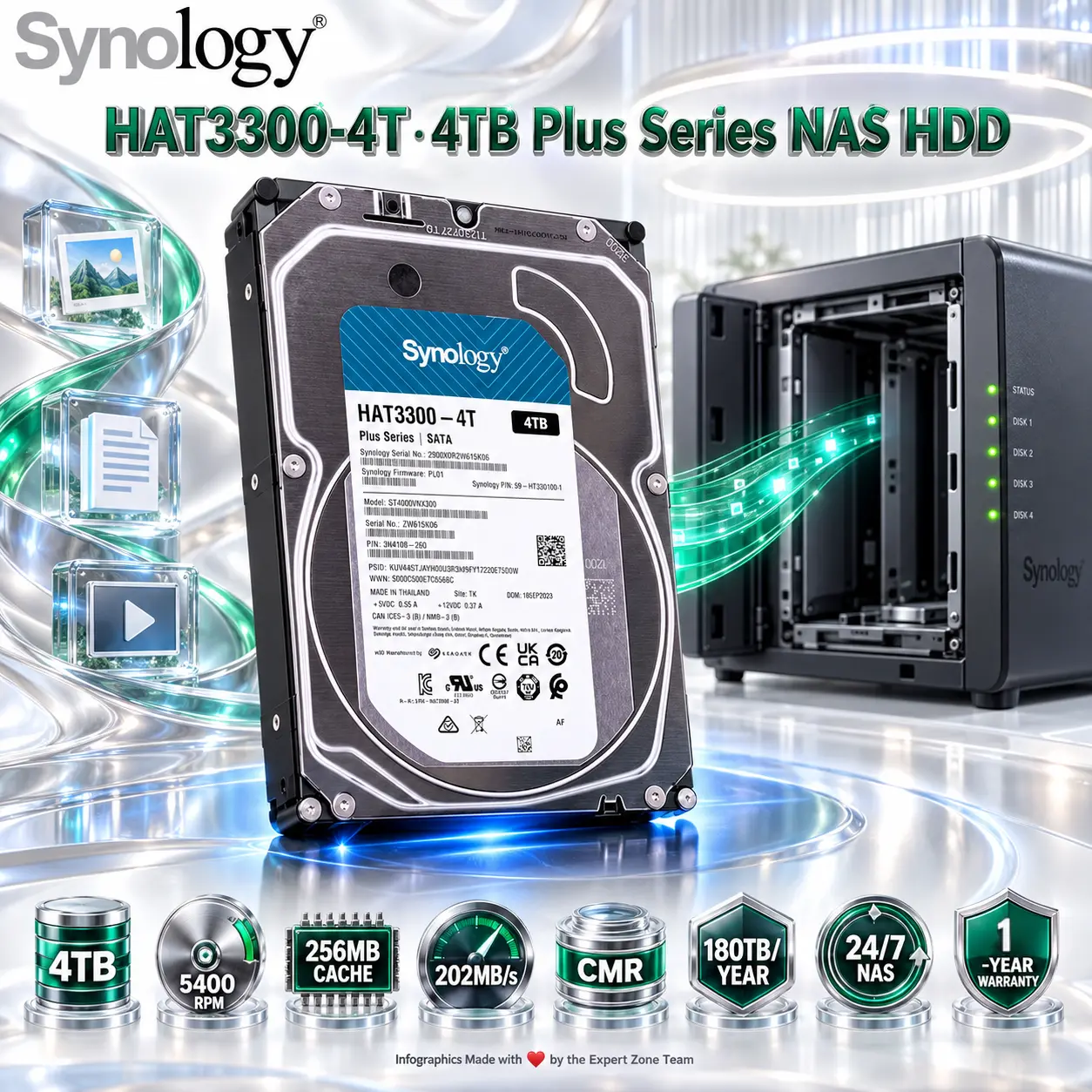

Synology HAT3300-4T Plus Series 4TB NAS HDD, 3.5-Inch SATA 6Gb/s, 5400 RPM, 256MB Cache, 202MB/s, CMR, 180TB/Year Workload, 24/7 Operation | ST4000VN3300
Synology HAT3300-4T Plus Series 4TB NAS HDD, 3.5-Inch SATA 6Gb/s, 5400 RPM, 256MB Cache, 202MB/s, CMR, 180TB/Year Workload, 24/7 Operation | ST4000VN3300
265 $
EXPERT FEATURES
- 4TB NAS-Ready Storage : Add 4TB of dedicated storage to a compatible NAS for shared files, photos, media libraries, and backups. This is a bare internal drive, not a complete NAS or USB external drive.
- 24/7 Storage Design : Engineered for always-on Synology storage systems and multi-user workloads, with extensive manufacturer compatibility and stress validation.
- 100% CMR Recording : Conventional Magnetic Recording (CMR) supports consistent sustained write behavior, including NAS and RAID workloads.
- SATA 6Gb/s Interface : Uses a standard internal SATA 6Gb/s data connection in a 3.5-inch drive bay. The host must provide compatible SATA data and power connections.
- 5400 RPM / 256MB Cache : Combines 5400 RPM rotational speed with 256MB cache, tuned for NAS storage duties rather than NVMe SSD-like performance.
- Up to 202MB/s Sustained Transfer : Synology specifies a typical maximum sustained data transfer speed of 202MB/s; actual results depend on workload, enclosure, RAID mode, and network.
- 180TB/Year Workload Rating : Rated for up to 180TB per year of host data reads, writes, and verification commands in supported operating conditions.
- 1 Million-Hour MTBF : Manufacturer-rated mean time between failures of 1,000,000 hours is a statistical fleet measure, not a predicted lifetime of an individual drive.
- DSM Firmware Integration : Firmware can be updated through Synology DiskStation Manager on supported Synology NAS models, avoiding drive removal for eligible updates.
- Efficient Typical Power Draw : Rated at 3.96W active idle and 4.85W during a random 4KB read/write workload, with consumption varying by system.
EXPERT SPECS
| Specification | HAT3300-4T Details |
|---|---|
| Brand | Synology |
| Series | Plus Series |
| Exact Model / SKU | HAT3300-4T |
| Product Type | Internal NAS Hard Disk Drive (HDD) |
| Capacity | 4TB (manufacturer decimal capacity) |
| Form Factor | 3.5 inches |
| Recording Technology | Conventional Magnetic Recording (CMR) |
| Drive Design | Air-filled |
| Host Interface | SATA 6Gb/s |
| Sector Format | 512e |
| Rotational Speed | 5400 RPM |
| Cache | 256MB |
| Maximum Sustained Transfer Speed (Typical) | 202MB/s |
| Workload Rating | 180TB/year (data read/write/verified) |
| MTBF | 1,000,000 hours (statistical rating) |
| Intended Duty | 24/7 NAS operation |
| Firmware Updates | Through Synology DSM on supported Synology systems |
| Supply Voltage | 12V (±10%) / 5V (±5%) |
| Typical Active Idle Power | 3.96W |
| Typical Random Read/Write Power | 4.85W (4KB, Q1) |
| Operating Temperature | 0–65°C |
| Non-Operating Temperature | −40–70°C |
| Operating Relative Humidity | 5–90% RH, non-condensing |
| Non-Operating Relative Humidity | 5–95% RH, non-condensing |
| Operating Altitude | −304.8 to 3048m |
| Non-Operating Altitude | −304.8 to 12192m |
| Typical Idle Acoustics | 23dB |
| Typical Seek Acoustics | 27dB |
| Operating Shock | 785m/s² (2ms) |
| Non-Operating Shock | 2943m/s² (2ms) |
| Dimensions (H × W × D) | 20.20 × 101.85 × 147mm |
| Weight | 490g |
| Certifications Listed | CE, RCM, BSMI, KC, UKCA, UL, TÜV, ICES, RoHS |
